Acura RL (2006) – wiring diagrams – stop lamp

8 October 2017 admin Acura, RL 0

Acura RL (2006) – wiring diagrams – stop lamp

Year of production:  2006

Stop lamp

Version 1

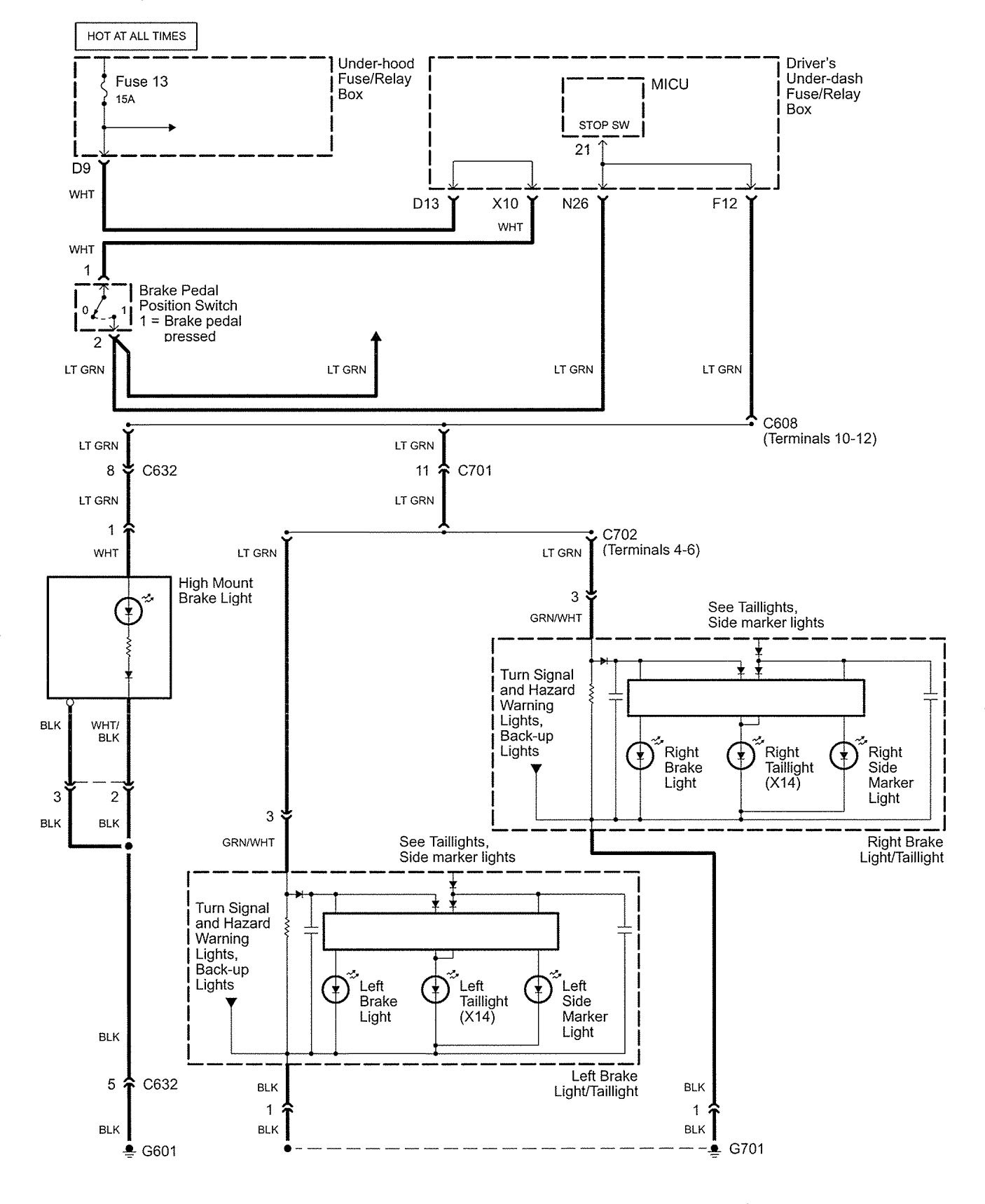

Acura RL - wiring diagram - stop lamp

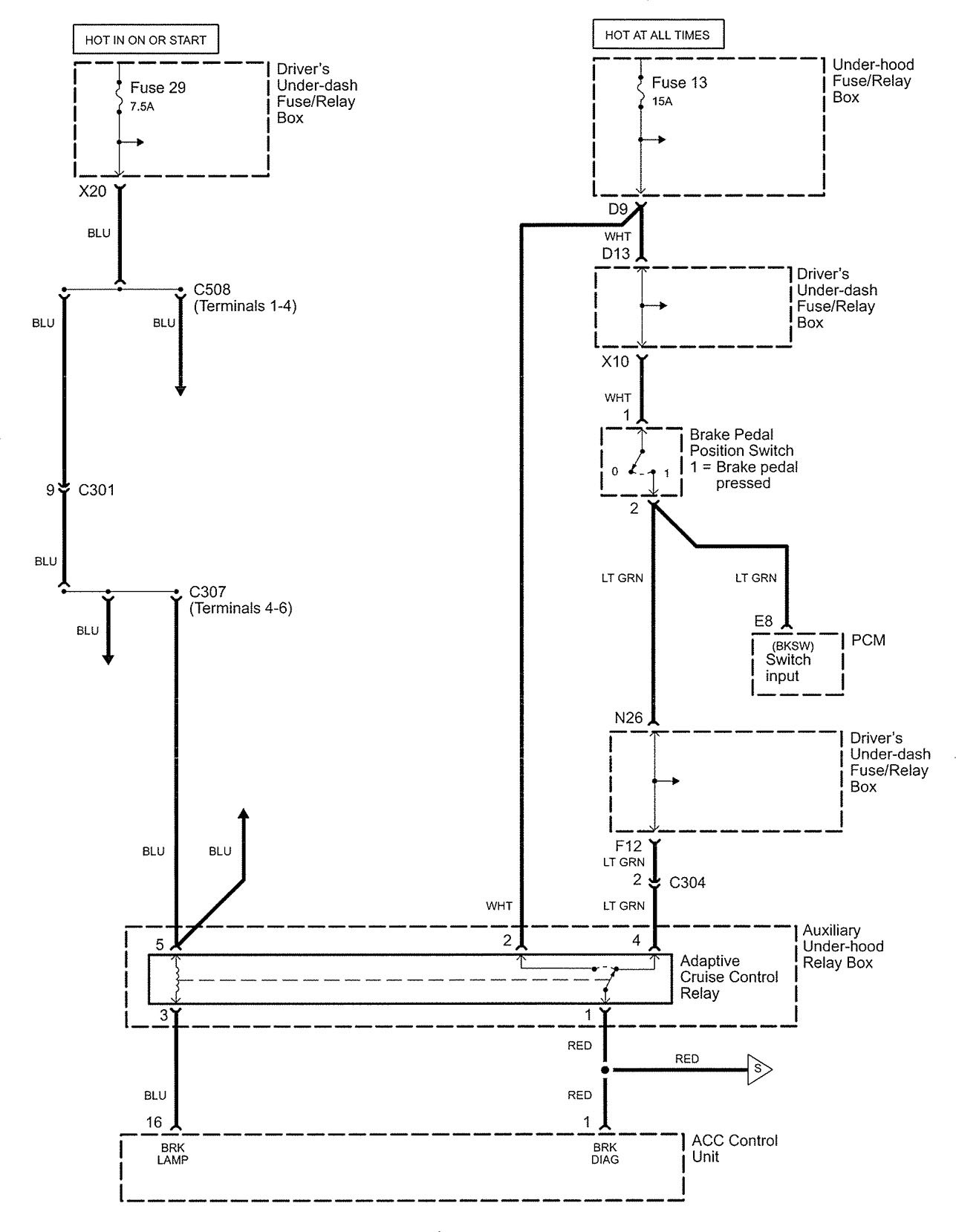

Acura RL – wiring diagram – stop lamp

Version 2

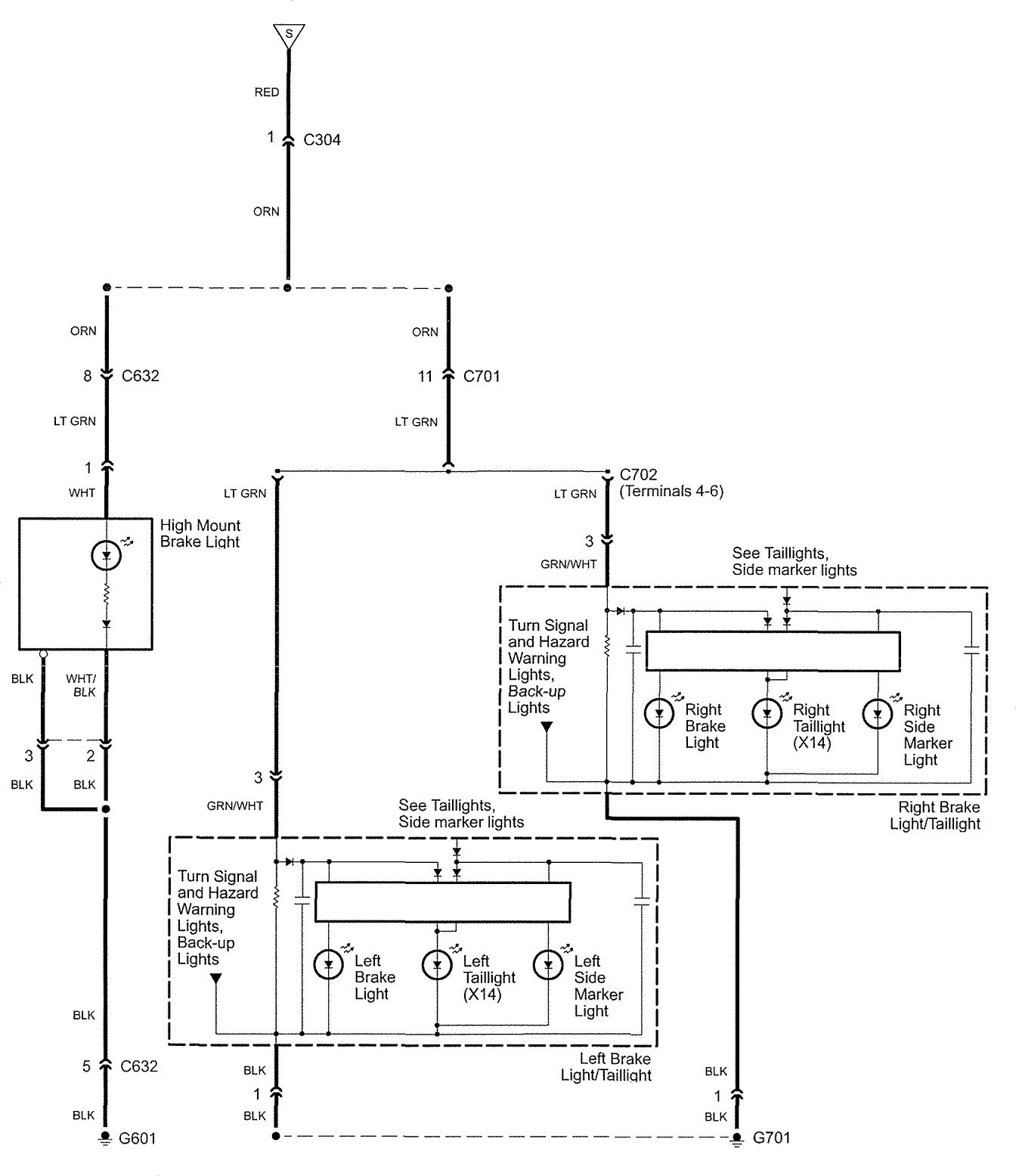

Acura RL - wiring diagram - stop lamp (part 1)
Acura RL – wiring diagram – stop lamp (part 1)

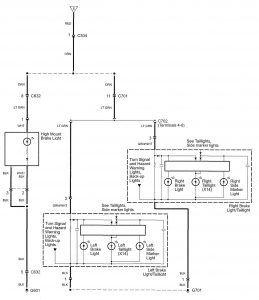

Acura RL - wiring diagram - stop lamp (part 2)
Acura RL – wiring diagram – stop lamp (part 2)

Version 3

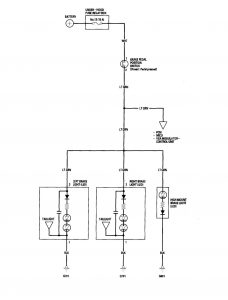

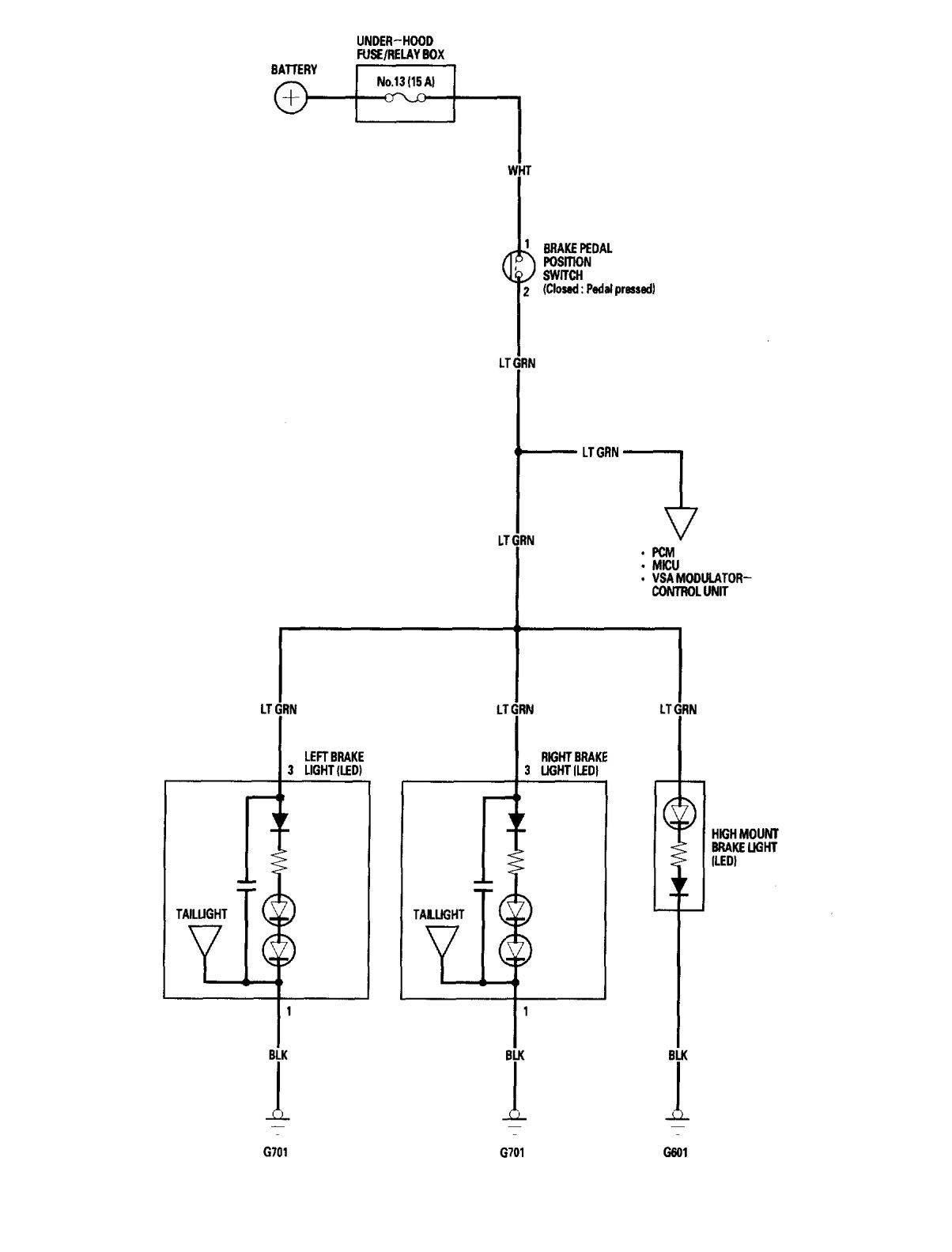

Acura RL - wiring diagram - stop lamp
Acura RL – wiring diagram – stop lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
