Acura RL (2006) – wiring diagrams – audio

8 October 2017 admin Acura, RL 0

Acura RL (2006) – wiring diagrams – audio

Year of productions: 2006

Audio

Version 1

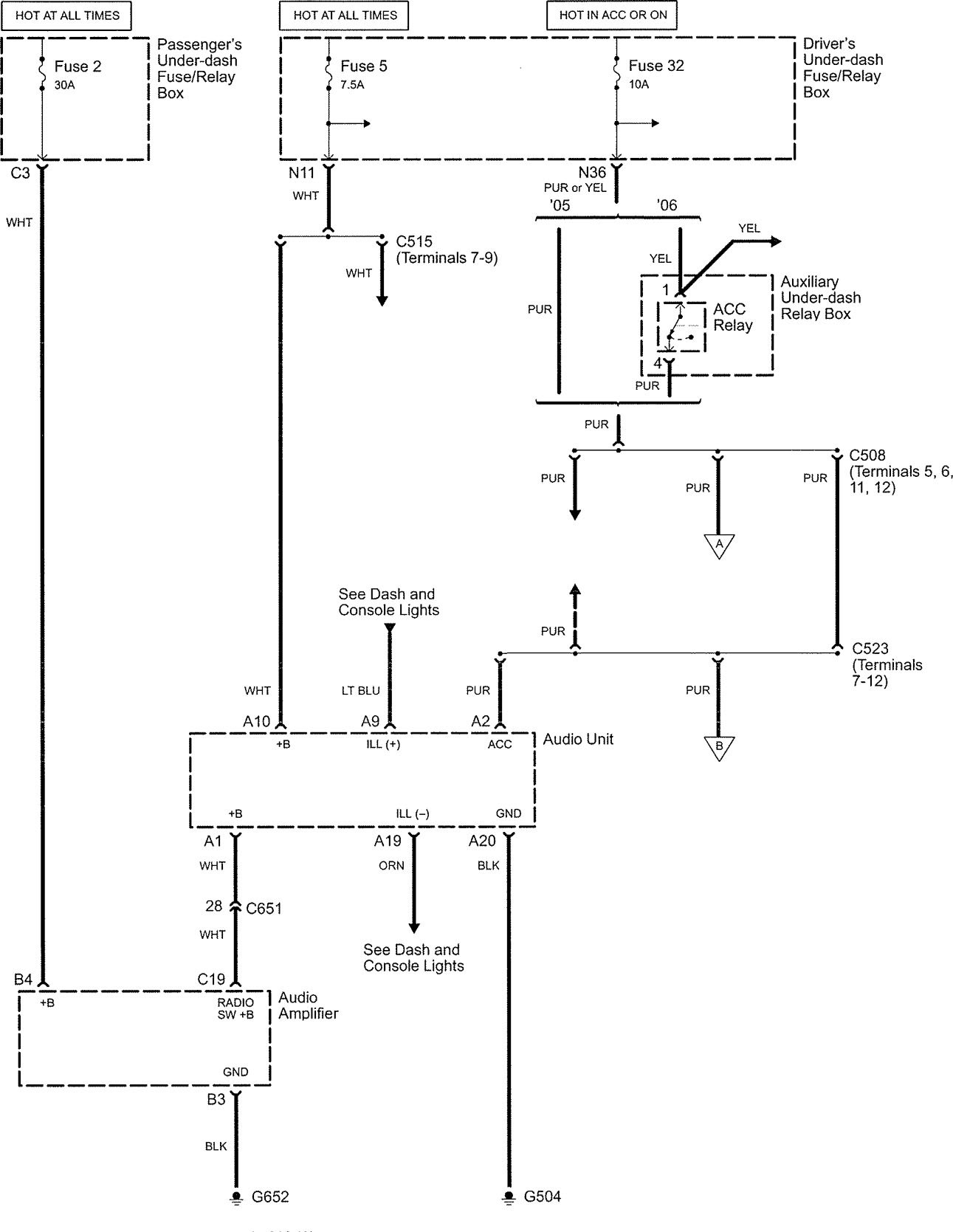

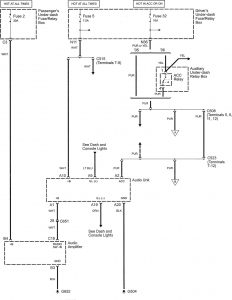

Acura RL - wiring diagram - audio (part 1) — Acura RL – wiring diagram – audio (part 1)

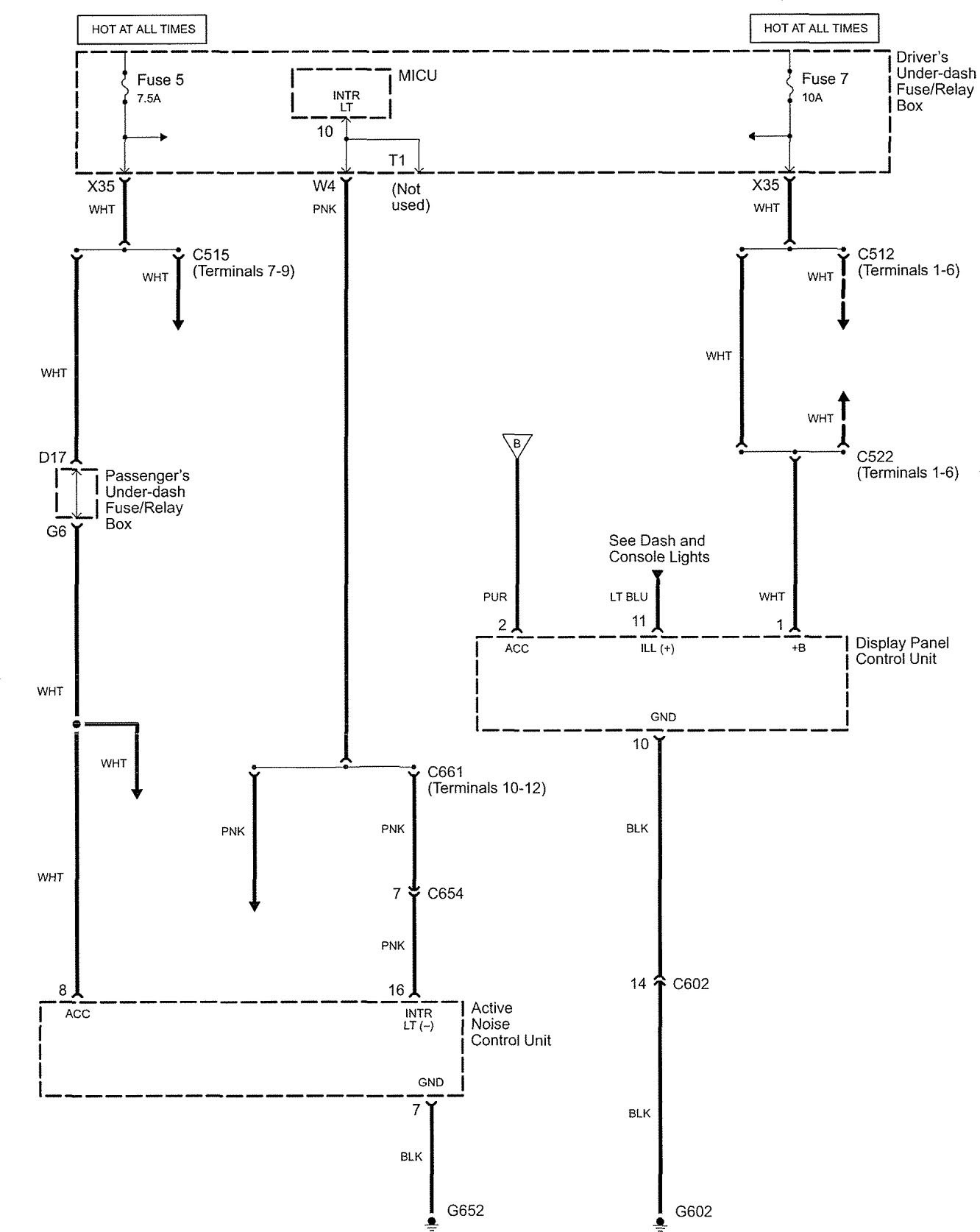

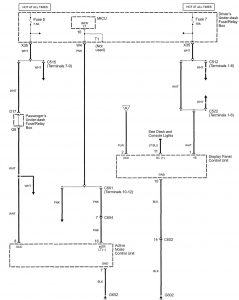

Acura RL - wiring diagram - audio (part 2) — Acura RL – wiring diagram – audio (part 2)

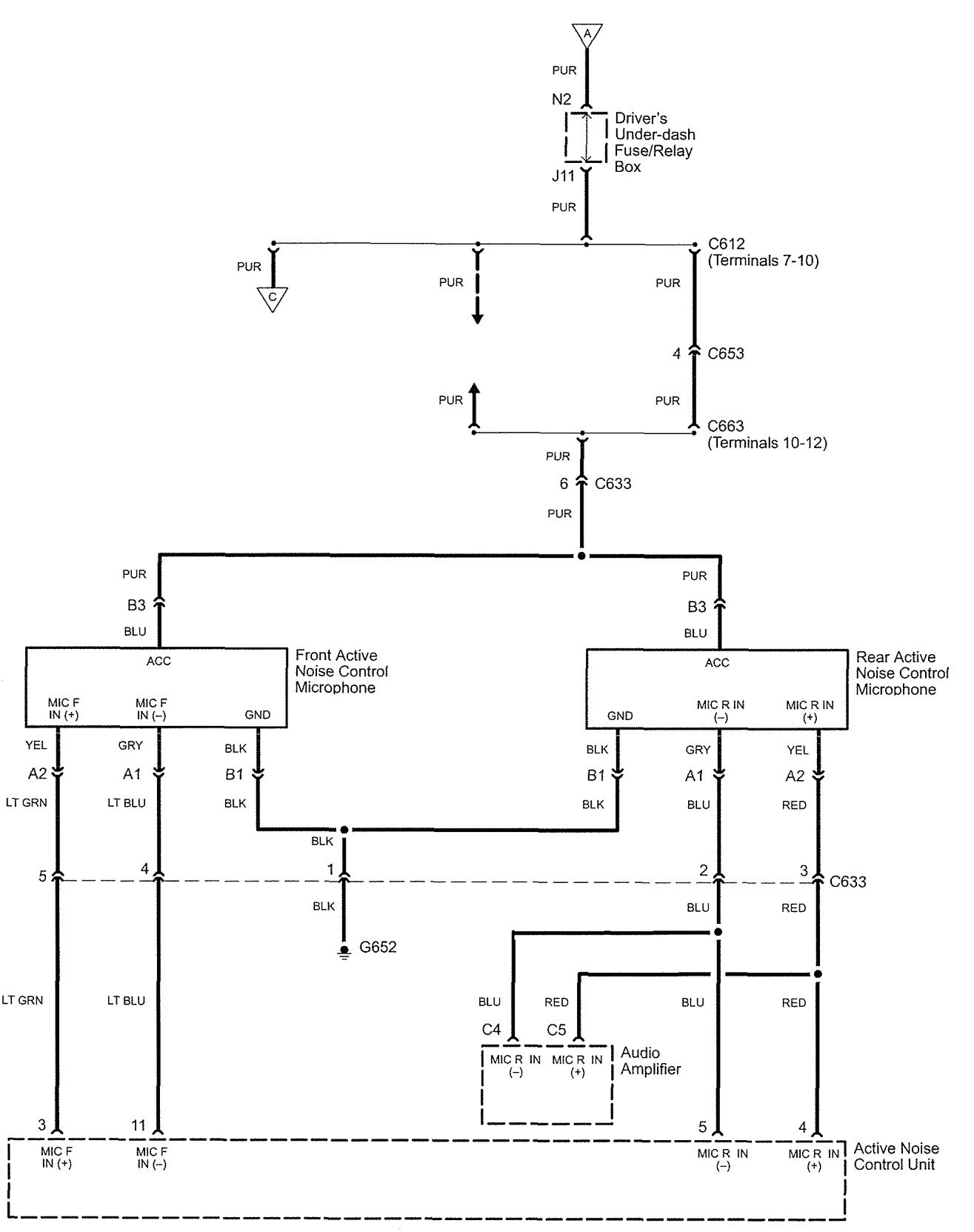

Acura RL - wiring diagram - audio (part 3) — Acura RL – wiring diagram – audio (part 3)

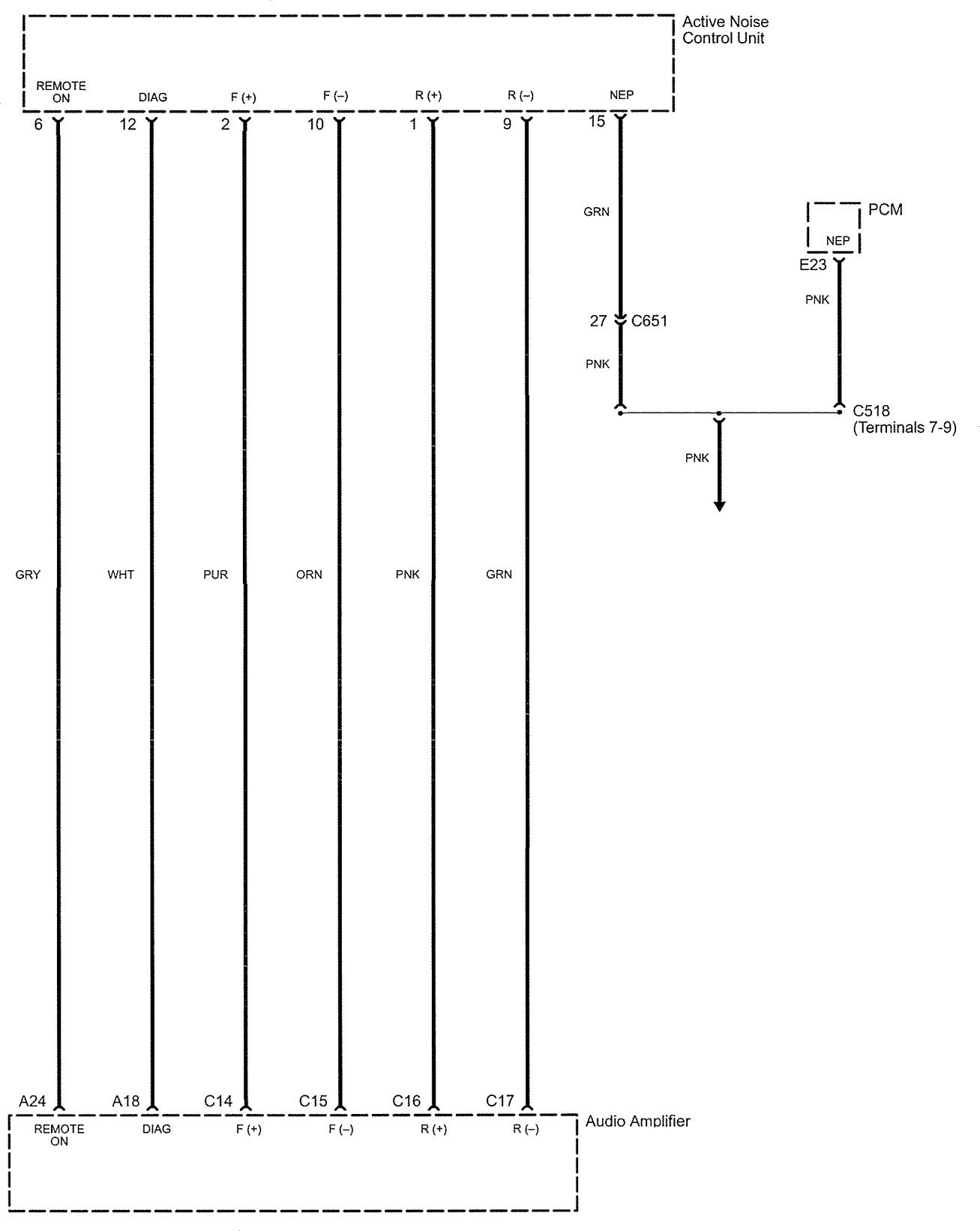

Acura RL - wiring diagram - audio (part 4) — Acura RL – wiring diagram – audio (part 4)

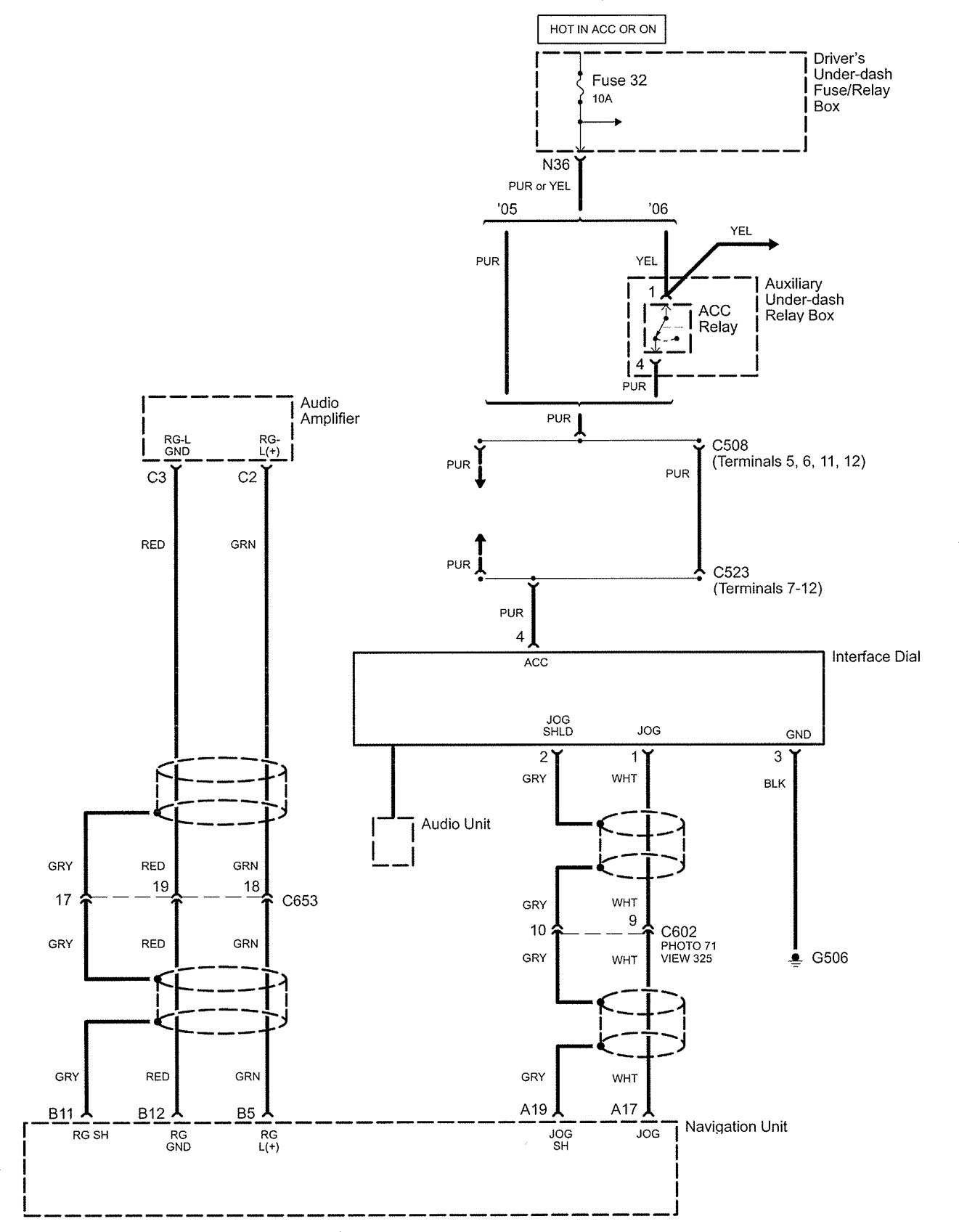

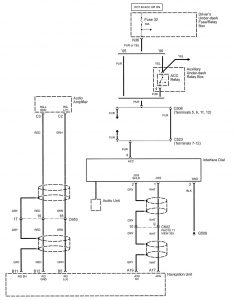

Acura RL - wiring diagram - audio (part 5) — Acura RL – wiring diagram – audio (part 5)

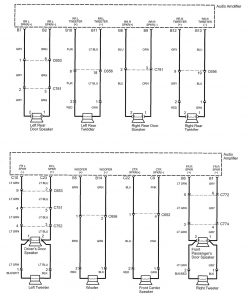

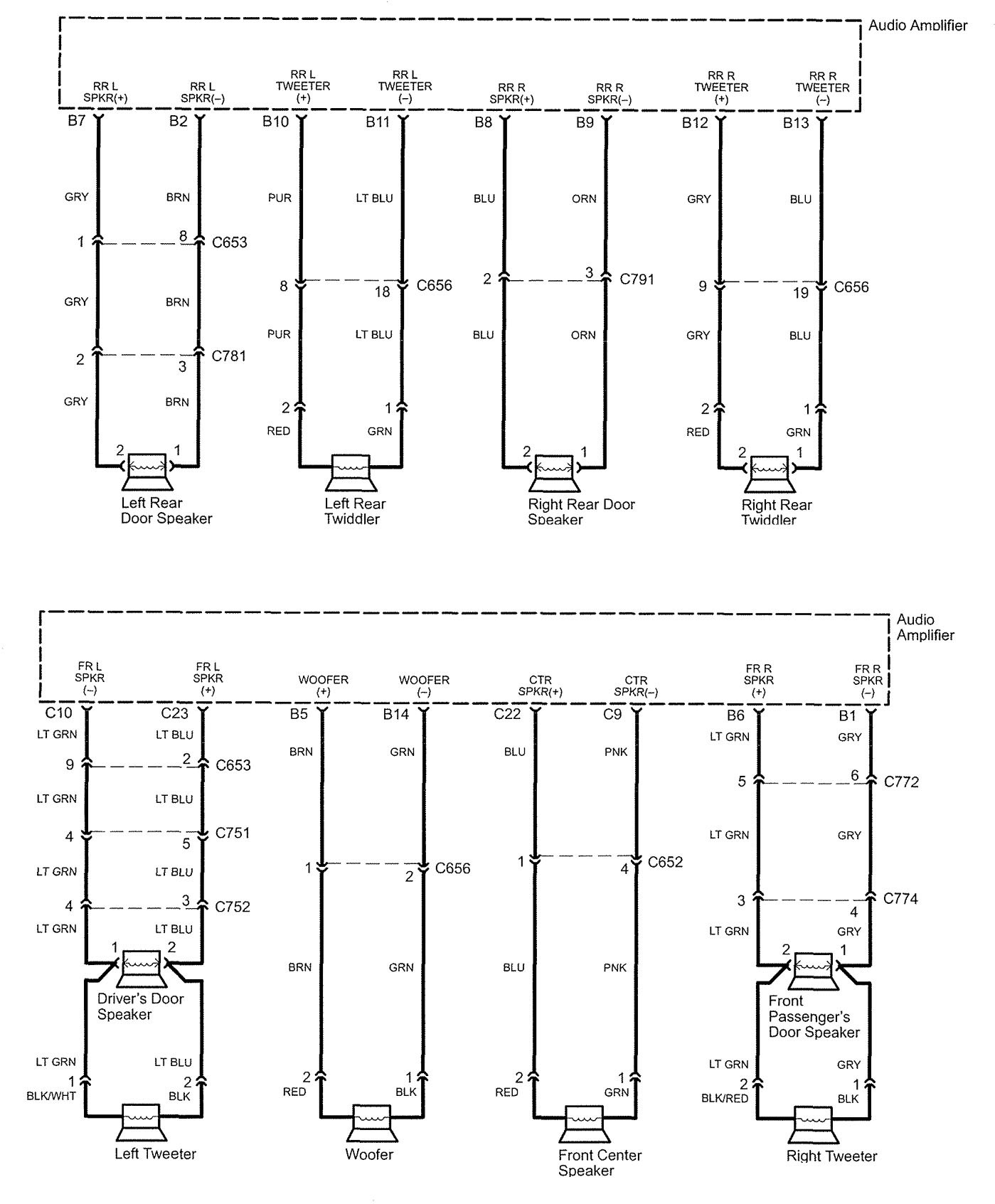

Acura RL - wiring diagram - audio (part 6) — Acura RL – wiring diagram – audio (part 6)

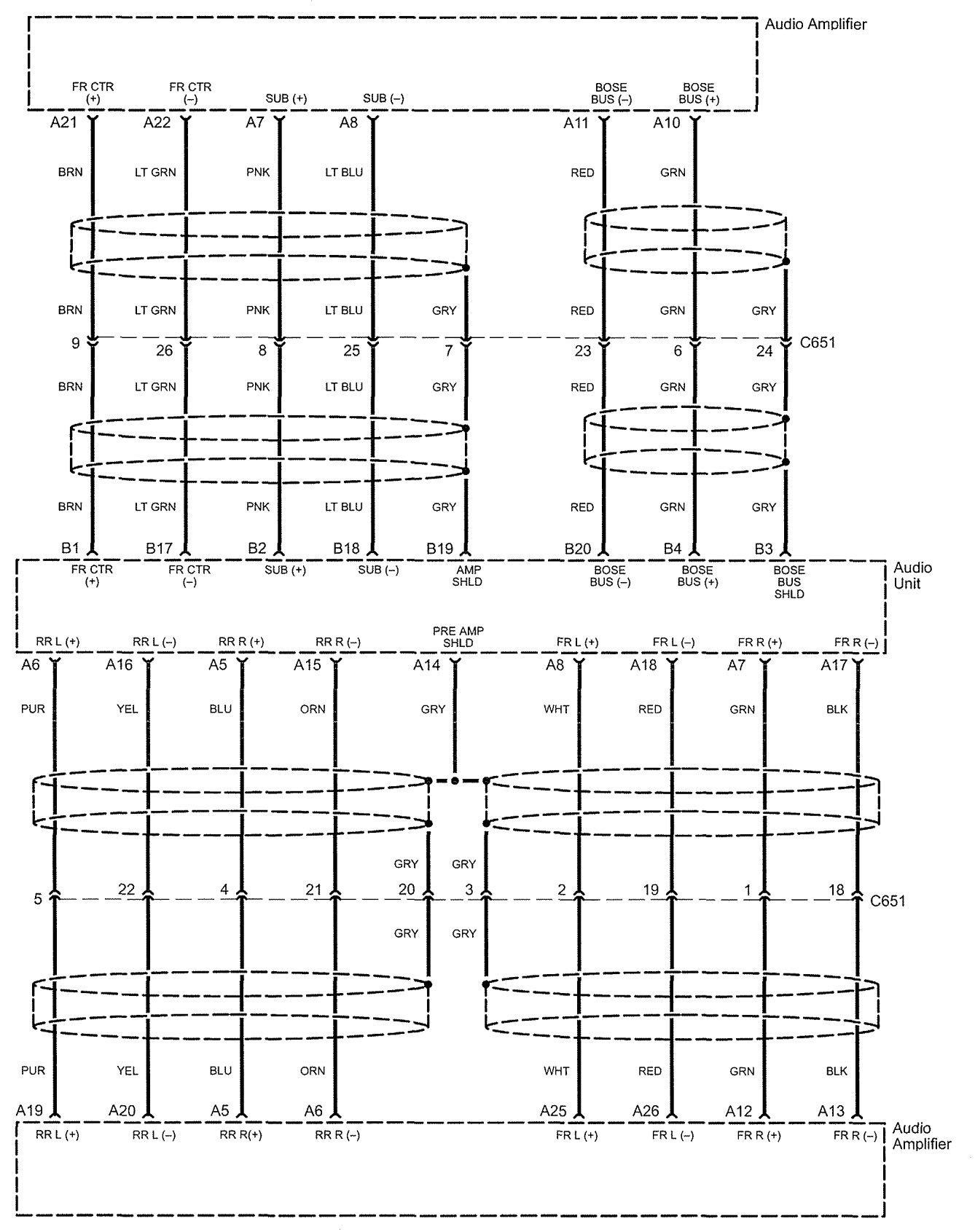

Acura RL - wiring diagram - audio (part 7) — Acura RL – wiring diagram – audio (part 7)

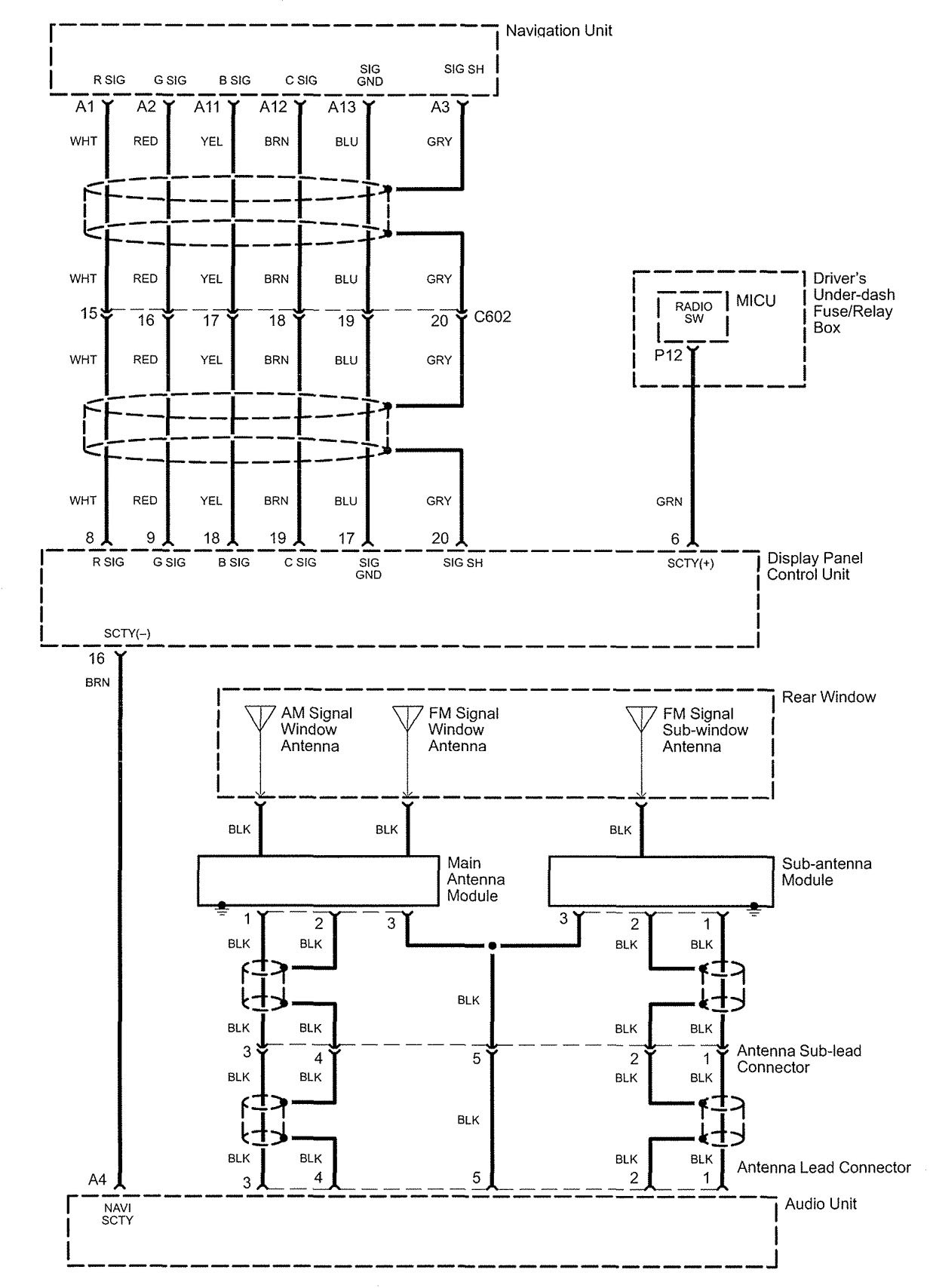

Acura RL - wiring diagram - audio (part 8) — Acura RL – wiring diagram – audio (part 8)

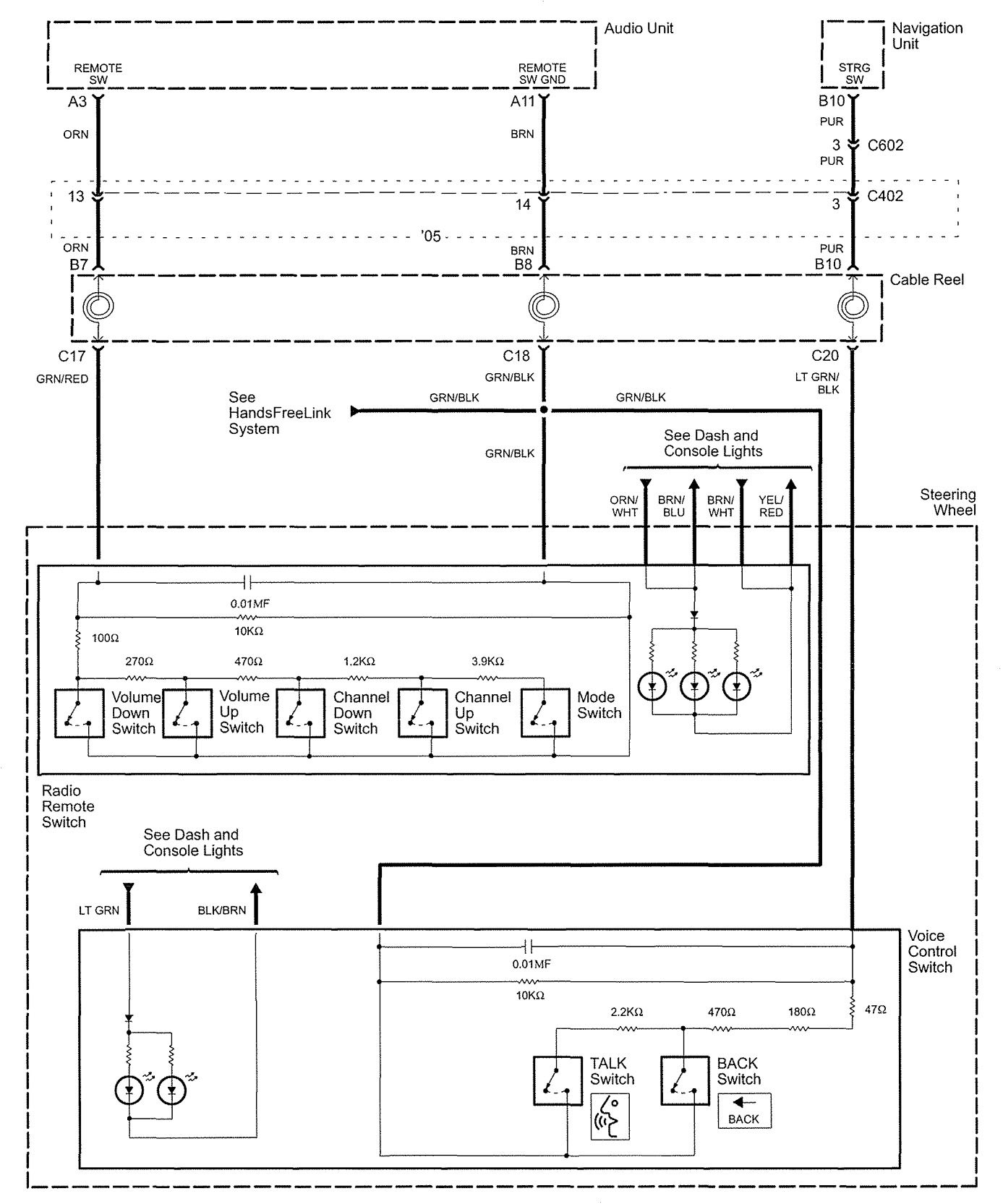

Acura RL - wiring diagram - audio (part 9) — Acura RL – wiring diagram – audio (part 9)

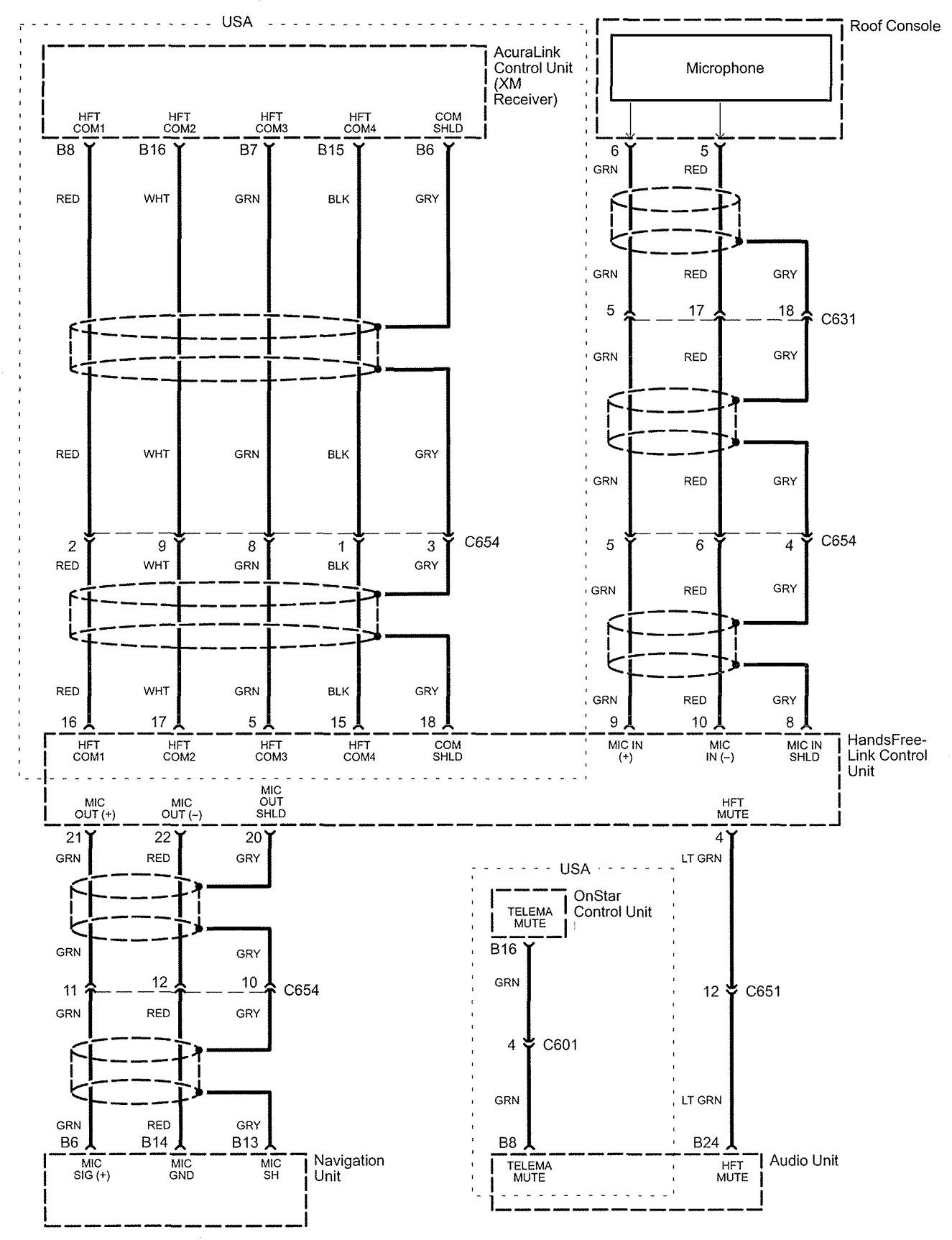

Acura RL - wiring diagram - audio (part 10) — Acura RL – wiring diagram – audio (part 10)

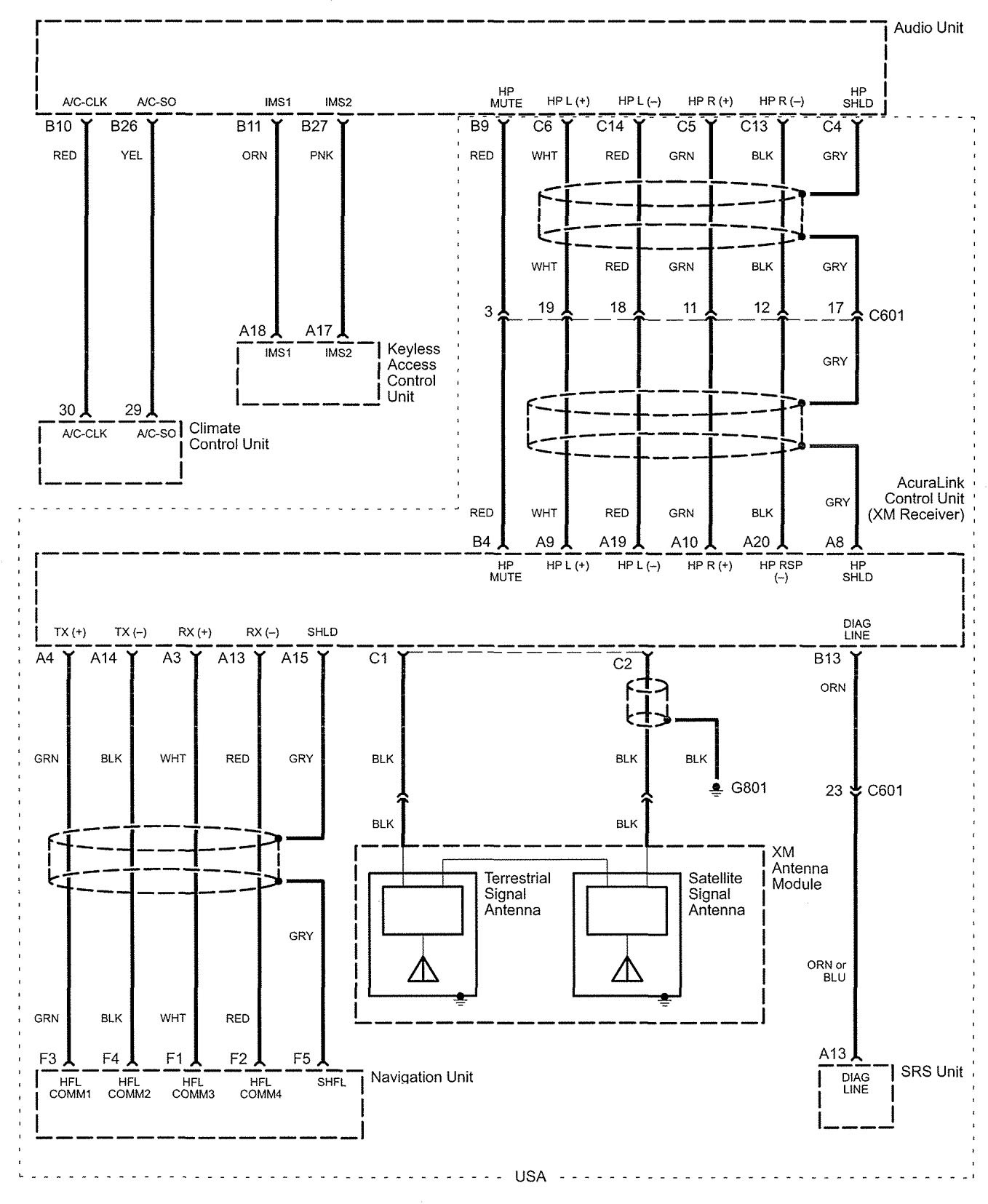

Acura RL - wiring diagram - audio (part 11) — Acura RL – wiring diagram – audio (part 11)

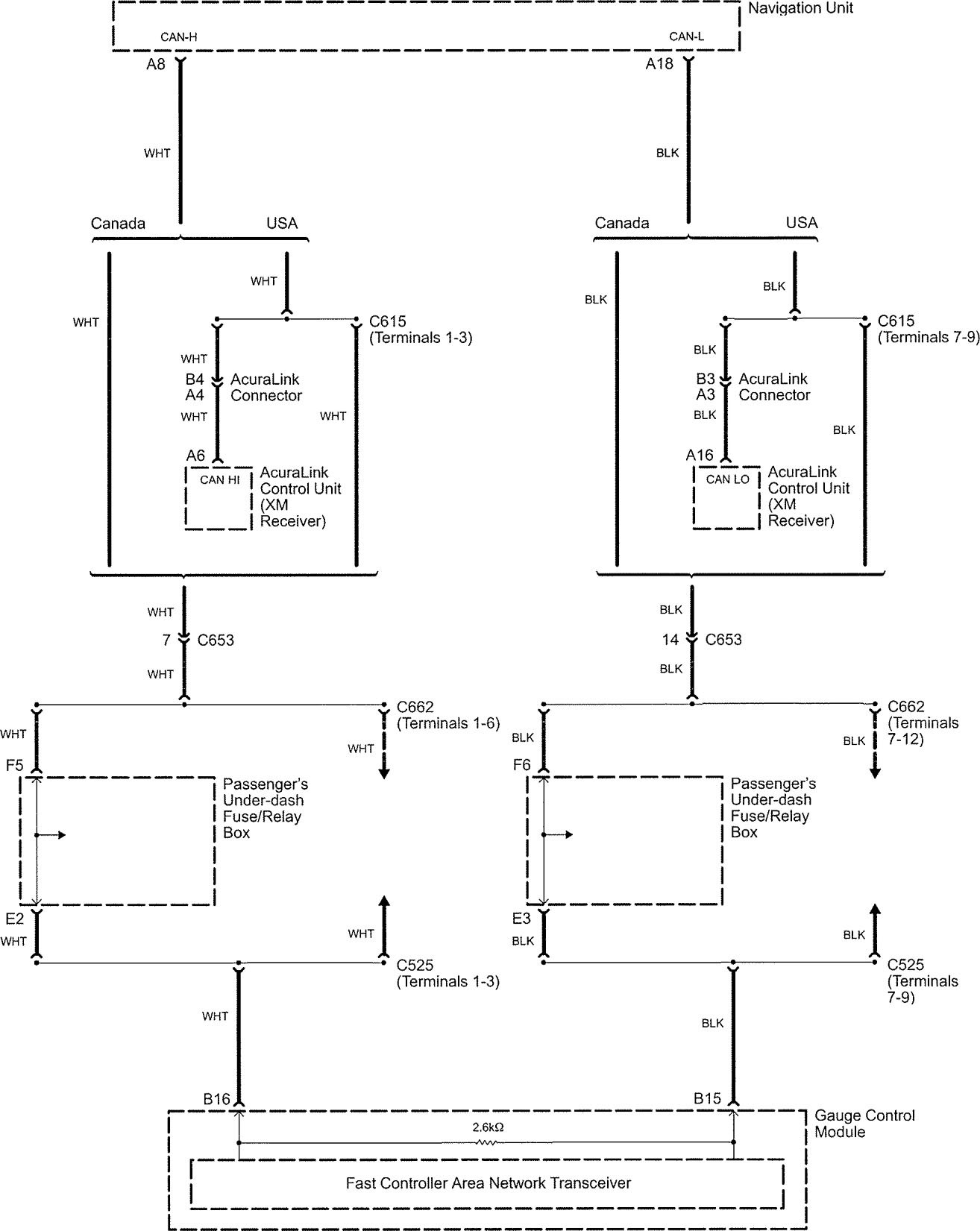

Acura RL - wiring diagram - audio (part 12) — Acura RL – wiring diagram – audio (part 12)

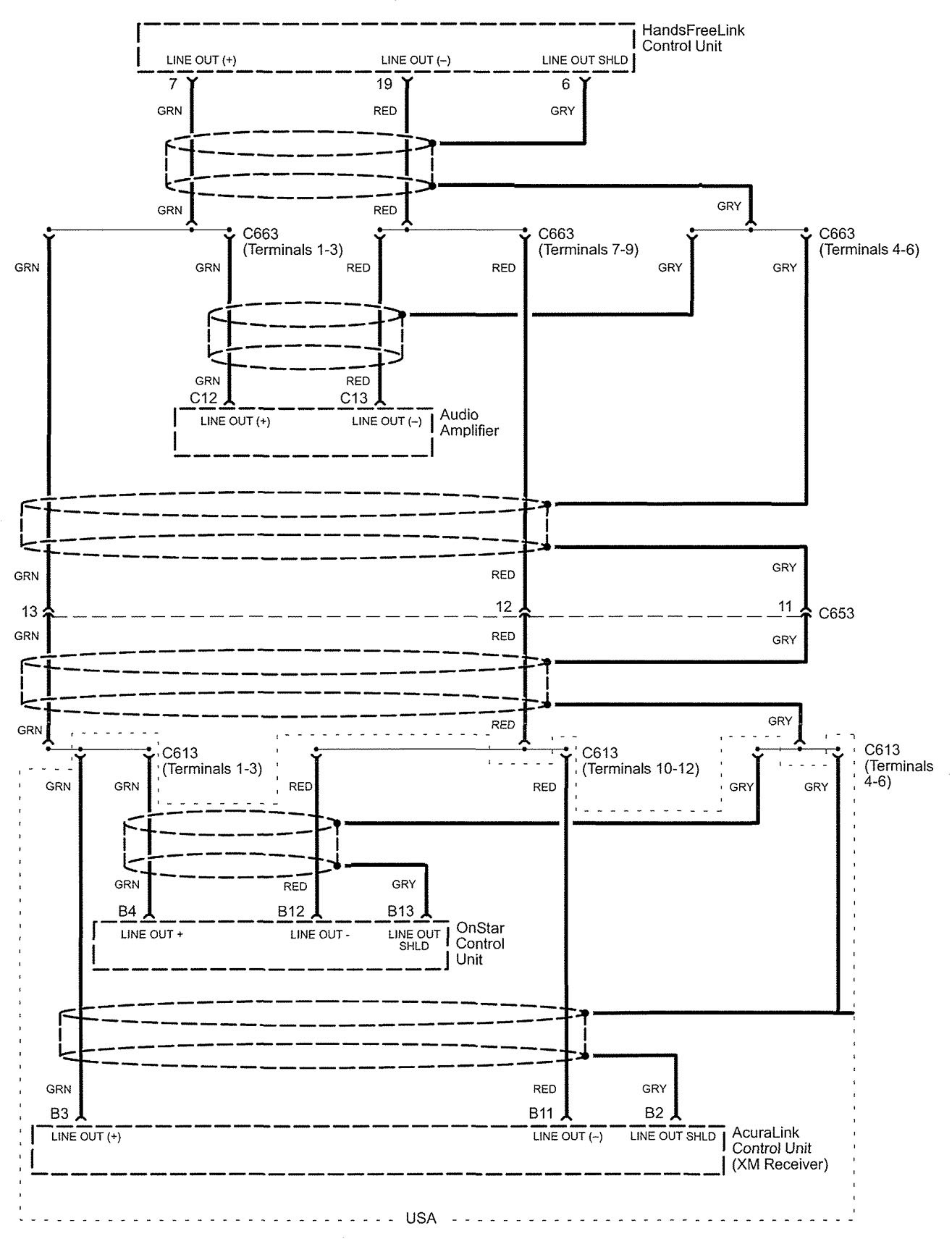

Acura RL - wiring diagram - audio (part 13) — Acura RL – wiring diagram – audio (part 13)

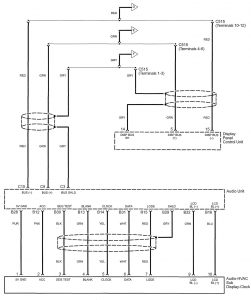

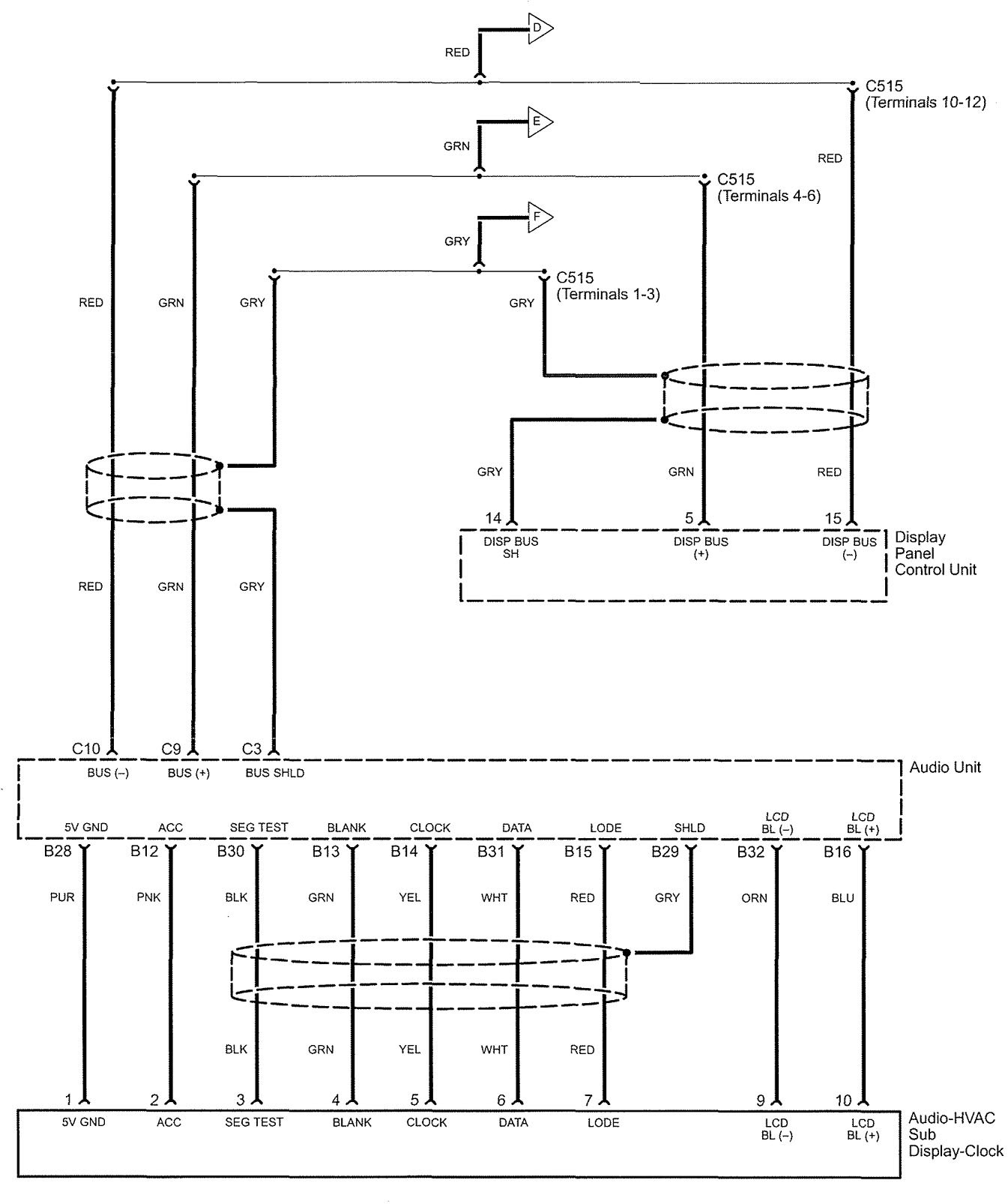

Acura RL - wiring diagram - audio (part 14) — Acura RL – wiring diagram – audio (part 14)

Version 2

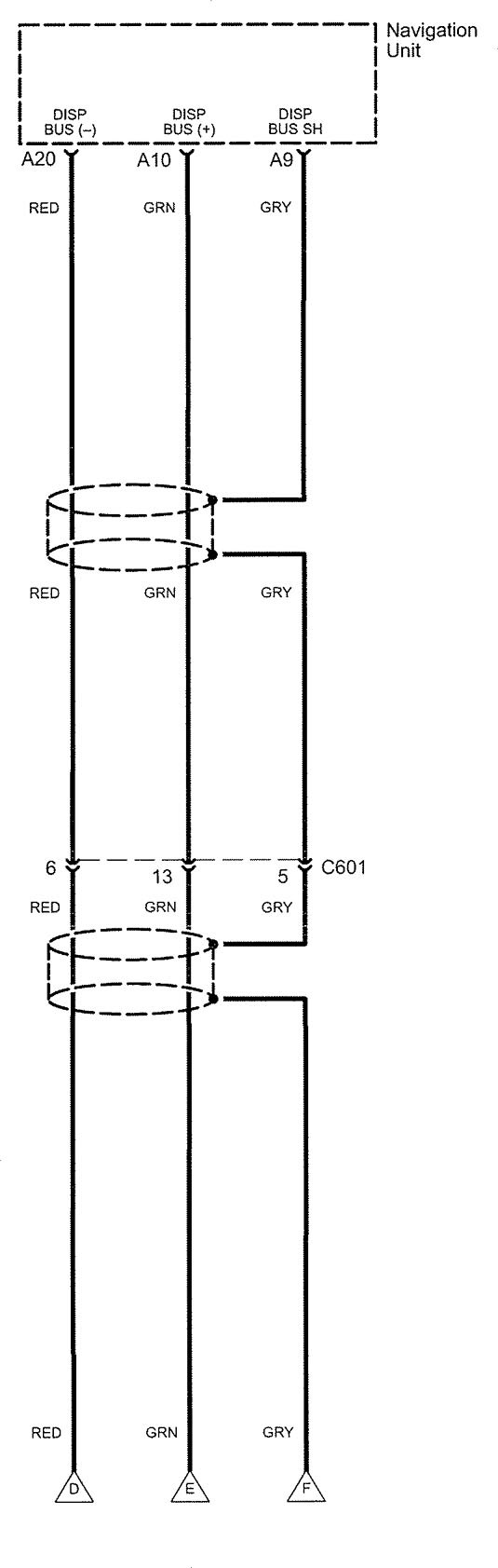

Acura RL - wiring diagram - audio — Acura RL – wiring diagram – audio

Version 3

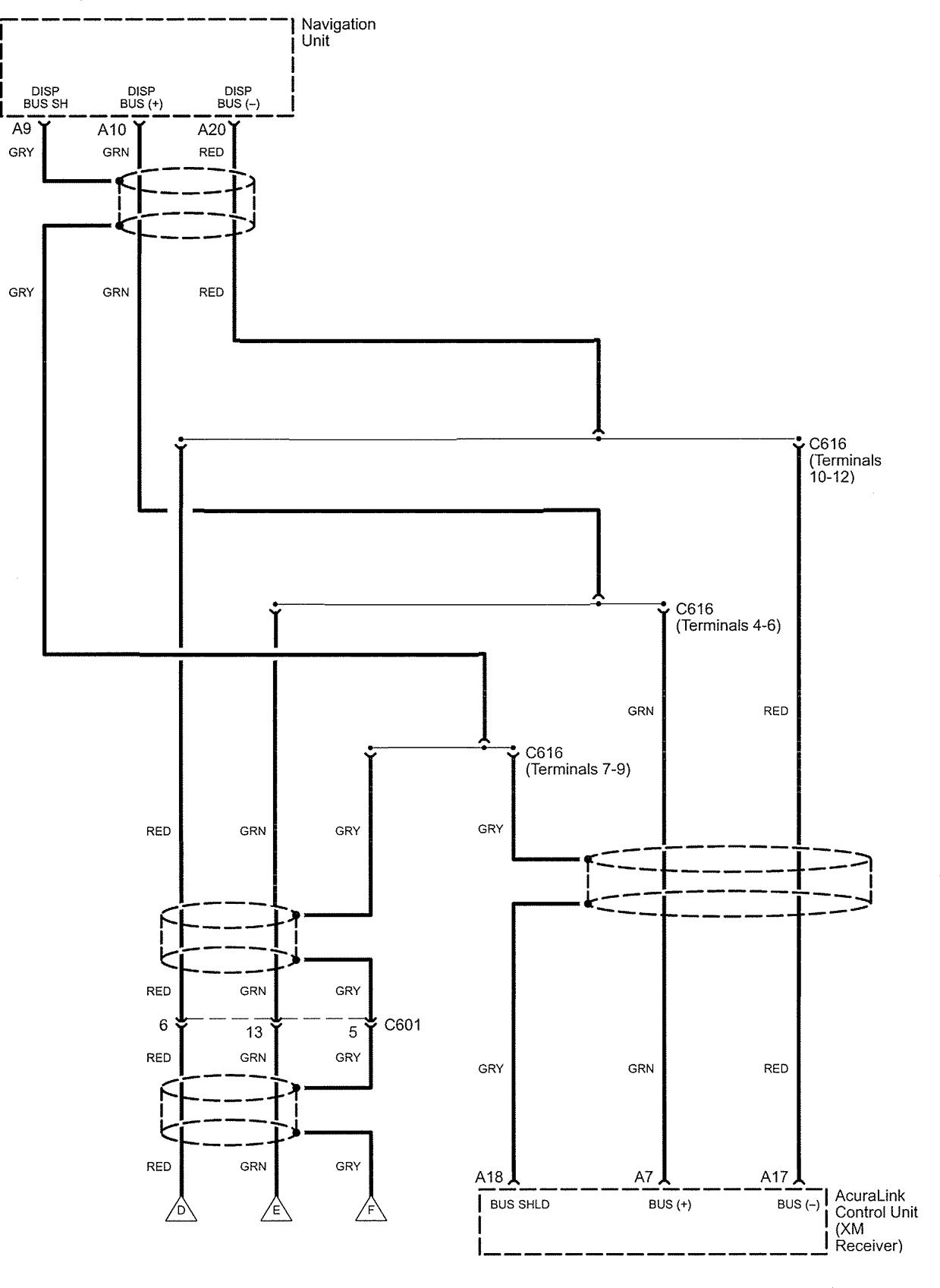

Acura RL - wiring diagram - audio (part 1) — Acura RL – wiring diagram – audio (part 1)

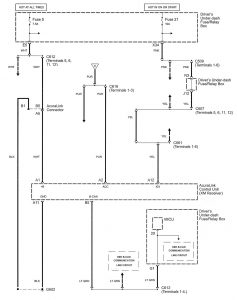

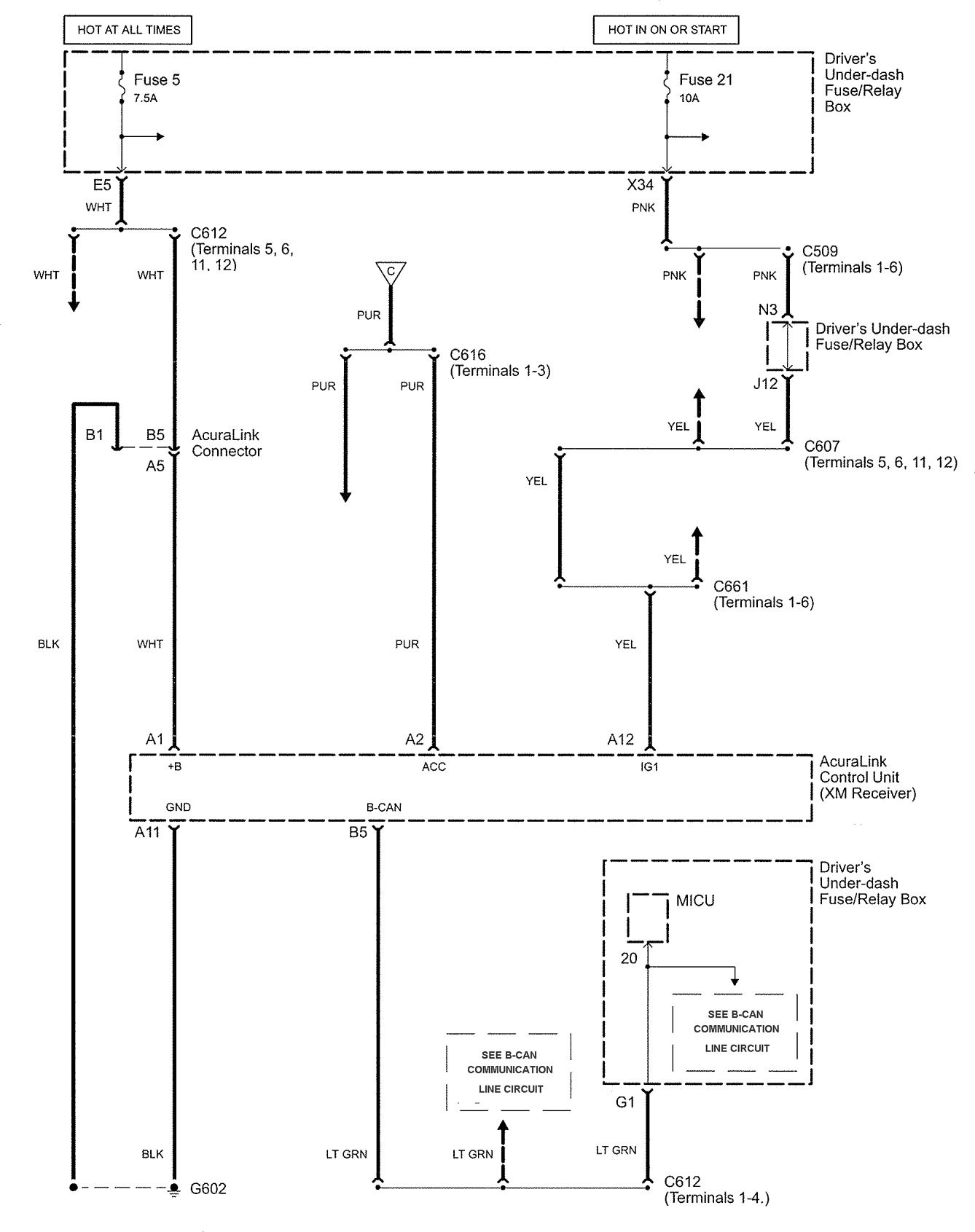

Acura RL - wiring diagram - audio (part 2) — Acura RL – wiring diagram – audio (part 2)

Version 4

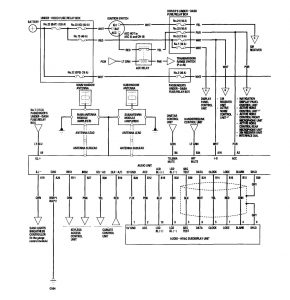

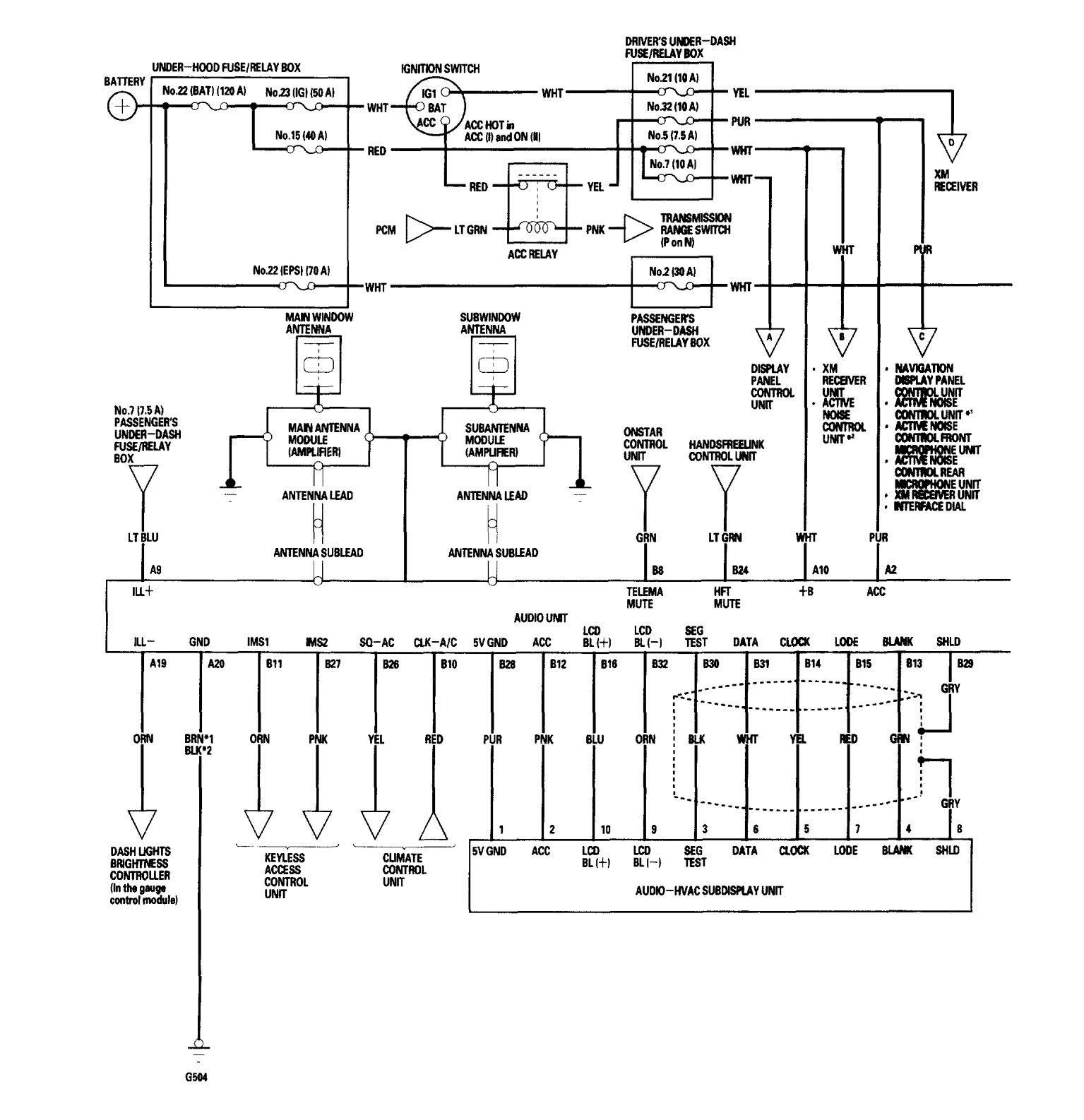

Acura RL - wiring diagram - audio (part 1) — Acura RL – wiring diagram – audio (part 1)

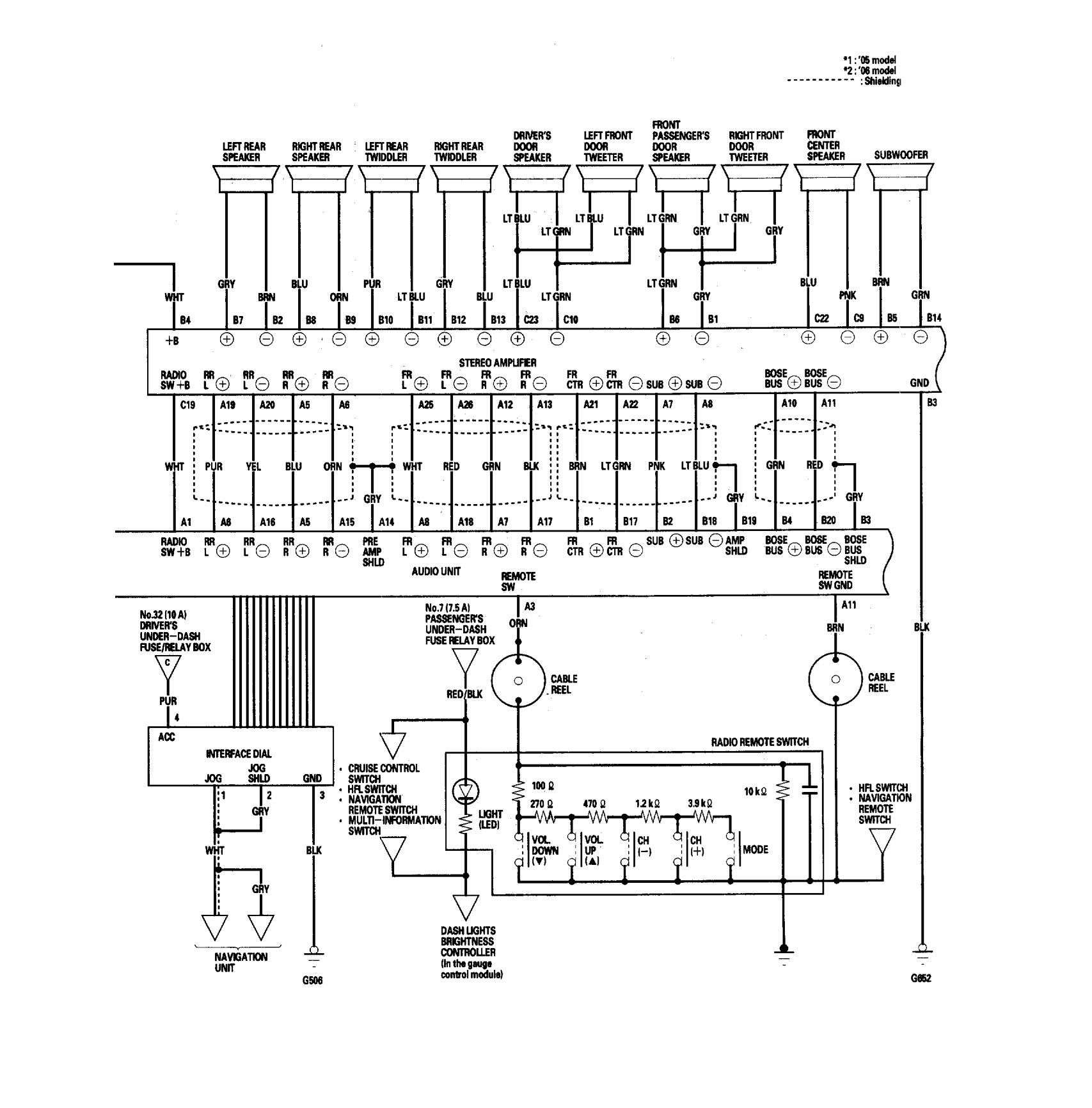

Acura RL - wiring diagram - audio (part 2) — Acura RL – wiring diagram – audio (part 2)

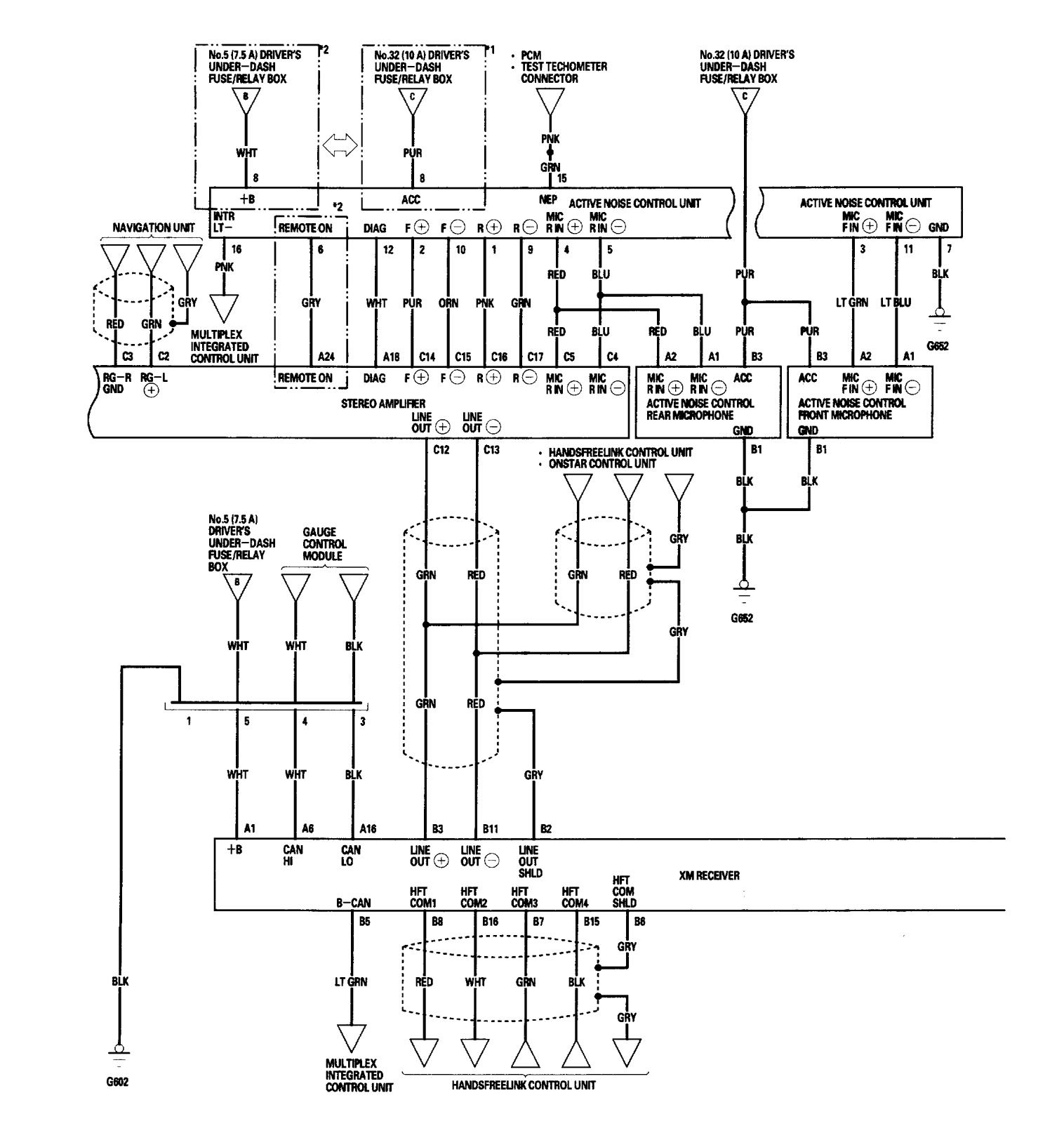

Acura RL - wiring diagram - audio (part 3) — Acura RL – wiring diagram – audio (part 3)

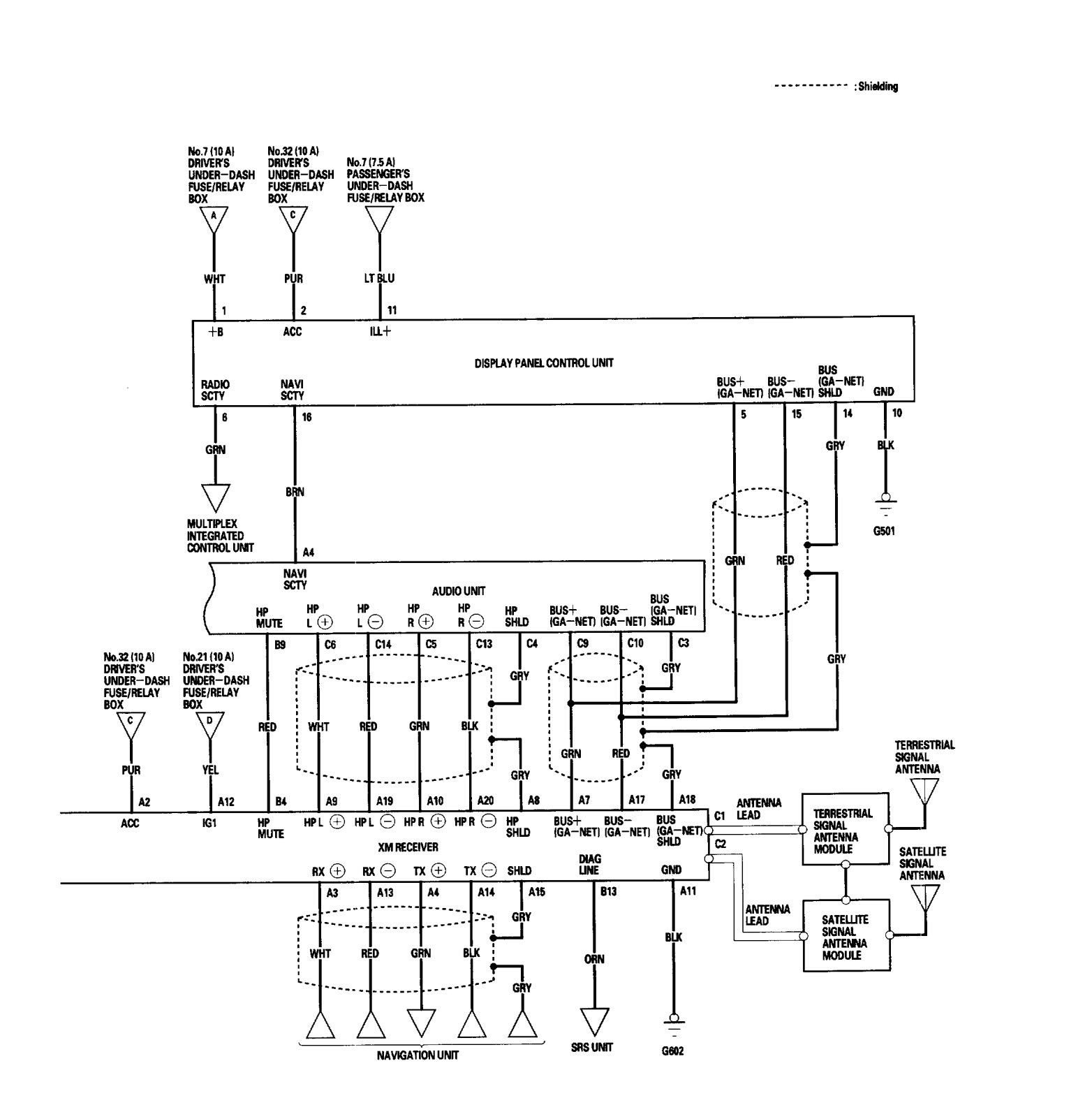

Acura RL - wiring diagram - audio (part 4) — Acura RL – wiring diagram – audio (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
