Acura Integra (1990) – wiring diagrams – fuse panel

1 May 2017 admin Acura, Integra 0

Acura Integra (1990) – wiring diagrams – fuse panel

Year of productions: 1990

Fuse panel

Acura Integra – wiring diagram – fuse panel (main box)



Fuse number Ampere rating [A] Component or circuit protected
30 70 Power distribution
31 30 Rear window defogger
32 50 Ignition switch
33 50 Combination switch, headlights, daytime running lights, exterior lights
34 10 PGM-FI, turn signal and hazard lights, automatic transmission controls, automatic seat belts
35 20 Automatic seat belt control unit
36 20 Automatic seat belt control unit
37 20 Horns, brake lights, interlock system
38 10 PGM-FI main relay

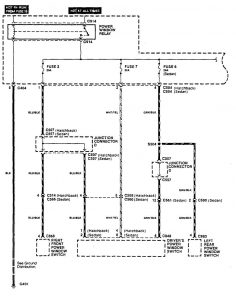

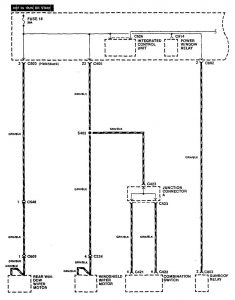

Acura Integra – wiring diagram – fuse panel (dashboard box)

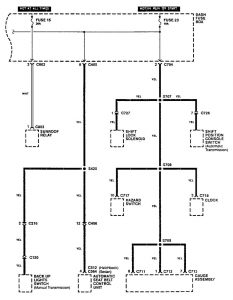

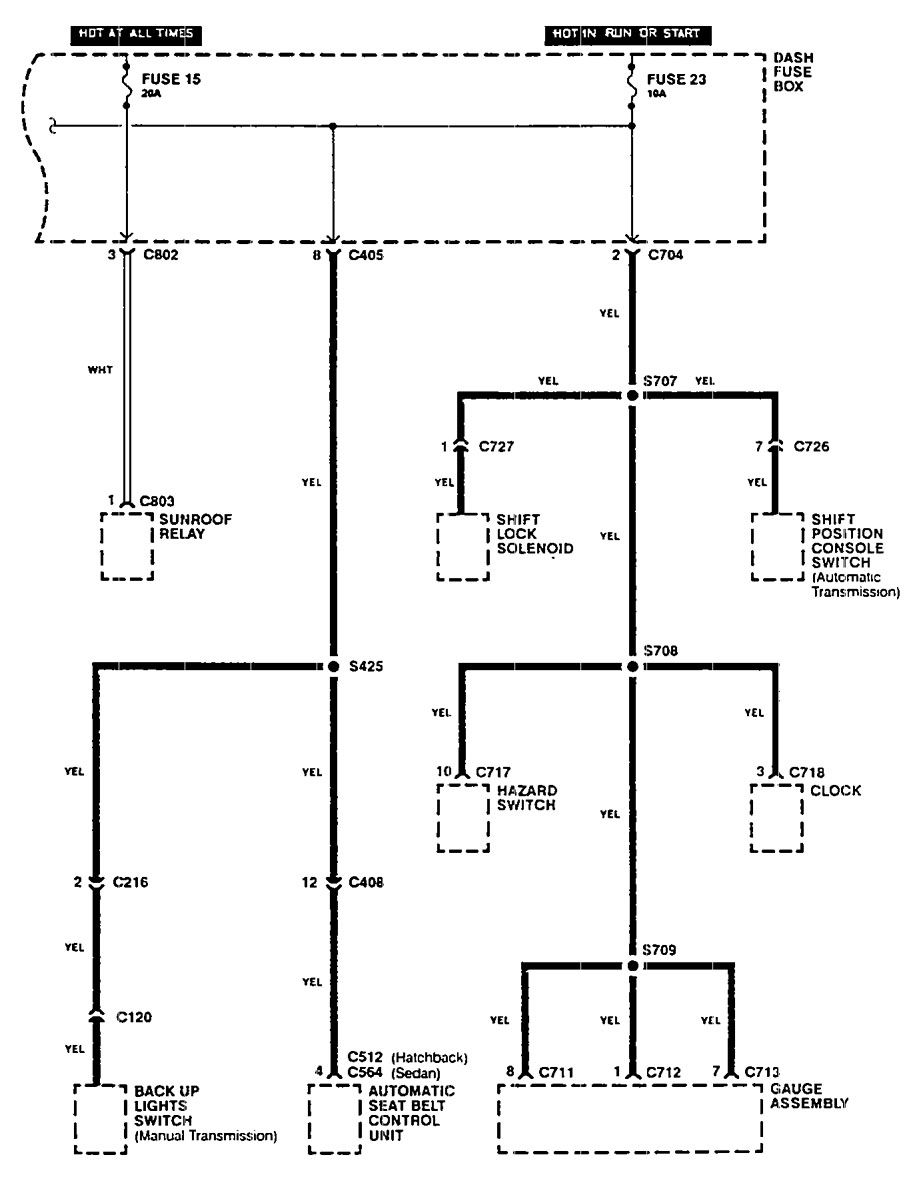

Acura Integra – wiring diagram – fuse panel

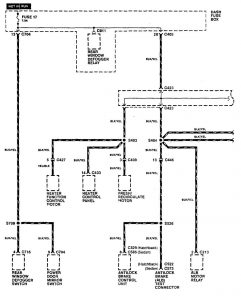

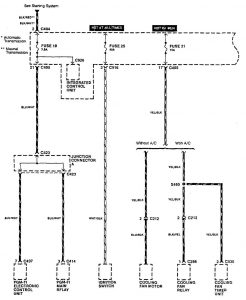

Acura Integra – wiring diagram – fuse panel

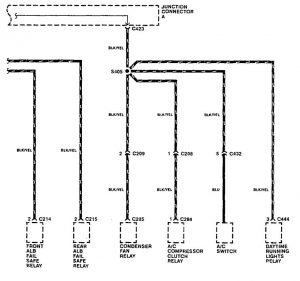

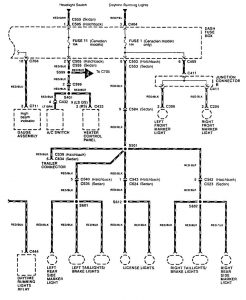

Acura Integra – wiring diagram – fuse panel

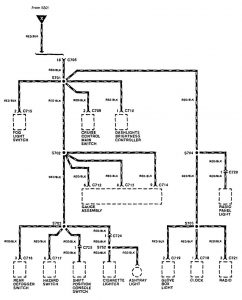

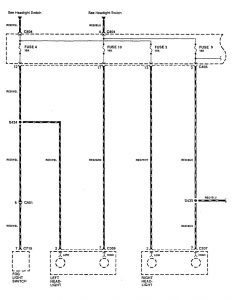

Acura Integra – wiring diagram – fuse panel

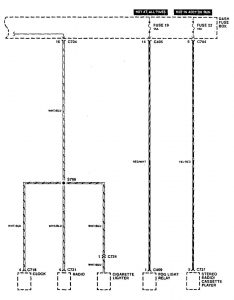

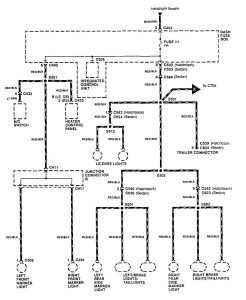

Acura Integra – wiring diagram – fuse panel

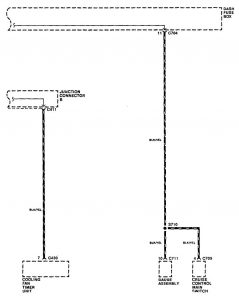

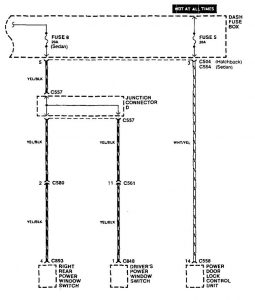

Acura Integra – wiring diagram – fuse panel

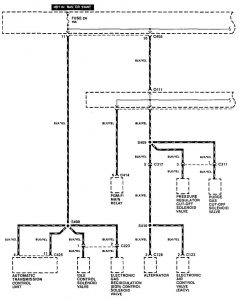

Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel
Acura Integra – wiring diagram – fuse panel



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
