Indicator lamp

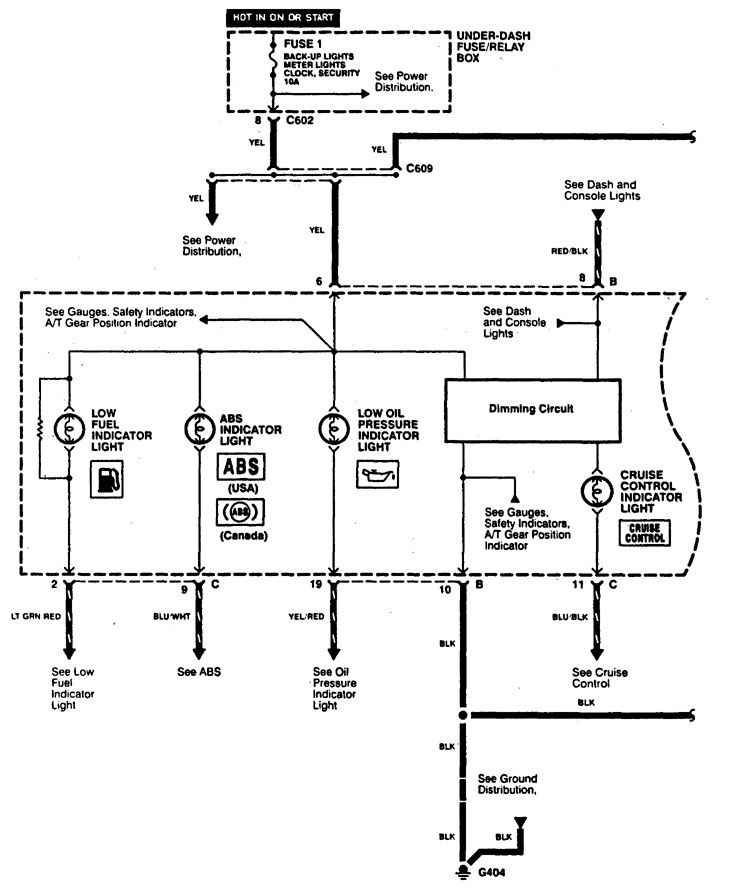

Acura CL - wiring diagram - indicator lamp (part 1)
Acura CL – wiring diagram – indicator lamp (part 1)

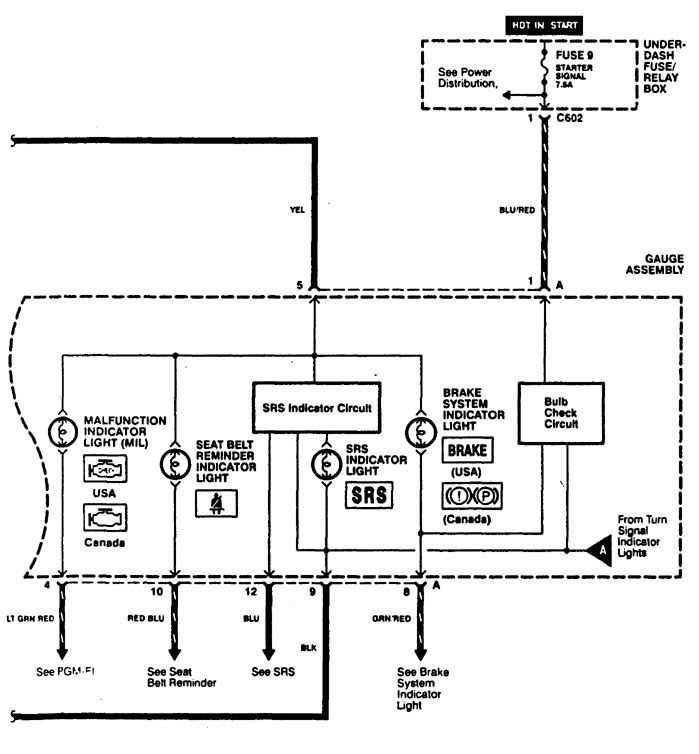

Acura CL - wiring diagram - indicator lamp (part 2)
Acura CL – wiring diagram – indicator lamp (part 2)

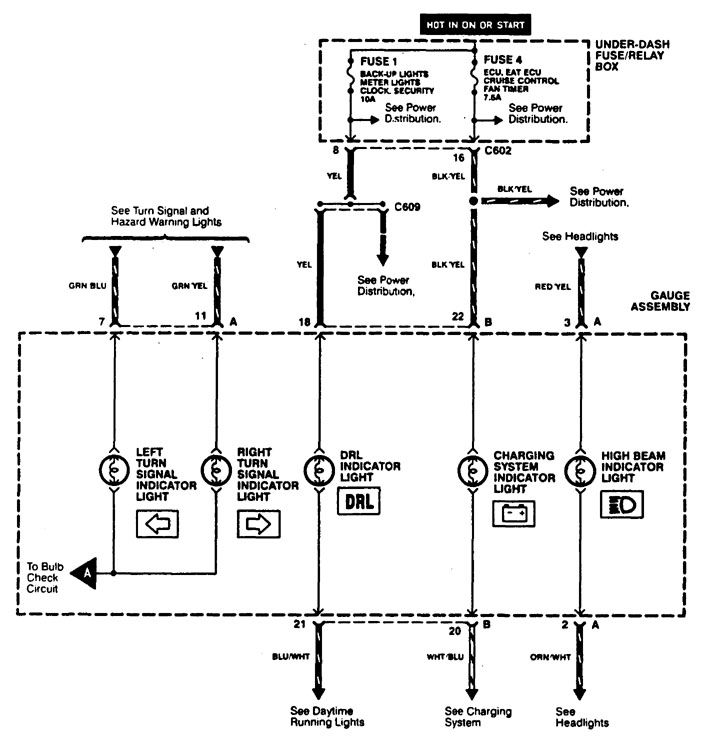

Acura CL - wiring diagram - indicator lamp (part 3)
Acura CL – wiring diagram – indicator lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
