Acura TL (2006) – wiring diagrams – power seats

Acura TL (2006) – wiring diagrams – power seats

Year of productions:  2006

Power seats

Version 1

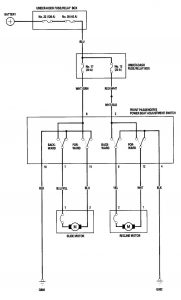

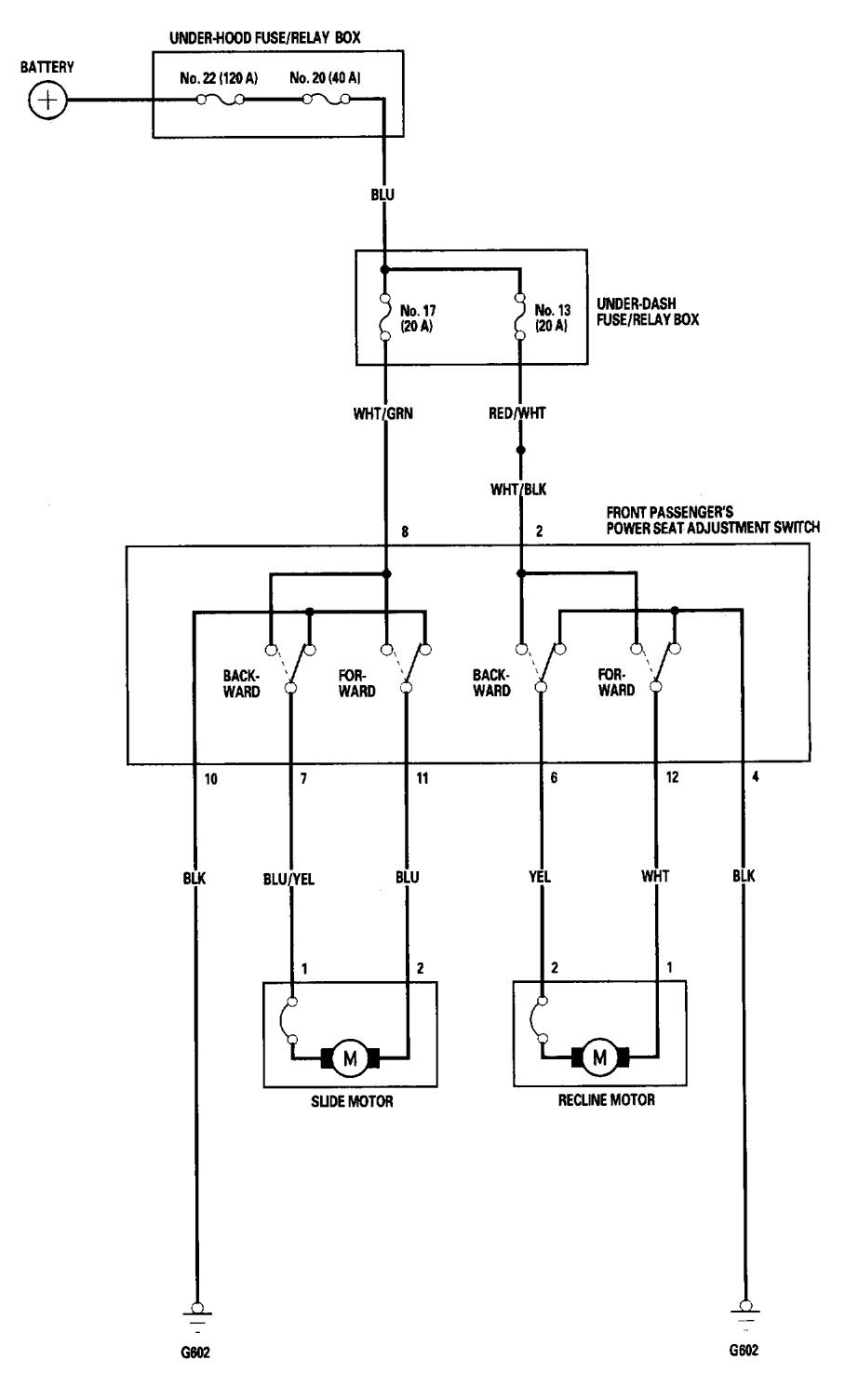

Acura TL - wiring diagram - power seats
Acura TL – wiring diagram – power seats

Version 2

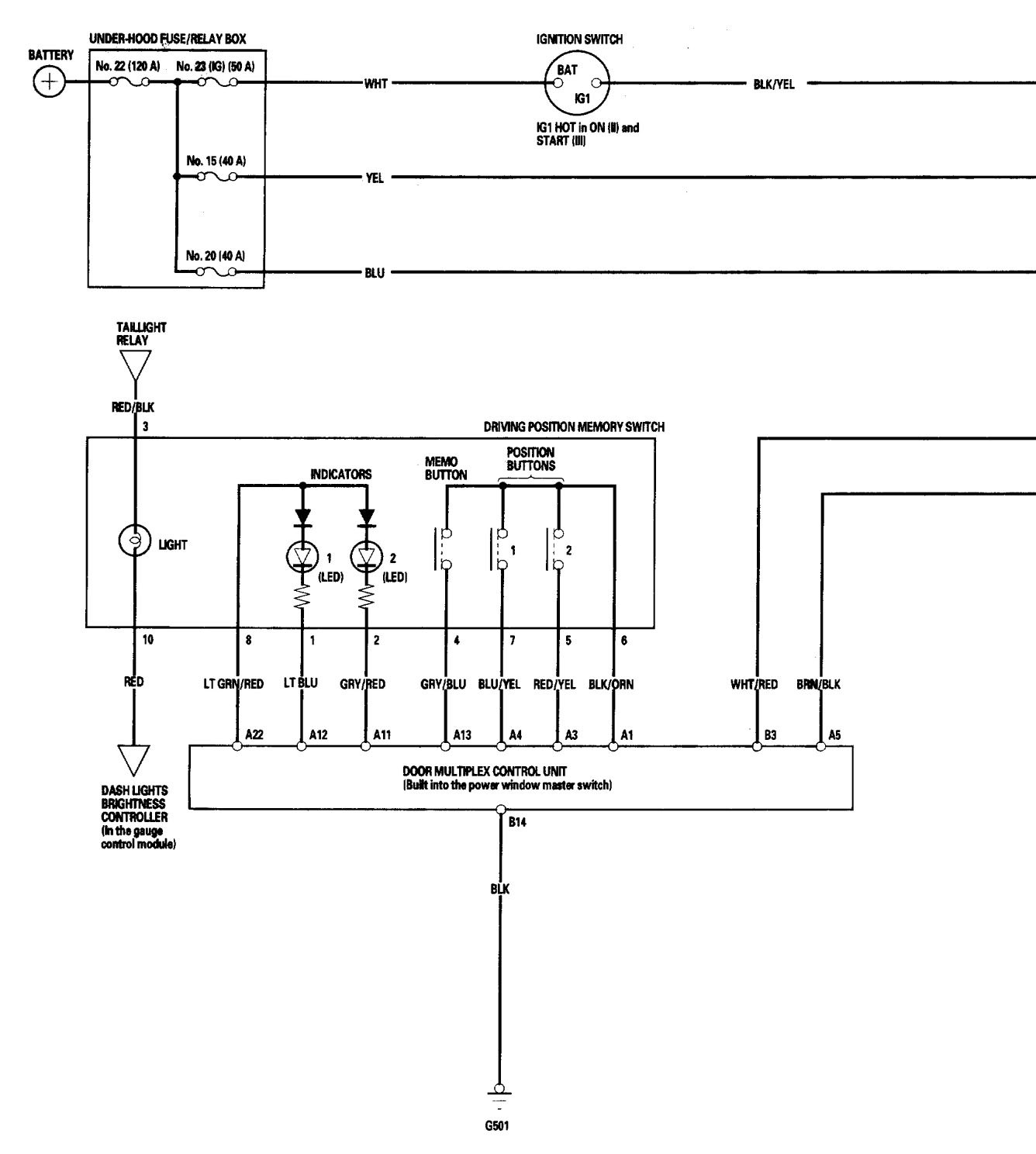

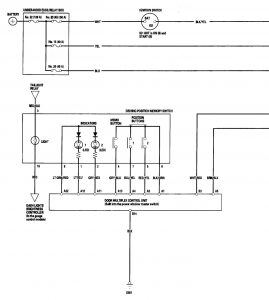

Acura TL - wiring diagram - power seats (part 1)
Acura TL – wiring diagram – power seats (part 1)

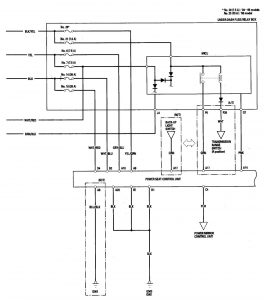

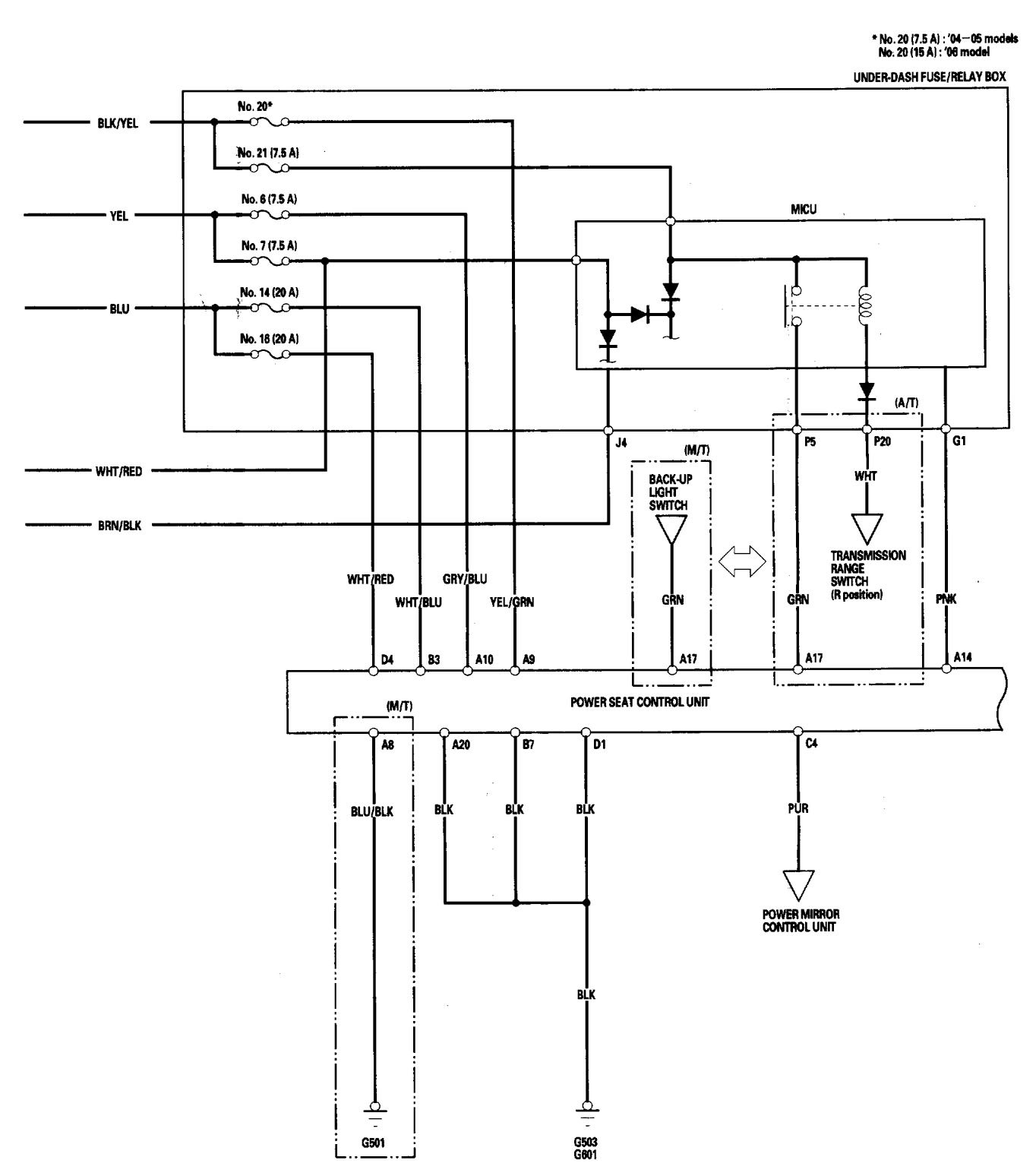

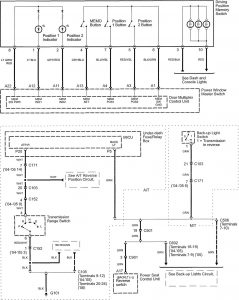

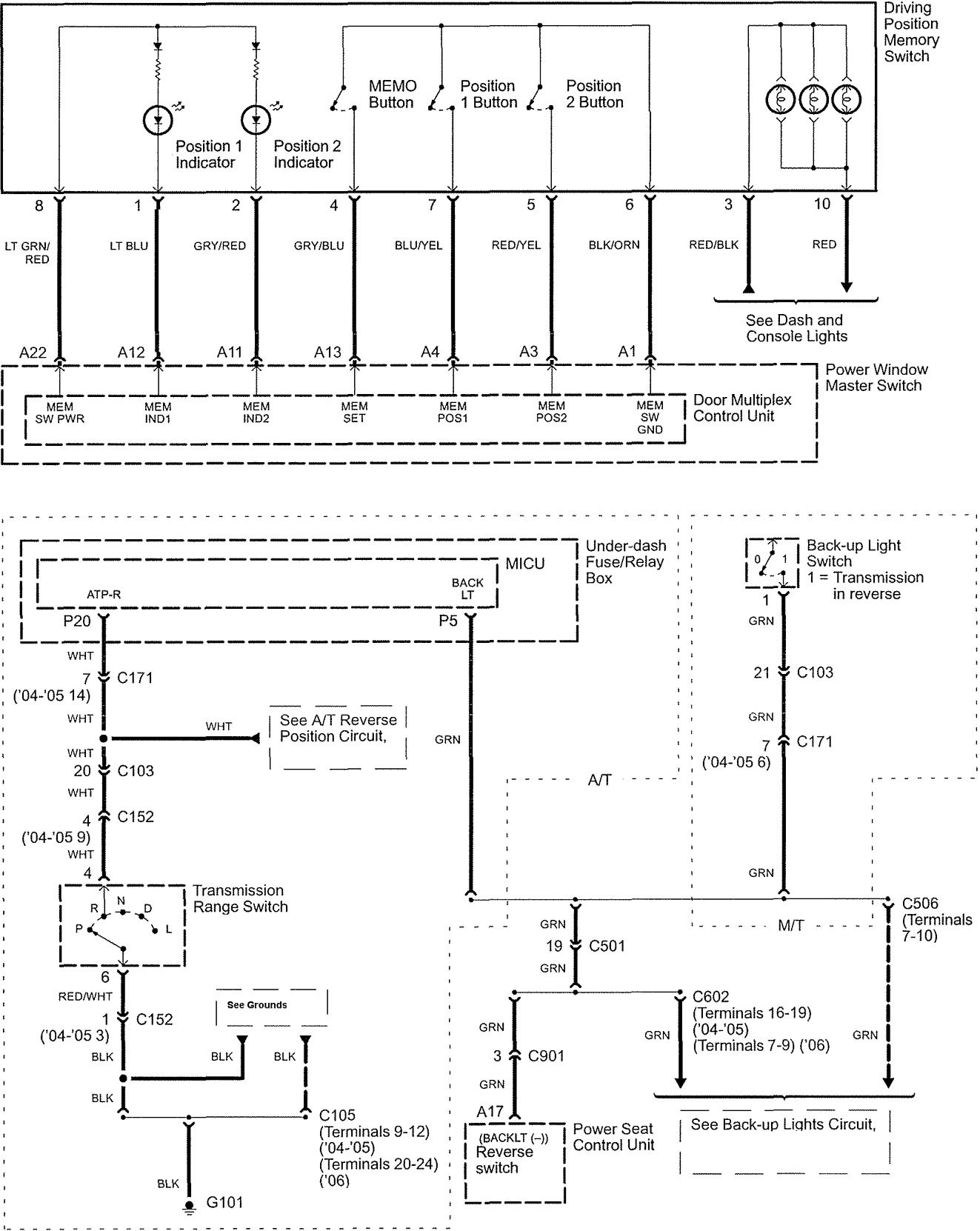

Acura TL - wiring diagram - power seats (part 2)
Acura TL – wiring diagram – power seats (part 2)

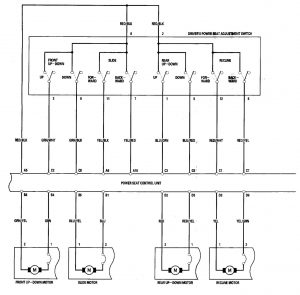

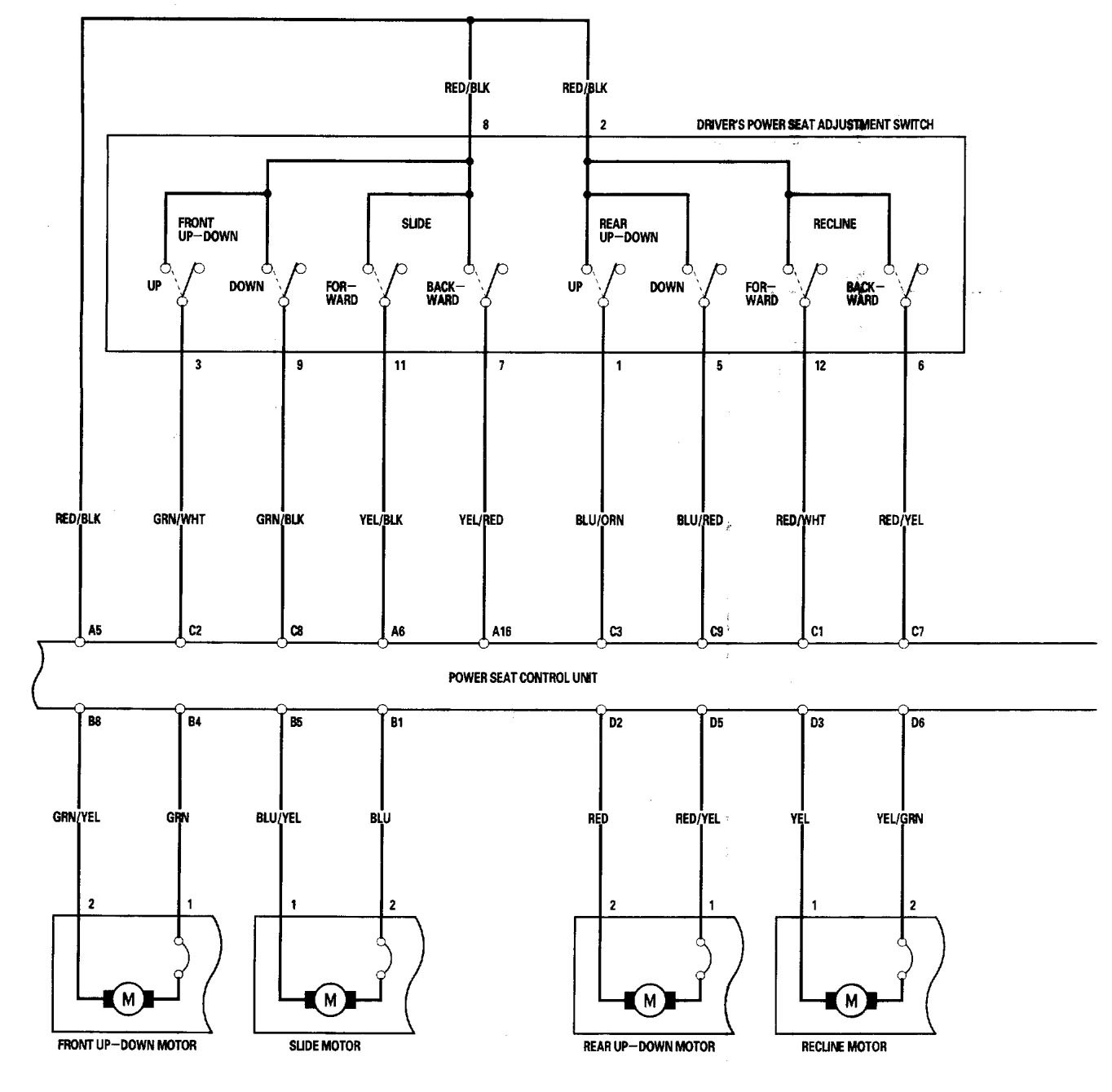

Acura TL - wiring diagram - power seats (part 3)
Acura TL – wiring diagram – power seats (part 3)

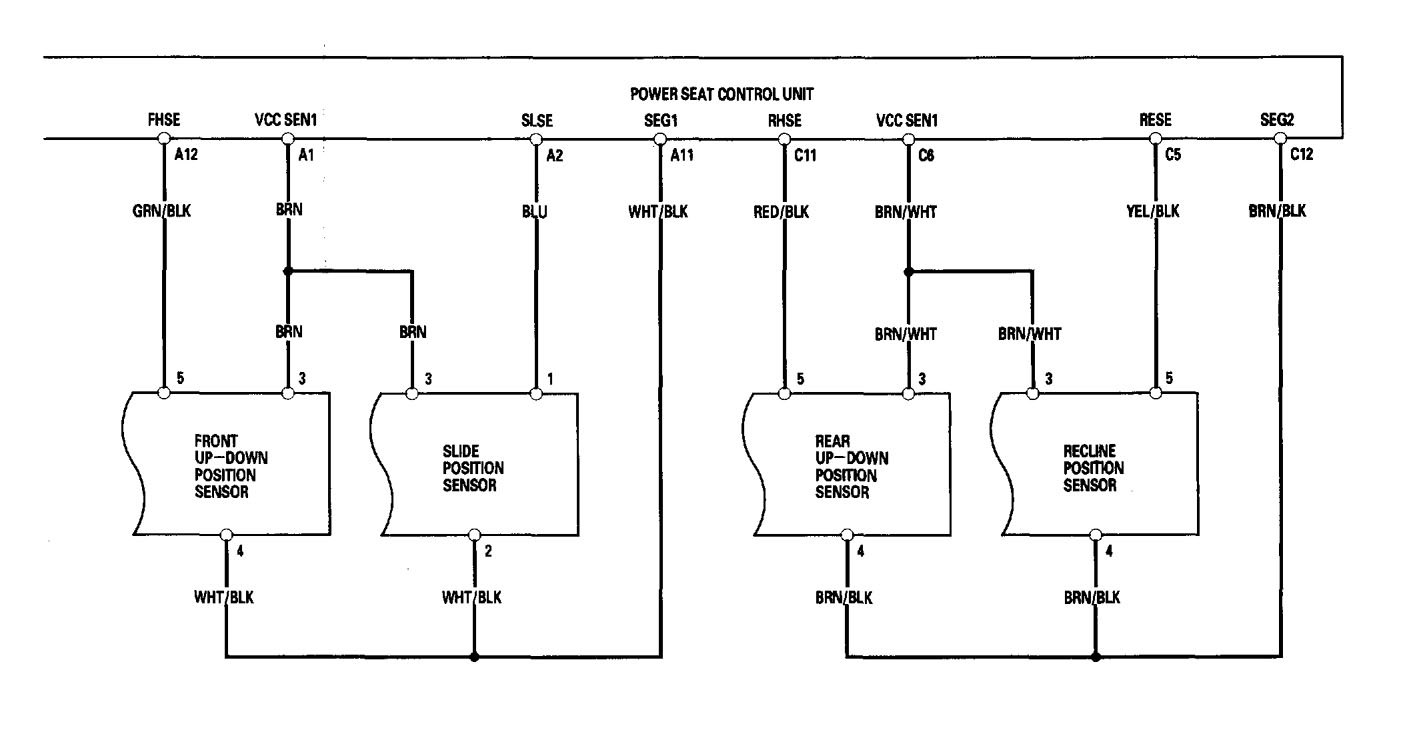

Acura TL - wiring diagram - power seats (part 4)
Acura TL – wiring diagram – power seats (part 4)

Version 3

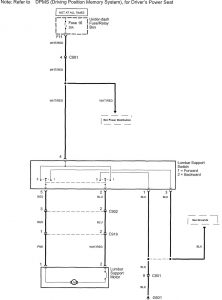

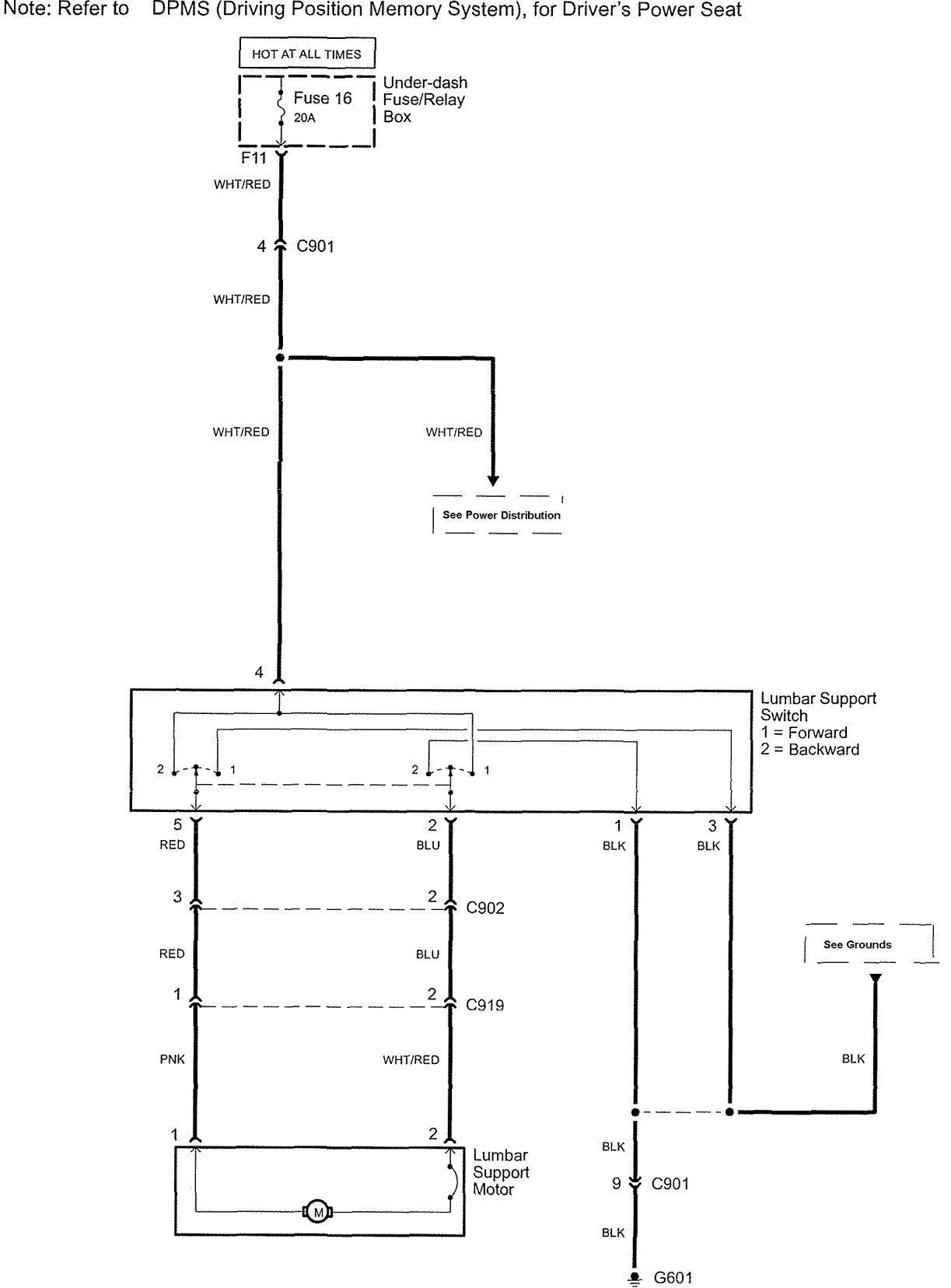

Acura TL - wiring diagram - power seats (part 1)
Acura TL – wiring diagram – power seats (part 1)

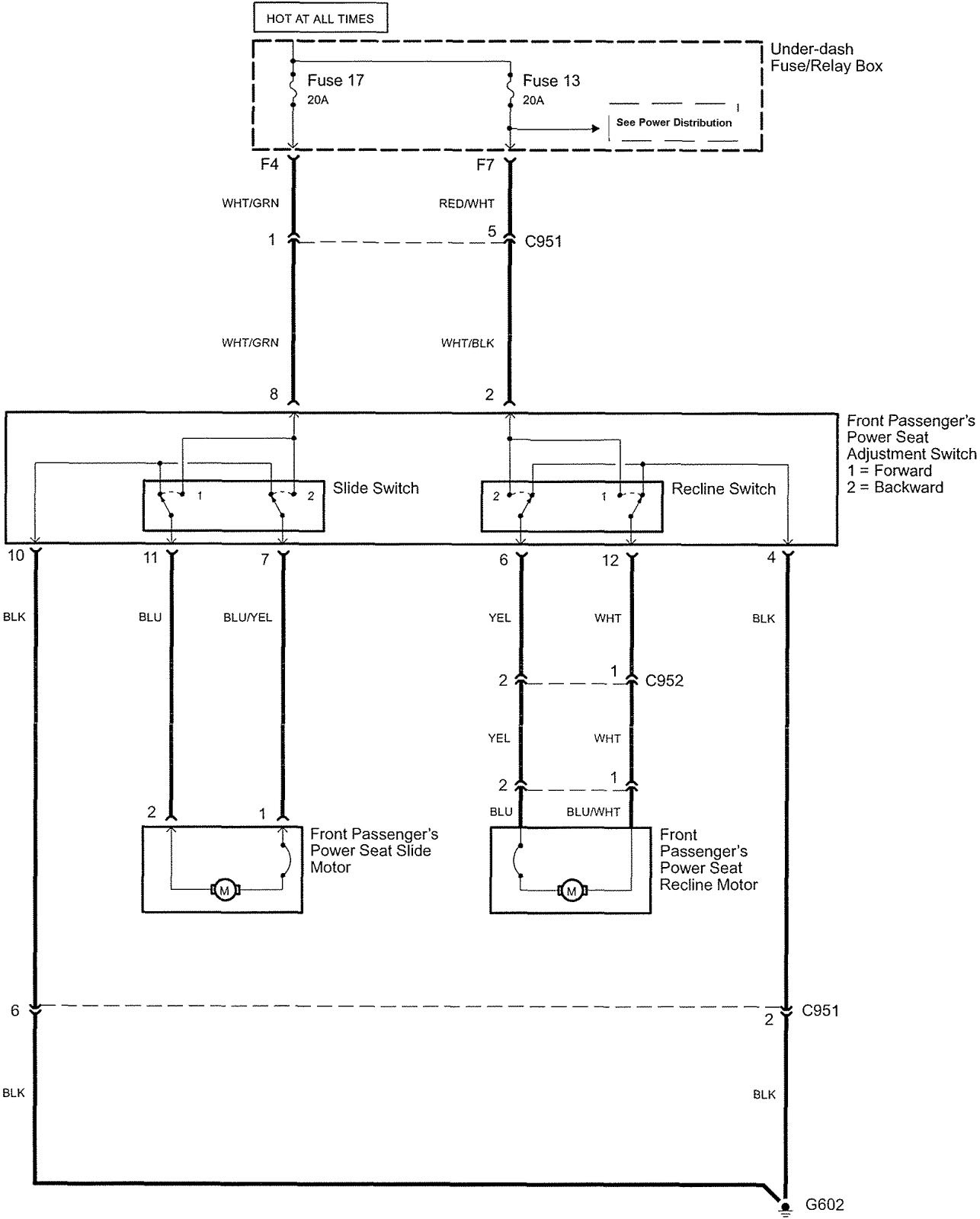

Acura TL - wiring diagram - power seats (part 2)
Acura TL – wiring diagram – power seats (part 2)

Version 4

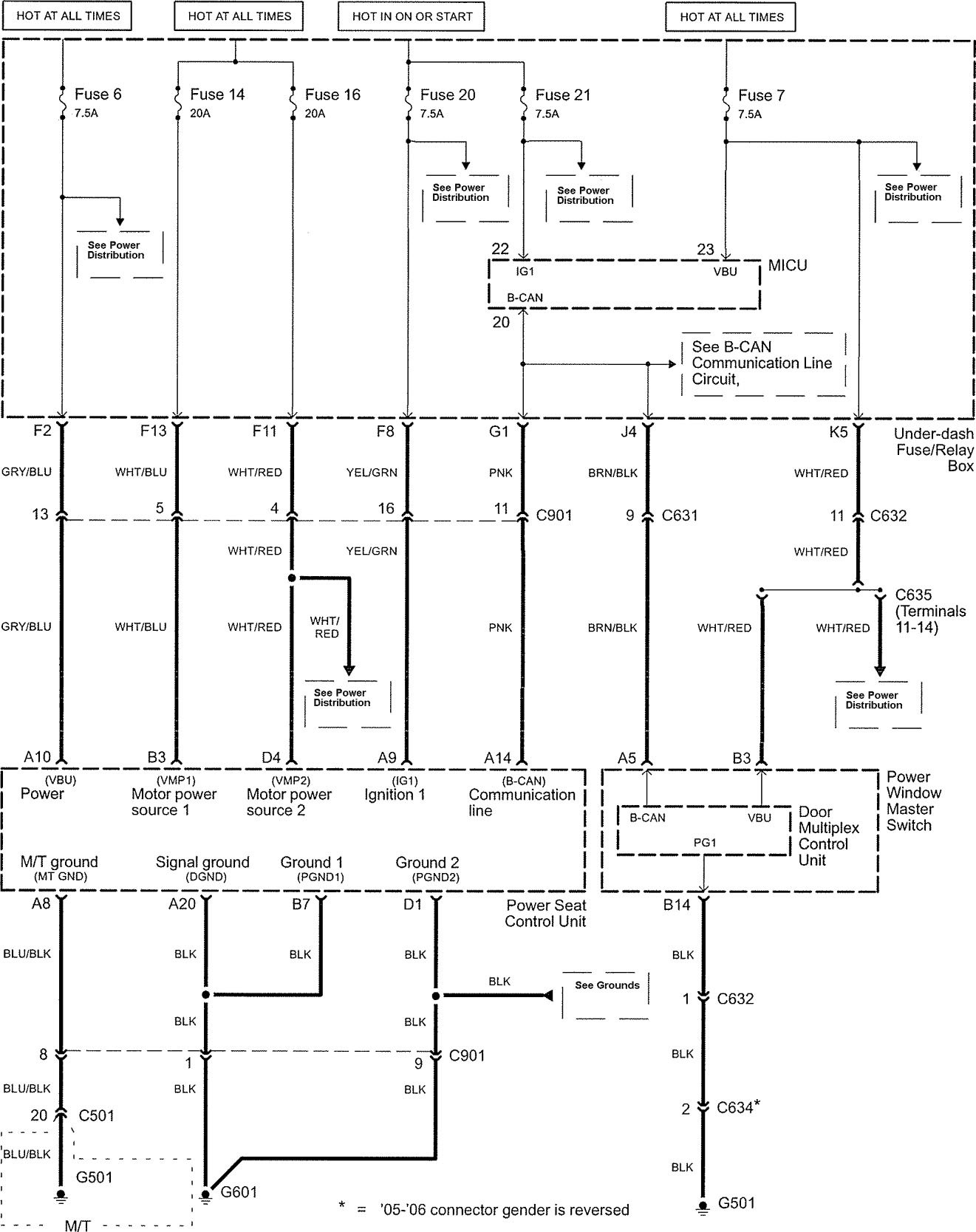

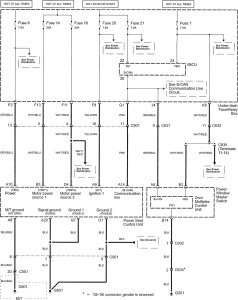

Acura TL - wiring diagram - power seats (part 1)
Acura TL – wiring diagram – power seats (part 1)
Acura TL - wiring diagram - power seats (part 2)
Acura TL – wiring diagram – power seats (part 2)

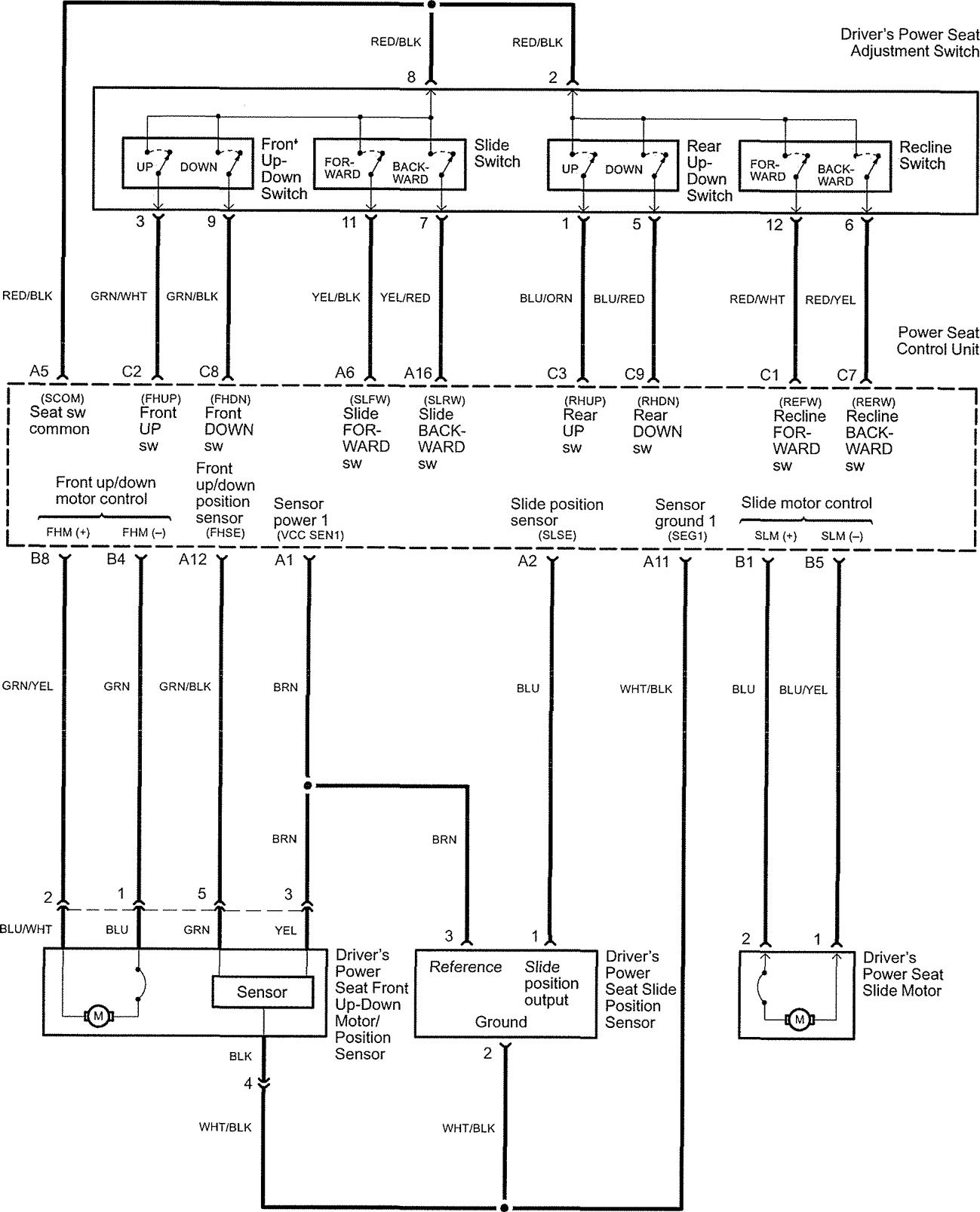

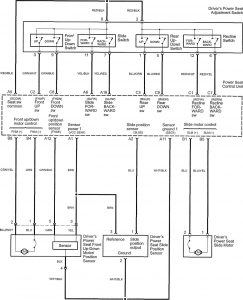

Acura TL - wiring diagram - power seats (part 3)
Acura TL – wiring diagram – power seats (part 3)

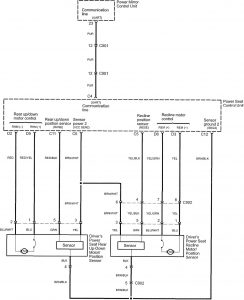

Acura TL - wiring diagram - power seats (part 4)
Acura TL – wiring diagram – power seats (part 4)
Acura TL - wiring diagram - power seats (part 5)
Acura TL – wiring diagram – power seats (part 5)

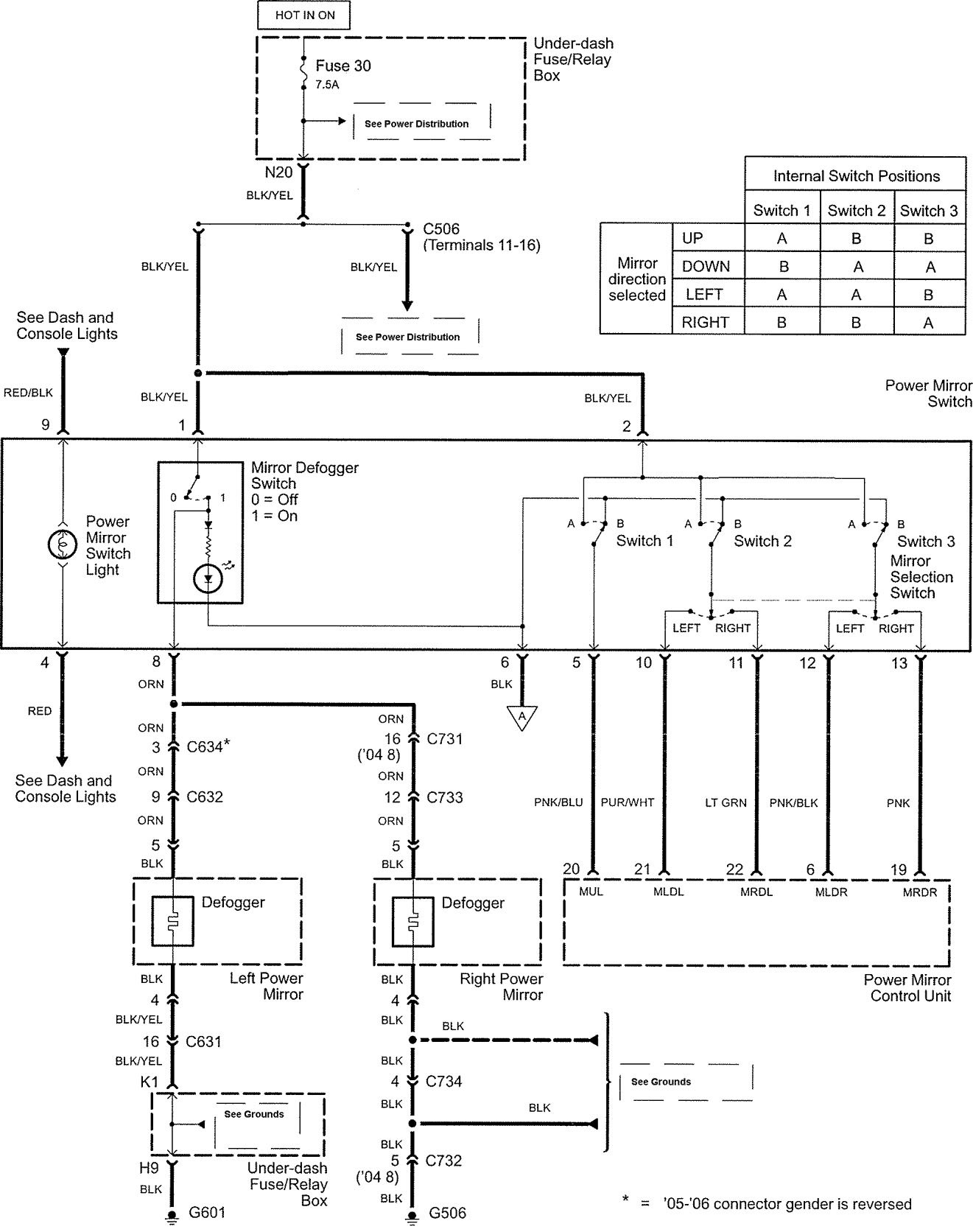

Acura TL - wiring diagram - power seats (part 6)
Acura TL – wiring diagram – power seats (part 6)

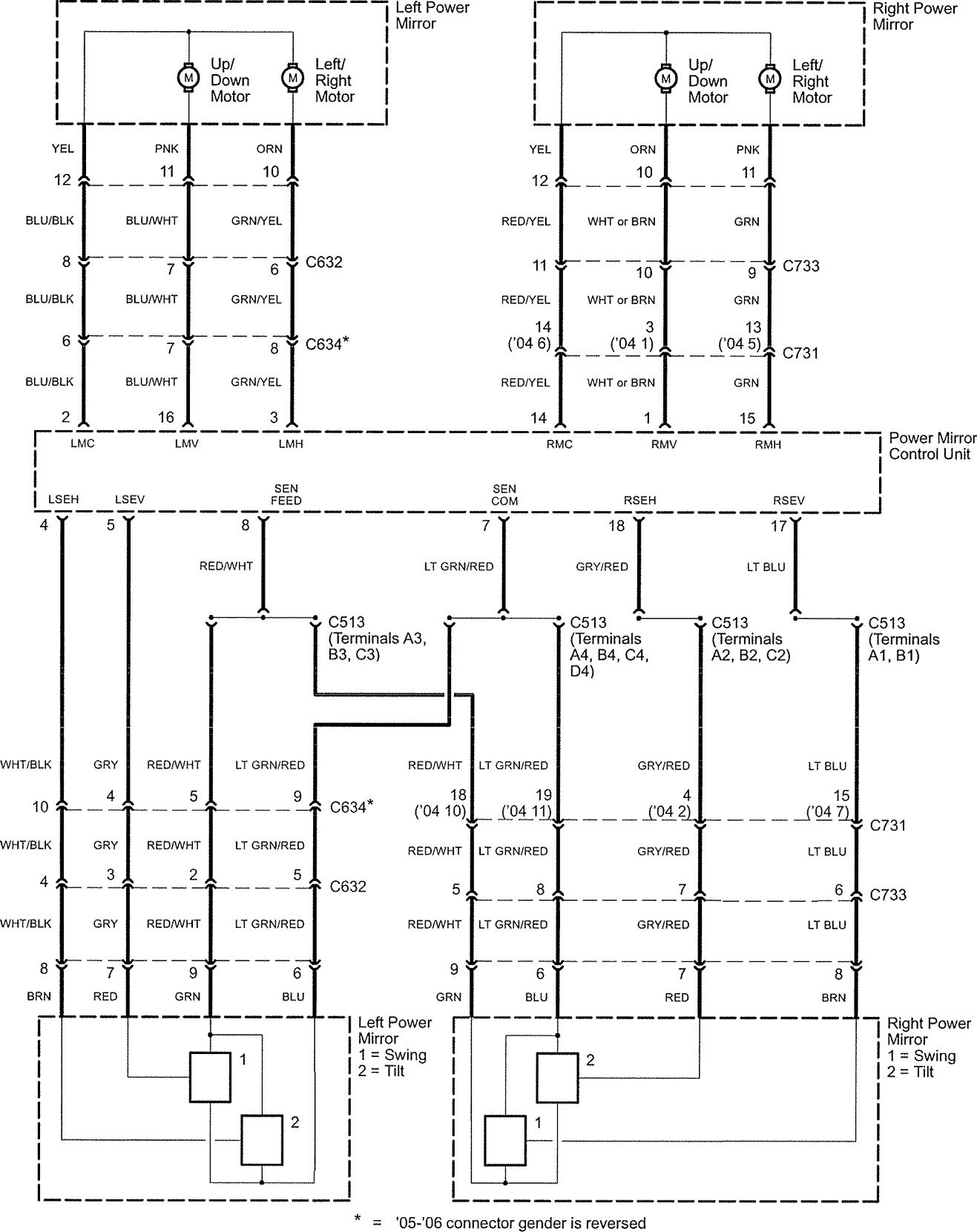

Acura TL - wiring diagram - power seats (part 7)
Acura TL – wiring diagram – power seats (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
