Hummer H2 (2008 – 2009) – fuse box diagram

Hummer H2 (2008 – 2009) – fuse box diagram

Year of production: 2008, 2009

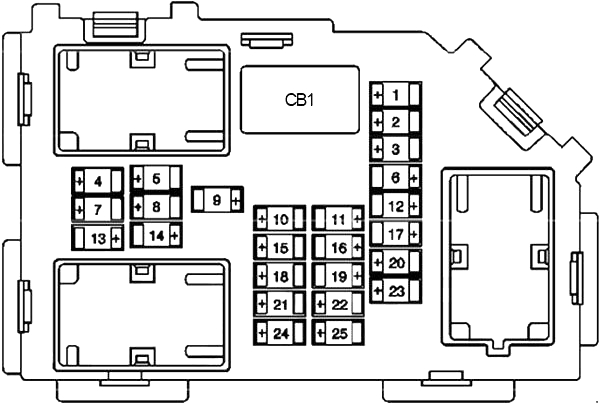

Passenger compartment fuse box

Hummer H2 - fuse box diagram - fuse box diagram - passenger compartment
Hummer H2 – fuse box diagram – fuse box diagram – passenger compartment
No.
A
Protected Component
1 20 Heated Rear Seat Control Module
2 20 Rear Cargo Accessory Power Outlets
3 2 Steering Wheel Controls Backlight
4 15 Driver Door Module
5 15 Dome Lamps, Front Passenger Side Turn Signal, Body Control Module (BCM)
6 15 Driver Side Turn Signal and Stop Lamp, Body Control Module (BCM)
7 10 Instrument Panel Back Lighting, Body Control Module (BCM)
8 15 Passenger Side Turn Signal
9 10 Passenger Door Module
10 15 Power Door Lock 2 (Unlock Feature)
11 15 Power Door Lock 2 (Lock Feature)
12 15 Stop Lamps, Center-High Mounted Stoplamp, Body Control Module (BCM)
13 30 Rear Climate Controls
14  –
15 15 Body Control Module (BCM)
16 20 Floor Console Power Outlets
17 10 Interior Lamps, Body Control Module (BCM)
18 15 Power Door Lock 1 (Unlock Feature)
19 5 Infotainment System (Video Display), Remote Keyless Entry System
20 10 Universal Home Remote System (Garage Door Opener)
21 15 Power Door Lock 1 (Lock Feature)
22 10 Vehicle Communication Interface Module (OnStar®)
23 25 Rear Window Wiper Motor
24  –
25 10 Driver Seat Module
Circuit Breaker
CB1 25 Driver Side Power Window
Relay (Non-Serviceable)
R1 Power Door Lock
Hummer H2 (2008 - 2009) - fuse box diagram

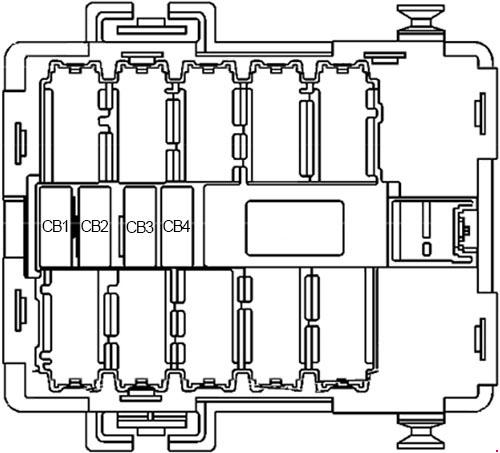

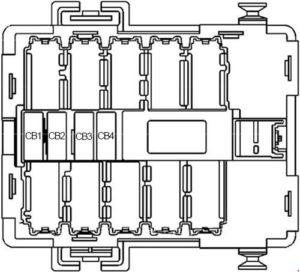

Passenger compartment relay box

Hummer H2 - fuse box diagram - fuse box diagram - passenger compartment relay box
Hummer H2 – fuse box diagram – fuse box diagram – passenger compartment relay box
No.
A
Circuit Breaker
CB1 25 Passenger Side Power Window
CB2 25 Passenger Seat
CB3 25 Driver Seat
CB4 25 Rear Sliding Window
Relay (Non-Serviceable)
R1 Multifunction Switch (PARK ENABLE PCB)

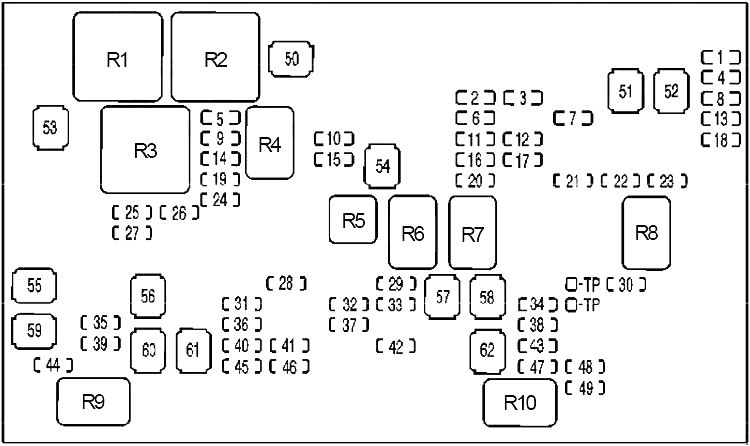

Engine compartment fuse box

Hummer H2 - fuse box diagram - fuse box diagram - engine compartment
Hummer H2 – fuse box diagram – fuse box diagram – engine compartment
No.
A
Protected Component
1 10 Left Trailer Stop/Turn Lamp
2 15 Air Temperature (IAT) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 15 Engine Control Module (ECM)
4 10 Right Trailer Stop/Turn Lamp
5 15 Washer Fluid Pump (Front)
6 10 Oxygen Sensors
7 30 Vehicle Stability System, Antilock Brake System
8 10 Trailer Back-Up Lamps
9 10 Left Headlamp (Low Beam)
10 10 Engine Control Module (ECM)
11 20 Fuel Injectors, Ignition Coils (Right Side)
12 15 Transmission Control Module, Evaporative Emission (EVAP) Canister Vent Solenoid Valve
13 10 Back-Up Lamps
14 10 Right Headlamp (Low Beam)
15 10 Air Conditioning Compressor Clutch
16 10 Oxygen Sensors
17 15 Transmission Controls (Ignition)
18 20 Fuel Pump, Engine Control Module (ECM)
19 15 Washer Fluid Pump (Rear)
20 20 Fuel Injectors, Ignition Coils (Left Side)
21 15 Trailer Park Lamps
22 15 Left Park Lamps
23 15 Right Park Lamps
24 15 Horn
25 10 Right Headlamp (High Beam)
26 10 Daytime Running Lamps (DRL)
27 10 Left Headlamp (High Beam)
28 30 Sunroof
29 2 Key Ignition System, Theft Deterrent System
30 25 Windshield Wiper
31 30 Upfitter Provision
32 15 Electrically Controlled Air Suspension
33 10 Climate Controls (HVAC)
34 10 Airbag System
35 30 Audio Amplifier
36 15 Audio System, Rear Seat Audio Controller, Digital Radio Receiver
37 10 Miscellaneous, Cruise Control, Rear Vision Camera
38 15 Airbag System
39 10 Instrument Panel Cluster, Body Control Module (BCM)
40 10 Run, Accessory, Midgate Module
41 10 Auxiliary Climate Control
42 30 Rear Window Defogger (SUV), Midgate Control Module (SUT)
43 15 Upfitter Provision
44 15 Cigarette Lighter, Auxiliary Power Outlet, Data Link Connector
45 10 Upfitter Provision, Special Equipment Option (SEO)
46 10 Climate Controls
47 15 Engine Control Module (ECM), Fuel System Control Module, Electronic Brake Control Module
50 40 Cooling Fan (Low Speed) Relay
51 60 Electronically Controlled Air Suspension Relay
52 60 Vehicle Stability System, Antilock Brake System
53 40 Cooling Fan (High Speed) Relay
54 40 Starter Relay
55 30 Trailer Brake Module
56 60 Left Bussed Electrical Center
57 60 Heated Windshield Washer System
58 30 Four-Wheel Drive System
59 40 Trailer Connector Battery Power
60 60 Mid Bussed Electrical Center 1
61 40 Climate Control Blower
62 60 Left Bussed Electrical Center 2
Relay
R1 Cooling Fan (High Speed)
R2 Cooling Fan (Low Speed)
R3 Cooling Fan Control
R4 Headlamp (Low Beam)
R5 Air Conditioning Compressor
R6 Starter
R7 Powertrain Control Module
R8 Parking Lamps
R9 Rear Window Defogger
R10 Switched Power
Non-Serviceable
R11 Back-Up Lamps
R12 Daytime Running Lamps
R13 Cooling Fan (Right)
R14 Cooling Fan (Right), Cooling Fan Control
R15 Cooling Fan (Left)
R16 Washer Fluid Pump (Front)
R17 Headlamp (High Beam)
R18 Horn
R19 Liftgate Release
R20 Washer Fluid Pump (Rear)
R21 “FWD”, “HTR STR/WHL”
R22 Left Trailer Stop Lamp
R23 Right Trailer Stop Lamp
R24 Wiper
R25 Windshield Wiper Motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
