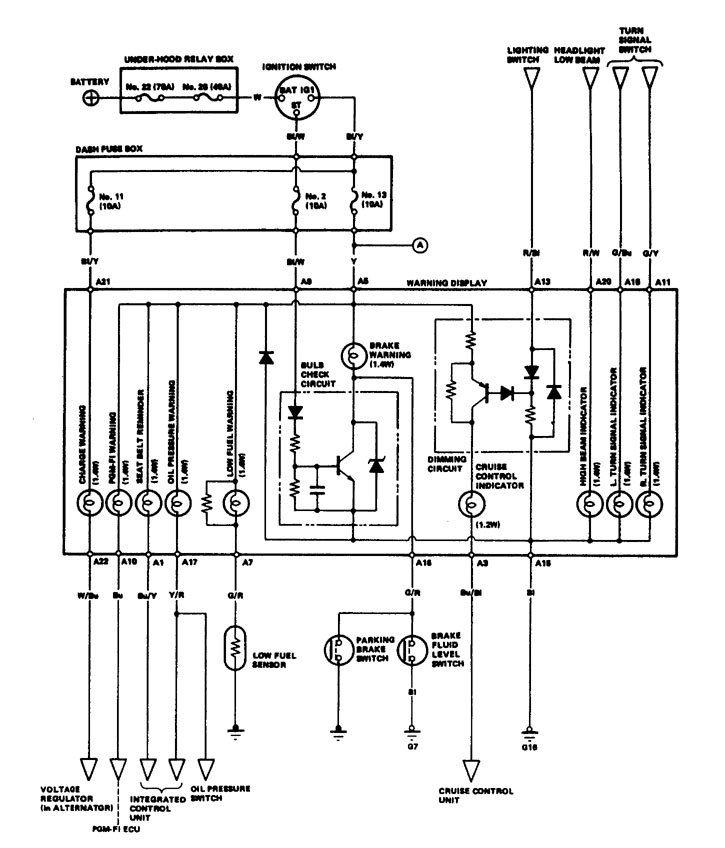

Acura Legend – wiring diagram – instrumentation (part 1)

Acura Legend – wiring diagram – instrumentation (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
