Acura Integra (1994 – 1997) – wiring diagrams – reverse lamp

Acura Integra (1994 -1997) – wiring diagrams – reverse lamp

Year of productions: 1994, 1995, 1996, 1997

Reverse lamp

Version 1

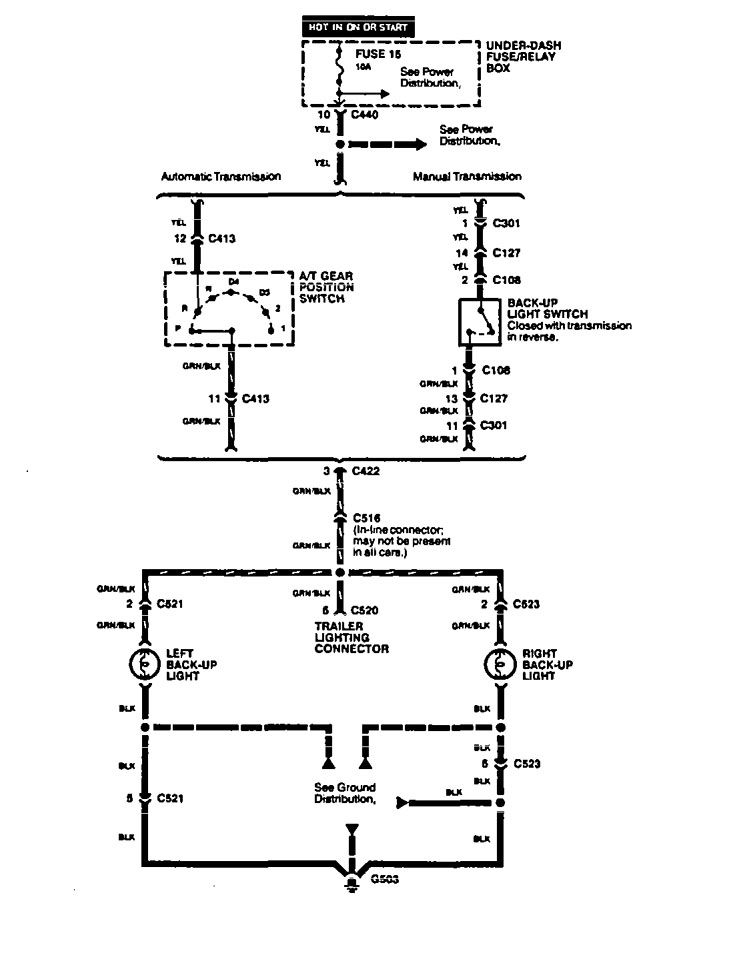

Acura Integra – wiring diagram – reverse lamps

Version 2

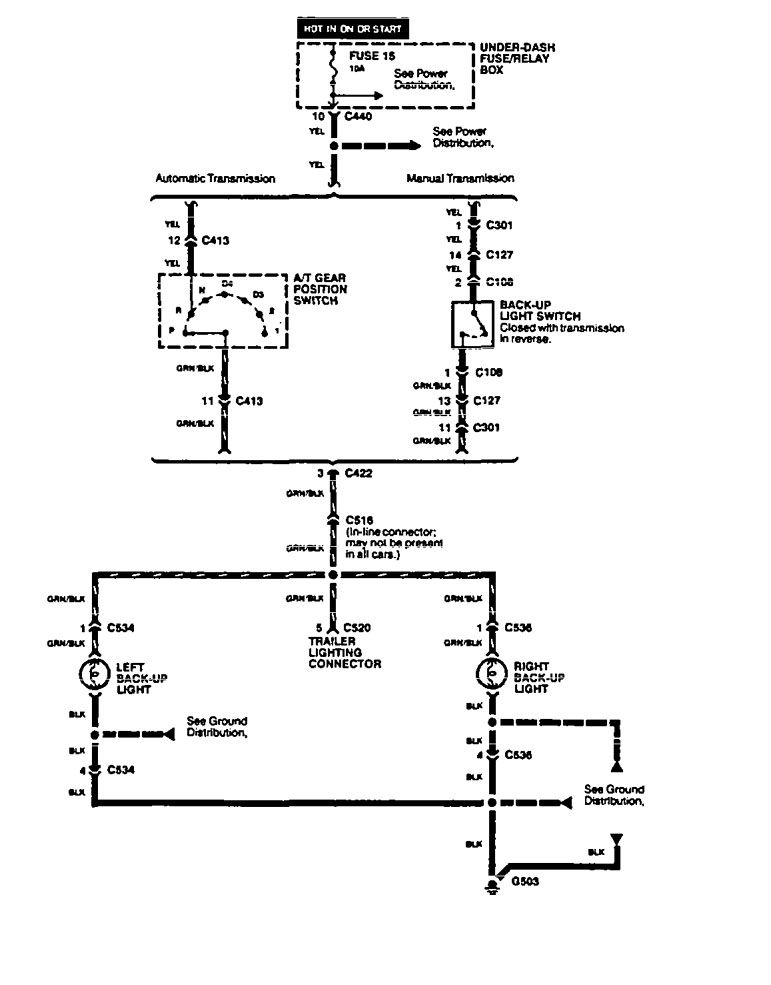

Acura Integra – wiring diagram – reverse lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
