Acura Integra (1992) – wiring diagrams – fuel control

Acura Integra (1992) – wiring diagrams – fuel control

Year of productions: 1992

Fuel control

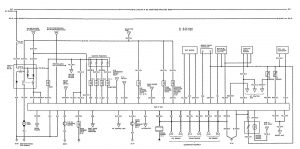

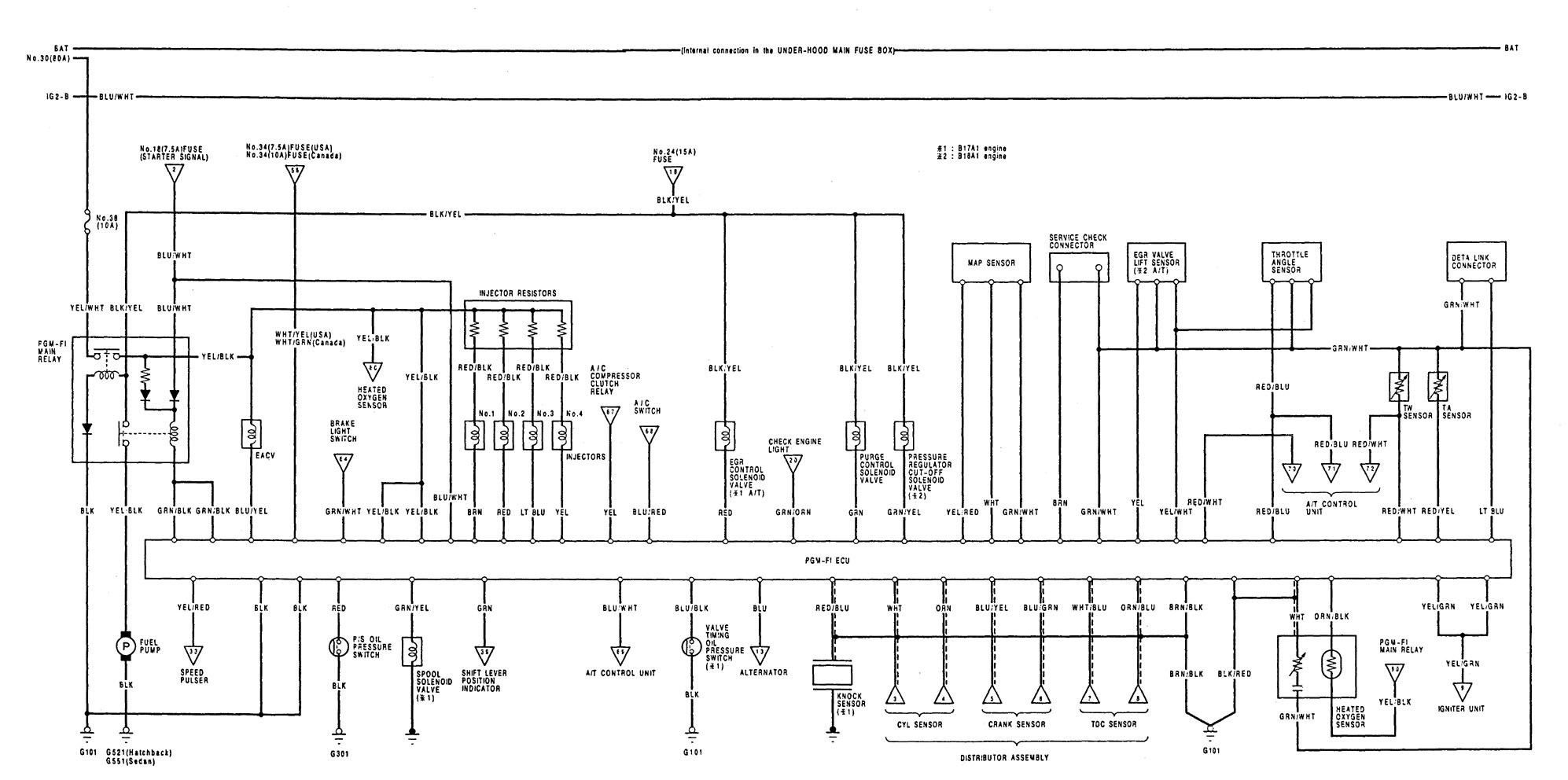

Acura Integra – wiring diagram – fuel control

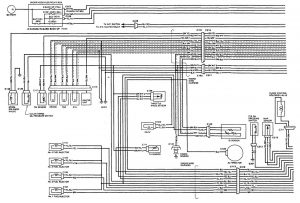

Acura Integra – wiring diagram – fuel control

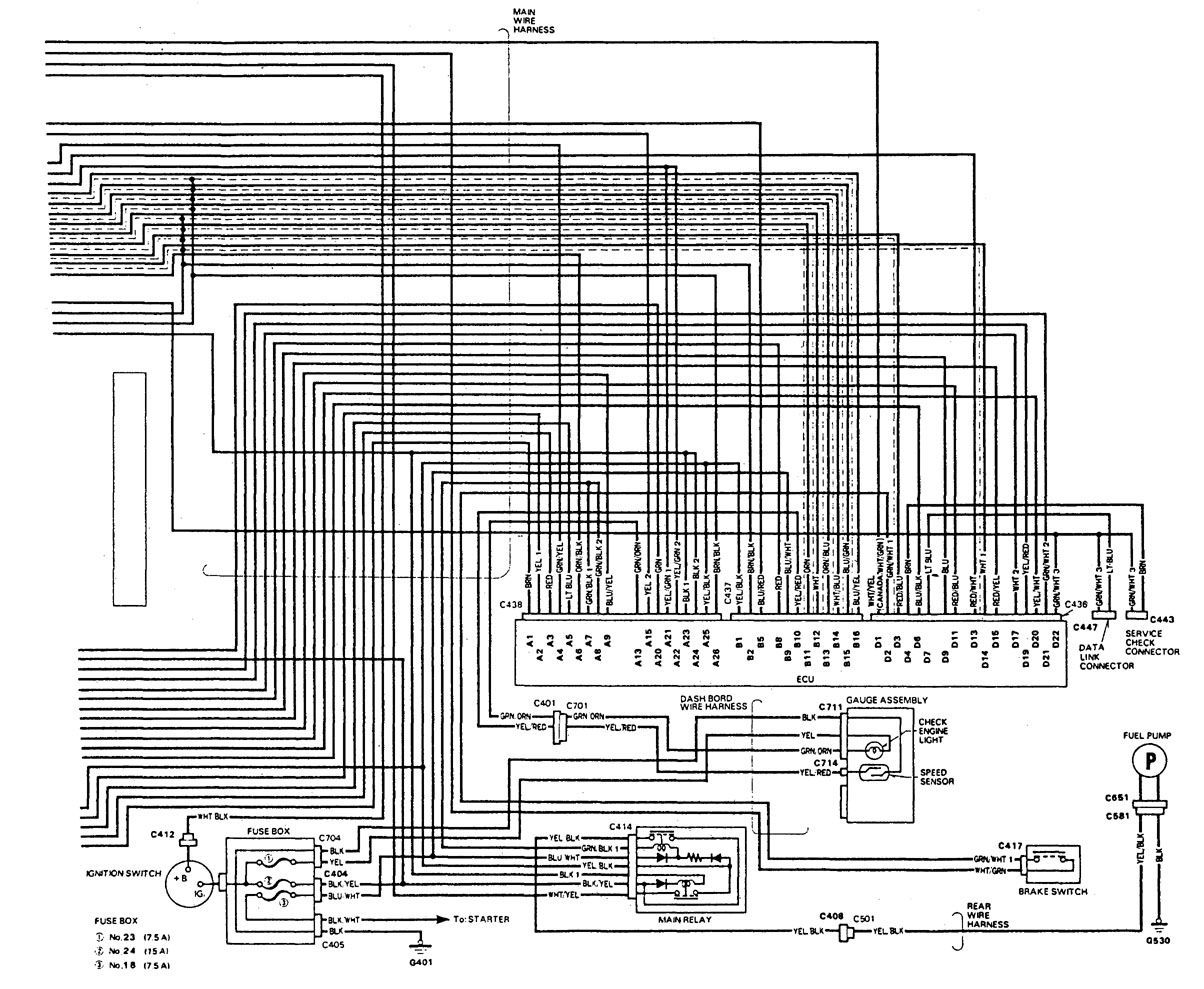

Acura Integra – wiring diagram – fuel control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
