Starting

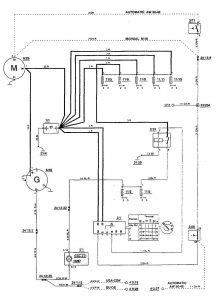

Volvo 850 - wiring diagram - starting

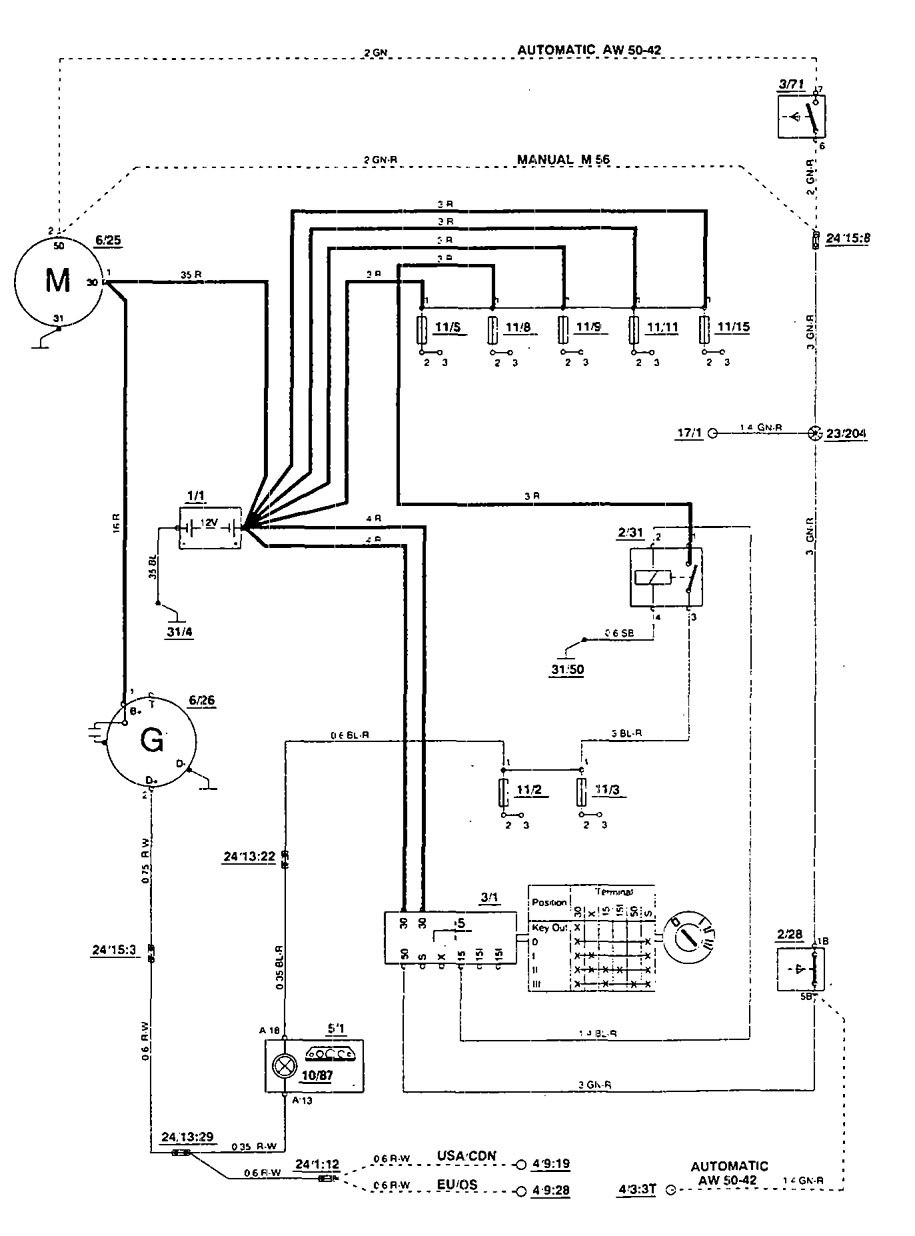

Volvo 850 – wiring diagram – starting
Volvo 850 - wiring diagram - component (part 1)
Volvo 850 – wiring diagram – component (part 1)
Volvo 850 - wiring diagram - component (part 2)
Volvo 850 – wiring diagram – component (part 2)
Volvo 850 - wiring diagram - component (part 3)
Volvo 850 – wiring diagram – component (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
