Renault Scenic (1996 – 2003) – fuse box diagram

Renault Scenic (1996 – 2003) – fuse box diagram

Year of production: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

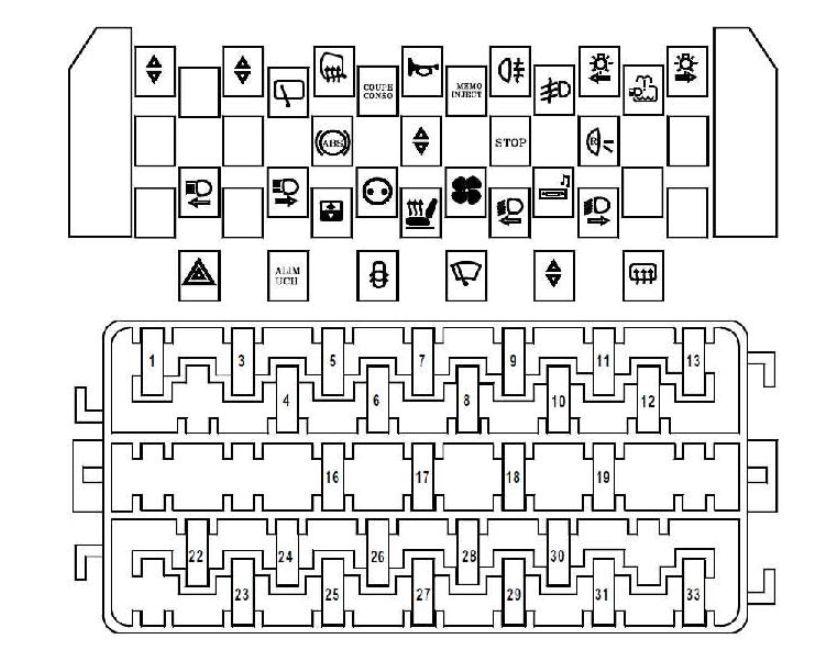

Fuse box on the dashboard

Renault Scenic - fuse box diagram - dashboard
Renault Scenic – fuse box diagram – dashboard
Number Ampere rating [A] Allocation
F1 25 Rear left electric window riser
F2 5 Central door locking switch (Mexico)
F3 25 Rear right electric window riser
F4 15 Electric window wiper (only in 4×4 version)
F5 7,5 Electric rear-view mirror de-icing
F6 15 Consumer cut-out – Electric rear-view mirrors – Clock – Radio -Radio display – Navigation aid – Auto-regulated heating and ventilation – Tyre pressure detector- Electric aerial (E64)
F7 15 Horn
F8 5 Injection computer – Fan assembly relay – Diagnostic socket -Automatic gearbox computer – Instrument panel
F9 5 Rear fog light
F10 15 Front fog lights
F11 7,5 Left side lights
F12 10 Headlight washers
F13 7,5 Right-hand side lights
F16 5 ABS computer
F17 25 Passenger electric window winder
F18 15 Brake lights – Daytime running lights – Authorisation/inhibiting rear window winder control – Diagnostic socket – Instrument panel – Flashing warning lights on driving school control – + after ignition relay – Automatic gearbox performance/economy relay -Seatbelt and opening elements warning light – Heated windscreen relay
F19 15 UCH (+ after ignition reference and Screen wiper supply, park position and washer pump) – Reversing lights – Tyre pressure detector- Electric hood computer (E64)
F22 10 Left-hand main beam headlight
F24 10 Right-hand main beam headlight
F25 20 Sunroof – Auto-regulated heating and ventilation
F26 10 Accessories sockets (2 sockets in 4×4)
F27 15 Heated seats
F28 20 Passenger compartment heating and ventilation system
F29 10 Left-hand dipped headlight
F30 15 Clock – Cigarette lighter – Daytime running lights function – Radio – Radio display – Navigation assistance
F31 10 Right-hand dipped headlight
F32 20 Engine cooling fan (Mercosur S. America)
F 15 Indicators – Hazard lights
FB 5 Passenger compartment control unit supply
FC 20 Central door locking
FD 20 Windscreen wiper
FE 25 Driver’s one-touch electric window riser (from equipment 2)
FF 30 Rear screen de-icer – De-icing rear-view mirrors

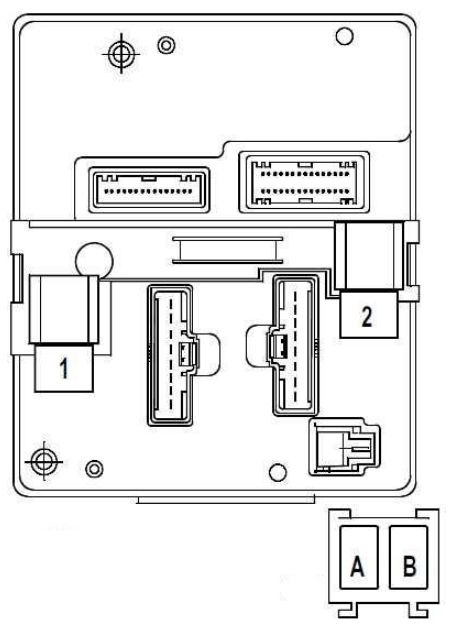

Passenger Compartment Relay Box

Renault Scenic - fuse box diagram - passenger compartment relay box
Renault Scenic – fuse box diagram – passenger compartment relay box
Number Description
1 Relay + after ignition (sunroof and heated seats)
2 Electric rear windows authorisation
A Front fog lights
B Liquid petroleum gas fuel gauge
4X4 Version: Headlight washers

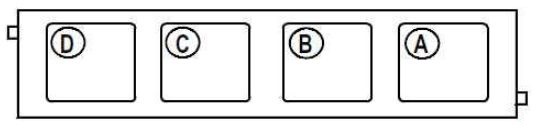

This box is located above the passenger compartment interconnections fuse board

Renault Scenic - fuse box diagram - passenger compartment relay box
Renault Scenic – fuse box diagram – passenger compartment relay box
Number Descxription
A Headlight washers
Mexico: Central door unlocking
B Daytime running lights code
Mexico: Central door locking
C Daytime running lights monitor
Mexico: Horn with alarm equipment
D Daytime running lights
Mexico: Not in use

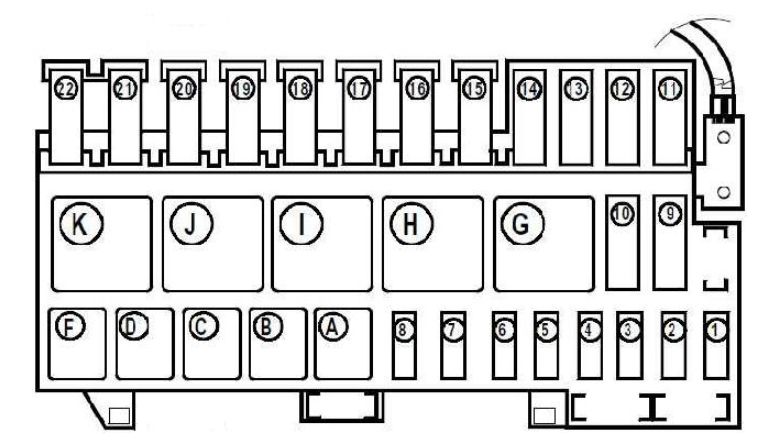

Fuse box in engine compartment

Renault Scenic - fuse box diagram - engine compartment
Renault Scenic – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 30 Fan and diesel heater
F2 30 Injection
F3 7,5 Air conditioning compressor
F4 3 Liquid petroleum gas
F5 7,5 Liquid petroleum gas
F6 7,5 Automatic gearbox computer – ignition
F7 7,5 Injection safety – diesel heater – air bag computer
F8 7,5 Liquid petroleum gas
F11 70 Pre-heating and thermoplunger
F14 40 Double speed fan and diesel heater
F16 60 ABS computer
F18 60 Heated windscreen
F19 40 Air conditioning fan assembly
F20 60 Dashboard supply
F21 60 Dashboard supply
F22 60 Dashboard supply
A Fuel pump
Diesel heater
B Injection locking
C Altimetric corrector
Thermoplunger no. 1
D Single speed fan assembly relay 100W-180W
Air conditioning compressor
F Automatic gearbox ignition
I Thermoplunger no. 2
J High speed fan assembly 340/550W
K Low speed fan assembly 340/550W
D9 Pilot diode Low Speed fan via air conditioning F8Q 790
D10 Free wheel air conditioning compressor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
