Renault Grand Scenic (2004 – 2009) – fuse box diagram

Renault Grand Scenic (2004 – 2009) – fuse box diagram

Year of production: 2004, 2005, 2006, 2007, 2008, 2009

Passenger compartment fuse box

This unit is located in the passenger compartment, in the lower left-hand section of the dashboard.

Renault Grand Scenic - fuse box diagram - passenger compartment
Renault Grand Scenic – fuse box diagram – passenger compartment
Number Ampere rating [A] Allocation
F1
F2
F3 10 Cigarette lighter
F4 10 Second row accessories socket (on keyless vehicle version)
F5
F6
F7 5 Passenger electric door mirror
F8 10 On keyless vehicle version: windscreen washer pump via steering column control – opening element warning sound unit
On vehicle with key version:: windscreen washer pump via steering column control – anti-theft tracker unit
F9
F10 10 Instrument panel (on keyless vehicle version)
F11
F12
F13
F14 25 Passenger electric window motor
F15 5 Brake light switch – ABS with ESP electric control unit – wheel speed electric control unit
F16 25 Rear right-hand electric window motor
F17 25 Rear left-hand electric window motor
F18 10 Passenger storage compartment light – left-hand boot light – front courtesy light – rear courtesy light – front right-hand courtesy mirror light – front left-hand courtesy mirror light – rain sensor – front passenger door light
F19 10 Combined clock/external temperature/radio telephone display – seat belt reminder module – CAN network interface unit – multimedia audio socket – anti-theft tracker unit (on keyless vehicle version)
F20 5 Automatic air conditioning control panel
F21 10 Fuel filler flap locking motor
F22
F23 20 Trailer socket switching module
F24 15 Via passenger compartment electric control unit: tailgate lock – right-hand luggage compartment lid light – left-hand luggage compartment lid light
F25
F26 10 Navigation assistance electric control unit
F27 10 Radio
F28
F29
F30 15 Via passenger compartment electric control unit:
Left-hand indicator lights: rear left-hand light – left-hand headlight – driver’s electric door mirror
Right-hand indicator lights: rear right-hand light – right-hand headlight – passenger electric door mirror
F31 10 Passenger compartment electric control unit supply
F32 30 Driver’s door multiplexed electric control unit
F33 25 Via passenger compartment electric control unit: rear right-hand door central locking – rear left-hand door central locking – passenger door central locking – fuel filler flap control – fuel filler flap locking motor
F34
F35 15 Combined clock/external temperature/radio telephone display – CAN network interface unit – instrument panel
On vehicle with key version:
 – anti-theft tracker unit
F36 15 Diagnostic socket – alarm warning – alarm electric control unit – main electromagnetic horn supply via horn relay on fuse and relay board
F37 10 Via passenger compartment electric control unit:
Brake lights: rear left-hand light – rear right-hand light – high level brake light
F38
F39
F40 40 On keyless vehicle version: fan assembly power module – passenger compartment fan assembly 1 (via engine running + relay)
On vehicle with key version:: fan assembly power module – passenger compartment fan assembly 1
F41 25 Sunroof
F42 40 Via heated rear screen relay on passenger compartment fuse and relay box: heated rear screen – F7 fuse supply on passenger compartment fuse and relay box
Relay
A 70 Timed non-load shed + battery (no function power cut off during start phase)
B 70 On keyless vehicle version: Timed load shed + battery 1 (function power cut off during start phase)
On vehicle with key version:
 + Accessories feed
C 40 Heated rear screen
D 20 Horn

This unit is located in the passenger compartment, in the lower left-hand section of the dashboard, on the steering column side.

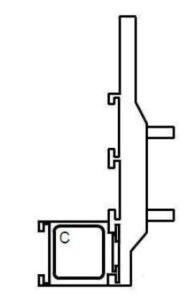

Renault Grand Scenic - fuse box diagram - passenger compartment
Renault Grand Scenic – fuse box diagram – passenger compartment
Number Ampere rating [A] Allocation
C 70 Engine running 2 + relay for supplying the passenger compartment fan assembly, on the keyless vehicle version with manual air conditioning

Engine compartment fuse box

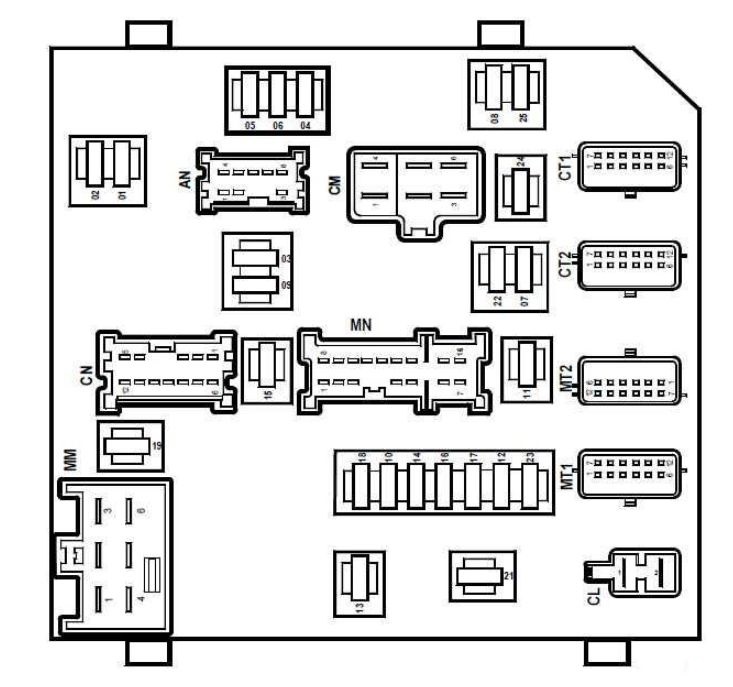

Renault Grand Scenic - fuse box diagram - engine compartment
Renault Grand Scenic – fuse box diagram – engine compartment
Number Ampere rating [A] Allocation
1 10 Right-hand side light – first row cigarette lighter- rear right-hand electric window control – rear left-hand electric window control – passenger electric window control – right-hand number plate light – left-hand number plate light – rear right-hand side light – radio – speed limiter and cruise control on/off switch – ESP on/off button – headlight adjustment rheostat switch – central door locking/hazard warning lights switch – parking distance control switch – automatic gearbox selector light – air conditioning control panel – right-hand side light – left-hand side light
2 10 Left-hand side light – rear left-hand side light
3 15 Headlight washer pump
4 20 Front left-hand fog light – front right-hand fog light
5 10 Left-hand headlight
6 10 Right-hand headlight
7 15 Diagnostic socket – shift pattern control – parking distance control electric control unit – heated rear screen relay control (on fuse and relay board – manual air conditioning control panel – rear view mirror – cruise control and speed limiter on/off control – left-hand headlight adjustment motor – right-hand headlight adjustment motor – discharge bulb electric control unit – anti-theft tracker unit
8 30 Anti-lock braking unit/electronic stability program electric control unit
9 30 Windscreen wiper motor
10 10 Airbag/pretensioner electric control unit – electric steering column lock (on keyless vehicle version)
11
12 7,5 Gearbox electric control unit – gearbox output speed sensor – gearbox output primary speed sensor – multifunction switch
13 25 K4M engine: injection electric control unit – petrol vapour absorber – injectors
K4M838 engine: injection electric control unit – variable camshaft – additional fuel pump relay control on engine fuse and relay box – motorised throttle valve – petrol vapour absorber
M4R engine: variable inlet camshaft – injectors – injectors – injection electric control unit – petrol vapour absorber
M4R752 and M4R753: variable inlet camshaft – injectors – injectors – injection electric control unit – petrol vapour absorber – additional fuel pump relay control on fuse and relay board – motorised throttle valve
F4R engine: injection electric control unit – injectors – turbocharger bearing coolant pump – petrol vapour absorber – wastegate solenoid valve – oil vapour recirculation hose reheater
14 15 K4M engine: downstream oxygen sensor – upstream oxygen sensor – camshaft inlet sensor engine
M4R engine: downstream oxygen sensor – upstream oxygen sensor
F4R engine: camshaft inlet sensor – variable inlet camshaft – downstream oxygen sensor – upstream oxygen sensor
15 20 Gearbox electric control unit
16 5 Brake light switch – passenger compartment electric control unit – electric power-assisted steering system
17 10 Manual gearbox TDC sensor and reversing lights – reversing light via protection and switching unit and via relay on fuse and relay board on automatic gearbox version
18 15 Steering column lock via passenger compartment electric control unit (on keyless vehicle version)
19 25 Starter
20
21 20 M4R engine: fuse fuel gauge and pump – cylinder 1 pencil coil – cylinder 2 pencil coil – cylinder 3 pencil coil – cylinder 4 pencil coil –
On K4M and F4R engine: fuse fuel gauge and pump – cylinder 3 pencil coil – cylinder 4 pencil coil
22 10 Air conditioning clutch
23 5 Fuse injection ECU
24 20 Left-hand headlight
25 20 Right-hand headlight

Location: This unit is located behind the battery.

Renault Grand Scenic - fuse box diagram - engine compartment

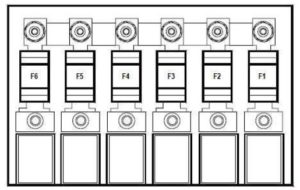

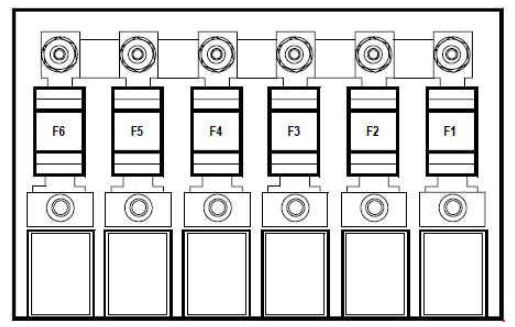

Renault Grand Scenic – fuse box diagram – engine compartment
Number Ampere rating [A] Allocation
F1
F2 80 Supply to fuses F37 and F38 on passenger compartment fuse and relay box – supply to fuses F3, F4, F5, F6, F8, F11 and F40 on passenger compartment fuse and relay box via relay on passenger compartment fuse and relay box
F3 80 Supply to fuses F9, F12, F41 and F42 on passenger compartment fuse and relay box
F4 80 Protection and switching unit – supply to fuses F23 and F24 on passenger compartment fuse and relay box  – supply to fuses F1, F2, F14, F15, F16, F17, F18, F19, F20, F21 and F22 on passenger compartment fuse and relay box via relay on passenger compartment fuse and relay box
F5
F6 50 ABS computer with ESP

This unit is located in the engine interconnection unit, below the Protection and Switching Unit.

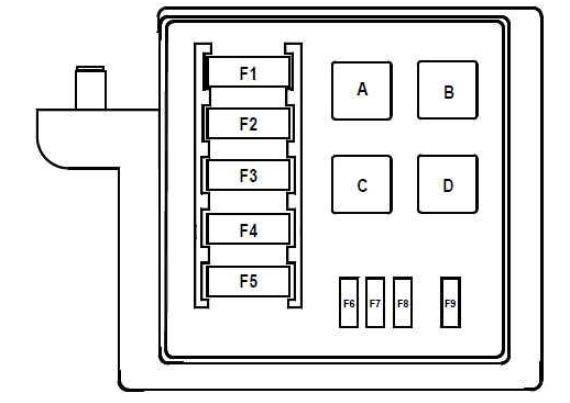

Renault Grand Scenic - fuse box diagram - engine compartment
Renault Grand Scenic – fuse box diagram – engine compartment
Number Ampere rating [A] Allocation
F1
F2
F3
F4
F5 60 Fan assembly via high speed fan assembly relay
F6 20 Additional fuel pump via additional fuel pump relay on engine fuse and relay box on K4M864, M4R752 and M4R753 engines
F7
F8 30 Fan assembly through low speed fan assembly resistor via protection and switching unit – fan assembly relay control
F9
Relay
A
B 20 Additional fuel pump for K4M864, M4R752 and M4R753 engines
C 20 Reversing light on automatic gearbox version
D

Location: This unit is located behind the battery.

Renault Grand Scenic - fuse box diagram - engine compartment
Renault Grand Scenic – fuse box diagram – engine compartment
Number Ampere rating [A] Allocation
F1 300 M4R714, M4R751, M4R752, M4R753: Starting protected + battery
190 K4M838, K4M864, F4R872: Starting protected + battery
F2 50 Supply to fuses F30, F31, F32, F33, F34, F35 and F36 on passenger compartment fuse and relay box
F3 80 Supply to fuses F10, F26 and F27 on passenger compartment fuse and relay box – protection and switching unit
F4 300 M4R714, M4R751, M4R752, M4R753: Supply to fuses F1, F2, F3, F4, F5, F6, F8 and F9 on engine fuse and relay box – supply to fuses on fuse board – alternator
K4M838, K4M864, F4R872: Supply to fuses F1, F2, F3, F4, F5, F6, F8 and F9 on engine fuse and relay box – supply to fuses on fuse board – alternator
F5 80 Electric power-assisted steering system
F6 35 Protection and switching unit
F7 5 Protection and switching unit
1 5 Protected + battery > protection and switching unit
2
3

This unit is located next to the fan assembly

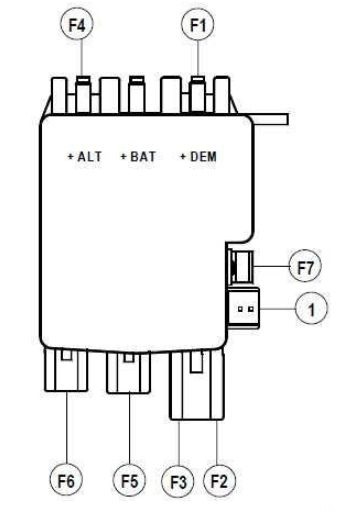

Renault Grand Scenic - fuse box diagram - engine compartment
Renault Grand Scenic – fuse box diagram – engine compartment
Number Ampere rating [A] Allocation
234 70 Engine cooling fan assembly

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
