Pontiac Firebird (1999 – 2002) – fuse box diagram
Year of production: 1999, 2000, 2001, 2002
Instrument Panel Fuse Block
Pontiac Firebird – fuse box – instrument panel
| Fuses |
Usage |
| STOP/HAZARD |
Hazard Flashers, Brake Switch Assembly |
| TURN B/U |
Traction Control Switch, Back/Up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module |
| STG WHEEL CNTRL |
Steering Wheel Controls |
| RADIO ACCY |
Delco Monsoon Radio Amplifier, Power Antenna, Remote CD Player (Hatch) |
| TAIL LPS |
Daytime Running Lamps (DRL) Module, Headlamp Switch |
| HVAC |
HVAC Selector Switch, Rear Defogger Switch/Timer |
| PWR ACCY |
Parking Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster |
| COURTESY |
Body Control Module (BCM) |
| GAUGES |
Body Control Module (BCM), Brake-Transmission Shift Interlock (BTSI), Instrument Panel Cluster, Daytime Running Lamps (DRL) Module |
| AIR BAG |
Air Bag |
| CIG/ACCY |
Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire |
| DEFOG/SEATS |
Rear Defogger Switch/Timer, Rear Defogger Timer/Relay, Power Seats |
| IGN |
Aftermarket Use Only |
| STG WHEEL CNTRL |
Steering Wheel Controls |
| WIPER/WASH |
Wiper Motor Assembly, Wiper/Washer Switch |
| BATT |
Aftermarket Use Only |
| WINDOWS |
Power Windows Switch (Right-Hand, Left-Hand), Express-Down Module, Convertible Top Switch |
| IP DIMMER |
Door Illumination Lamp (Right-Hand, Left-Hand), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Rear Window Defogger Switch/Timer, Traction Control Switch (TCS), Convertible Top Switch |
| ACCY |
Aftermarket Use Only |
| RADIO |
Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio |
Engine Compartment Fuse Block
Fuse and Relay Center 1

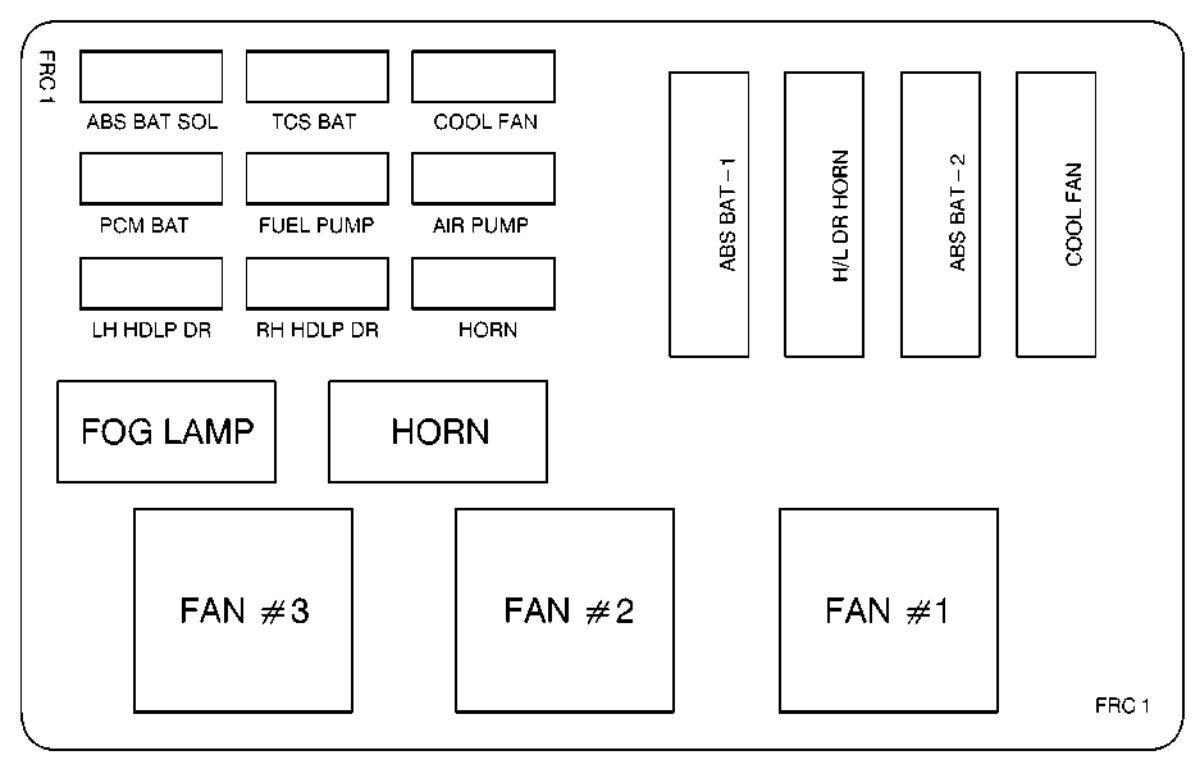

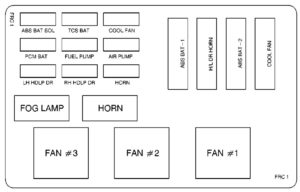

Pontiac Firebird – fuse box – engine compartment (fuse and relay center 1)
| Fuse |
Usage |
| ABS BAT SOL |
Anti-Lock Brake System |
| TCS BAT |
Traction Control System |
| COOL FAN |
Cooling Fan Control |
| PCM BAT |
Powertrain Control Module (PCM) |
| FUEL PUMP |
Fuel Pump |
| AIR PUMP |
A.I.R. Pump Relay and Bleed Valve |
| LH HDLP DR |
Left Headlamp Door Module |
| RH HDLP DR |
Right Headlamp Door Module |
| HORN |
Horn Relay |
| ABS BAT-1 |
Anti-Lock Brake System Module |
| H/L DR HORN |
Horn and Headlamp Doors |
| ABS BAT-2 |
Anti-Lock Brake and Traction Control System |
| COOL FAN |
Cooling Fan Relays |
| Relay |
Description |
| FOG LAMP |
Fog Lamps |
| HORN |
Horn |
| FAN #3 |
Cooling Fans |
| FAN #2 |
Cooling Fans |
| FAN #1 |
Cooling Fans |
Fuse and Relay Center 2

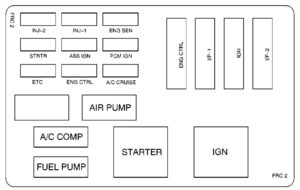

Pontiac Firebird – fuse box – engine compartment (fuse and relay center 2)
| Fuse |
Usage |
| INJ-2 |
Fuel Injectors (Not used for V6) (LH Injectors for V8 and Ignition Module) |
| INJ-1 |
Fuel Injectors (All for V6) (RH Injectors for V8 and Ignition Module) |
| ENG SEN |
Mass Air Flow Sensor, Heated Oxygen Sensor, Skip Shift Solenoid (V8 Only), Reverse Lockout Solenoid, Brake Switch |
| STRTR |
Powertrain Control Module (PCM), Clutch Pedal Switch |
| ABS IGN |
Anti-Lock Brake System Module |
| PCM IGN |
Powertrain Control Module (PCM) |
| ETC |
Electronic Throttle Control (V6 Only) |
| ENG CTRL |
Ignition Module (V6 Only), Automatic Transmission, Charcoal Canister Purge Solenoid |
| A/C CRUISE |
Air Conditioning Compressor Relay, Cruise Control Switches and Module |
| ENG CTRL |
Engine Controls, Fuel Pump, Powertrain Control Module (PCM), A.I.R. Pump and Cooling Fans |
| I/P-1 |
HVAC Blower Control and Relay |
| IGN |
Ignition Switch, Relay and Starter Enable Relay |
| I/P-2 |
Instrument Panel Fuse Center |
| Relay |
Description |
| Blank |
Not Used |
| AIR PUMP |
Air Pump |
| A/C COMP |
Air Conditioning Compressor |
| FUEL PUMP |
Fuel Pump |
| STARTER |
Starter |
| IGN |
Engine Controls, Cruise Controls, Air Conditioning |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
