Pontiac Firebird (1997) – fuse box diagram

Pontiac Firebird (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block

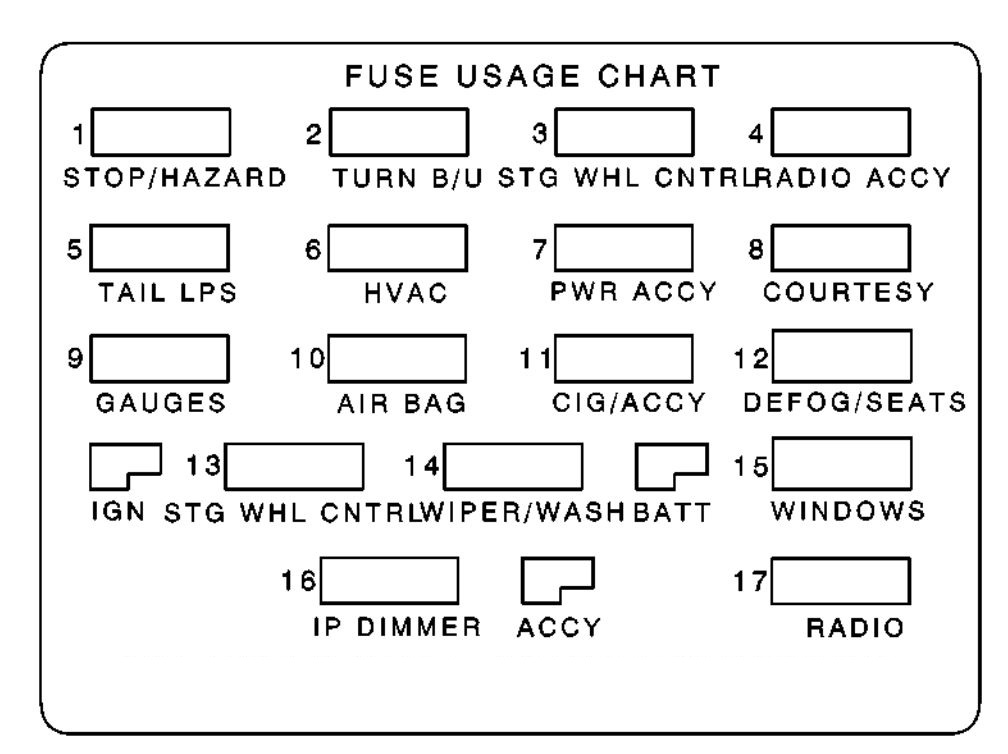

Pontiac Firebird - fuse box - instrument panel
Pontiac Firebird – fuse box – instrument panel
Fuses Usage
STOP/HAZARD Hazard Flashers, Brake Switch Assembly
TURN B/U Traction Conntro/Second Gear Start Switch, Back/Up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module
PCM BATT Powertrain Control Module (PCM), Fuel Pump Relay
RADIO ACCY Delco Monsoon Radio Amplifier, Power Antenna, Remote CD Player (trunk)
TAIL LPS Daytime Running Lamps (DRL) Module, Headlamp Switch
HVAC HVAC Selector Switch, Rear Defogger Switch/Timer
PWR ACCY Parking Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster
COURTESY Body Control Module (BCM)
GAUGES Body Control Module (BCM), Brake Switch Assembly (BTSI), Instrument Cluster, Daytime Running Lamps (DRL) Module
AIR BAG Diagnostic Energy Reserve Module (DERM), Dual Pole Arming Sensor
CIG/ACCY Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire
DEFOG/SEATS Rear Defogger Switch/Timer, Rear Defogger Timer/Relay, Power Seats
PCM IGN Powertrain Control Module (PCM), EVAP Canister Purge Vacuum Switch, EVAP Ca
WIPER/WASH Wiper Motor Assembly, Wiper/Washer Switch
WINDOWS Power Windows Switch (RH, LH), Express-Down Module, Coolant Level Latching Module, Convertible Top Switch
IP DIMMER Door Illumination Lamp (RH, LH), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Steering Wheel Controls-Radio, Rear Window Defogger Switch/Timer, Traction Control Switch (TCS) and 2nd Gear Start Switch
RADIO Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio

Underhood Electrical Center

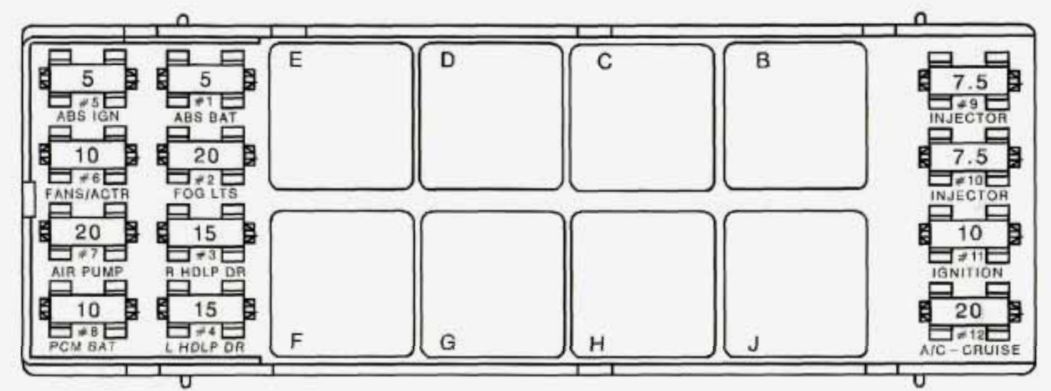

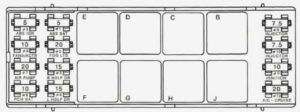

Pontiac Firebird - fuse box - engine compartment
Pontiac Firebird – fuse box – engine compartment
Fuse Ampere rating [A] Usage
ABS IGN 5 Anti-Lock Brake System
ACTUATORS 15 Daytime Running Lamp Module, Headlamp Switch, Cooling Fan Relay, Exhaust, Gas Recirculation, EVAP Canister Purge Solenoid
R HDLP DR 15 Headlamp Door Module
L HDLP DR 15 Headlamp Door Module
ABS VLV 20 Brake Pressure Valve
ABS BAT 5 Electronic Brake Control Module
AIR PUMPFAN 25 AIR Pump (V8) Relay, Pump, Bleed Valve and Cooling Fan
HORN 20 Horn Relay
INJECTOR 15 Fuel Injectors
ENG SEN 20 Mass Airflow, Heated Oxygen Sensor, Reverse Lockout Solenoid, Skip Shift Solenoid, Automatic Transmission, Brake Switch
IGNITION 10 V6 VIN K: Electronic Ignition Module VS VIN P: Ignition Coil Module, Crankshaft Position Sensor
A/C-CRUISE 15 Air Conditioning Compressor Relay; Cruise Control Switches and Modu


Relay Usage
B Air Conditioning Compressor
C Anti-Lock Brake SystedTraction Control System (TCS)
D Cooling Fan 1
E AIR Pump
F Cooling Fan 2
G Not Used
H Fog Lamps
J Cooling Fan 3

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
