Mercedes-Benz 500SEL (1992 – 1993) – wiring diagrams – instrumentation

Mercedes-Benz 500SEL (1992 – 1993) – wiring diagrams – instrumentation

Year of productions:  1992, 1993

Instrumentation

Mercedes-Benz 300SE - wiring diagram - instrumentation (part 1)

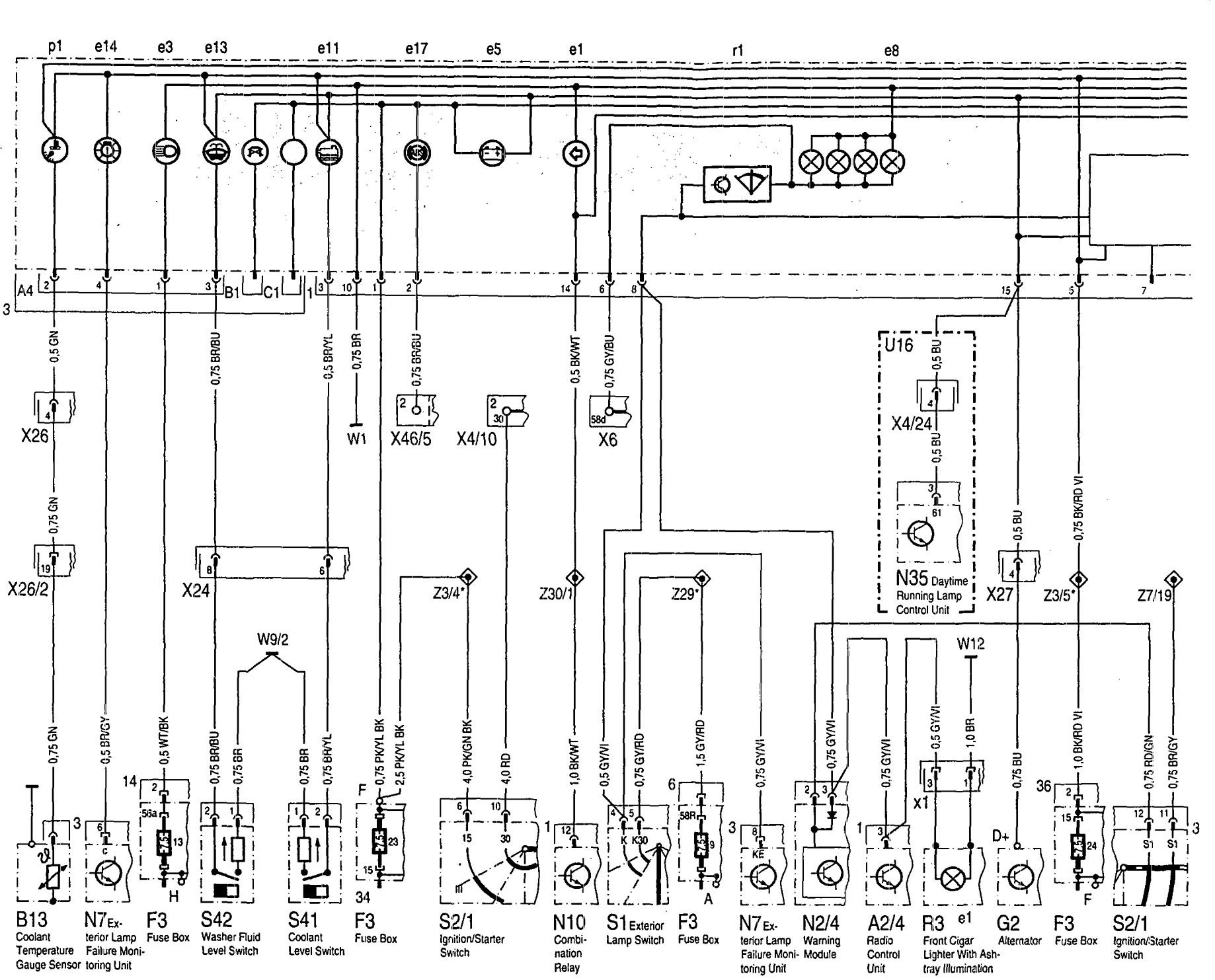

Mercedes-Benz 500SEL – wiring diagram – instrumentation (part 1)
Mercedes-Benz 300SE - wiring diagram - instrumentation (part 2)

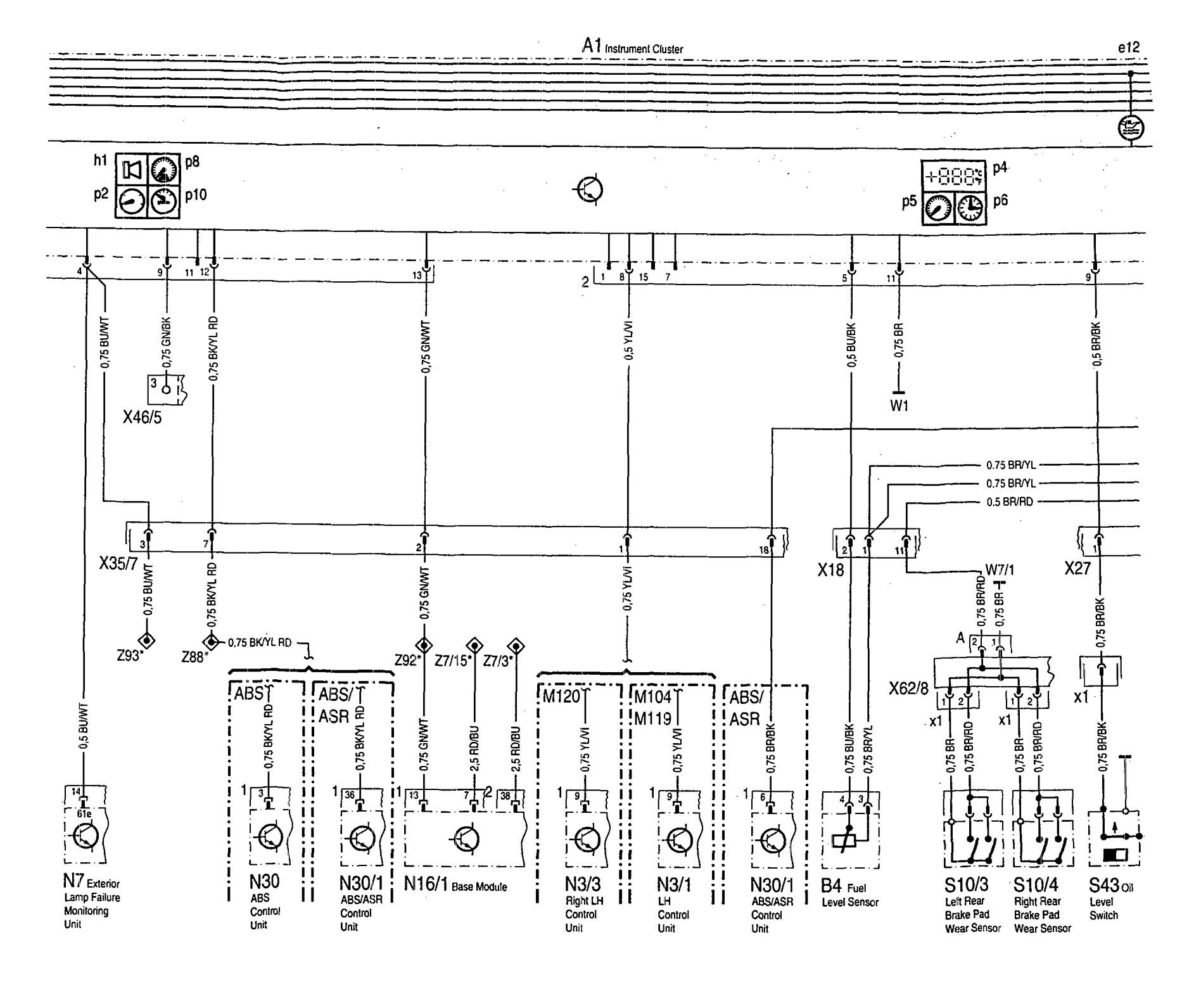

Mercedes-Benz 500SEL – wiring diagram – instrumentation (part 2)
Mercedes-Benz 300SE - wiring diagram - instrumentation (part 3)

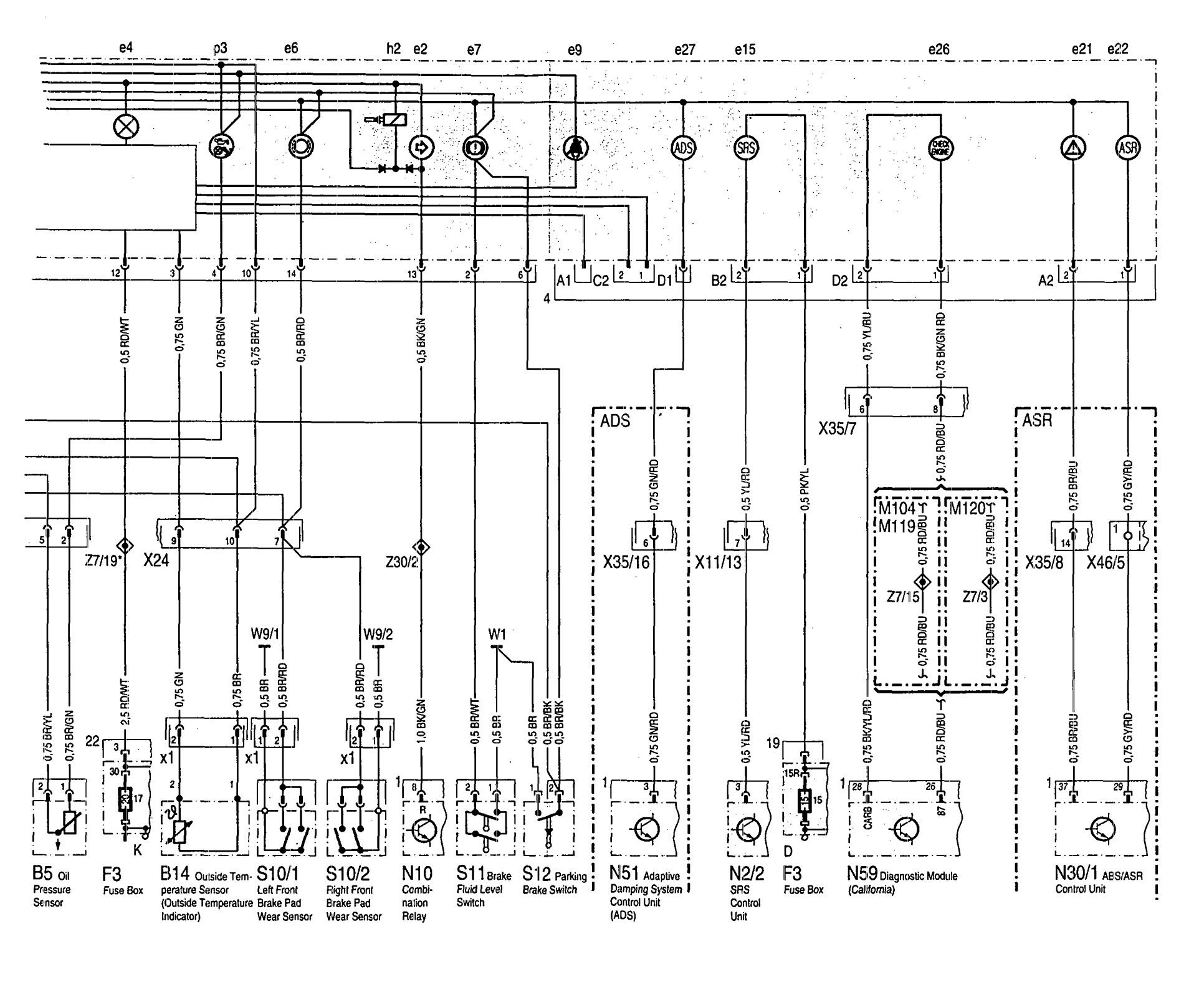

Mercedes-Benz 500SEL – wiring diagram – instrumentation (part 3)
Mercedes-Benz 300SE - wiring diagram - instrumentation (part 4)

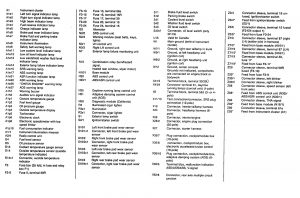

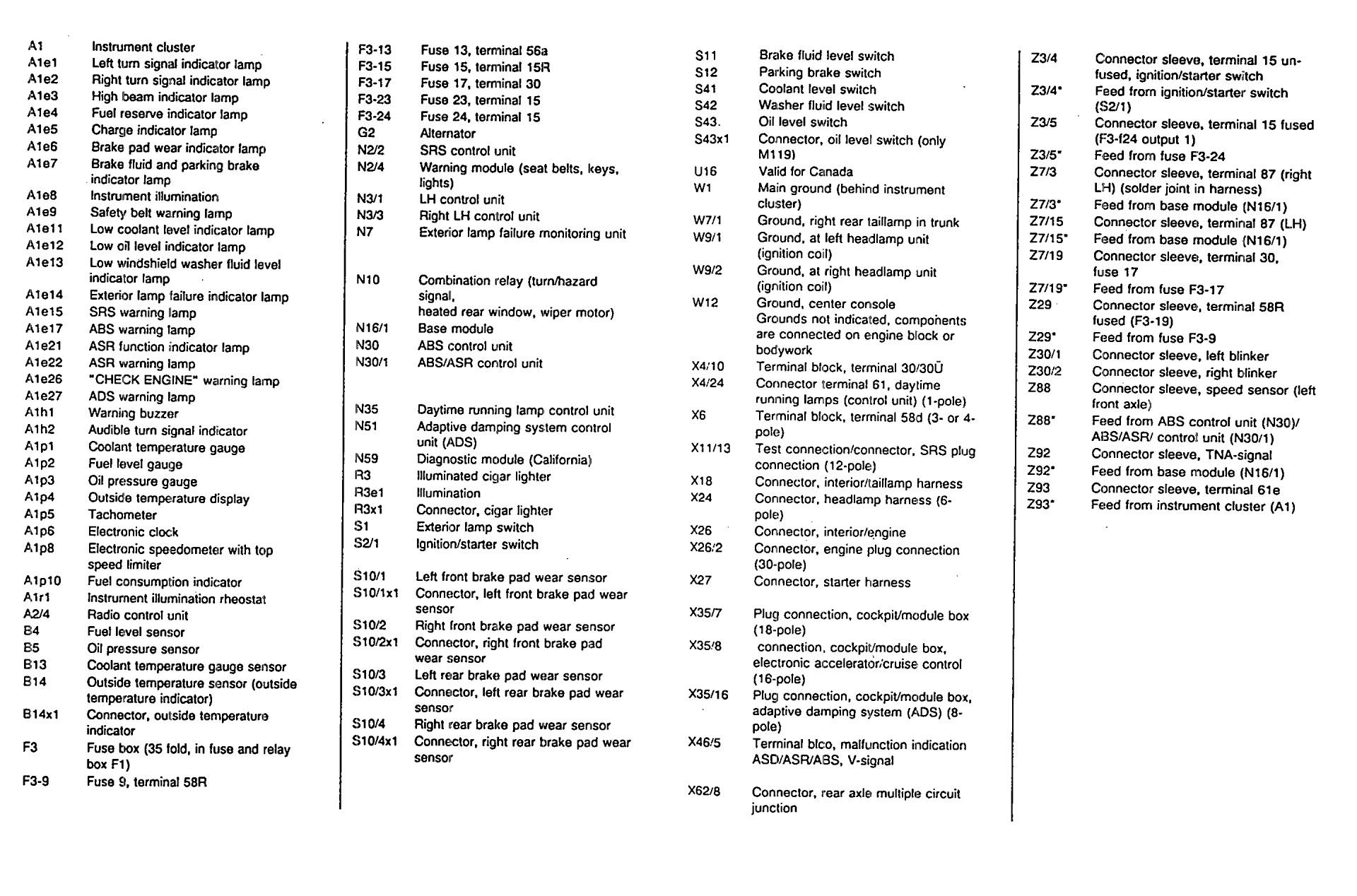

Mercedes-Benz 500SEL – wiring diagram – instrumentation (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
