Lancia Delta (2008 – 2014) – bulbs specification

Lancia Delta (2008 – 2014) – bulbs specification

Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014

Bulb types

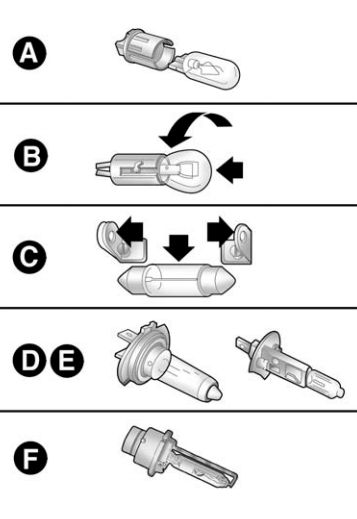

Lancia Delta mk3 - bulbs
Lancia Delta mk3 – bulbs

A –  All glass bulbs: clipped into place. Pull to extract

B – Bayonet bulbs: to remove this type of bulb from its holder, press the bulb and turn it anticlockwise

C – Cylindrical bulbs: release from the contacts to extract

D – Halogen bulbs: release the fastening clip from the corresponding seat to remove the bulb

E – Halogen bulbs: release the fastening clip from the corresponding seat to remove the lamp

Bulb Type Power Figure
Front side lights/Daylight lights LED
Rear side lights LED
Dipped beams D1S(*) / H7 55W D
Main beams H1(*) / H7 55W D
Front direction indicators PY 24W 24W B
Rear direction indicators LED
Side direction indicators WY5W 5W A
Brake light LED
3rd brake light LED
Number plate light W5W 5W C
Fog lights H11 55W E
Rear fog lights W16W 16W B
Reversing light W16W 16W B
Front courtesy light (white LED’s) 5L/5K
Rear courtesy light 12V 5W 5W C
Glove compartment/luggage compartment courtesy light 12V 5W 5W C
Door lights W5W 5W A

(*) Xenon gas discharge bulb

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
