KIA Sportage (2001) – fuse box diagram

KIA Sportage (2001) – fuse box diagram

Year of production: 2001

Engine compartment

KIA Sportage - fuse box diagram - engine compartment
KIA Sportage – fuse box diagram – engine compartment
Description Ampere rating [A] Protected component
FUEL INJ 30 Fuel injection system
ADD 30 A/C condenser fan
MAIN 80 For protection of all circuit
BTN 60 Brake lights, license plate lights, dome light, hazard lights
IGN 30 Ignition
P/WIN 40 Power windows
MAIN 15 Fuel pump injectors, main relay, fuel pump relay
ABS 30 Anti-lock brake system
HEAD 20 Headlight

Driver’s Side Kick Panel

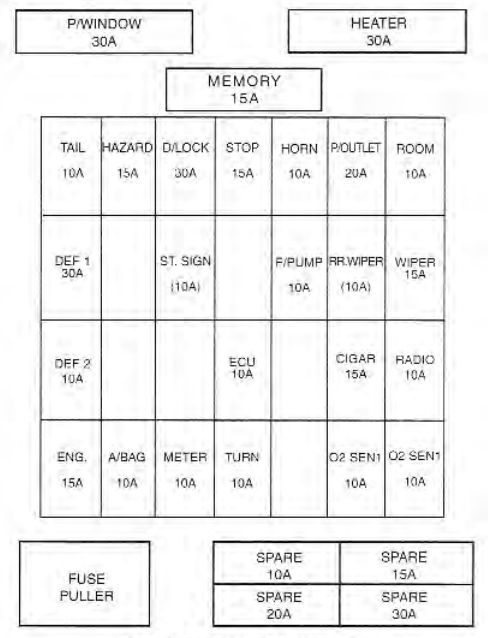

KIA Sportage - fuse box diagram - driver's kick side panel
KIA Sportage – fuse box diagram – driver’s kick side panel
Description Ampere rating [A] Protected component
P/WINDOW 30 Power windows
HEATER 30 Blower fan
MEMORY 15
TAIL 10 Taillights, parking flights, radio illumination
HAZARD 15 Hazard warning lights
D/LOCK 30 Auto door lock
STOP 15 Brake lights
HORN 10 Horn
P/OUTLET 20 Electrical power outlet
ROOM 10 Interior lights
DEF1 30 Rear defroster
DEF2 10 Outside rearview mirror defroster
ST.SIGM 10 Side turn signal lights
F/PUMP 10 Fuel pump
(RR WIPER) 15 Air conditioner, rear wiper
WIPER 15 Front wiper
ECU 10 Engine control unit
CIGAR 15 Cigarette lighter, power mirrors
RADIO 10 Radio, clock
ENG 15
A/BAG 10 Supplemental restraint system
METER 10 Instrument panel back-up lights
TURN 10 Lights assembly
O2 SEN1 10 Oxygen sensor
O2 SEN2 10 Oxygen sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
