Hyundai Sonata (2005 – 2008) – fuse box diagram

Hyundai Sonata (2005 – 2008) – fuse box diagram

Year of production: 2005, 2006, 2007, 2008

Engine Compartment

Hyundai Sonata – fuse box – engine compartment
Hyundai Sonata – fuse box – engine compartment
Description Ampere rating [A] Protected component
FUSIBLE LINK ABS.1 40 ABS/ESC control module, Multipurpose check connector
ABS.2 20 ABS/ESC control module, Multipurpose check connector
I/P B+1 40 Fuse 23, 24, 30, 31, 32, 33, 34, 35
RR HTD 40 Defogger relay
BLOWER 40 Blower relay
P/WDW 40 Power window relay, Fuse 16
IGN.2 40 Start relay, Ignition switch (IG2, START)
ECU RLY 30 Engine control unit relay
I/P B+2 30 Power connector 1/2, Fuse 21,22
IGN.1 30 Ignition switch (ACC, IG1)
ALT 150 Fusible Iink (ABS. 1, ABS. 2, RR HTD, BLOWER)
MDPS 100 (Spare)
FUSE 1 HORN 15 Horn relay
2 TAIL 20 Tail light relay
3 ECU 10 PCM
4 IG1 10 (Spare)
5 DRL 15 Siren relay, DRL control module
6 FR FOG 15 Front fog light relay
7 A/CON 10 A/C relay
8 F/PUMP 20 Fuel pump relay
9 DIODE (Spare)
10 ATM 20 ATM control relay
11 STOP 15 Stop light relay
12 H/LP LO RH 15 (Spare)
13 S/ROOF 15 Sunroof control module
14 H/LP WASHER 20 Headlight washer motor
15 H/LP HI 20 Headlight relay (High)
16 ECU 10 (Spare)
17 SNSR.3 10 Oxygen sensor, Fuel pump relay
18 SNSR.1 15 Mass air flow sensor, Crankshaft/Camshaft position sensor, Oil control valve, SMATRA
19 SNSR.2 15 A/C relay, Cooling fan relay, Injectors
20 B/UP 10 Back up light switch, Pulse generator, Vehicle speed sensor
21 IGN COIL 20 Ignition coils, Condenser
22 ECU (IG1) 10 PCM
23 H/LP LO 20 Headlight relay (Low)
24 ABS 10 ABS/ESC control module, Multipurpose check connector

Inner Panel

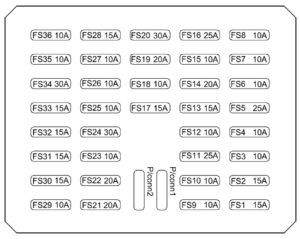

Hyundai Sonata – fuse box – instrument panel
Hyundai Sonata – fuse box – instrument panel
Fuse Ampere rating [A] Protected component
1 15 (Spare)
2 15 Seat warmer switch
3 10 BCM (Body Control Module), Sunroof control module, Electronic chrome mirror
4 10 ESC module, High blower relay, Humidity sensor
5 25 Cigarette lighter
6 10 (Spare)
7 10 Illumination lights, Right : License light, Rear combination light, Headlight, Glove box light
8 10 Front fog light relay, Left : License light, Rear combination light, Headlight
9 10 Headlight washer relay, Right headlight leveling actuator
10 10 DRL control module, Headlight relay, AQS and ambient sensor, Left headlight leveling actuator
11 25 Wiper and washer
12 10 A/C control module
13 15 SRS control module, Passenger’s Airbag switch
14 10 Front accessory socket, Rear power outlet
15 10 Digital clock, Audio, A/T shift lock control module, Power outside mirror and mirror folding
16 25 Safety window module
17 15 (Spare)
18 10 A/T shift lock control module
19 20 Power window main switch, Left rear power window switch
20 30 Power window main switch, Right power window switch
21 20 Audio amp
22 20 Door lock/unlock relay
23 10 Hazard switch, Hazard relay
24 30 Power seat manual switch(RHD)
25 10 Instrument cluster
26 10 Hazard switch
27 10 BCM(Body Control Module), Instrument cluster, Yaw rate sensor, ESC switch
28 15 (Spare)
29 10 Burglar alarm relay
30 15 (Spare)
31 15 Rear fog light relay
32 15 Trunk lid relay, Fuel filler door and trunk lid switch
33 15 (Spare)
34 30 Power seat manual switch
35 10 Sport mode switch, Key solenoid
36 10 A/C control module, Outside mirror and mirror folding motor
CONNECTOR. 1 15 Audio
CONNECTOR. 2 15 BCM(Body Control Module), Digital clock, Instrument cluster, A/C control module, Courtesy lights

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
