Hyundai Matrix (2006 – 2007) – fuse box diagram

Hyundai Matrix (2006 – 2007) – fuse box diagram

Year of production: 2006, 2007

Engine compartment (gasoline)

Hyundai Matrix – fuse box – engine compartment (gasoline)
Hyundai Matrix – fuse box – engine compartment (gasoline)
Description Ampere rating [A] Protected components
ALT 120 Generator
B+ 40 (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse
ECU 30 Generator, Engine control relay, ECM
RAD 20 Radiator fan relay
IGN 40 Start relay, Ignition switch
BLR 40 Blower relay
P/WIN 30 Power window relay
COND 20 Condenser fan relay #1
ABS 40 ABS control module, ABS bleeding connector, ESP
ABS 40 ABS control module, ABS bleeding connector, ESP
F/PUMP 10 Fuel pump relay
INJ 15 Injector, lgnition coil
SNSR 10 MAP sensor, Oxygen sensor, CP sensor, Knock sensor, Throttle position sensor
ROOM LP 10 Audio, Room lamp, Overhead console lamp, lnstrument cluster
DRL 15 DRL control module
HORN 10 Horn relay
A/CON 10 A/C relay
FR FOG 15 Front fog lamp relay
ECU 10 ECM, TCM
LP 20 Tail lamp relay
TAIL LH 10 Left rear combi lamp, Left position lamp, Left License lamp
TAIL RH 10 Right rear combi lamp, Right position lamp, Right License lamp
H/LP LH 15 Left head lamp
H/LP RH 15 Right head lamp, (H/LP IND) Fuse

Engine compartment (diesel)

Hyundai Matrix - wiring diagram - fuse box diagram - engine compartment (diesel)
Hyundai Matrix – wiring diagram – fuse box diagram – engine compartment (diesel)
Description Ampere rating [A] Protected components
FUSE ALT 140 Generator
B+ 40 (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse, Deicer
ECU 30 Generator, Engine control relay, ECM
RAD 30 Radiator fan relay
IGN 40 Start relay, Ignition switch
BLR 40 Blower relay
P/WIN 30 Power window relay
COND 20 Condenser fan relay #1
ABS 40 ABS control module, ABS bleeding connector, ESP
ABS 40 ABS control module, ABS bleeding connector, ESP
F/PUMP 10 Fuel pump relay
ECU 30 ECM No.5 (Batt+)
ECU 10 ECM No.4 (Batt+), Stop lamp switch, PTC heater relay #1
SNSR 10 Glow plug relay, Assistor heater relay 1/2, Stop lamp switch, TDC sensor, EGR act, Throttle plate act, VGT vacuum
ROOM LP 10 Audio, Room lamp, Overhead console lamp, lnstrument cluster, ETACS, Luggage lamp
DRL 15 DRL control module
HORN 10 Horn relay
A/CON 10 A/C relay
FR FOG 15 Front fog lamp relay
ECU 10 ECM, TCM
LP 20 Tail lamp relay
TAIL LH 10 Left rear combi lamp, Left position lamp, Left License lamp
TAIL RH 10 Right rear combi lamp, Right position lamp, Right License lamp
H/LP LH 15 Left head lamp
H/LP RH 15 Right head lamp, (H/LP IND) Fuse
FUSIBLE LINK PTC HTR 1 40 PTC heater relay #1
GLOW 80 GLOW relay
PTC HTR 2 40 PTC heater relay #2
FFHS 30 FFHS relay
PTC HTR 3 40 PTC heater relay #3

Inner Panel

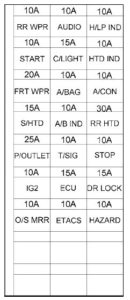

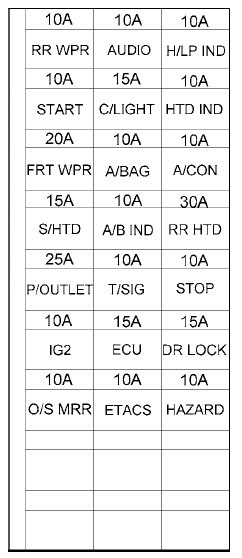

Hyundai Matrix – fuse box – inner panel
Hyundai Matrix – fuse box – inner panel
Description Ampere rating [A] Protected components
H/LP IND 10 Head lamp indicator
HTD IND 10 Defogger relay, Left(Right) outside mirror motor, Rear window motor
A/CON 10 A/C Switch
RR HTD 30 Defogger relay
STOP 10 Stop lamp switch, Power window relay
D/LOCK 15 Door lock(unlock) relay, ETACM, Sunroof relay
HAZARD 10 Burglar alarm relay, Hazard relay
AUDIO 10 Audio
C/LIGHT 15 Cigarette lighter
A/B 10 SRS control module
A/B IND 10 SRS IND.
T/SIG 10 Hazard switch, Seat belt timer, Instrument cluster, ABS control module, Pre-excitation resistor, Washer motor
ECU 15 ECM, Vehicle speed sensor, TCM, Ignition coil
ETACS 10 ETACM, A/T Shift lever
RR WPR 10 Rear wiper motor, Rear wiper relay
START 10 Start relay
FRT WPR 20 Wiper relay, Washer motor, Wiper & Defogger timer
S/HTD 15 Left (Right) front seat warmer switch
P/OUTLET 25 Front (Rear) power outlet
IG2 10 ETACM, Power window relay, Defogger relay, Sunroof relay Head lamp relay, Blower relay
O/S MRR 10 Outside mirror switch, Rear fog lamp relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
