Ford Transit (2000 – 2006) – fuse box diagram

Ford Transit (2000 – 2006) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

Location

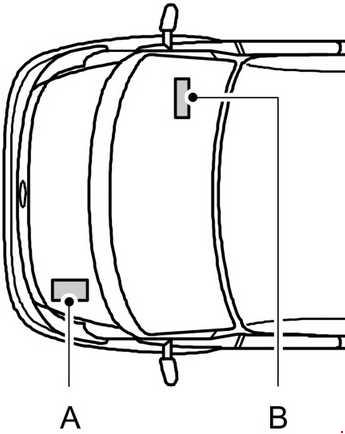

Left-hand drive

Ford Transit – fuse box diagram – location (left-hand drive)
Ford Transit – fuse box diagram – location (left-hand drive)

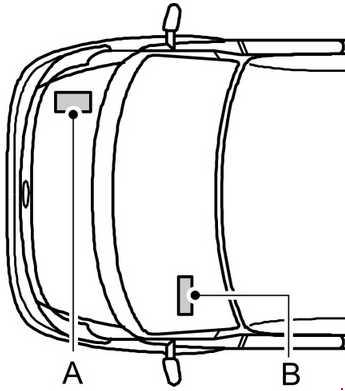

Right-hand drive

Ford Transit – fuse box diagram – location (right-hand drive)
Ford Transit – fuse box diagram – location (right-hand drive)

A – Engine compartment fuse box
B – Passenger compartment fuse box

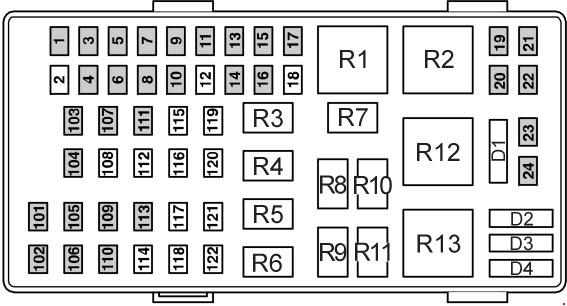

Engine compartment fuse box

Ford Transit – fuse box diagram – engine compartment
Ford Transit – fuse box diagram – engine compartment

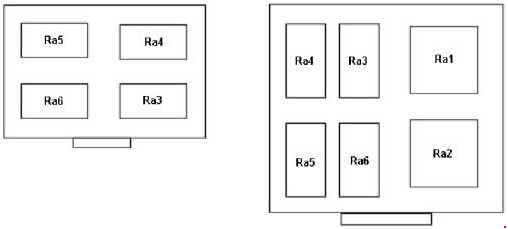

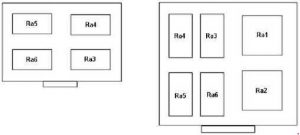

Additional Relay Box / Boxes Under Expansion Tank

Ford Transit – fuse box diagram – additional relay box/under expansion tank
Ford Transit – fuse box diagram – additional relay box/under expansion tank
No.
A
Circuits protected
1 5 Auto shift manual transmission
2 Not used
3 20 Daytime running lamps, dipped beam
4 5 Battery voltage sensor (Diesel engines)
5 20 Fuel cut-off switch
6 30 Towing equipment
7 15 Horn
8 20 ABS
9 20 Main beam
10 10 Air conditioning
11 20 Windscreen washers, rear window washers
12 Not used
13 30 Multi-function lever, windscreen wipers
14 15 Reversing lamp
15 5 Engine immobilisation system module
16 5 Electronic engine control
17 30 Towing equipment
18 Not used
19 5 Auto shift manual transmission
20 15 Auto shift manual transmission
21 20 Engine management
22 20 Fuel pump
23 10 Dipped beam, right-hand side
24 10 Dipped beam, left-hand side
101 40 ABS
102 40 Heated windscreen left-hand side
103 50 Main power supply to electrical system
104 50 Main power supply to electrical system
105 40 Engine cooling fan (2.0 l Diesel and 2.3 l DOHC engines)
106 30 Ignition
107 30 Ignition
108 Not used
109 40 Engine cooling fan (2.0 l Diesel and 2.3 l DOHC engines)
110 40 Heated windscreen, right-hand side
111 30 Ignition
112 Not used
113 40 Auto shift manual transmission
114 Not used
115 Not used
116 Not used
117 Not used
118 Not used
119 Not used
120 Not used
121 Not used
122 Not used
Relay
R1 Starter Motor
R2 Glow Plugs / Cooling Fan
R3 Horn
R4 Main Beam
R5 Generator Cut-Off
R6 Dipped Beam
R7 Engine Management (PCM)
R8 Bulb Check (Vehicles Without ABS)
R9 Fuel Pump (TDdi Engines), Injector Module (TDci Engines)
R10 Air Conditioning WOT (Wide Open Throttle)
R11 Lift Pump (Some TDdi Engines)
R12 Engine Cooling Fan
R13 Ignition
Ra1 Air Susspension Compressor
Ra2 Engine Cooling Fan High Speed
Ra3 Trailer Tow Indicators Left Hand
Ra4 Trailer Tow Indicators Right Hand
Ra5 Trailer Tow
Ra6
Diodes
D1
D2
D3 Trailer Tow RH Indicator / or Air Conditioning Clutch
D4 Trailer Tow LH Indicator / or Air Conditioning Indicator Ligh

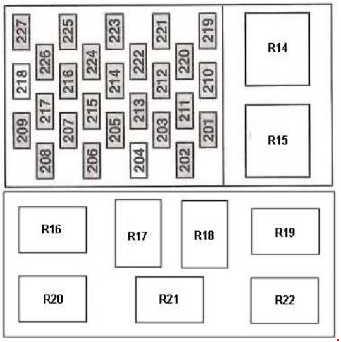

Passenger compartment fuse box

Ford Transit – fuse box diagram – passenger compartment
Ford Transit – fuse box diagram – passenger compartment

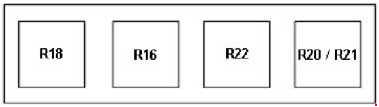

Alternative Relay Box

Ford Transit – fuse box diagram – alternative relay box
Ford Transit – fuse box diagram – alternative relay box
o.
A
Circuits protected
201 15 Instrument cluster, rear window wiper, clock
202 5 Heated windscreen
203 20 Fog lamps
204 Not used
205 15 Light control, direction indicators, multi-function lever, engine management, ignition
206 5 Number plate light
207 10 Airbag module
208 10 Instrument cluster illumination
209 15 Side lamps
210 15 Tachometer, clock
211 30 Rear heater blower motor
212 10 Cigar lighter
213 10 Rear air conditioning
214 15 Interior lamps, electric mirrors
215 20 Heated windscreen, heated front seats, auxiliary heater
216 20 Auxiliary power socket
217 15 Heated rear window, heated exterior mirrors
218 Not used
219 30 Electric windows
220 20 Heated rear window
221 15 Brake lamp switch
222 15 Radio
223 30 Heater blower motor
224 20 Headlamp switch
225 15 Air conditioning
226 20 Hazard warning flashers, direction indicators
227 5 Radio, ABS
Relay
R14 Windscreen Wiper
R15 Battery Saver / D+ (Only switches on with engine running)
R16 Heated Screen Right Hand Side
R17 Bus / Rear Door Buzzer Relay
R18 Interior Light
R19 Rear Door Warning Buzzer (buzzer unit itself not a relay)
R20 Heated Screen Left Hand Side (Timer relay)
R21 Rear Wiper
R22 Heated Rear Window / Heated Mirrors

1) Central Locking Fuses: 2 x 15A located under/taped too, steering column.
2) Heater Blower relay is behind centre console (where Fitted),
3) Auxiliary Heater relay is under drivers seat (where fitted).
4) Air Conditioning relay is screwed to rear of engine bay (where fitted), and on LPG models, all LPG control modules / relays arc located behind a removable panel on drivers side dash.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
