Fiat Stilo (2001 – 2008) – bulbs specification

Fiat Stilo (2001 – 2008) – bulbs specification

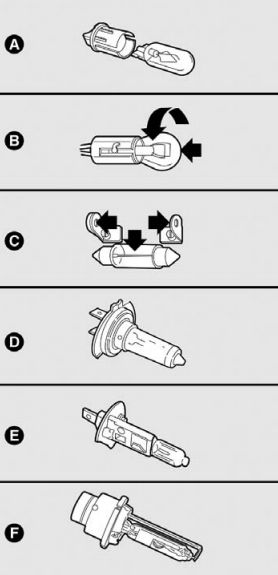

A – Żarówki w całości szklane: mocowane są na wcisk. Aby wyjąć żarówkę należy ją pociągnąć.

B – Bayonet type bulbs: press the bulb, turn counterclockwise to remove this type of bulb from its holder.

C – Tubular bulbs: free them from their contacts to remove.

D-E – Halogen bulbs: to remove the bulb, release the clip holding the bulb in place.

F -Gas-discharge bulbs (Xenon).

Fiat Stilo – bulbs
Fiat Stilo – bulbs
Bulb Figure Type Power
Main beam headlights E H1 55W
Longlife dipped beam headlights D H7 55W
Dipped beam headlights D H7 55W
Gas-discharge low beam headlights (where provided) F D2R 35W
Front sidelights (2 per headlight) long life A W5W 5W
Front fog lights (where provided) E H1 55W
Front direction indicators B PY21W 21W
Side direction indicators A WY5W 5W
Rear direction indicators B P21W 21W
Taillights (3-door versions) B W5W 5W
Taillights/Rear fog lights (5-door versions) B P4/21W 4W/21W
Taillights/Brake lights (Multi Wagon versions) B P21/5W 21W/5W
Taillights (Multi Wagon versions) (side fixed light unit) B P21W 21W
Taillights (Multi Wagon versions) (tailgate light unit) B R5W 5W
Brake lights (3-door versions) B P21W 21W
Third brake light (additional brake light) A W2,3W 2,3W
Reversing light B P21W 21W
Rear fog lights B P21W 21W
Number plate light (saloon versions) A W5W 5W
Number plate light (Multi Wagon versions) C C5W 5W
Puddle/door lights A W5W 5W
Front roof light C C5W 5W
Rear roof light (where provided) C C10W 10W
Glovebox light C C5W 5W
Boot light A W5W 5W
Courtesy mirror light (where provided) C C5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
