Dodge Sprinter (2008 – 2009) – fuse box diagram

Year of production: 2008, 2009

Main fuses box

The fuses box is in the footwell on the lefthand side of the vehicle.

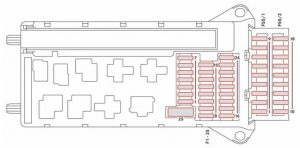

Dodge Sprinter - wiring diagram - fuse box - main fuse box
Dodge Sprinter – wiring diagram – fuse box – main fuse box
Number Consumer Amp.
1 Horn 15
2 Electric steering ESTL (electronic ignition switch EIS) 25
3 Terminal 30 Z, vehicle with gasoline engine/electronic ignition switch EIS/ instrument cluster 10
4 Light switch/center console switch unit 5
5 Windshield wipers 30
6 Fuel pump 15
7 MRM (jacket tube module) 5
8 Terminal 87 (2) 20
9 Termina 87 (3) 20
10 Terminal 87 (4) 10
11 Terminal 15 R vehicle 15
12 Airbag control unit 10
13 Cigarette lighter/glove box lighting/radio* 15
14 Diagnostic socket/light switch/instrument cluster 5
15 Front heating system* 5
16 Terminal 87 (1) 10
17 Airbag control unit 10
18 Terminal 15 vehicle, brake lamp switch 7,5
19 Interior lights 7,5
20 Power window passenger’s side/terminal 30/2 signal acquisition and actuation module 25
21 Engine control unit 5
22 Antilock brake system (ABS) 5
23 Starter motor 25
24 Diesel engine components 10
25 12V socket on the bottom of the center console 25

Fuse block F55/1

Number Consumer Amp.
1 Control panel, left door 25
2 Diagnostic socket 10
3 Brake system (valves) 25
4 Brake system (delivery pump) 40
5 Terminal 87 (5) 7,5
10
6 Terminal 87 (6) 7,5
10
7 Headlamp cleaning system* 30
8 Anti-theft alarm system (ATA)*/siren* 15
9 Auxiliary indication module* 10



Fuse block F55/2

Number Consumer Amp.
10 Radio* 15
11 Telephone* 7,5
12 Front blowers/auxiliary heating* blower speed 1 30
13 Pre-wiring mounting slot (center console)* 7,5
14 Seat heating*/center console switch unit 30
15 Non MB-body electrics 10
16 Heater, rear heating-/air conditioning system, front/CD-player* 10
17 Motion detector*/convenience interior lighting* 10
18 Air conditioning in the rear* 7,5



Preliminary fuse box in the battery recess in the driver’s footwell F59

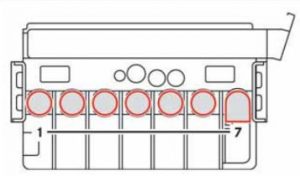

Dodge Sprinter - wiring diagram - fuse box - preliminary fuse box in the battery recess in the driver's footwell F59
Dodge Sprinter – wiring diagram – fuse box –
preliminary fuse box in the battery recess in the driver’s footwell F59
Number Consumer Amp.
1 Pre-glow relay/secondary air pump 80
40
2 Engine fan air conditioning system – cab chassis/crewcab 60
40
3 Signal acquisition and actuation module SAM/fuse and relay block SRB 80
4 Auxiliary battery*/retader* 150
5 Terminal 30 fuse boxes, signal acquisition and actuation module SAM/fuse and relay block SRB 150
6 Connecting point in driver’s seat base Bridge
7 Heater booster (PTC) 150



Fuse box in the driver’s seat

The fuse box is located in the base of the driver’s seat on the outboard side.

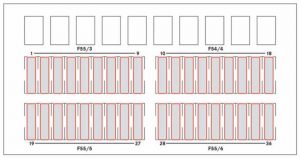

Dodge Sprinter - wiring diagram - fuse box - in the driver's seat
Dodge Sprinter – wiring diagram – fuse box – in the driver’s seat

Fuse block F55/3

Number Consumer Amp.
1 Mirror adjustment*/rear window heating* 5
2 Rear window wiper* 30
3 Rear view camera*/telephone*/pre-wiring mounting slot (roof)* 5
4 Operating speed governor (ADR)*/PTO/trailer conection unit AAG* 7,5
5 Electronic transmission control ETC, control unit 10
6 Unassigned
7 Electronic selector level module ESM 10
8 Terminal 15 body builder, drop side/3-way tipper 10
9 Roof ventilator*/siren* 15

Fuse block F55/4

Number Consumer Amp
10 Terminal 30, tapping wire body builder 25
11 Terminal 15, tapping wire body builder 15
12 D+, tapping wire body builder 10
13 Air conditioning in the rear* 30
14 Trailer socket* 20
15 Trailer recognition device* 25
16 Tire pressure monitoring system (TPMS)*/Parktronic system (PTS)* 7,5
17 PSM control unit* 25
18 PSM control unit* 25

Fuse block F55/5

Number Consumer Amp.
19 Overhead control panel*/siding sunroof* 5
25
20 Clearance lamps* 7,5
21 Rear window heating* 1 30
15
22 Rear window heating* 2 15
23 12V socket* rear left, load/passenger compartment 15
24 12V scoket, driver’s seat base 15
25 12V sockett rear right, load/passenger compartment 15
26 Auxiliary heating * 25
27 Heater booster* 25

Fuse block F55/6

Number Consumer Amp.
28 Unassigned
29 Unassigned
30 Brake booster* 30
31 Blower unit rear heating*/electric sliding door*, left/electronic closing aid* (sliding door, left) 30
15
32 Unassigned
33 Electric sliding door*, right/electric, closing aid* (sliding door, left*) 30
15
34 Unassigned
35 Unassigned
36 Unassigned

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
