Chrysler Neon (1995 – 1999) – fuse box diagram

Chrysler Neon (1995 – 1999) – fuse box diagram

Year of production: 1995, 1996, 1997, 1998, 1999

Passenger Compartment Fuse Box

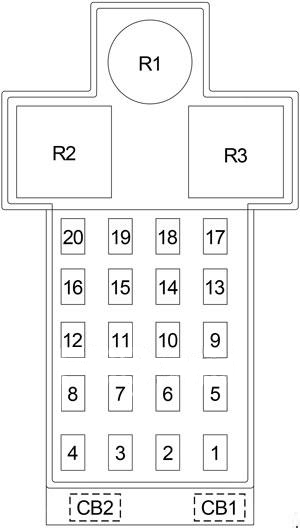

Chrysler Neon - fuse box diagram - passenger compartment
Chrysler Neon – fuse box diagram – passenger compartment
No.
A
Circuit Protected
1 15 Cigar Lighter/Power Outlet
2 15 Headlamp Switch (Park Lamp, Tail Lamp, License Lamp, Radio, Front Fog Lamp Switch, Remote Keyless Entry Module (’98-’99))
3 20 Door Lock Switch, Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99)
4 10 Fog Lamp Switch
5 10 ’95-’97: A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch
10 ’98-’99 (LHD): Airbag Control Module
10 ’98-’99 (RHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module
6 10 Turn Signal/Hazard
7 25 A/C Heater Blower Motor
8 10 ’95-’97: Airbag Control Module
10 ’98-’99 (LHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module
10 ’98-’99 (RHD): Airbag Control Module
9 4 ’95-’97: Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 ’98-’99 (LHD): Airbag Control Module
4 ’98-’99 (RHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 15 Powertrain Control Module, Air Conditioner Compressor Clutch Relay, ABS, Vapor Canister Leak Detector, Torque Converter Clutch Solenooid (A/T), Duty Cycle EVAP/Purge Solenoid, ABS Relay Box, EGR Transducer Solenoid, ABS Warning Lamp Relay
11 5 Instrument Cluster, Daytime Running Lamp Module (’98-’99), Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99)
12 10 ’95-’97: Airbag Control Module
4 ’98-’99 (LHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 ’98-’99 (RHD): Airbag Control Module
13  –
14 20 Sunroof
15 20 Wiper Motor, Wiper/Washer Switch, Intermittent Wiper/Washer Switch, Cigar Lighter Relay
16 10 Radio
17 10 Left Headlamp, Left/Right Headlamp Leveling Motor
18 10 Right Headlamp
19  –
20  –
Circuit Breaker
CB1 30 Power Window, Power Window
CB2  –
Relay
R1 ’98-’99 (LHD): Time Delay
R2 ’95-’97: Cigar Lighter
’98-’99 (LHD): Combination Flasher
’98-’99 (RHD): Cigar Lighter
R3 ’95-’97: Combination Flasher
’98-’99 (LHD): Time Out
’98-’99 (RHD): Combination Flasher



Engine Compartment Fuse Box

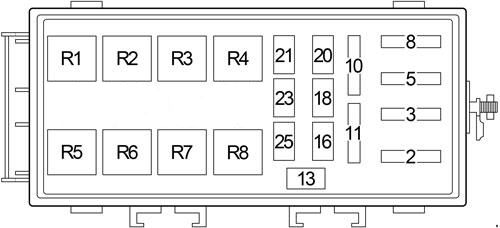

Chrysler Neon - fuse box diagram - engine compartment
Chrysler Neon – fuse box diagram – engine compartment
No.
A
Protected Component
2 40 Ignition Switch (Fuse (Passenger Compartment): “5”, “6”, “7”, “8”, “CB1”)
3 40 Headlamp Switch, Fuse (Passenger Compartment): “1”, “3”, “4”
5 30 Solid State Fan Relay (Radiator Fan)
8 30 Rear Window Defogger
10 40 ABS Relay Box
11 30 Starter Relay, Ignition Switch (Clutch Pedal Position Switch (M/T), Fuse (Passenger Compartment): “10”, “11”, “12”, “14”, “15”, “16”)
13 10 Dome Lamp, Trunk Lamp, Underhood Lamp, Instrument Cluster, Radio, Glove Box Lamp, Map/Reading Lamp, Visor/Vanity Lamp, Power Mirror Switch, High Speed Warning Module (’98-’99), Time Delay Relay (’98-’99), Time Out Relay (’98-’99)
16 20 Fog Lamp Relay, Rear Fog Lamp Switch
18 10 ’95-’97: Air Conditioner Compressor Clutch Relay
20 ’98-’99: Air Conditioner Compressor Clutch Relay, ABS
20 10 Turn Signal/Hazard
21 20 Fuel Pump Relay, Auto Shut Down Relay (Fuel Injectors, Ignition Coil Pack, Powertrain Control Module, Generator, Data Link Connector, Oxygen Sensors, Capacitor, Noise Suppressor)
23 15 Horn Relay
25 15 Stop Lamp Switch
Relay
R1  –
R2 Fuel Pump
R3 Auto Shut Down
R4 Horn
R5 Fog Lamp
R6 ABS Warning Lamp
R7 Air Conditioner Compressor Clutch
R8 Starter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
