Chevrolet Tracker (2003 – 2004) – fuse box diagram

Year of production: 2003, 2004

Instrument panel fuse block

This fuse box is under the left side of the instrument panel.

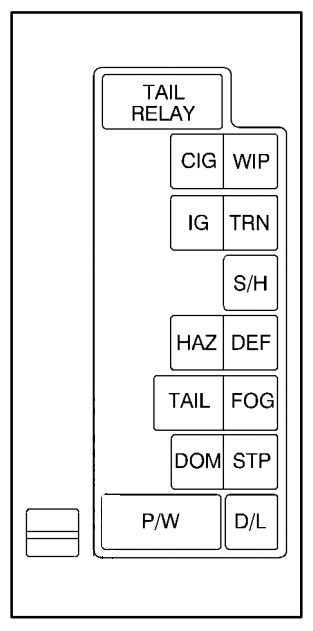

Chevrolet Tracker - wiring diagram - fuse box diagram - instrument panel
Chevrolet Tracker –
wiring diagram – fuse box diagram –
instrument panel
Fuses Usage
P/W Power Windows
DOM Dome Light, Radio Memory
TAIL License Plate Light, Clearance/Marker Lights, Instrument Panel Illumination, Warning Tone
HAZ Hazard Lights, Turn Signal
IG O2 Sensor Heater, Cruise Control, Ignition Coil, Meter, G Sensor
CIG Cigar/Cigarette Lighter, Radio, Power Mirror
D/L Door Locks
STP Brake Light, Horn, Center High-Mounted Stop Lamp, Cruise Control
FOG Not Used
DEF Rear Window Defogger, DRL, Heater, Air Conditioning
S/H Not Used
TRN Turn Signal, Back-Up Light, Hazard Lights
WIP Windshield Wiper/Washer, Rear Window Wiper/Washer
Fuses for the air bags are located next to the instrument panel fuse block.

Engine Compartment Fuse Block

The main fuse box in your engine compartment protects all electrical loads.

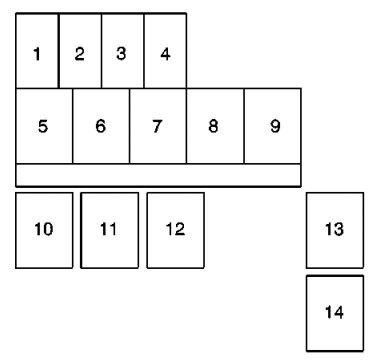

Chevrolet Tracker -  wiring diagram - fuse box diagram - engine compartment
Chevrolet Tracker – wiring diagram – fuse box diagram – engine compartment
Fuses Usage
1 Accessory Power Outlet
2 Electronic Fuel Injection System
3 Right Headlamp
4 Left Headlamp, High-Beam Indicator
5 Heater
6 Hazard Lamps, Rear Combination Lamps, Dome Light, Horn
7 Cigar Lighter, Radio, I.G. Coil, Meter, Wiper, Washer, Rear Defroster, Turn Signals, Back-Up Lamps
8 Anti-Lock Brake System
9 All Electrical Loads
10 Shift Lock (Relay)
11 (2.5L Engine only) Horn (Relay)
12 Air Conditioning Compressor (Relay)
13 Air Conditioning Condenser Fan (Relav)
14 Air Conditioning

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
