Chevrolet Suburban (1995 – 1996) – fuse box diagram

Year of production: 1995, 1996

Fuse block

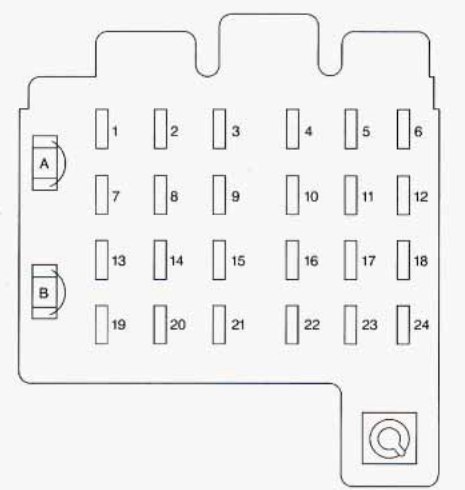

Chevrolet Suburban -  wiring diagram - fuse box
Chevrolet Suburban – wiring diagram – fuse box
Fuse position Fuse name Circuit protected
1 STOP/HAZ Stop/TCC Switch, Buzzer, CHMSL, Hazard Lamps, Stop Lamps
2 T CASE Transfer Case
3 CTSY Courtesy Lamps, Cargo Lamp, Glove Box Light, Dome/RDG Lamps, Vanity Mirrors, Pwr Mirrors
4 GAGES IP Cluster, DRL Relay, HDLP Switch, Keyless Entry, Low Coolant Module
5 RR WAC RR HVAC Controls
6 CRUISE Cruise Control
7 AUX PWR Aux Power Outlet
8 CRANK Diesel Fuel Pump, DERM, ECM
9 PARK LPS Lic Lamp, Park Lamp, Tail Lamp, Roof Marker Lamp, Tdi1 Gate Lamps, Front Side Markers, Door Switch Illum, Fender Lamp
10 AIR BAG DERM
11 WIPER Wiper Motor, Washer Pump
12 HTR-A/C A/C, A/C Blower, High Blower Relay
13 CIG LTR Power Amp, Rear Liftglass, Cig Lighter, Door Lock Relay, Pwr Lumbar Seat
14 ILLUM 4WD, Indicator, LP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination
15 DRL-FOG DRL Relay, Fog Lamp Relay
16 TURN-B/U Frt Turn, RR Turn, B/U Lps
17 RADIO Radio (Ign)
18 BRAKE DRAC, 4WAL PCM. ABS, … . Cruise
19 RADIO BATT Radio (Batt)
20 TRANS PRNDL, Auto Transmission, Speedo, Check Gages Tell Tale
21 Not Used
22 Not Used
23 RR Wiper Rear Wiper, Rear Wash Pump
24 4WD Frt Axle, 4WD Indicator Lamp
A* PWR ACCY Pwr Door Lock, 6-Way Pwr Seat, Keyless Entry Module
B* PWR WDOS Power Windows
*Circuit Breaker
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
