Chevrolet Cruze (2008 – 2016) – fuse box diagram

Chevrolet Cruze (2008 – 2016) – fuse box diagram

Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Engine compartment fuse box

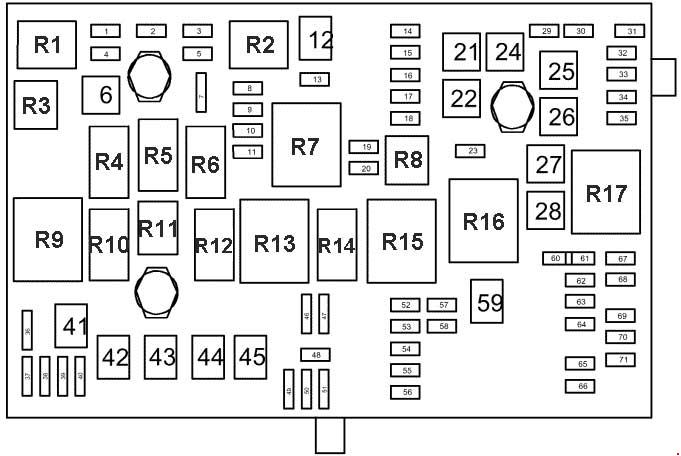

Chevrolet Cruze – fuse box diagram – engine compartment
Chevrolet Cruze – fuse box diagram – engine compartment
No.
A
Description
1 15 Transmission Control Module
2 15 Engine Control Module
3 N/A Not Used
5 15 Transmission Control Module, Engine Control Module, Mass Air Flow/Intake Air Temperature Sensor, Output Speed Sensor
6 30 Windshield Wiper Relays
7 N/A Not Used
8 15 Fuel injectors
9 15 Ignition Coil, Fuel Injectors
10 15 Engine Control Module, Output Speed Sensor
11 10 Heated Oxygen Sensors
12 30 Starter Motor
13 7.5 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
14 N/A Not Used
15 N/A Not Used
16 7.5 Air Quality Sensor
17 5 Inflatable Restraint Sensing and Diagnostic Module
18 10 Fuel Pump Control Module
19 N/A Not Used
20 20 Fuel Pump Relay
21 30 Windows Motors, Front Door
22 N/A Not Used
23 N/A Not Used
24 30 Windows Motors, Front Door
25 N/A Not Used
26 40 Electronic Brake Control Module (EBCM)
27 30 Remote Control Door Lock Receiver
28 40 Rear Demister Grid
29 N/A Not Used
30 15 Electronic Brake Control Module (EBCM)
31 20 Body Control Module
32 20 Body Control Module
33 30 Heated Seat Control Module
34 25 Sunroof Control Module
35 30 Audio Amplifier
36 N/A Not Used
37 10 Headlamp – Right Main beam
38 10 Headlamp – Left Main beam
39 N/A Not Used
40 N/A Not Used
41 N/A Not Used
42 20/30 Cooling Fan Relays, Cooling Fan Motor
43 N/A Not Used
44 N/A Not Used
45 30/40 Cooling Fan High Speed Relay, Cooling Fan Motor
46 10 Cooling Fan Relays
47 10 Heated Oxygen Sensors, Throttle Body
48 15 Fog Lights, Front
49 N/A Not Used
50 N/A Not Used
51 15 Horn
52 5 Instrument Cluster
53 10 Inside Rearview Mirror
54 5 Headlamp Switch, Electrical Auxiliary Heater, HVAC Control Module
55 7.5 Window Switches, Front, Mirror Switch
56 15 Windscreen Washer Pump
57 15 Steering Column Lock Control Module
58 N/A Not Used
59 30 Fuel Heater
60 7.5 Outside Rearview Mirrors
61 N/A Not Used
62 10 A/C Compressor Clutch Relay, A/C Compressor Clutch
63 N/A Not Used
64 5 Inflatable Restraint Sensing and Diagnostic Module
65 N/A Not Used
66 N/A Not Used
67 20 Fuel Pump Control Module
68 N/A Not Used
69 5 Body Control Module
70 5 Rain Sensor
71 N/A Not Used
Relays
1 A/C Compressor Clutch
2 Starter
3 Cooling Fan
4 Windshield Wiper Speed Control
5 Windshield Wiper
6 Not Used
7 Powertrain
8 Fuel Pump
9 Cooling Fan Medium Speed 1
10 Cooling Fan Medium Speed 2
11 Not Used
12 Cooling Fan Speed Control (Or in Relay Block – Under-bonnet)
13 Cooling Fan High Speed Relay
14 Not Used
15 Ignition Main Relay
16 Fuel Heater Relay
17 Rear Window Defogger
Note: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
Horn Relay
Windscreen Washer Pump Relay
Front Fog Lamp Relay
Headlamp High Beam Relay

Instrument Panel Fuse Block

Chevrolet Cruze – fuse box diagram – instrument panel
Chevrolet Cruze – fuse box diagram – instrument panel
No.
A
Description
1 10 Mobile Telephone Control Module
2 N/A Not Used
3 25 Body Control Module
4 20 Radio
5 7.5 Parking Assist Control Module, Power Sounder, Multifunction Switch – Centre Console, Display
6 20 Cigar Lighter – Front
7 20 Accessory Power Outlet – Centre Console 1/2
8 30 Body Control Module
9 30 Body Control Module
10 30 Body Control Module
11 40 Blower Motor Control Module
12 N/A Not Used
13 25 Heated Seat Control Module
14 7.5 Data Link Connector, Oil Feeding Connector
15 10 Inflatable Restraint Sensing and Diagnostic Module
16 10 Rear Compartment Lid Release Relay
17 15 HVAC Control Module / HVAC Control Assembly
18 N/A Not Used
19 N/A Not Used
20 N/A Not Used
21 15 Instrument Cluster
22 2 Ignition Switch / Remote Control Door Lock Receiver
23 20 Body Control Module
24 20 Body Control Module
25 20 Steering Column Lock Control Module
26 N/A Not Used
Relays
1 Rear Compartment Lid Release
2 Logistic Mode Relay 1
3 Auxiliary Power Relay

Fuse box above the battery

Chevrolet Cruze – fuse box diagram – above the battery
Chevrolet Cruze – fuse box diagram – above the battery
No.
A
Description
1 100 Fuse Block – Instrument Panel
2 100 Fuse Block – Instrument Panel
3 80 Electrical Power Steering (EPS) (NJ1)
4 N/A Not Used
5 250 Fuse Block – Battery Auxiliary
6 250/500 Starter Motor
Chevrolet Cruze – fuse box diagram – above the battery
Chevrolet Cruze – fuse box diagram – above the battery
No.
A
Description
5 80 Glow Plug Control Module
6 100 Electrical Auxiliary Heater
7 N/A Not Used
8 N/A Not Used
Chevrolet Cruze – fuse box diagram – above the battery
Chevrolet Cruze – fuse box diagram – above the battery
No.
Relays
1 Cooling Fan Left Medium Speed Relay
2 Cooling Fan Speed Control 2 Relay
3 Cooling Fan Right Medium Speed Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
