Chevrolet Beretta (1987 – 1996) – fuse box diagram

Chevrolet Beretta (1987 – 1996) – fuse box diagram

Year of production: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

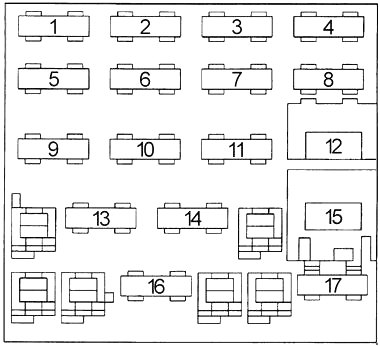

Fuse Box diagram

Chevrolet Beretta - fuse box diagram
Chevrolet Beretta – fuse box diagram
No.
A
Protected Component
1 15 87-’93, ’96: Computer Command Control, Fuel Injector
2 20 ’89-’96: Stoplights, Hazard Lights
3 15 ’87-’88: Radio
10 ’91-’96: Air Bag, Ignition
4 20 ’87-’88: Stoplights, Hazard Lights
5 ’89-’92: Alternator, Anti-Lock Brakes (’92)
10 ’93-’96: Alternator, Anti-Lock Brakes (’93-’95), LGO Heater Pipe (’93-’94), Daytime Running Light (’95-’96), Multiport Fuel Injection (’96)
5 20 ’87-’95: Back-Up Lights, Turn Signal Lights
15 ’96: Back-Up Lights, Turn Signal Lights
6 20 ’89-’96: Trunk Release, Cigarette Lighter (’89-’95), Interior Lights (’96)
7 20 Parking & Side Marker Lights, License Lights, Daytime Running Light (’96)
8 25 Heater & Air Conditioner
9 20 Gauges/Warning Indicator, Audible Warning System, Rear Window Defogger, Air Conditioner, Computer Command Control (’87-’90) Cruise Control (’95-’96), Daytime Running Light (’95-’96),ABS (’96), Automatic Door Locks (’96), Automatic Seat Belts (’96), Multiport Fuel Injection (’96), Supplemental Inflatable Restraint (’96)
10 25 Windshield Wiper/Washer
11 20 ’87-’93: Courtesy Lights, Clock, Door Locks (’87-’93), Horn (’87-’93), Cigar Lighter (’87-’90), Radio-CD (’91-93), Trunk Release (’87-’88), Audible Warning System, ABS Passive Belts
15 ’94-’96: Courtesy Lights (’94-’95), Clock (’94-’95), Radio-CD (’94-’95), Audible Warning System, ABS Passive Belts
12 35 Circuit Breaker (’87-’91): Power Windows
30 Circuit Breaker (’92-’96): Power Windows
13 5 ’87-’91: Instrument Panel Lights, Headlight Reminder (’87-’90)
3 ’92-’96: Instrument Panel Lights, Interior Lights Dimming (’96), Radio/Audio Systems (’96), Wiper/Washer (’96)
14 15 Radio, Cruise Control (’97-’95), Clock (’87-’88)
15 35 Circuit Breaker (’87-’91): Power Door Locks, Rear Window Defogger
30 Circuit Breaker (’92-’96): Power Door Locks, Rear Window Defogger
16 10 ’89: MAF Sensor (V6)
5 ’91: Daytime Running Light
3 ’92-’93: Daytime Running Light
20 ’94-’96: Fuel Pump/Injectors
17 3 ’91-’93: Air Bag
10 ’94-’96: Automatic Door Unlock (Remove to Disable)



AdAditional Fuses (’94-’95)

There are 2 fuses under the steering column

No.
A
Protected Component
1 3 Air Bag
2 20 Fog Lamps, Door Lock, Horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
