Chevrolet Avalanche (2001 – 2002) – fuse box diagram

Year of production: 2001, 2002

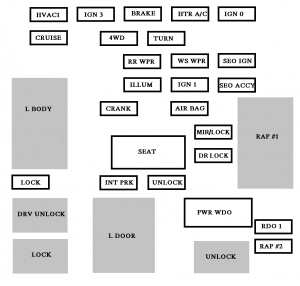

Instrument Panel Fuse Block

The fuse block access door is on the driver’s side edge of the instrument panel.

Chevrolet Avalanche -  wiring diagram - fuse box diagram -  instrument panel
Chevrolet Avalanche – wiring diagram – fuse box diagram – instrument panel
Name Usage
L BODY Retained Accessory Power Relay
LOCK Power Door Locks
DRV UNLOCK Power Door Lock Relay
LOCK Power Door Lock Relay
HVAC 1 Climate Control System
CRUISE Cruise Control, Instrument Cluster
IGN 3 Ignition, Power Seats
4WD Four-Wheel Drive System, Auxiliary Battery
CRANK Starting System
INT PRK Interior Lamps
L DOOR Power Door Lock Relay
BRAKE Anti-Lock Brake System
RR WIPER Not Used
ILLUM Interior Lamps, Cargo Lamps
SEAT Power Seat Circuit Breaker
TURN Exterior Lamps, Turn Signals, Hazard Lamps
UNLOCK Power Door Locks
HTR A/C Climate Control System
WS WPR Windshield Wipers
IGN 1 Ignition, Instrument Panel
AIR BAG Air Bag
MIR/LOCK Power Mirrors, Power Door Locks
DR LOCK Power Door Locks
PWR WDO Power Window Circuit Breaker
UNLOCK Power Door Lock Relay
IGN 0 PRND321 Display, Odometer, VCM/PCM
SEO IGN Special Equipment Option, Ignition
SEO ACCY Special Equipment Option Accessory
RAP #1 Retained Accessory Power Relay
RDO 1 Audio System
RAP #2 Rear Power Windows, Sunroof, Radio

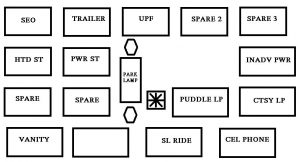

Center instrument panel utility block

The center instrument panel utility block is located underneath the instrument panel, to the left of the steering column.

Chevrolet Avalanche -  wiring diagram - fuse box diagram - center instrument panel utility block
Chevrolet Avalanche – wiring diagram – fuse box diagram – center instrument panel utility block
Relay name Usage
SEO Special Equipment Option
HTD ST Heated Seats
SPARE Not Used
VANITY Headliner Wiring
TRAILER Trailer Brake Wiring
PWR ST Power Seats
SPARE Not used
UPF Upfitter
PARK LAMP Parking Lamps
*FRT PRK EXPT Not Used
SPARE 2 Not Used
PUDDLE LP Puddle Lamps
SL RIDE Not Used
SPARE 3 Not Used
INADV PWR Interior Lamps Feed
CTSY LP Courtesy Lamps
CEL PHONE Cellular Telephone Wiring

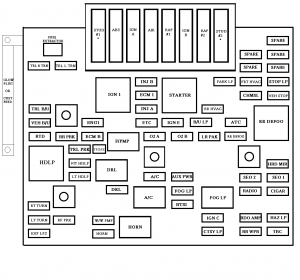

Underhood fuse block

The underhood fuse block is located near the battery on the driver’s side of the vehicle.

Chevrolet Avalanche -  wiring diagram - fuse box diagram -  underhood fuse box
Chevrolet Avalanche – wiring diagram – fuse box diagram – underhood fuse box
Name Usage
STUD #1 Accessory Power/Trailer Wiring Feed/Load Leveling
ABS Anti-Lock Brakes
IGN A Ignition Switch
AIR A.I.R. System
RAP #1 Retained Accessory Power, Power Mirrors, Power Door Locks, Power Seat(s)
IGN B Ignition Switch
RAP #2 Retained Accessory Power/Rear Power Windows, Sunroof, Radio
STUD #2 Accessory Power/Trailer Wiring Brake Feed
TRL R TRN Right Turn Signal Trailer Wiring
TRL L TRN Left Turn Signal Trailer Wiring
IGN 1 Ignition, Fuel Controls
INJ-B Ignition, Fuel Controls (Relay)
STARTER Starter (Relay)
PARK LP Parking Lamps
FRT HVAC Climate Control System
STOP LP Exterior Lamps, Stoplamps
ECM 1 VCM/PCM
CHMSL Center High Mounted Stoplamp
VEH STOP Stoplamps, Cruise Control
TRL B/U Backup Lamps Trailer Wiring
INJ-A Fuel Controls, Ignition
RR HVAC Not Used
VEH B/U Vehicle Backup Lamps
ENG 1 Engine Controls, Canister Purge, Fuel System
ETC Electronic Throttle Control
IGN E A/C Compressor Relay, Rear Window Defogger, Daytime Running Lamps, A.I.R. System
B/U LP Backup Lamps, Automatic Transmission Shift Lock Control System
ATC Automatic Transfer Case
RR DEFOG Rear Window Defogger, Heated Mirrors (Relay)
RTD Not Used
RR PRK Right Rear Parking Lamps
ECM B VCM/PCM
F/PMP Fuel Pump (Relay)
O2 A Oxygen Sensors
O2 B Oxygen Sensors
LR PRK Left Rear Parking Lamps
RR DEFOG Rear Window Defogger, Heated Mirrors
HDLP Headlamps (Relay)
TRL PRK Parking Lamps Trailer Wiring
PRIME Not Used
RT HDLP Right Headlamps
DRL Daytime Running Lamps (Relay)
HTD MIR Heated Mirrors
LT HDLP Left Headlamps
A/C Air Conditioning
AUX PWR Cigarette Lighter, Auxiliary Power Outlets
SEO 2 Special Equipment Option Power, Power Seats, Aux Roof Mnt Lamp
SEO 1 Special Equipment Option Power, Aux Roof Mnt Lamp
DRL Daytime Running Lamps
A/C A/C (Relay)
FOG LP Fog Lamps
FOG LP Fog Lamps (Relay)
RADIO Audio System, Instrument Cluster, Climate Control System
CIGAR Cigarette Lighter, Auxiliary Power Outlets
RT TURN Right Turn Signals
BTSI Automatic Transmission Shift Lock Control System
LT TURN Left Turn Signals
FR PRK Front Parking Lamps, Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)
IGN C Ignition Switch, Fuel Pump, PRND321 Display, Crank
RDO AMP Radio Amplifier
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Not Used
TBC Body Control Module, Remote Keyless Entry, Headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
