BMW 3-Series E46 (1998 – 2006) – fuse box diagram

BMW 3-Series E46 (1998 – 2006) – fuse box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Glove compartment

Equipment Fuse No.
ABS,ASC 12, 33, 42, 53, 56
Adjustment driver seat 65
Adjustment passenger seat 70
Airbag 11
Air conditioner 28, 62, 63
Automatic gearbox diesel 64
Blower 28, 50
Brake light 9
Central locking system 49, 52, 60
Central locking system (only touring) 49, 52, 58, 60
Cigarette lighter 47
Cigarette lighter (Australia) 26,47
DSC 12, 33, 40, 42, 53, 56, 61
DSC 4-wheel drive 12, 33, 35, 40, 42, 53
Electric fan 37
Electric seat heating 12, 42
Engine control 27, 29, 39
Engine control (only M3) 22, 29, 30
Folding outside mirror 57
Four-cylinder diesel engine 22
Front fog light 38
Fuel pump 54
Garage door opener 26
Glove box light 52
Hand lamp 52
Headlight cleaning 51
Heated outside mirror, passenger 25
Healed rear window 68
Heated rear window (only cabrio) 7, 68
Heated spray nozzles 25
Heater 23, 28, 62
Hinged window (only coupe) 71
Horn 5, 55
Immobilizer 14, 67
Inside mirror electrochromic 24, 67
Interior light 49, 52
Light module 9, 32
Make-up mirror light 6
Manual soft top (only cabrio) 12, 42, 26
Navigation 7, 41
On-board computer 9
On-board Diagnose II 30, 43
On-board monitor 7, 41
Outside mirror 31, 57
Parking aid 24
Passenger comp/trunk lighting 52
Power soft top (only cabrio) 6, 12, 35, 42, 46
Radio 7, 41
Rain sensor 15
Rear wiper (only touring) 15, 45
Reversing light 27
Roller sun blind 12, 42
Roll-over protective system (only cabrio) 13
Secondary air pump 36
Shifting gate illumination 40
Side airbag 11
Silding/tilt roof 46
Socket 47
Speed control 9
Sequential manual gearbox 22, 66
Sequential transmission (only M3) 8, 22
Starter interlock 14
Telephone 7, 39
Thiefproofing system 49, 67
Trailer coupling 44
Tyre pressure 12, 31, 42, 69
Water valve, A/C 62
Window lift front 48, 49
Window lift rear 71
Windscreen washer system 49, 52, 59



Version 2



Passenger Compartment Fuse Box

passenger compartment
passenger compartment
No.
A
Protected components
1
2
3
4
5 5 Horn relay
6 5 Make-up mirror light, driver’s side
Make-up mirror light, passenger’s side
Convertible soft top control unit
7 5 Radio control unit
Aerial amplifier AM/FM (with remote control central locking)
On-board monitor control unit
Spatial sound switch
Interface
Navigation computer
GPS receiver
Transceiver/charging electronics
Pushbutton, convertible soft top closed
Basic interface telephone
Voice input
Diversity
Eject box
Telematics control unit (TCU-Everest)
Universal electronic charging and hands-free module (ULF)
8 5 Sequential mechanical gear
9 5 up to 03.2001 (BMS46):
General module control unit
Light switching centre control unit
Cruise control module
Brake light switch
Volute spring
03.1998-09.1999 (MS42 or DDE3.0):
Volute spring
General module control unit
Brake light switch
Light switching centre control unit
09.1999-03.2001 (MS42, MS43, MSS54, DDE3.0, DDE4.0):
Volute spring
General module control unit
Brake light switch
Light switching centre control unit
Clutch switch
as of 03.2001:
Volute spring
General module control unit
Brake light switch
Light switching centre control unit
Clutch switch module
10 5 Instrument cluster control unit
11 5 Multiple Restraint System II:
Sensor for LH side airbag (satellite)
Sensor for RH side airbag (satellite)
Multiple restraint system control unit
Hall sensor, driver’s seat belt buckle
Hall sensor, passenger’s seat belt buckle (USA)
Electronic seat control
Multiple Restraint System III/IV:
Multiple restraint system control unit
Hall sensor, driver’s seat belt buckle
Electronic seat control
Hall sensor, passenger’s seat belt buckle (USA)
12 7.5 03.1998-09.1999: Sun shade switch
as of 09.1999: Switch center
13 7.5 as of 03.2000: Rollover sensor
14 5 Electronic immobiliser control unit
Gearshift lock
15 5 Rain sensor
Intermittent wipe/wash control unit, rear (Touring)
16
17
18
19
20
21
22 5 S54: Sequential mechanical gear box
M47/TU and M57/TU: Digital diesel electronics control unit
23 5 Auxiliary water pump
24 5 Electrochromic interior rear-view mirror
Park distance control unit (PDC)
25 5 Outside mirror, passenger’s side
Thermal switch, heated spray nozzles
26 5 Garage door opener

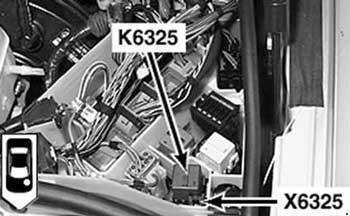

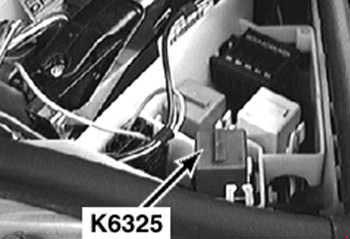

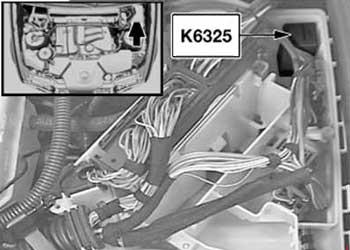

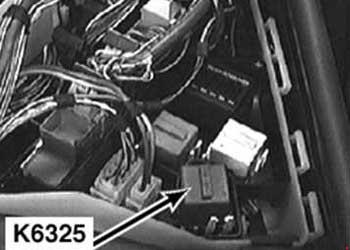

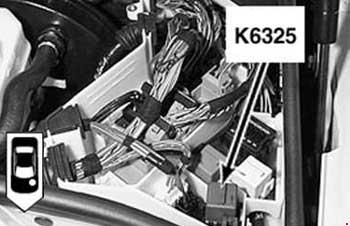

27 10 Reversing light relay
Gear position switch (BMS46 with EGS 8.34)
Transmission control unit (BMS46 with GM5)
28 5 Heating and A/C control module
Heating blower relay

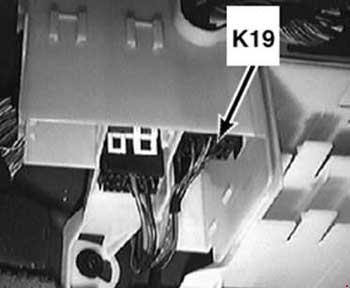

Relay, A/C compressor
Dual-function switch recirculated air/rear window defogger
Temperature switch

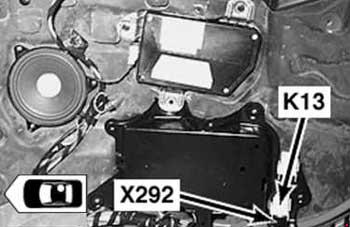

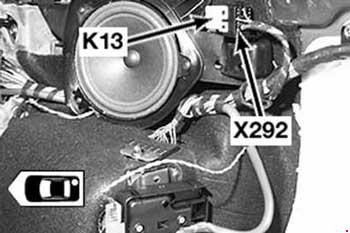

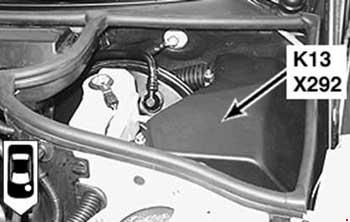

Rear window defogger relay (convertible)
29 5 Digital motor electronics control unit (BMS46, MS42, MS43, MSS54)

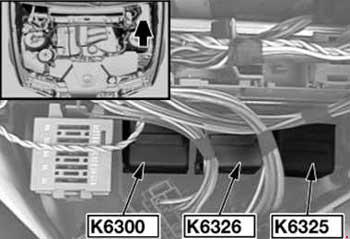

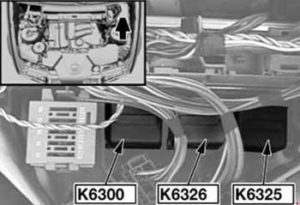

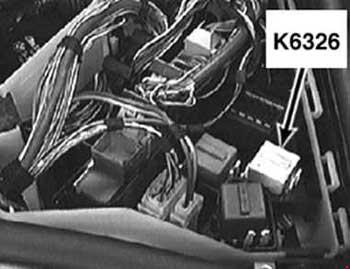

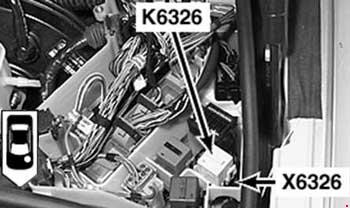

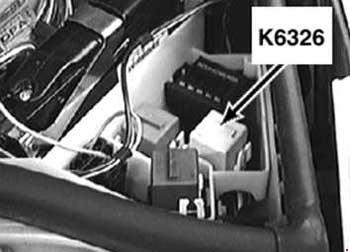

Unloader relay terminal 15 (BMS46, ME9)
Digital diesel electronics control unit (DDE3.0, DDE5)
Transmission control unit (ME9 with Automatic transmission)
30 7.5 Oil level sensor
Alternator
Temperature switch (up to 09.1998; MS42)
Transmission control unit
Data link connector
Diesel:
Oil level sensor
Data link connector
Transmission control unit (as of 06.2000; DDE3.0)
31 5 03.1998-09.1998: Mirror adjustment switch
09.1998-09.2001: Tyre pressure control system control unit
as of 09.2001:
Mirror adjustment switch
Control unit, tyre defect indicator (RPA) (all-wheel drive with DDS)
Tyre pressure control system control unit (without all-wheel drive with DDS)
32 5 without Xenon lights: Light switching centre control unit
Xenon lights:
Light switching centre control uni
Xenon headlight, left
Xenon headlight, right
Control unit for adaptive headlight (03.2003-09.2003; Convertible and Coupe)
Xenon lights (as of 09.2003):
Light switching centre control uni
Control unit for adaptive headlight (Convertible)
33 5 03.1998-09.1999:
ASC/DSC button
ABS/DSC unit (with DSC)
without all-wheel:
Switch center
Steering angle sensor (with DSC)
ABS/DSC unit
up to 03.2001 (all-wheel drive):
Switch center
Steering angle sensor, DSC
ABS/DSC unit
as of 03.2001 (all-wheel drive): Switch center
34 5 Instrument cluster control unit
Fuel pump control (EKPS) (only MS45)
35 50 all-wheel drive: ABS/DSC unit
Convertible: Relay, convertible top drive
36 50 Secondary air pump relay

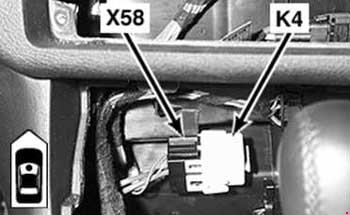

37 50 03.1998-09.1998: Heating blower relay
09.1998-09.1999:
Blower switch (with IHS)
Blower output stage (with IHKA)
as of 09.1999: Electric fan
38 10 Fog light relay
39 5 Transceiver/charging electronics
Motorola (03.1998-09.1999): Transceiver/charging electronics
Nokia:
Transceiver/charging electronics (up to 09.1999)
Compensator
Basic interface telephone (as of 09.1999)
Voice input (as of 09.1999)
Telephone provision:
Transceiver/charging electronics
Compensator
JBIT: Basic interface telephone
10 Siemens:
Voice input
Basic interface telephone
Eject box
Motorola (as of 06.2000):
Voice input
Compensator
Transceiver/charging electronics
Interface
Telematics Control Unit:
Voice input
Telematics control unit (TCU-Everest)
Eject box
Aerial splitter (Coupe, Convertible as from 2004_09)
ULF:
Compensator
Universal electronic charging and hands-free module (ULF)
40 5 without all-wheel (up to 09.2001): Gear indicator light
without all-wheel (as of 09.2001):
Steering angle sensor, DSC
Gear indicator light (only USA)
all-wheel drive: Steering angle sensor, DSC
41 30 On-board monitor control unit
Amplifier
Radio control unit
CD changer
Subwoofer box
Navigation computer
Video module control unit
Switch center
42 30 Switch center
43 5 Instrument cluster control unit
Data link connector (only USA)
44 20 Trailer socket
45 20 Touring: Intermittent wipe/wash control unit, rear
46 20 Convertible soft top control unit
Sunroof module control unit
Relay, convertible top 1
47 15 up to 03.1999: Cigarette lighter, front
20 as of 03.1999:
Cigarette lighter, front
Oddments compartment, left (except Touring)
Oddments compartment, right (except Touring)
12 V socket
48 30 General module control unit
49 5 General module control unit
Aerial amplifier AM/FM (with remote control central locking)
50 25 up to 09.1999: Ignition switch
40 as of 09.1999:
Blower switch (with Heater control)
Blower output stage (without Heater control)
51 30 Headlight washer module
52 30 General module control unit
53 30 ABS/ASC unit

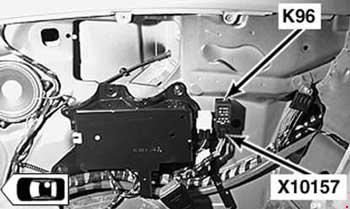

54 15 Fuel pump relay 1
25 DDE4.0: Fuel pump relay 1
20 DDE5.0: Fuel pump relay 1
MS45: Fuel pump control (EKPS)
55 15 Horn relay
56 30 ABS/ASC unit
57 5 Outside mirror fold-in control unit
Mirror memory control unit, driver’s side (up to 03.2003)
Mirror memory control unit, front passenger’s side (up to 03.2003)
Driver’s side outside mirror with memory (as of 03.2003)
Passenger’s side out-side mirror with memory (as of 03.2003)
Mirror memory control unit, driver’s side (as of 03.2003; Coupe, Convertible)
Mirror memory control unit, front passenger’s side (as of 03.2003; Coupe, Convertible)
Power window motor, driver’s door with anti-trap protection function (as of 03.2003; Compact, Convertible with SPMFT)
Power window motor, passenger’s door with anti-trap protection function (as of 03.2003; Compact, Convertible with SPMFT)

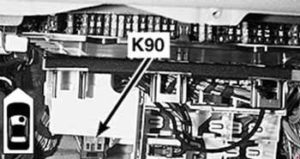

58 7.5 Touring: Relay, rear window drive
as of 03.2003; (Coupe, Convertible): Control unit for adaptive headlight

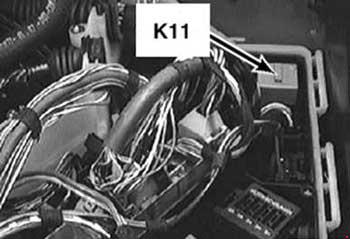

59 30 Wiper relay
60 25 General module control unit
61 30 ABS/DSC unit
62 7.5 Water valves
63 7.5 Relay, A/C compressor
64 20 Independent park heating control unit
5 DDE5: Transmission control unit
65 30 03.1998-09.1999:
Driver’s seat memory control unit
Driver’s lumbar support switch
as of 09.1999:
Driver’s seat adjustment switch
Driver’s lumbar support switch (convertible)
66 5 MS43 with SMG: Ignition switch
67 5 Electronic immobiliser control unit
Electrochromic interior rear-view mirror
Control unit, interior protection I
Control unit, interior protection II (convertible)
Tilt monitoring
Horn for antitheft alarm system

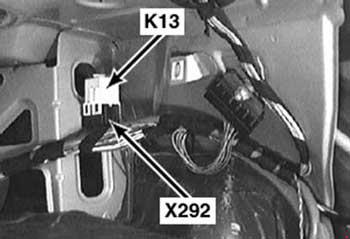

68 30 Rear window defogger relay
69 5 Tyre pressure control system control unit
70 30 with SMF (Saloon, Touring): Seat adjustment switch, front passenger’s seat
without SMF (Saloon, Touring): Passenger’s lumbar support switch
Compact, Coupe: Control unit, front passenger seat memory
Convertible:
Control unit, front passenger seat memory
Passenger’s lumbar support switch
71 30 4-door: General module control unit
10 2-door: General module control unit
72
73

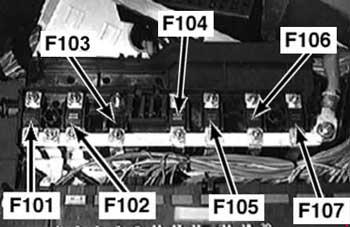

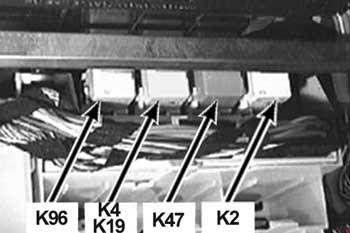

Passenger Compartment Fuse Box (Behind Glovebox)

BMW 3 series E46 - fuse box diagram - passenger compartment (behind glovebox)
BMW 3 series E46 – fuse box diagram – passenger compartment (behind glovebox)
No.
A
Protected components
101 50 03.1998-09.1998: Electric fan
102 80 MSS54:
Fuse carrier, engine electronics (fuse No.5 (30A))

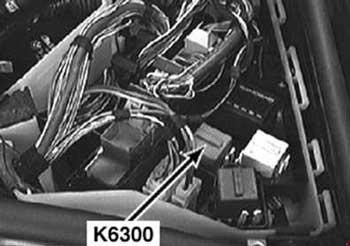

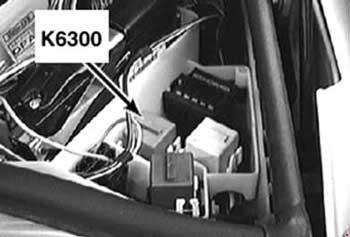

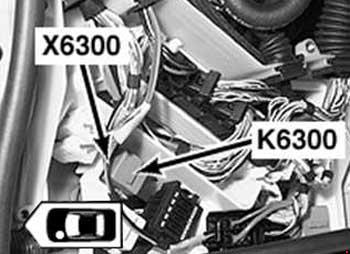

DME relay
Digital motor electronics control unit
SMG control unit

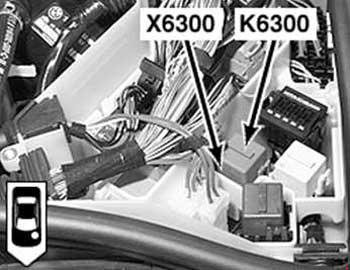

MS43:
Fuse carrier, engine electronics (fuse No.5 (30A))
DME relay
Digital motor electronics control unit
Transmission control unit
BMS46, MS42: B+ terminal
ME9: B+ potential distributor
103

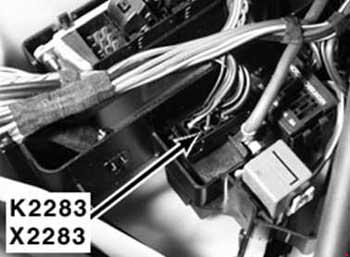

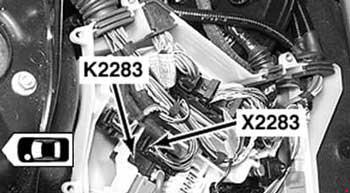

104 100 Preheater relay
105 50 Ignition switch
Diagnosis plug
106 50 Ignition switch
Light switching centre control unit
107 50 Trailer module
Light switching centre control unit

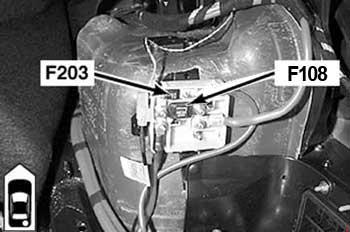

Rear Fuse box

BMW 3 series E46 - fuse box diagram - rear fuse box
BMW 3 series E46 – fuse box diagram – rear fuse box
No.
A
Protected components
108 200 Fuse: 35-71, 101-107
203 100 DDE relay
Fuse carrier, engine electronics (fuse No.4 (30A) – DDE4.0 or EGS Transmission control GM5)

Relay (Behind Glovebox)

BMW 3 series E46 - fuse box diagram - rear behind glovebox-
BMW 3 series E46 – fuse box diagram – rear behind glovebox-
No.
K2 Horn relay
K4 03-1998-09.1998: Heating blower relay IHS
K19 as of 09.1998: Relay, A/C compressor
K47 Fog light relay
K96 Fuel pump relay 1

K4 – Heating blower relay IHS (rear of center console; as of 09.1998)

BMW 3 series E46 - fuse box diagram - K4 heating blower relay
BMW 3 series E46 – fuse box diagram – K4 heating blower relay

K6 – Headlight washer module

BMW 3 series E46 - fuse box diagram - K6 headlight washer
BMW 3 series E46 – fuse box diagram – K6 headlight washer

K19 – Relay, A/C compressor (03.1998-09.1998)

BMW 3 series E46 - fuse box diagram K19 a/c compressor
BMW 3 series E46 – fuse box diagram K19 a/c compressor

K11 – Wiper relay

BMW 3 series E46 - fuse box diagram - K11 wiper relay
BMW 3 series E46 – fuse box diagram – K11 wiper relay

K13 – Rear window defogger relay

Saloon, Coupe (in RH side of luggage compartment)

BMW 3 series E46 - fuse box diagram - K13 rear window defogger relay (saloon, coupe)
BMW 3 series E46 – fuse box diagram – K13 rear window defogger relay (saloon, coupe)

Touring (in RH side of luggage compartment)

BMW 3 series E46 - fuse box diagram - K13 rear window defogger relay (touring)
BMW 3 series E46 – fuse box diagram – K13 rear window defogger relay (touring)

Convertible – Side section right (trim panel removed) (K13, K99 – Rear defogger relay)

BMW 3 series E46 - fuse box diagram - K13 rear window defogger relay (convertible)
BMW 3 series E46 – fuse box diagram – K13 rear window defogger relay (convertible)

Compact (in electronics box under control units)

BMW 3 series E46 - fuse box diagram - K13 rear window defogger relay (compact)
BMW 3 series E46 – fuse box diagram – K13 rear window defogger relay (compact)

K90 – Relay, rear window drive (Touring)

Behind RH footwell trim

BMW 3 series E46 - fuse box diagram - K90 rear window drive (touring)
BMW 3 series E46 – fuse box diagram – K90 rear window drive (touring)

K96 – Fuel pump relay 1 (USA, MSS54)

Side section right (trim panel removed)

BMW 3 series E46 - fuse box diagram - K96 fuel pump relay 1 (USA)
BMW 3 series E46 – fuse box diagram – K96 fuel pump relay 1 (USA)

K2003 – DDE relay

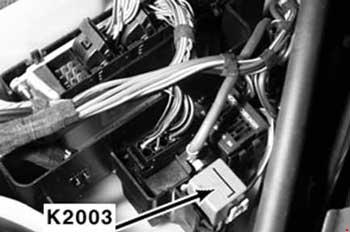

DDE3.0 (Diesel Electronics) – rear LH side of engine compartment in electronics box

BMW 3 series E46 - fuse box diagram - K2003 - DDE relay (DDE3.0)
BMW 3 series E46 – fuse box diagram – K2003 – DDE relay (DDE3.0)

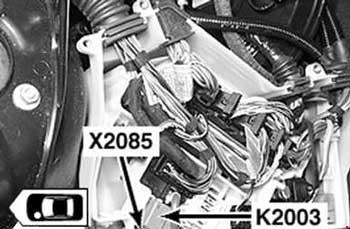

DDE4.0 (Diesel Electronics) – in water box left

BMW 3 series E46 - fuse box diagram - K2003 - DDE relay (DDE4.0)
BMW 3 series E46 – fuse box diagram – K2003 – DDE relay (DDE4.0)

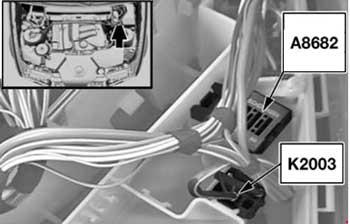

M47/TU, M57/TU – A8682 – Fuse carrier, engine electronics

BMW 3 series E46 - fuse box diagram - K2003 - DDE relay (M47/TU, M57/TU)
BMW 3 series E46 – fuse box diagram – K2003 – DDE relay (M47/TU, M57/TU)



K2283 – Preheater relay

DDE3.0 (Diesel Electronics) – Rear LH side of engine compartment in electronics box

BMW 3 series - E46 - fuse box diagram - K2283 - preheater relay (DDE3.0)
BMW 3 series – E46 – fuse box diagram – K2283 – preheater relay (DDE3.0)



DDE4.0 (Diesel Electronics) – In water box left

BMW 3 series - E46 - fuse box diagram - K2283 - preheater relay (DDE4.0)
BMW 3 series – E46 – fuse box diagram – K2283 – preheater relay (DDE4.0)

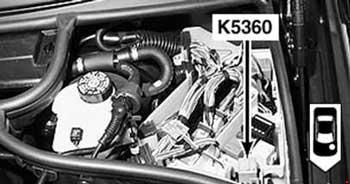

K5360 – Relay, hydraulic pump (SMG)

BMW 3 series E46 - fuse box diagram - K5360 relay hydraulic pump (SMG)
BMW 3 series E46 – fuse box diagram – K5360 relay hydraulic pump (SMG)



DME Relay

MS42 – Rear LH side of engine compartment in electronics box

BMW 3 series E46 - fuse box diagram - DME relay (MS42)
BMW 3 series E46 – fuse box diagram – DME relay (MS42)



BMS46 – Rear LH side of engine compartment in electronics box

BMW 3 series E46 - fuse box diagram - DME relay (BMS426)
BMW 3 series E46 – fuse box diagram – DME relay (BMS426)



MS43 – Rear LH side of engine compartment

BMW 3 series E46 - fuse box diagram - DME relay (MS43)
BMW 3 series E46 – fuse box diagram – DME relay (MS43)



MSS54 – In electronics box in water box left

BMW 3 series E46 - fuse box diagram - DME relay (MSS54)
BMW 3 series E46 – fuse box diagram – DME relay (MSS54)

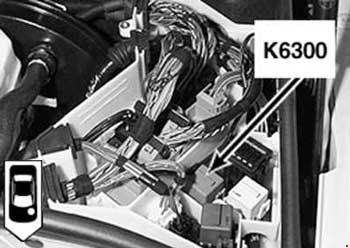

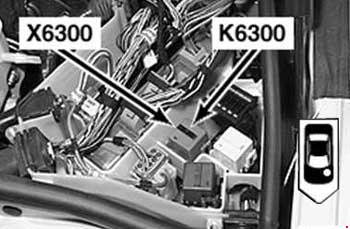

ME9 – In electronics box

BMW 3 series E46 - fuse box diagram - DME relay (ME9)
BMW 3 series E46 – fuse box diagram – DME relay (ME9)



MS45 – In electronics box

BMW 3 series E46 - fuse box diagram - DME relay (ME9)
BMW 3 series E46 – fuse box diagram – DME relay (MS45)



N46 engine

BMW 3 series E46 - fuse box diagram - DME relay N46 engine
BMW 3 series E46 – fuse box diagram – DME relay N46 engine



K6304 – Secondary air pump relay

BMW 3 series E46 - fuse box diagram - K6304 secondary air pump relay
BMW 3 series E46 – fuse box diagram – K6304 secondary air pump relay

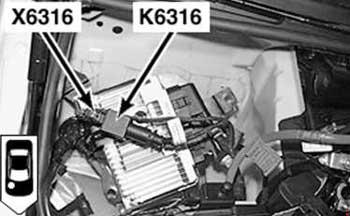

K6316 – Relay, variable valve timing gear

ME9 – In water box right (battery removed)

BMW 3 series E46 - fuse box diagram - K6316 relay variable valve timing gear (ME9)
BMW 3 series E46 – fuse box diagram – K6316 relay variable valve timing gear (ME9)

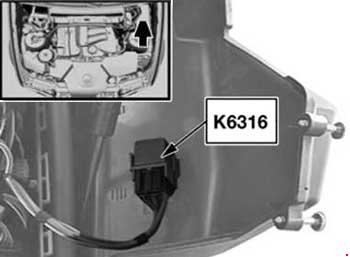

N46 engine

BMW 3 series E46 - fuse box diagram - K6316 relay variable valve timing gear (N46 engine))
BMW 3 series E46 – fuse box diagram – K6316 relay variable valve timing gear (N46 engine))

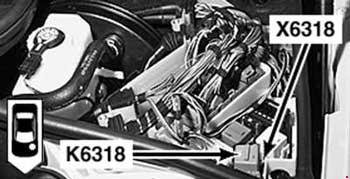

K6318 – Hydraulic pump relay, SMG

BMW 3 series E46 - fuse box diagram - K6318 hydraulic pump relay, SMG
BMW 3 series E46 – fuse box diagram – K6318 hydraulic pump relay, SMG



K6325 – Reversing light relay

MS42

BMW 3 series E46 - fuse box diagram - K6325 reversing light relay (MS42)
BMW 3 series E46 – fuse box diagram – K6325 reversing light relay (MS42)

BMS46

BMW 3 series E46 - fuse box diagram - K6325 reversing light relay (BMS46)
BMW 3 series E46 – fuse box diagram – K6325 reversing light relay (BMS46)

ME9

BMW 3 series E46 - fuse box diagram - K6325 reversing light relay (ME9)
BMW 3 series E46 – fuse box diagram – K6325 reversing light relay (ME9)

MS45

BMW 3 series E46 - fuse box diagram - K6325 reversing light relay (MS45)
BMW 3 series E46 – fuse box diagram – K6325 reversing light relay (MS45)

N46 engine

BMW 3 series E46 - fuse box diagram - K6325 reversing light relay (N46 engine)
BMW 3 series E46 – fuse box diagram – K6325 reversing light relay (N46 engine)

M47/TU, M57/TU

BMW 3 series E46 - fuse box diagram - K6325 - reversing light relay (M47/TU, M57/TU)
BMW 3 series E46 – fuse box diagram – K6325 – reversing light relay (M47/TU, M57/TU)

K6326 – Unloader relay terminal 15

MS42

BMW 3 series E46 - fuse box diagram - K6326 - unloader relay terminal 15 (MS42)
BMW 3 series E46 – fuse box diagram – K6326 – unloader relay terminal 15 (MS42)

BMS46

BMW 3 series E46 - fuse box diagram - K6326 - unloader relay terminal 15 (BMS46)
BMW 3 series E46 – fuse box diagram – K6326 – unloader relay terminal 15 (BMS46)

ME9

BMW 3 series E46 - fuse box diagram - K6326 - unloader relay terminal 15 (ME9)
BMW 3 series E46 – fuse box diagram – K6326 – unloader relay terminal 15 (ME9)

N46 engine

BMW 3 series E46 - fuse box diagram - K6326 - unloader relay terminal 15 (NS46 engine)
BMW 3 series E46 – fuse box diagram – K6326 – unloader relay terminal 15 (NS46 engine)



K6327 – Relay, fuel injectors

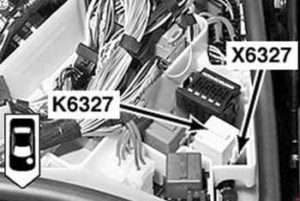

MS43

BMW 3 series E46 - fuse box diagram - K6327 relay fuel injectors (MS43)
BMW 3 series E46 – fuse box diagram – K6327 relay fuel injectors (MS43)

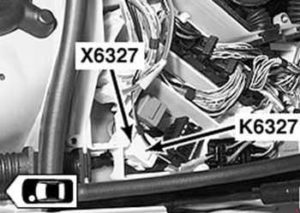

MSS54

BMW 3 series E46 - fuse box diagram - K6327 relay fuel injectors (MSS54)
BMW 3 series E46 – fuse box diagram – K6327 relay fuel injectors (MSS54)

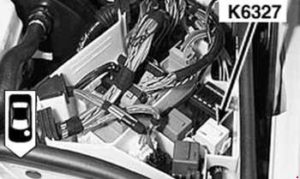

MS45

BMW 3 series E46 - fuse box diagram - K6327 relay fuel injectors (MS54)
BMW 3 series E46 – fuse box diagram – K6327 relay fuel injectors (MS54)

K18363 – Relay, convertible top 1

Behind glovebox

BMW 3 series E46 - fuse box diagram - K18363 - relay convertible top 1
BMW 3 series E46 – fuse box diagram – K18363 – relay convertible top 1

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
