Audi 90 (B3) (1986 – 1991) – fuse box diagram
Year of production: 1986, 1987, 1988, 1989, 1990, 1991

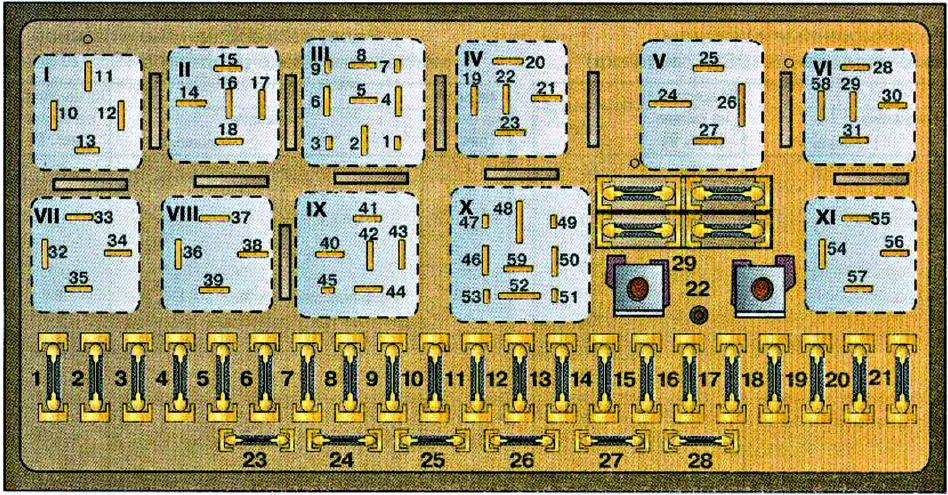

Fuse Box
No. |
Description |
A |
1 | Fog lights, rear fog light | 15 |
2 | Emergency flashers | 15 |
3 | Horn, brake lights | 25 |
4 | Reading lights, luggage compartment, cigar lighter, interior lights, make-up mirror, Board Computer, radio, clock, auto climate control, alarm system | 15 |
5 | Radiator cooling fan | 30 |
6 | Side marker, park lights, right | 5 |
7 | Side marker, park lights, left | 5 |
8 | Hi-beam headlight, right, hi-beam indicator light | 10 |
9 | Hi-beam headlight, left | 10 |
10 | Low beam headlight, right | 10 |
11 | Low beam headlight, left | 10 |
12 | Instrument cluster, back-up lights, Auto-Check, cruise control, ABS, Board Computer, differential locks, electronic thermoswitch, throttle valve time control unit, radiator cooling fan after-run control unit | 15 |
13 | Fuel pump, warm-up regulator | 15 |
14 | Glove compartment, engine compartment, license plate lights | 5 |
15 | Windshield wipers, thermoswitch, radiator cooling fan, turn signals, A/C pressure switch | 25 |
16 | Rear window heat element, outside mirror heat element | 30 |
17 | Fresh air blower, A/C | 30 |
18 | Power mirrors, rear window wiper (Coupe) | 5 |
19 | Central locking system, heated lock system | 10 |
20 | Radiator cooling fan (step 1), radiator cool fan after-run | 30 |
21 | Diagnostic | 10 |
21 | Rear cigar lighter | 25 |
22 | Not used | – |
23 | Power seats with memory, power seat control unit | 30 |
24 | Engine control I | 10 |
25 | Heated seats | 30 |
26 | Daytime driving lights (Canada) | 5 |
27 | Engine control I (from September, 1987) | 10 |
28 | Engine control II | 15 |
29 | Spare fuses | 15 |
Relay | ||
I | Fog lights, J5 | |
II | up to 1990: Radiator cooling tan (stage 2), J101 from 1990: Not used |
|
III | Radiator cooling fan after-run control unit, J138 | |
IV | up to 1990: Not used from 1990: Headlight washer system, J39 |
|
V | Load reduction relay, J18 | |
VI | up to 1990: A/C fresh air blower, J11 from 1990: Radiator cooling fan high speed relay, J101 |
|
VII | Horn, J4 | |
VIII | Bridge between contact 36 and 38 for manual transmissions Auto transmission, J60 |
|
IX | Intermittent washer/wiper, J31 | |
X | Fuel pump, J17 | |
XI | Radiator cooling fan (stage 1), J26 |

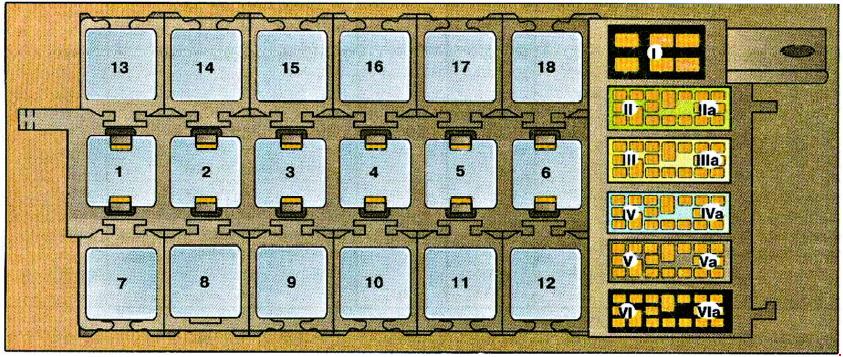

Auxiliary relay panel
No. | Description |
1 | ABS system, J156 |
2 | Seat belt, radio, parking light warning, J152 |
3 | Interior light control unit, J140 |
4 | A/C clutch control unit, J153 |
5 | Not used |
6 | Dynamic oil pressure warning (without Auto-Check), J114 Lamp control unit, front (with Auto-Check), J123 |
7 | Not used |
8 | Not used |
9 | Not used |
10 | Not used |
11 | Not used |
12 | Circuit breaker (power seats with memory, power windows, power sunroof), S43 |
13 | Seat heater control unit, passenger. J132 |
14 | Seat heater control unit, driver, J131 |
15 | Sunroof relay, J139 Sunroof and power window control unit, J139 |
16 | Sunroof and power window control unit, J139 |
17 | Wire distributor adaptor, (optional equipment connector) |
18 | Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
