Alfa Romeo Sipder (2006 – 2011)  – bulbs specification

Alfa Romeo Sipder (2006 – 2011)  – bulbs specification

Year of production: 2006, 2007, 2008, 2009, 2010, 2011

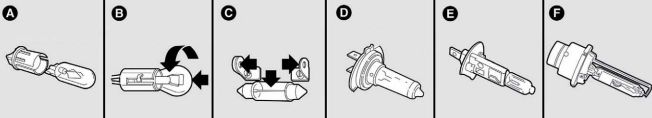

Type of bulbs

Alfa Romeo Spider - bulbs
Alfa Romeo Spider – bulbs

A – Glass bulbs: clipped into position. Pull to remove

B – Bayonet type bulbs:press the bulb, turn counter-clockwise to remove this type of bulb from its holder

C –  Tubular bulbs: release them from their contacts to remove

D – E –  Halogen bulbs: to remove the bulb, release the clip holding the bulb in place

F – Gas-discharge bulbs (Bixenon)



Bulbs Figure Type Power
Main beam headlights D H7 55 W
Dipped beam headlights D H7 55 W
Main beams/Dipped beams (versions with Bixenon headlights) (where provided) F D1S 55 W
Additional main beams (where provided) D H1 55 W
Front sidelights (1 per headlight) A W5WB 5 W
Taillights B P21/5W 5 W
Front fog lights E H7 55 W
Front direction indicator B PY21W 21 W
Side direction indicator A W5W 5 W
Rear direction indicator B P21W 21 W
Brake lights B P21/5W 21 W
Third brake light A W2,3W 2,3 W
Reversing light B P21 21 W
Rear fog lights B P21W 21 W
Number plate lights A W5W 5 W
Front ceiling light 2xA+1C 2xW5+10W 5+5+10 W
Boot light C 10W 10 W
Courtesy mirror lights A 1.5W 1.5 W
Glovebox light A W5W 5 W
Puddle/door lights A w5W 5 W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
