Acura TL (2011) – wiring diagrams – interior lighting

Acura TL (2011) – wiring diagrams – interior lighting

Year of productions:  2011

Interior lighting

Ambiente light, front individual map lights, ignition key light, rear individual map lights and remote slot light

Acura TL - wiring diagram - interior lighting - ambiente light, front individual map lights, ignition key light, rear individual map lights and remote slot light (part 1)
Acura TL – wiring diagram – interior lighting – ambient light, front individual map lights, ignition key light, rear individual map lights and remote slot light (part 1)
Acura TL - wiring diagram - interior lighting - ambiente light, front individual map lights, ignition key light, rear individual map lights and remote slot light (part 2)
Acura TL – wiring diagram – interior lighting – ambient light, front individual map lights, ignition key light, rear individual map lights and remote slot light (part 2)

Door courtesy lights

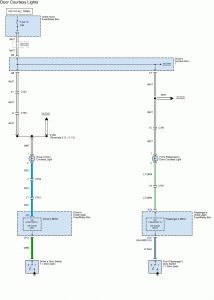

Acura TL - wiring diagram - interior lighting - door courtesy lights
Acura TL – wiring diagram – interior lighting – door courtesy lights

Instrument panel lamp

Acura TL - wiring diagram - instrument panel (part 1)
Acura TL – wiring diagram – instrument panel (part 1)
Acura TL - wiring diagram - instrument panel (part 2)
Acura TL – wiring diagram – instrument panel (part 2)
Acura TL - wiring diagram - instrument panel (part 3)
Acura TL – wiring diagram – instrument panel (part 3)
Acura TL - wiring diagram - instrument panel (part 4)
Acura TL – wiring diagram – instrument panel (part 4)
Acura TL - wiring diagram - instrument panel (part 5)
Acura TL – wiring diagram – instrument panel (part 5)

Trunk light

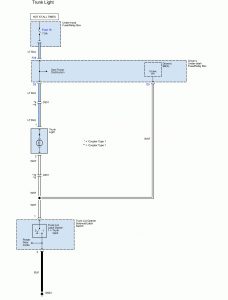

Acura TL - wiring diagram - interior lighting trunk light
Acura TL – wiring diagram – interior lighting trunk light

Vanity mirror light

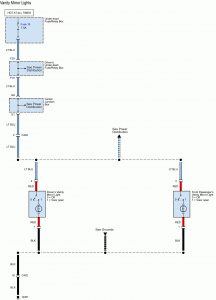

Acura TL - wiring diagram - interior lighting - vanity mirror light
Acura TL – wiring diagram – interior lighting – vanity mirror light



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
