Acura TL (2010) – wiring diagrams – headlamps

Acura TL (2010) – wiring diagrams – headlamps

Year of productions:  2010

Headlamps

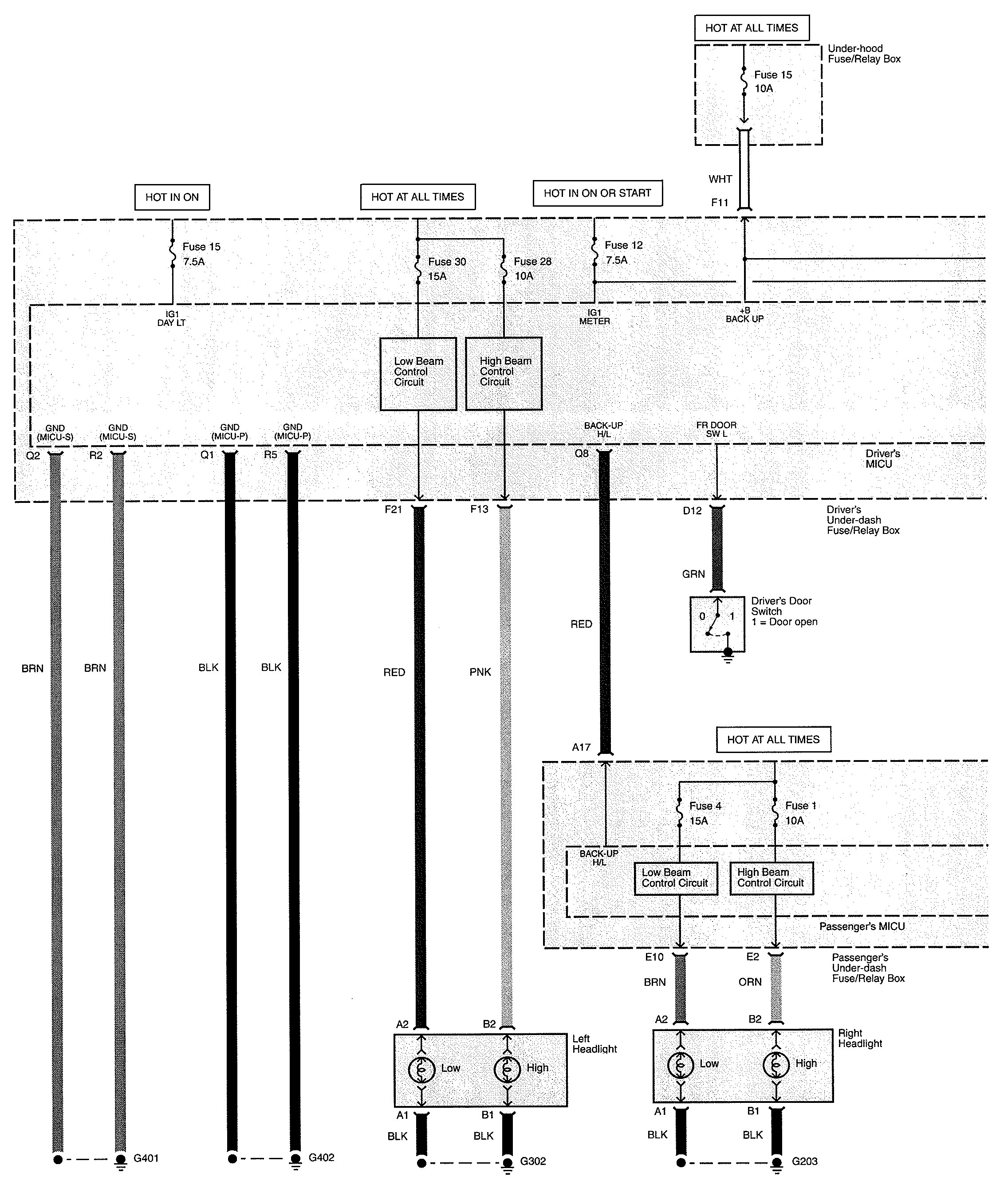

Acura TL - wiring diagram - headlamps (part 1)
Acura TL – wiring diagram – headlamps (part 1)

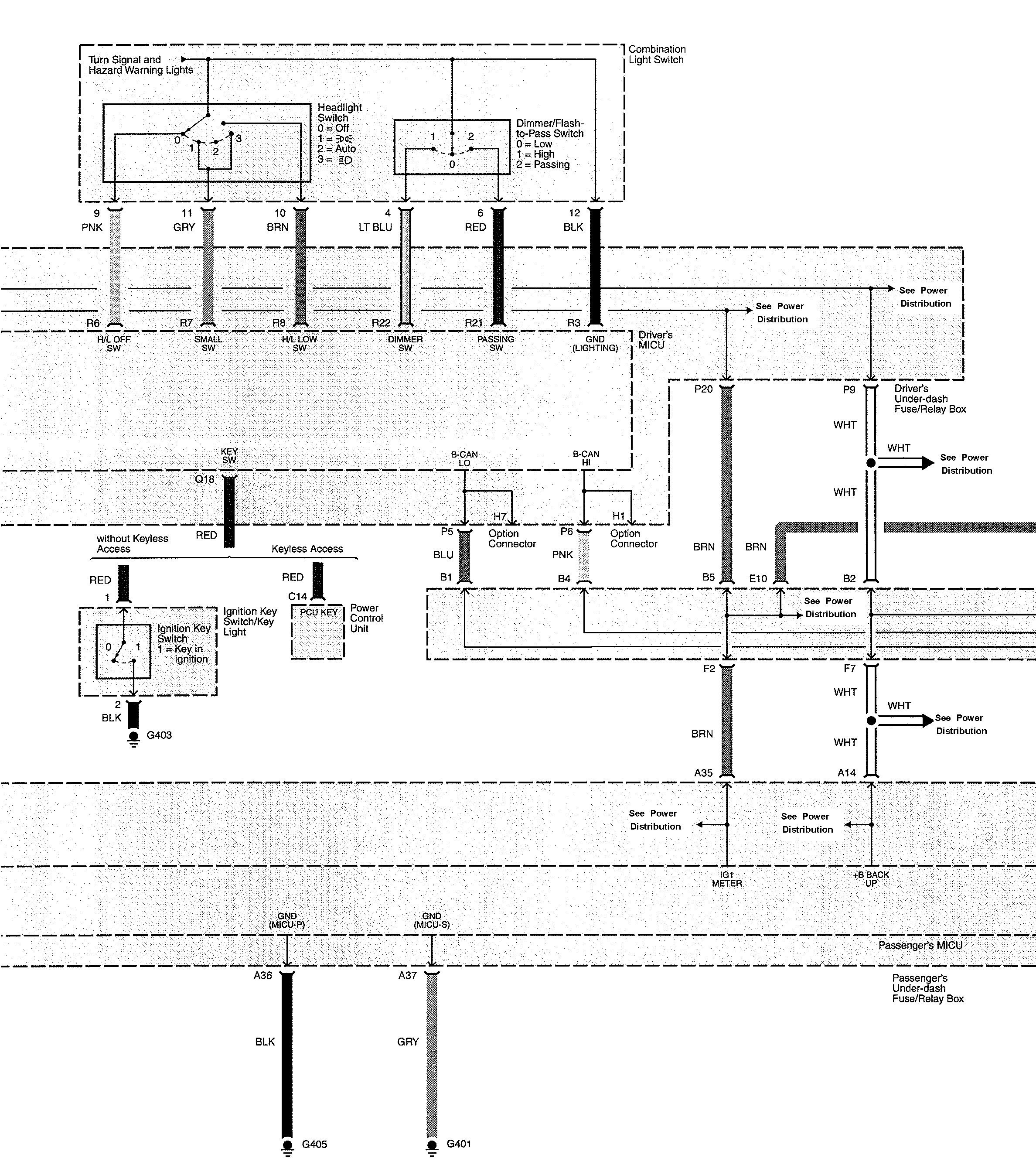

Acura TL - wiring diagram - headlamps (part 2)
Acura TL – wiring diagram – headlamps (part 2)

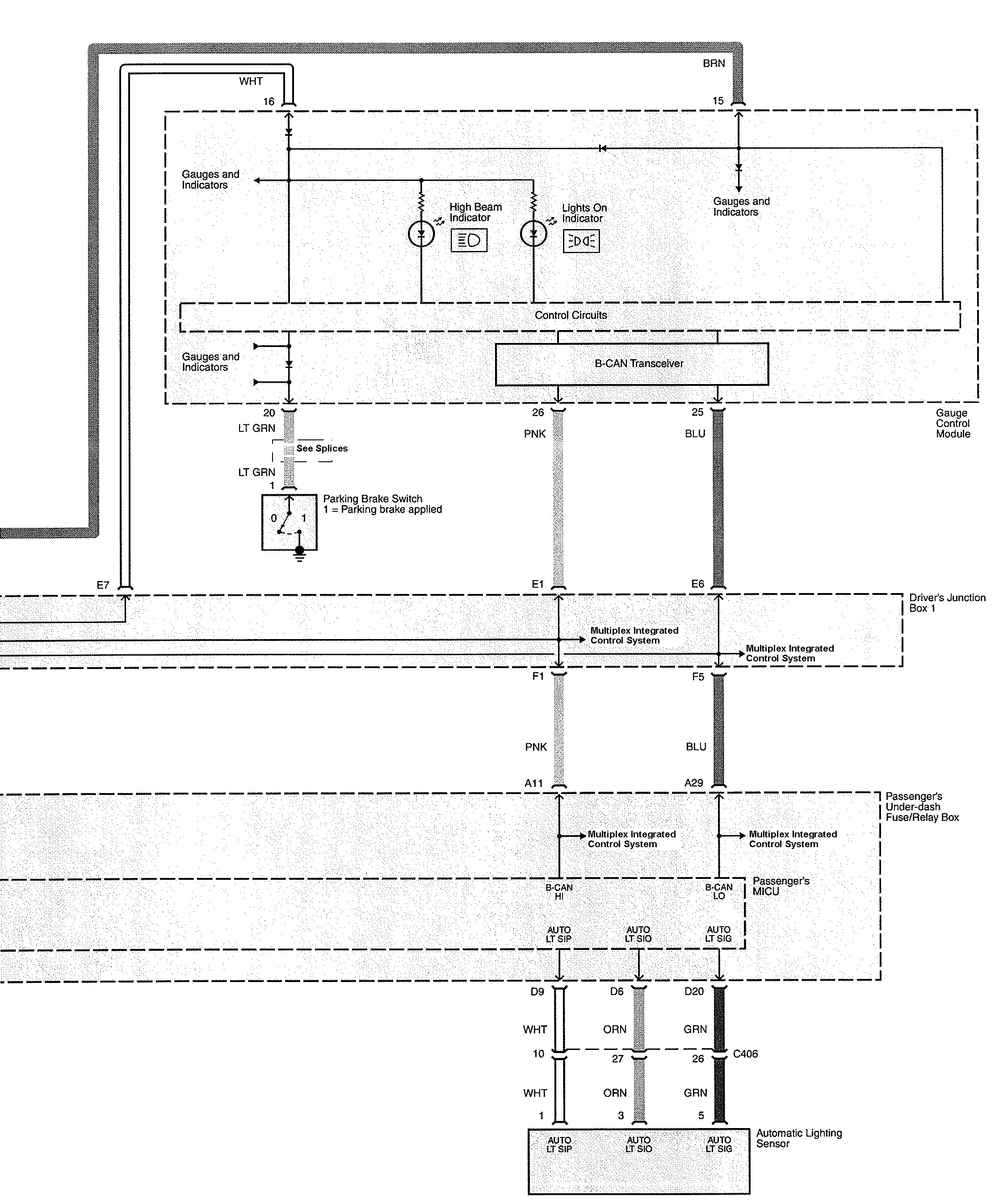

Acura TL - wiring diagram - headlamps (part 3)
Acura TL – wiring diagram – headlamps (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
