Acura TL (1995 – 1998) – wiring diagrams – headlamps

Acura TL (1995 – 1998) – wiring diagrams – headlamps

Year of productions:  1995, 1996, 1997, 1998

Headlamps

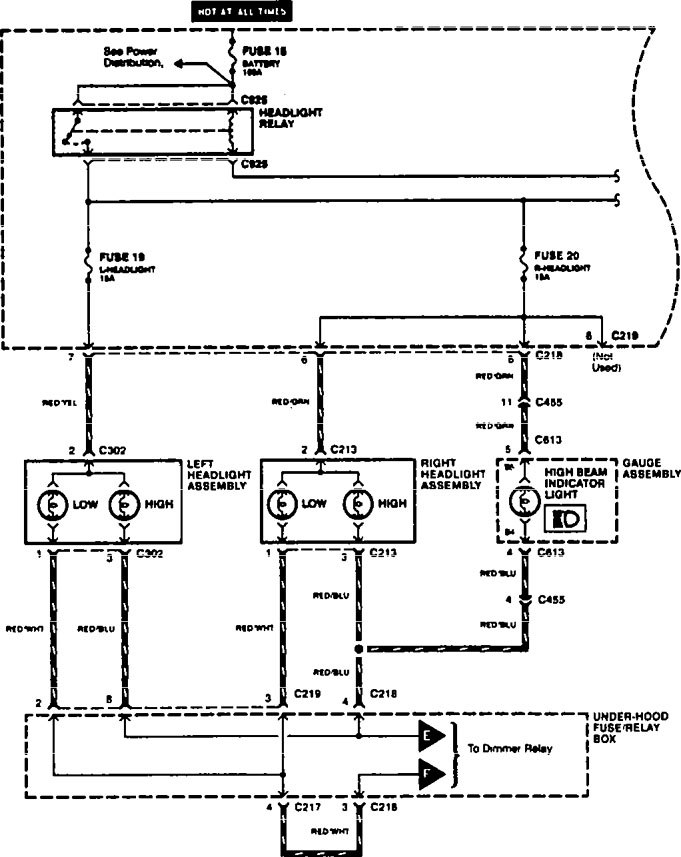

Acura TL – wiring diagram – headlamps (part 1)

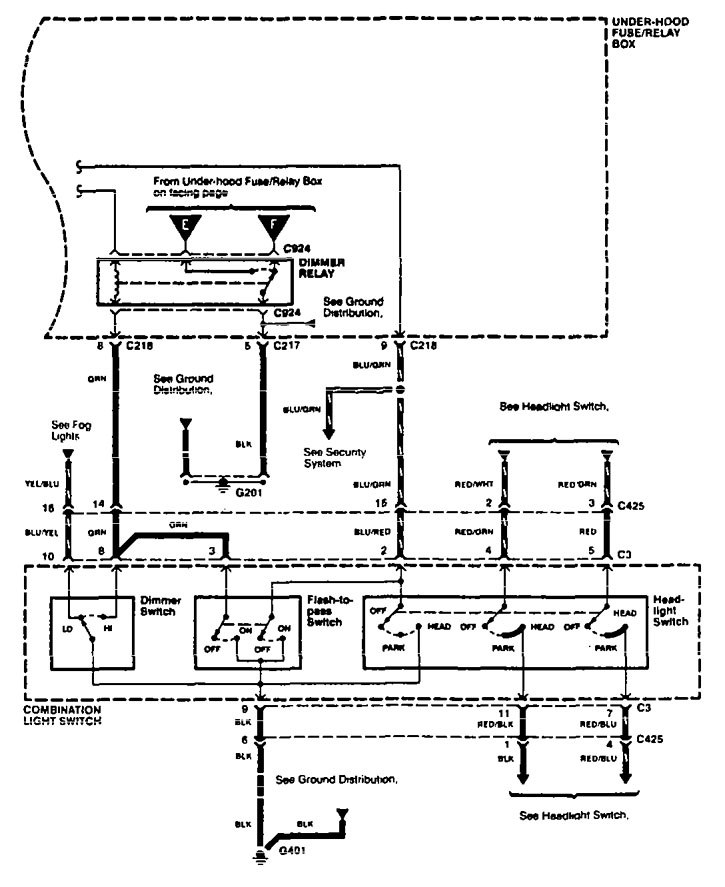

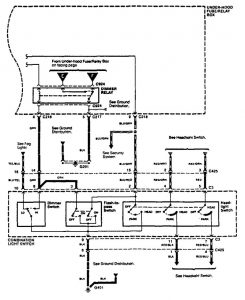

Acura TL – wiring diagram – headlamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
