Acura RL (2007 – 2008) – wiring diagrams – security/anti-theft

Acura RL (2007 – 2008) – wiring diagrams – security/anti-theft

Year of productions:  2007, 2008

Security/Anti-theft

Version 1

Acura RL - wiring diagram - security/anti theft (part 1)
Acura RL – wiring diagram – security/anti-theft (part 1)
Acura RL - wiring diagram - security/anti-theft (part 2)
Acura RL – wiring diagram – security/anti-theft (part 2)
Acura RL - wiring diagram - security/anti-theft (part 3)
Acura RL – wiring diagram – security/anti-theft (part 3)
Acura RL - wiring diagram - security/anti-theft (part 4)
Acura RL – wiring diagram – security/anti-theft (part 4)
Acura RL - wiring diagram - security/anti-theft (part 5)
Acura RL – wiring diagram – security/anti-theft (part 5)
Acura RL - wiring diagram - security/anti-theft (part 6)
Acura RL – wiring diagram – security/anti-theft (part 6)
Acura RL - wiring diagram - security/anti-theft (part 7)
Acura RL – wiring diagram – security/anti-theft (part 7)
Acura RL - wiring diagram - security/anti-theft (part 8)
Acura RL – wiring diagram – security/anti-theft (part 8)
Acura RL - wiring diagram - security/anti-theft (part 9)
Acura RL – wiring diagram – security/anti-theft (part 9)
Acura RL - wiring diagram - security/anti-theft (part 10)
Acura RL – wiring diagram – security/anti-theft (part 10)
Acura RL - wiring diagram - security/anti-theft (part 11)
Acura RL – wiring diagram – security/anti-theft (part 11)

Version 2

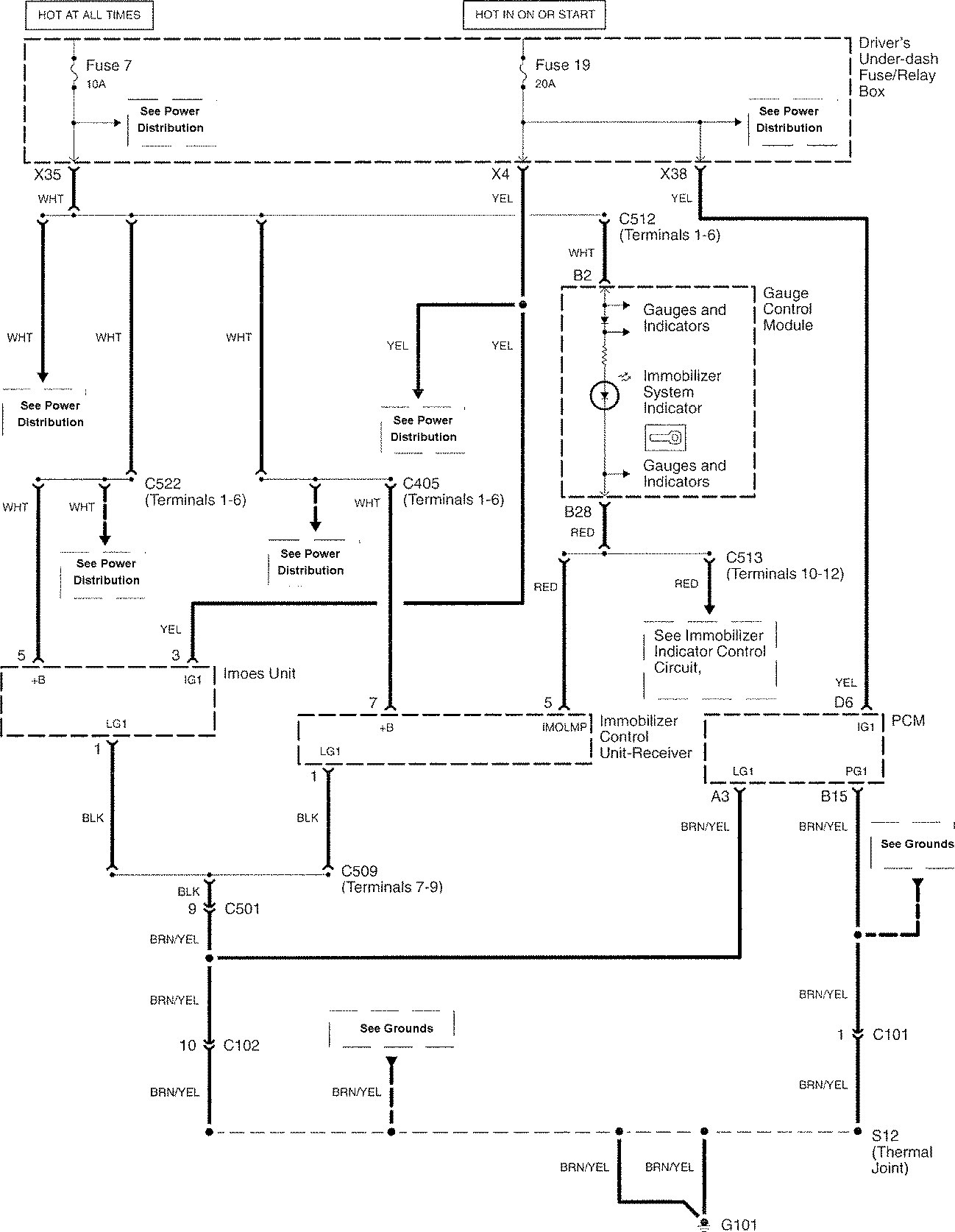

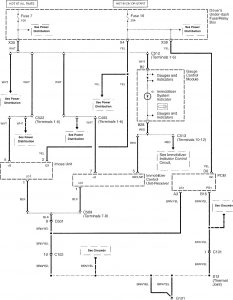

Acura RL - wiring diagram - security/ani-theft (part 1)
Acura RL – wiring diagram – security/ani-theft (part 1)

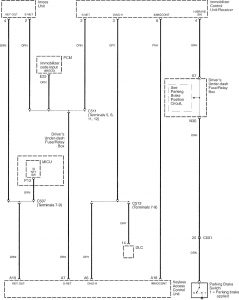

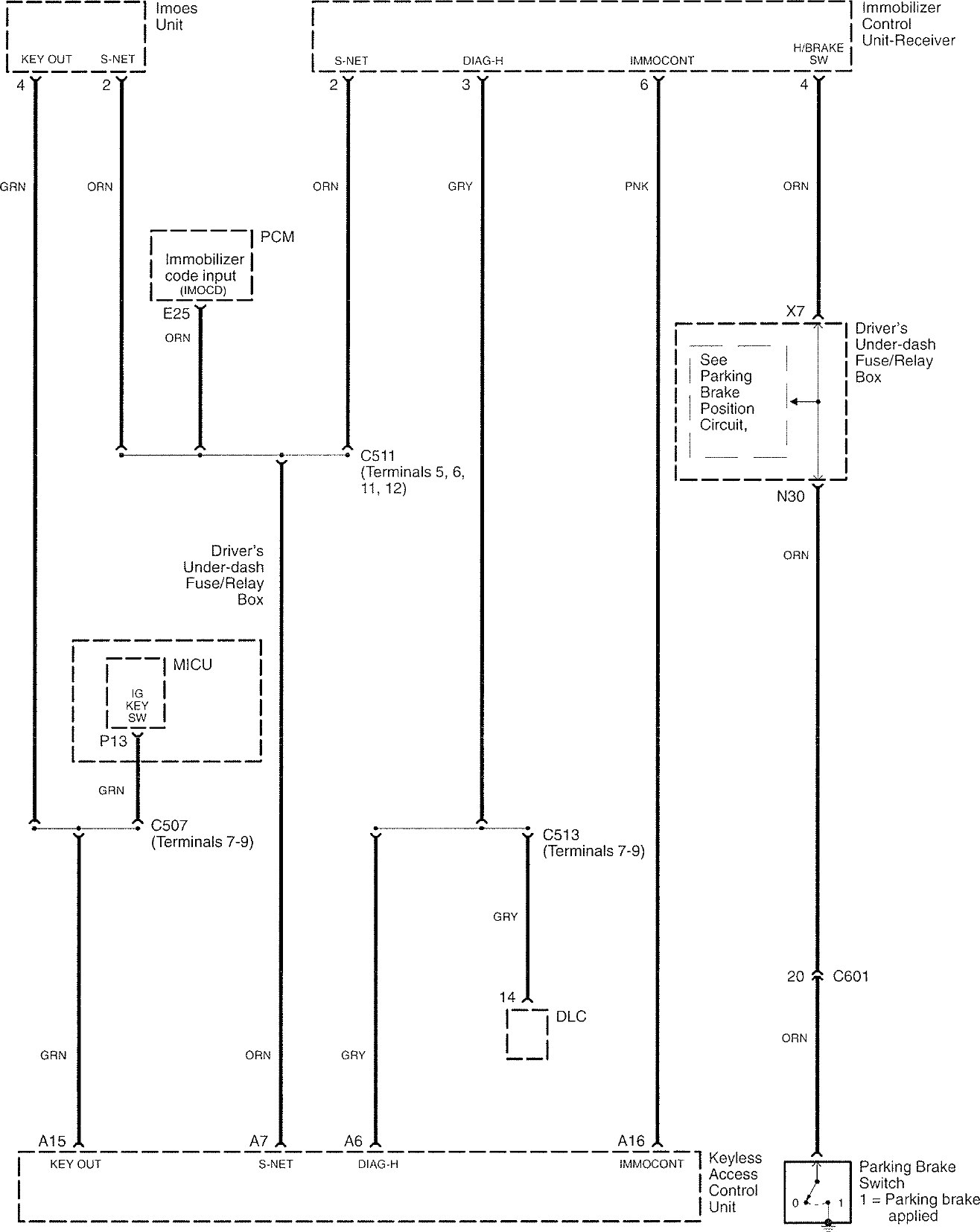

Acura RL - wiring diagram - security/ani-theft (part 2)
Acura RL – wiring diagram – security/ani-theft (part 2)
Acura RL - wiring diagram - security/ani-theft (part 3)
Acura RL – wiring diagram – security/ani-theft (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
