Acura RL (2000 – 2002) – wiring diagrams – symbol ID

11 September 2017 admin Acura, RL 0

Acura RL (2000 – 2002) – wiring diagrams – symbol ID

Year of productions:  2000, 2001, 2002

Symbol ID

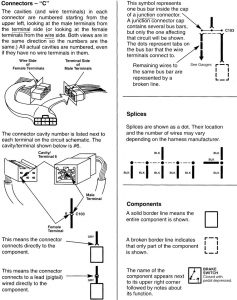

Acura RL - wiring diagram - symbol ID (part 1)

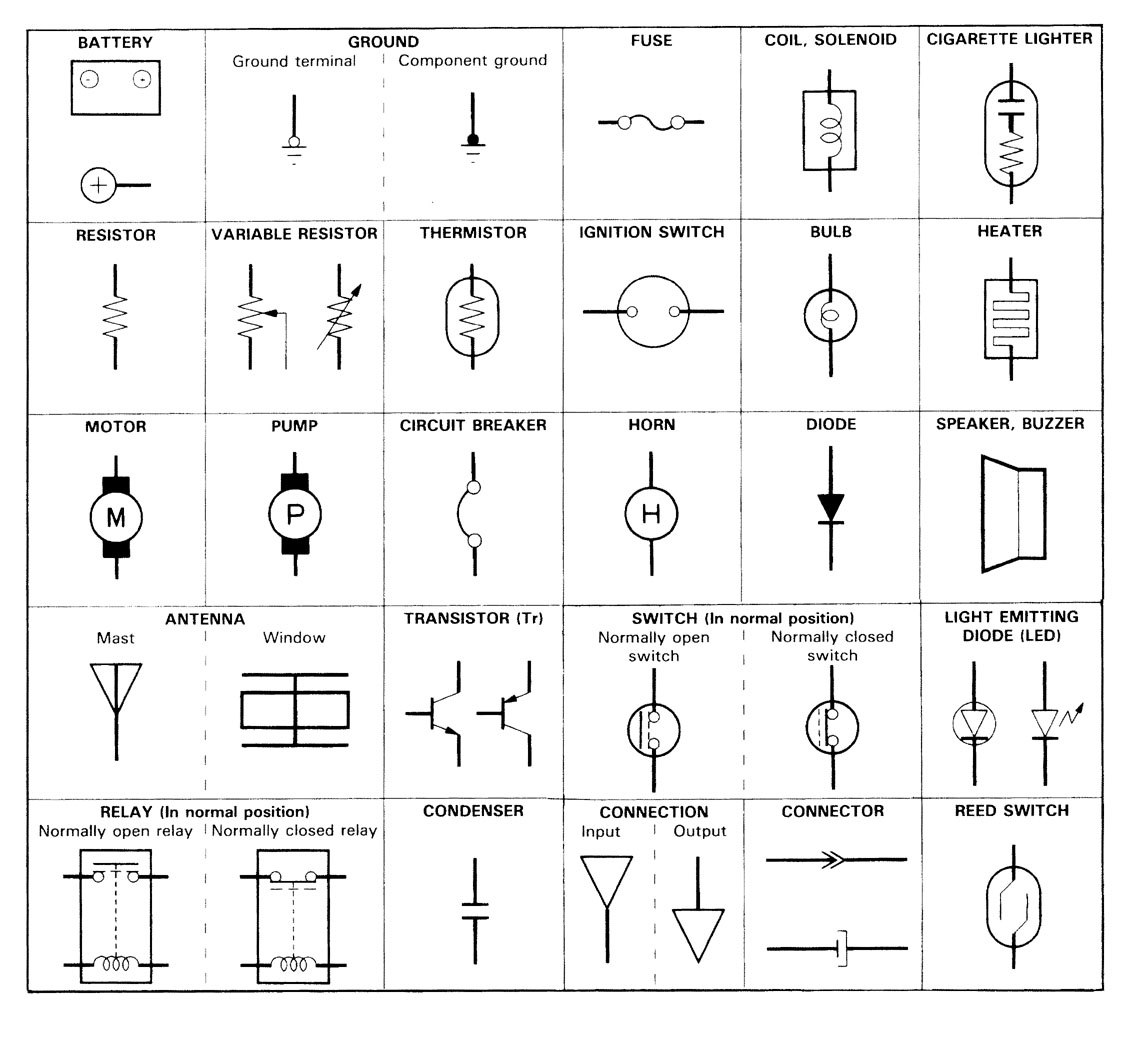

Acura RL – wiring diagram – symbol ID (part 1)

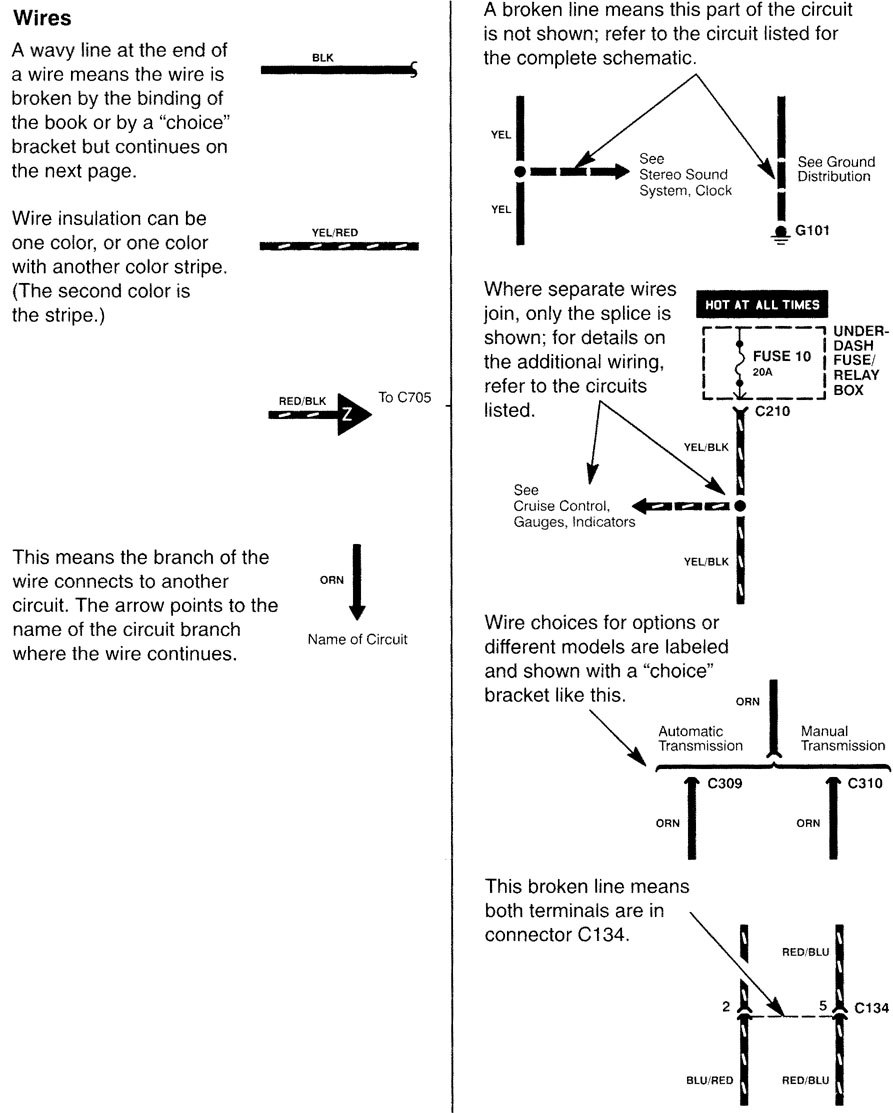

Acura RL – wiring diagram – symbol ID (part 2)

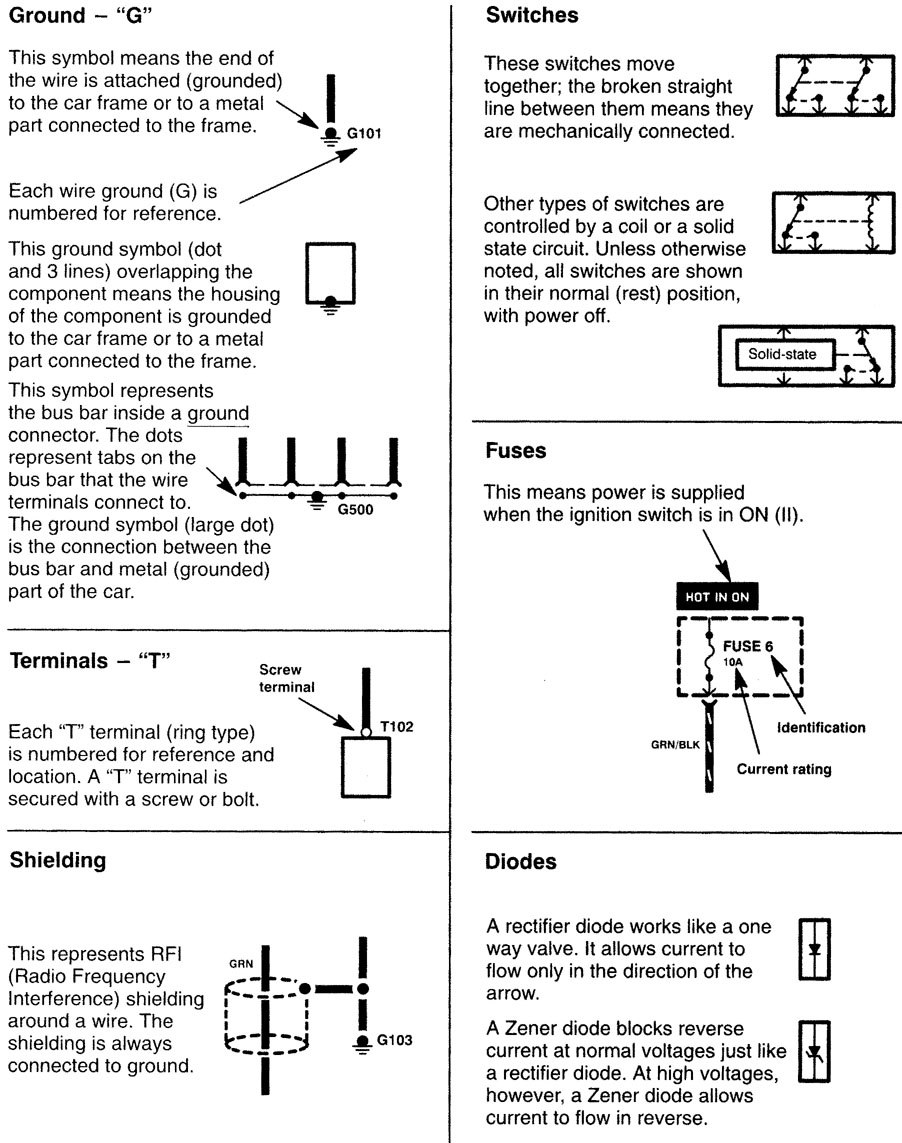

Acura RL – wiring diagram – symbol ID (part 3)
Acura RL – wiring diagram – symbol ID (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
