Acura RL (1996 – 1999) – wiring diagrams – power locks

Acura RL (1996 – 1999) – wiring diagrams – power locks

Year of productions:  1996, 1997, 1998, 1999

Power locks

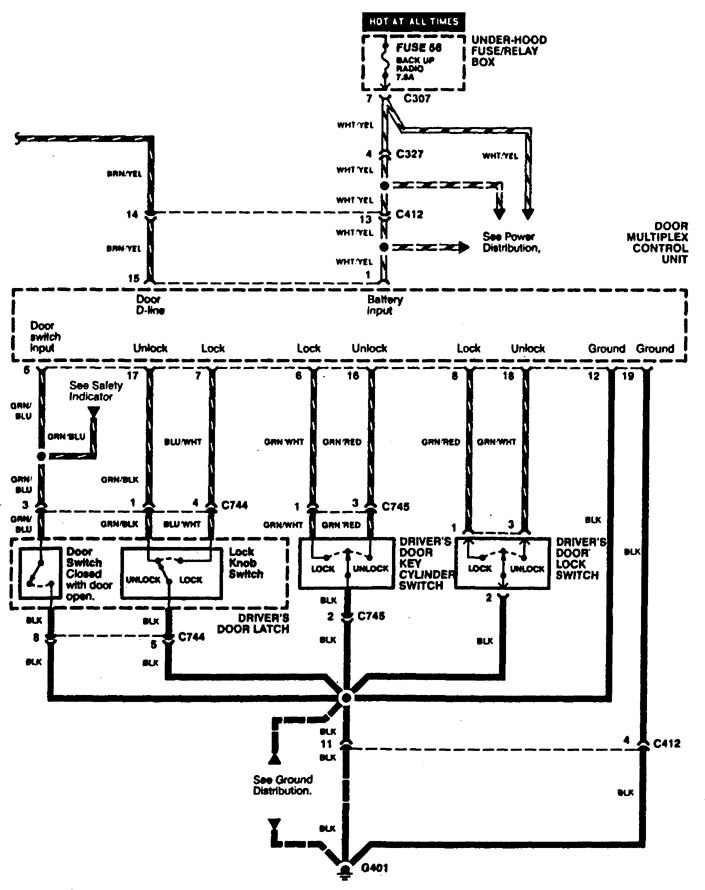

Acura RL - wiring diagram - power locks (part 1)
Acura RL – wiring diagram – power locks (part 1)

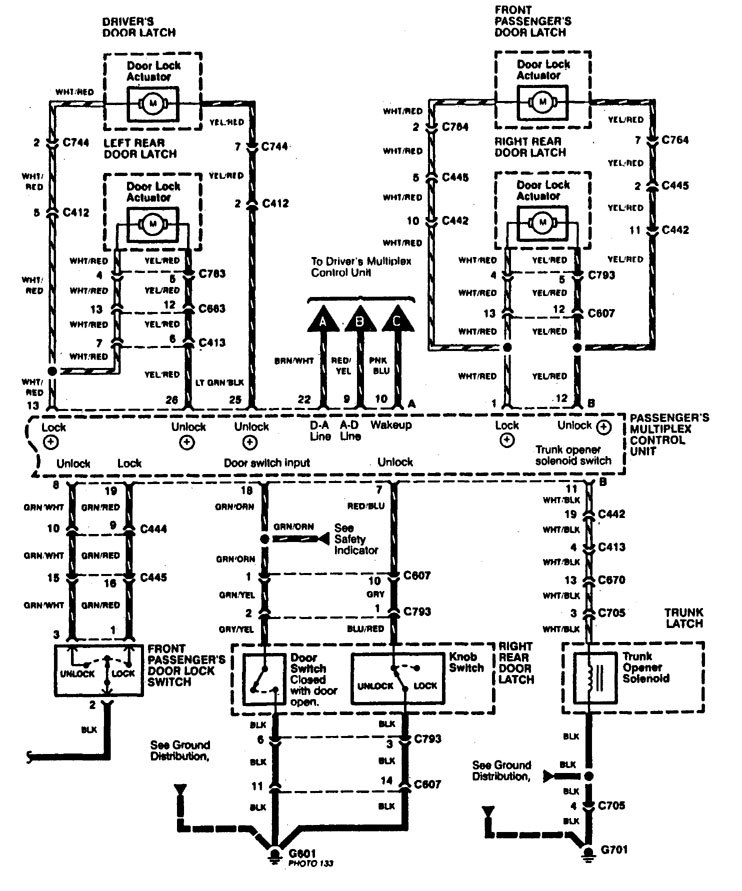

Acura RL - wiring diagram - power locks (part 2)
Acura RL – wiring diagram – power locks (part 2)

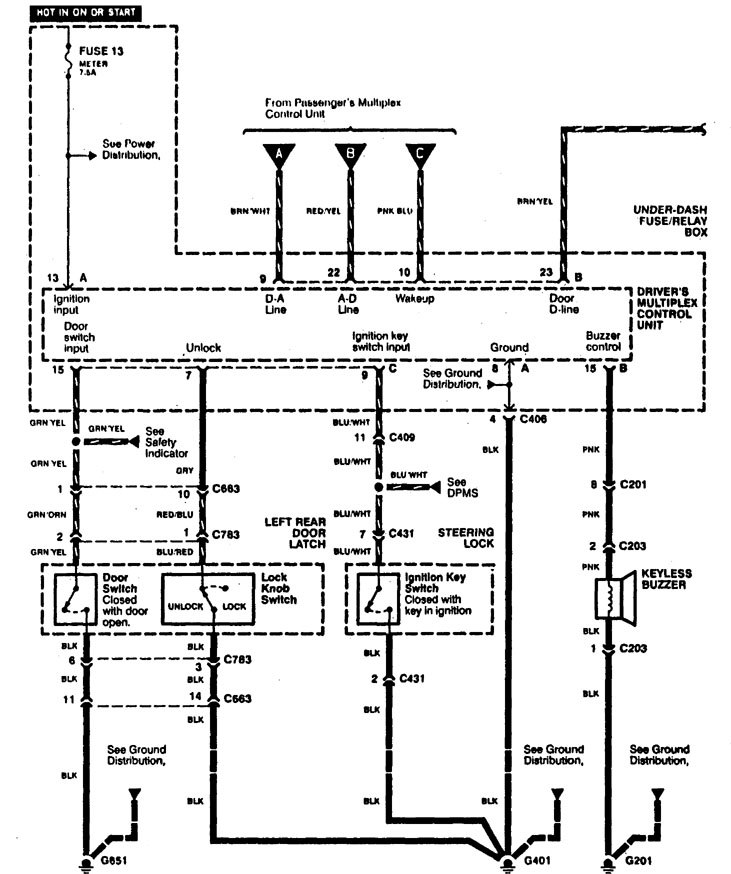

Acura RL - wiring diagram - power locks (part 3)
Acura RL – wiring diagram – power locks (part 3)

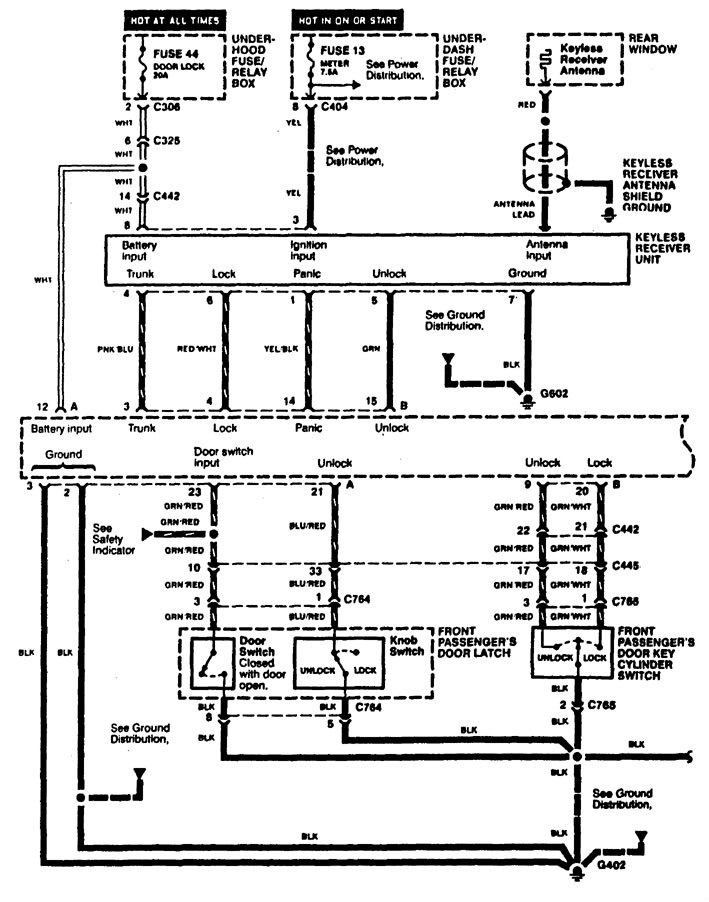

Acura RL - wiring diagram - power locks (part 4)
Acura RL – wiring diagram – power locks (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
