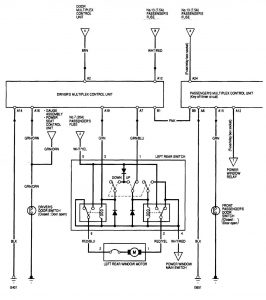

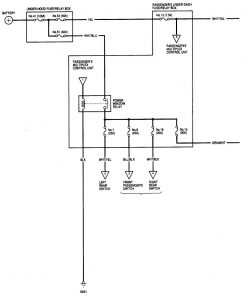

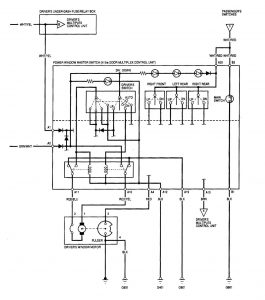

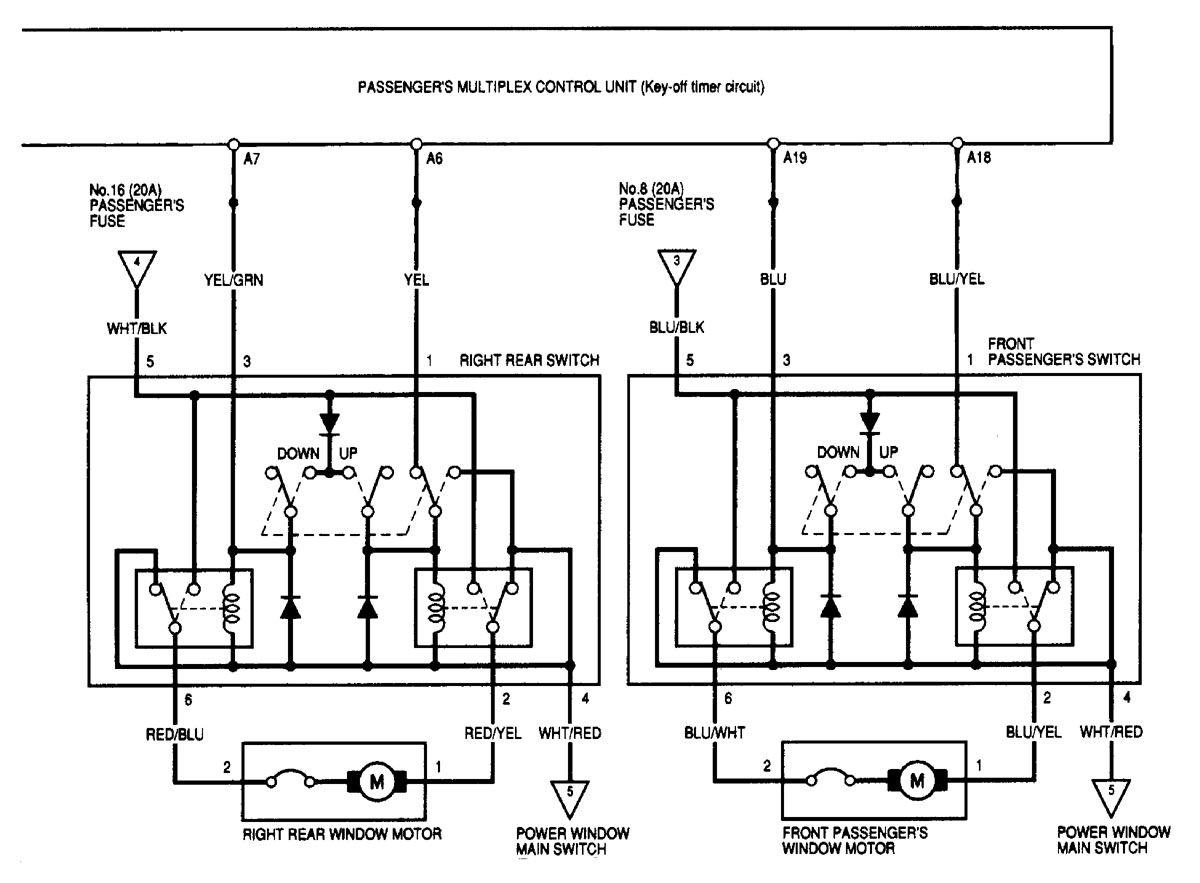

Acura MDX (2001) – wiring diagrams – power windows

Mercedes-Benz 300E (1990 – 1991) – wiring diagrams – ground distribution Year of productions:  1990 Ground distribution Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment […]

Mercedes-Benz 400E (1992 – 1993) – wiring diagrams – ignition Year of productions:  1992, 1993 Ignition Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, […]

Volvo F12, F16 – wiring diagram -interior light, L1H1/L2H1, alarm clock/timer Year of production: WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
