Acura Legend (1988) – wiring system – computer data lines

Acura Legend (1988) – wiring system – computer data lines

Year of productions:  1988

Computer data lines

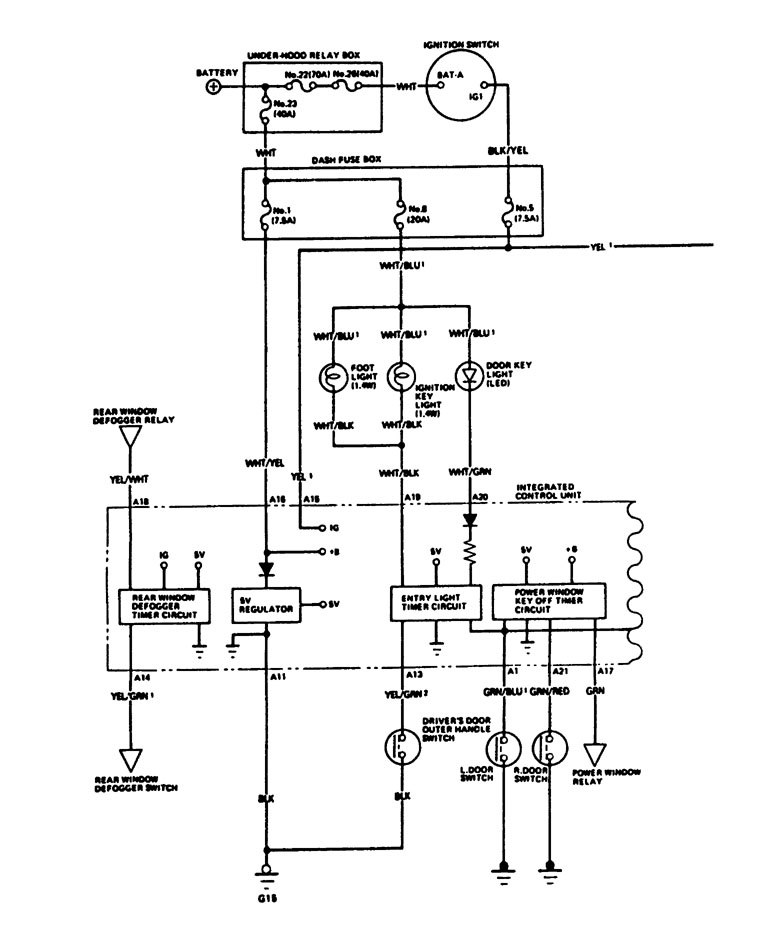

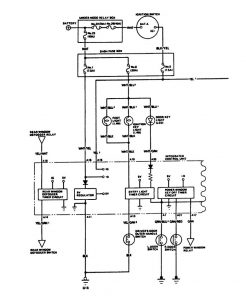

Acura Legend – wiring diagram – computer data lines (part 1)

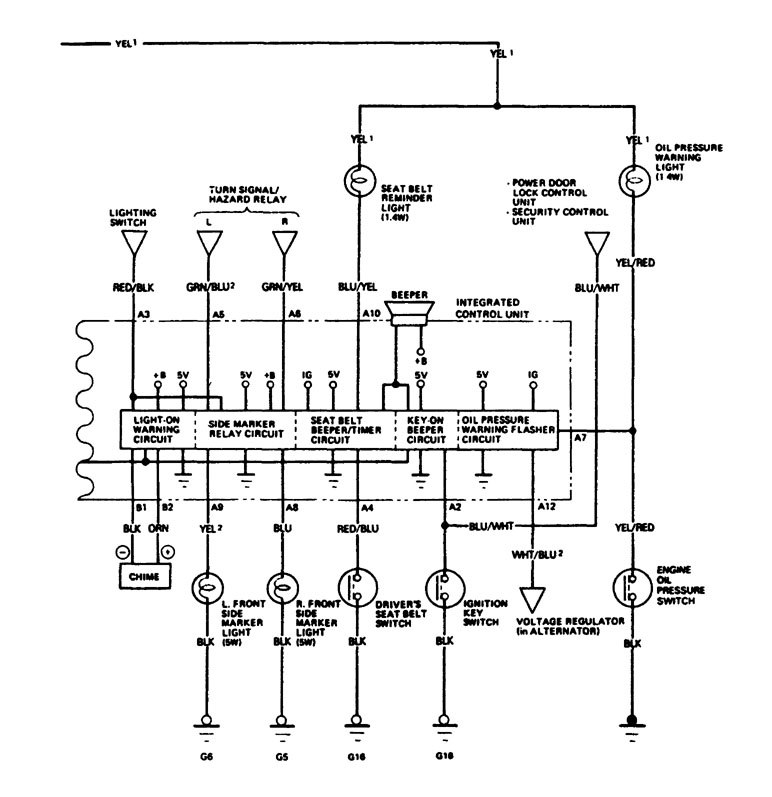

Acura Legend – wiring diagram – computer data lines (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
