Acura Integra (2000 – 2001) – wiring diagrams – interior lighting

Acura Integra (2000 – 2001) – wiring diagrams – interior lighting

Year of productions: 2000, 2001

Interior lighting

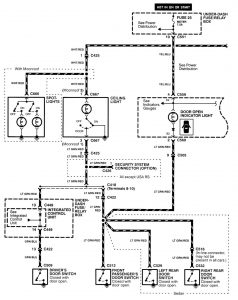

Acura Integra - wiring diagram - interior lighting (part 1)
Acura Integra – wiring diagram – interior lighting (part 1)

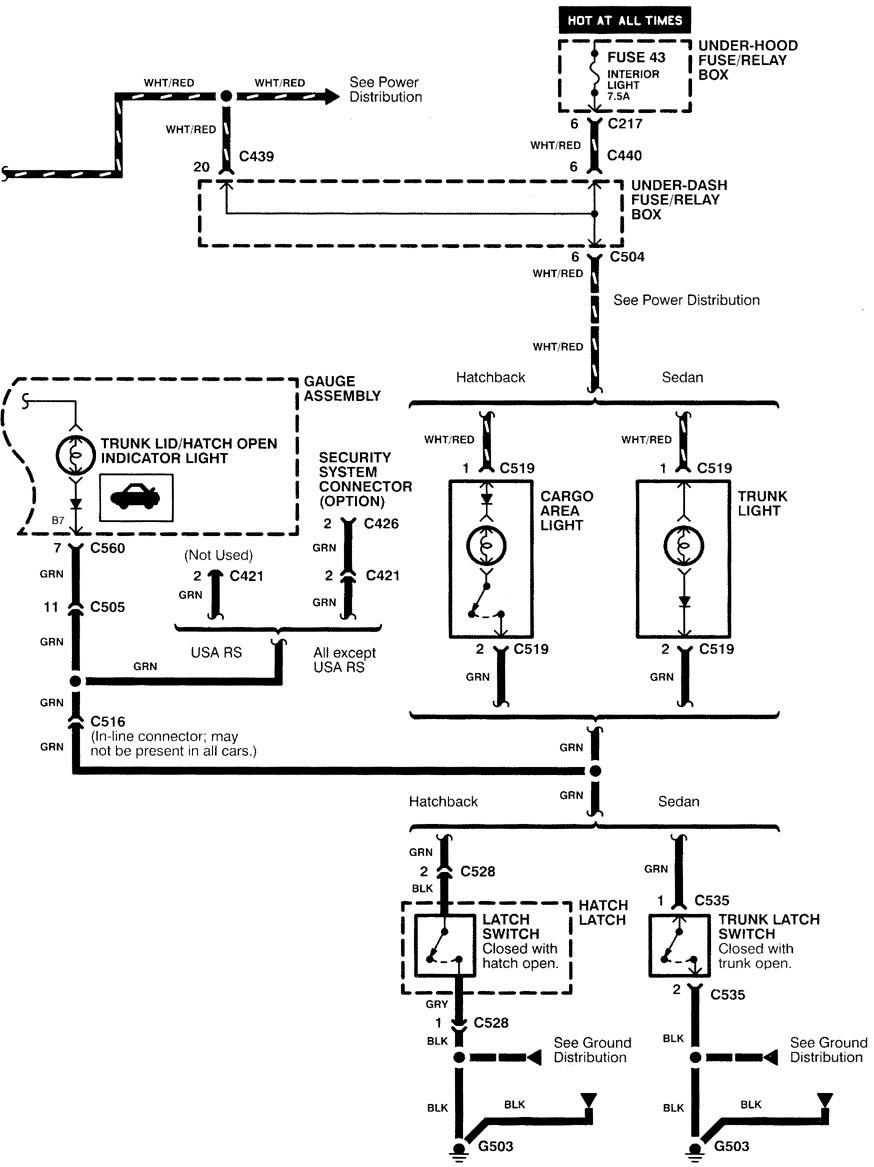

Acura Integra - wiring diagram - interior lighting (part 2)
Acura Integra – wiring diagram – interior lighting (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
