Acura Integra (1998 – 2001) – wiring diagrams – headlamp switch

Acura Integra (1998 – 2001) – wiring diagrams – headlamp switch

Year of productions: 1998, 1999, 2000, 2001

Headlamp switch

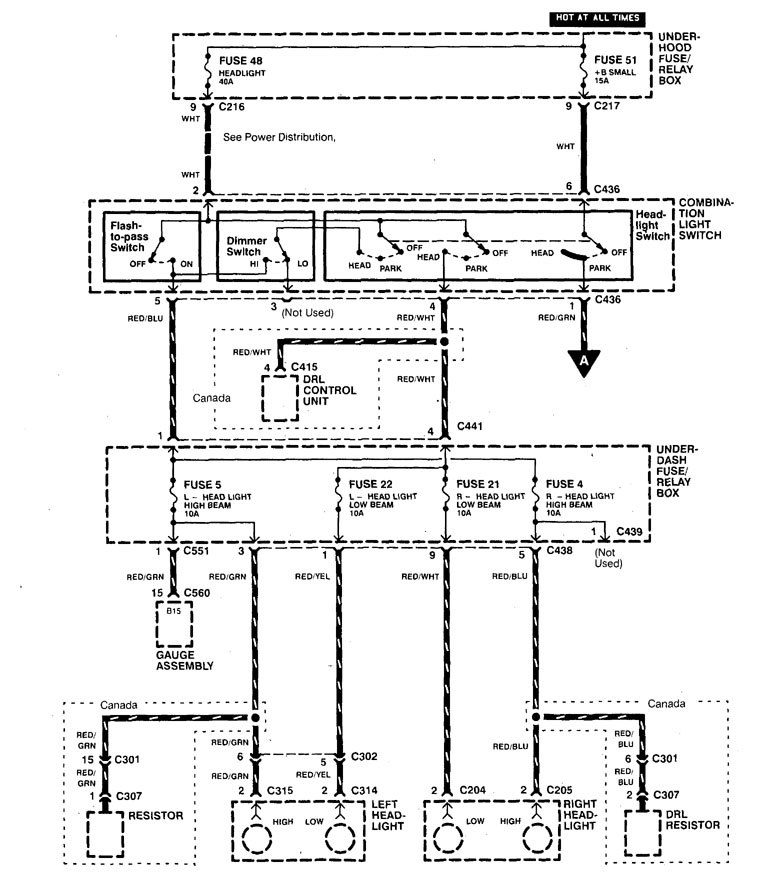

Acura Integra - wiring diagram - headlamp switch (part 1)
Acura Integra – wiring diagram – headlamp switch (part 1)

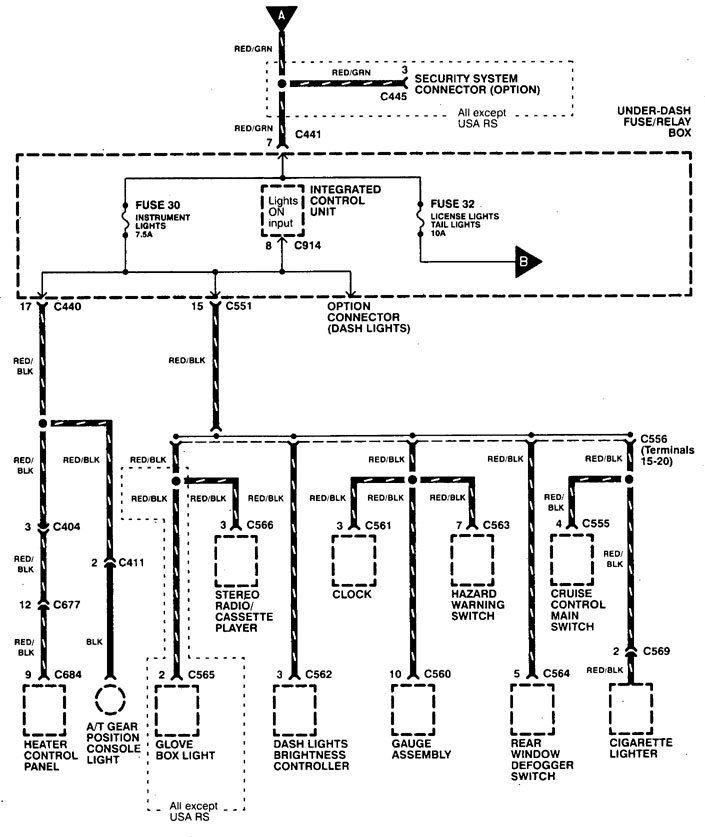

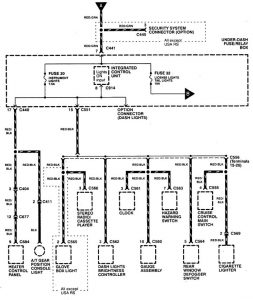

Acura Integra - wiring diagram - headlamp switch (part 2)
Acura Integra – wiring diagram – headlamp switch (part 2)

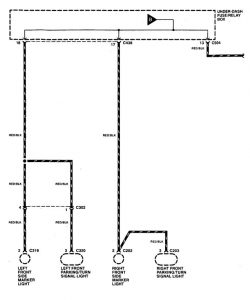

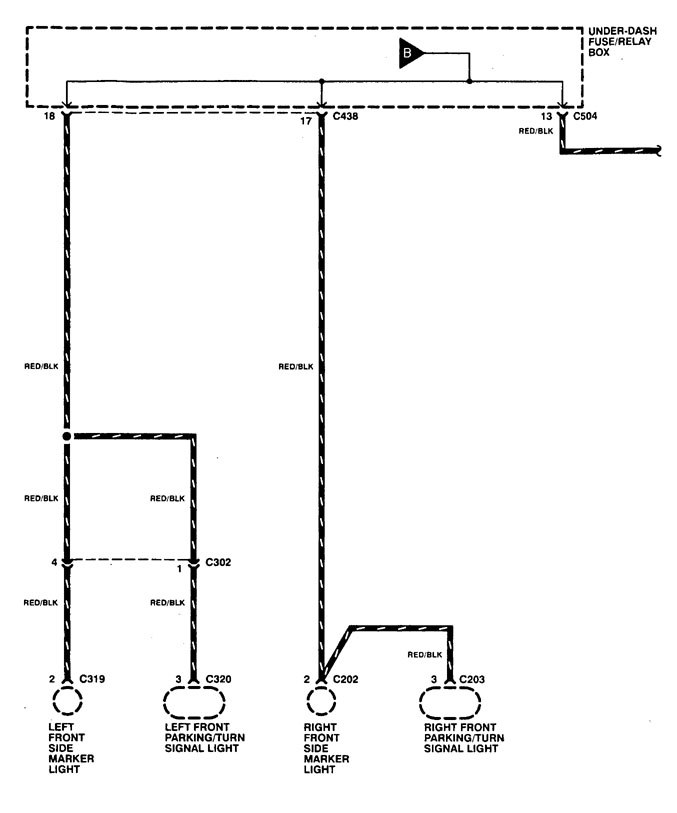

Acura Integra - wiring diagram - headlamp switch (part 3)
Acura Integra – wiring diagram – headlamp switch (part 3)

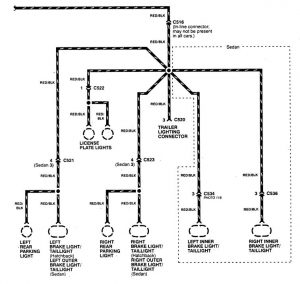

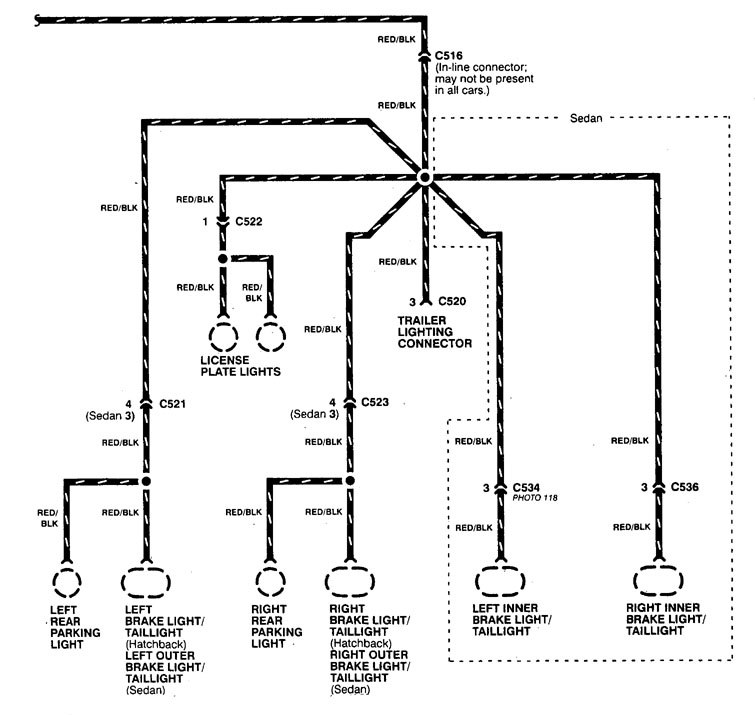

Acura Integra - wiring diagram - headlamp switch (part 4)
Acura Integra – wiring diagram – headlamp switch (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
