Acura Integra (1994) – wiring diagrams – tail lamp

Acura Integra (1994) – wiring diagrams – tail lamp

Year of productions: 1994

Tail lamp

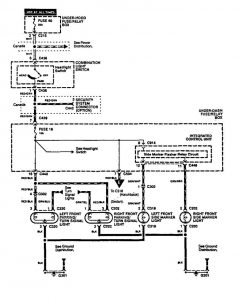

Version 1

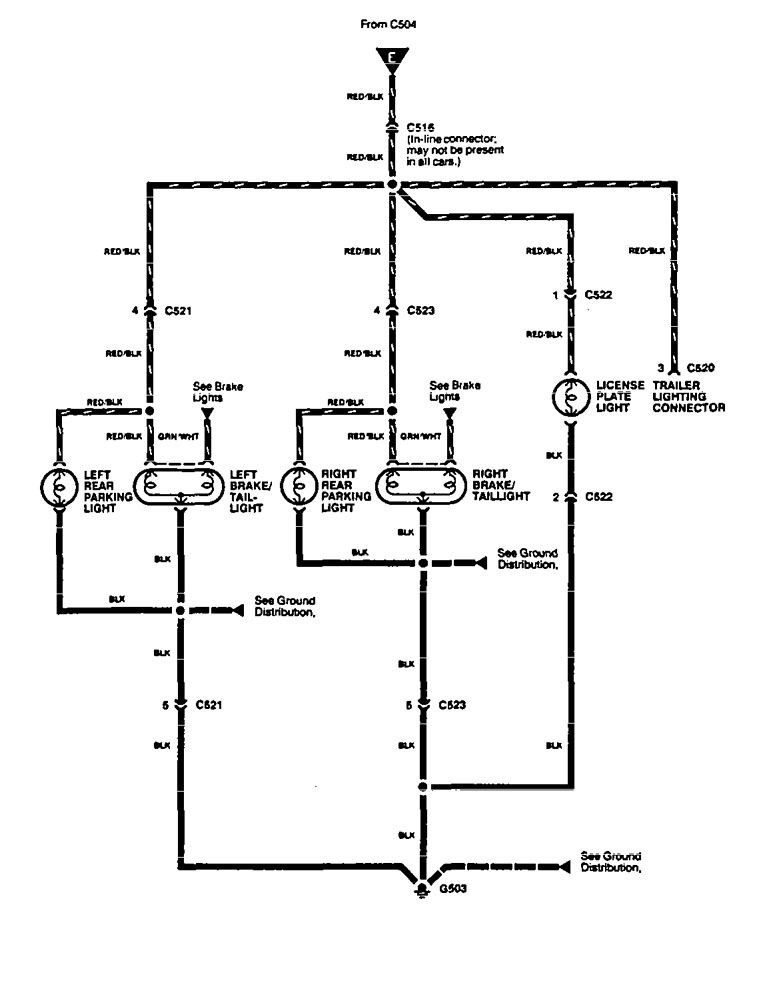

Version 2

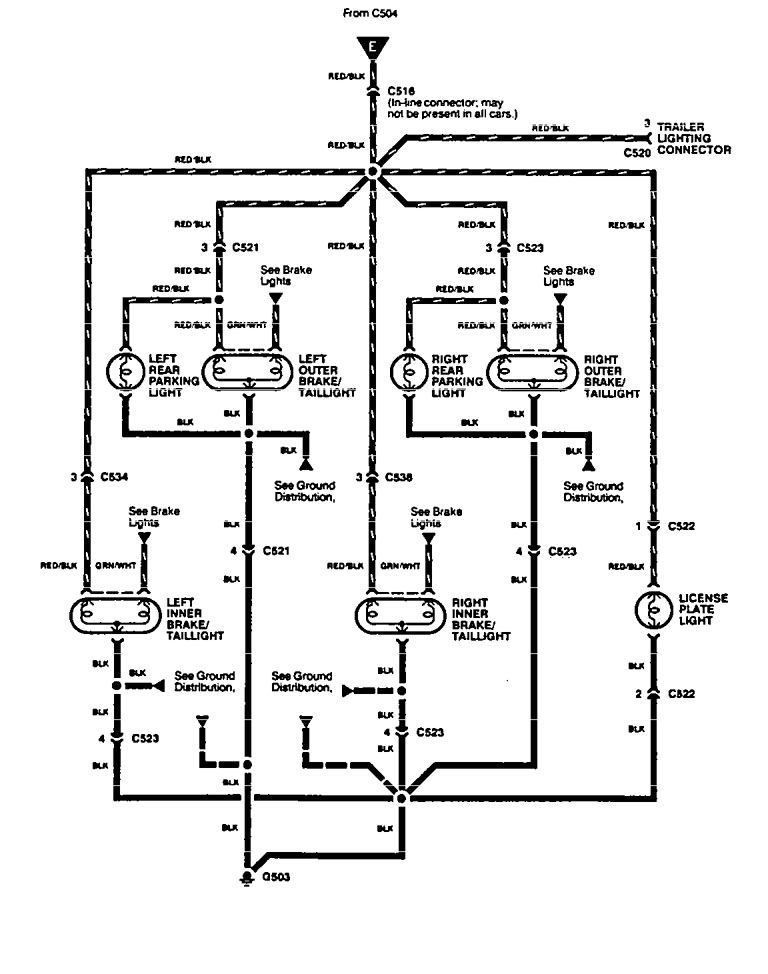

Version 3

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
