Acura Integra (1994) – wiring diagrams – air bags

Acura Integra (1994) – wiring diagrams – air bags

Year of productions: 1994

Air bags

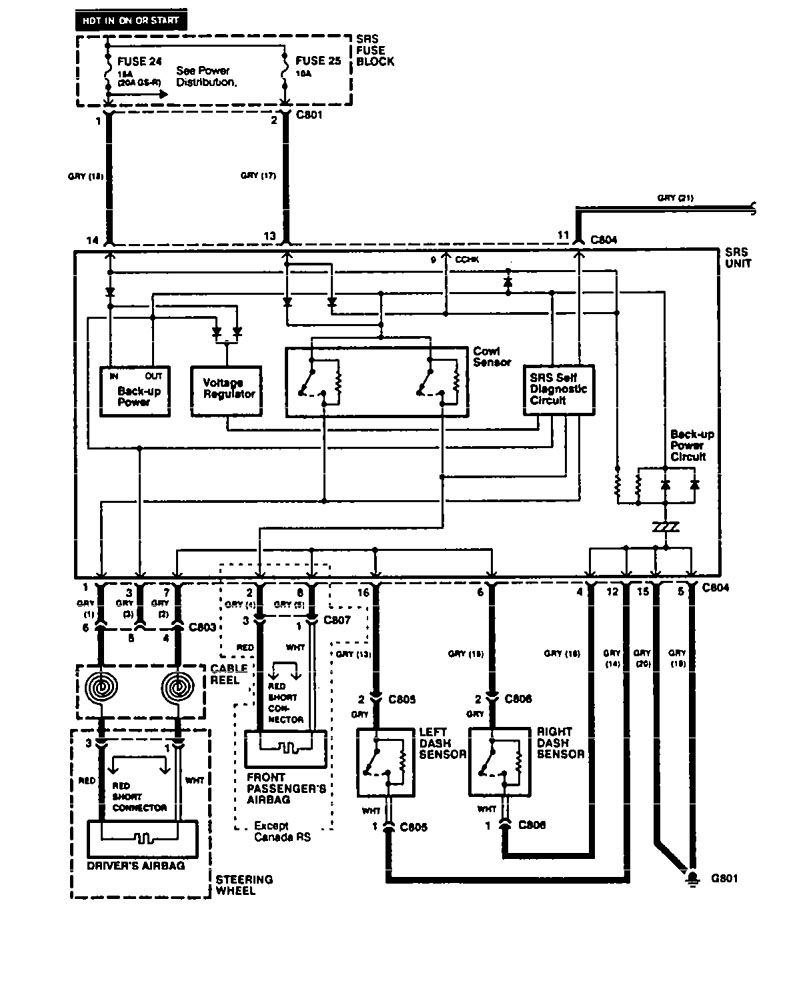

Acura Integra – wiring diagram – air bags (part 1)

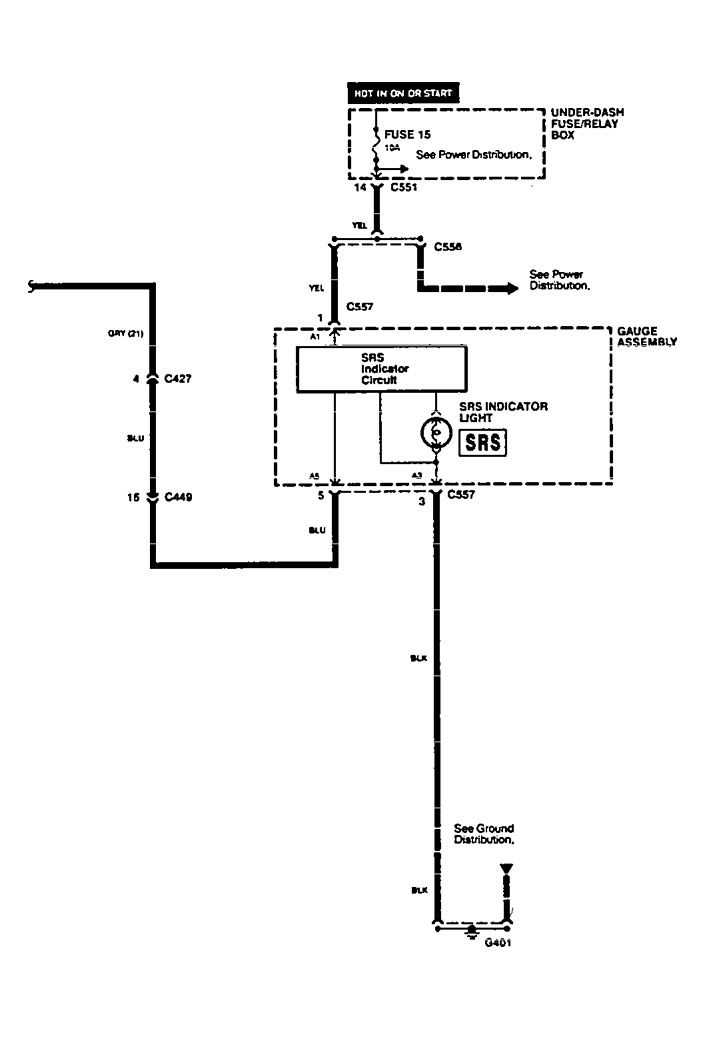

Acura Integra – wiring diagram – air bags (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
