Acura Integra (1994 – 1997) – wiring diagrams – power locks

Acura Integra (1994 – 1997) – wiring diagrams – power locks

Year of productions: 1994, 1995, 1996, 1997

Power locks

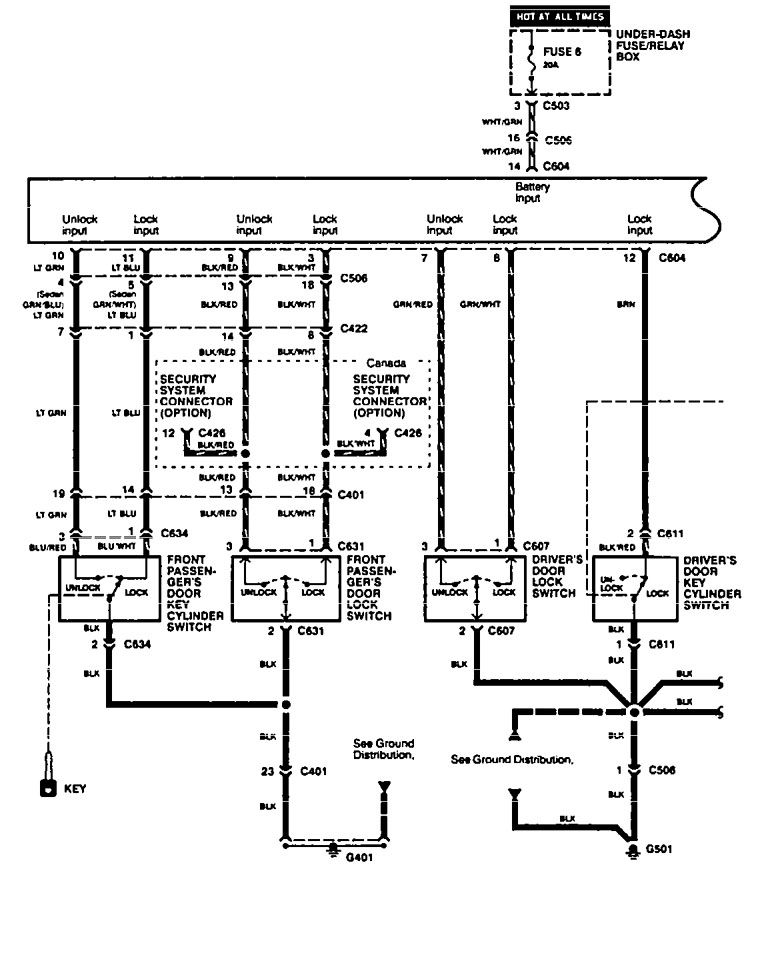

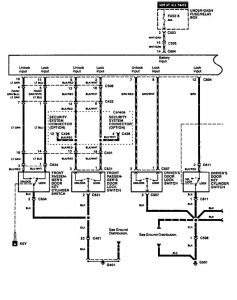

Acura Integra – wiring diagram – power locks (part 1)

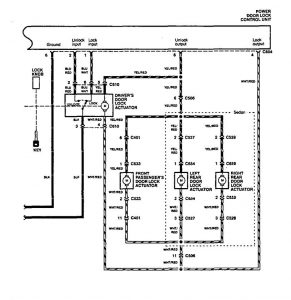

Acura Integra – wiring diagram – power locks (part 2)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
