Acura Integra (1994 – 1997) – wiring diagrams – audio system

Acura Integra (1994 – 1997) – wiring diagrams – audio system

Year of productions: 1994, 1995, 1996, 1997

Audio system

Version 1

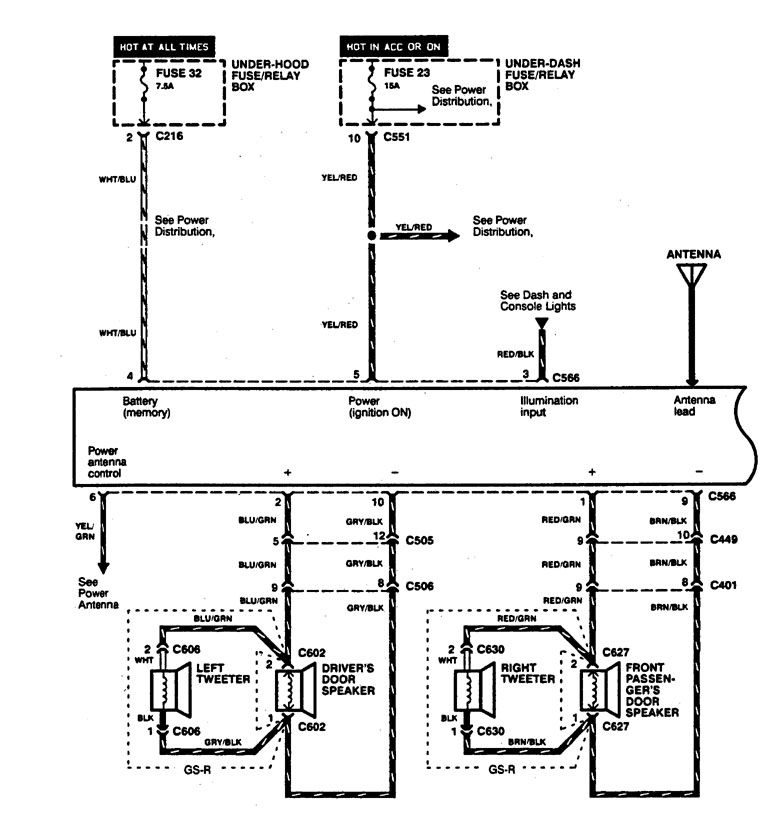

Acura Integra – wiring diagram – audio system (part 1)

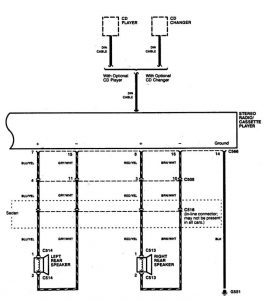

Acura Integra – wiring diagram – audio system (part 2)

Version 2

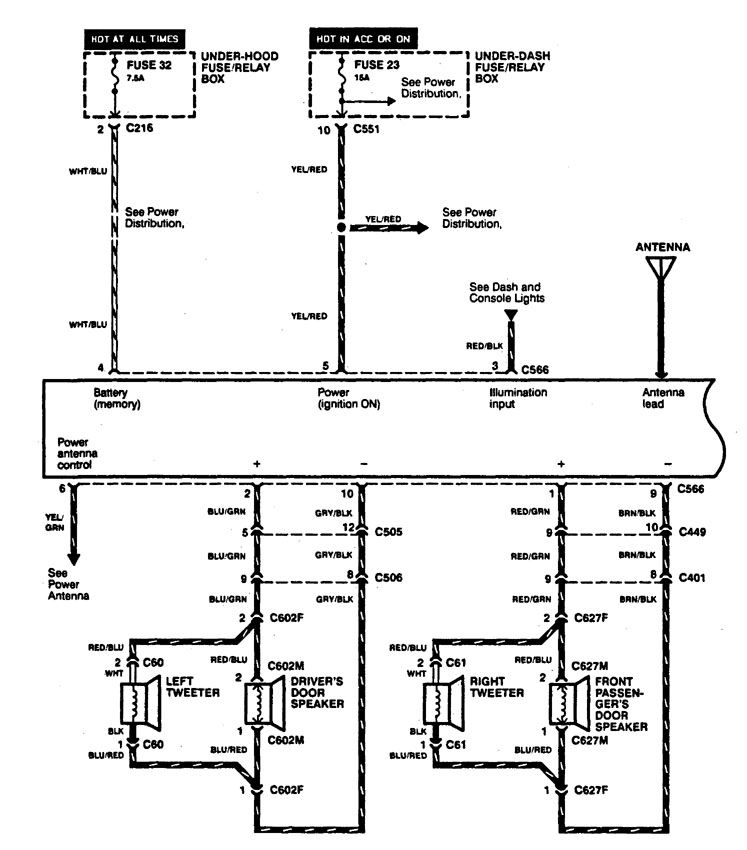

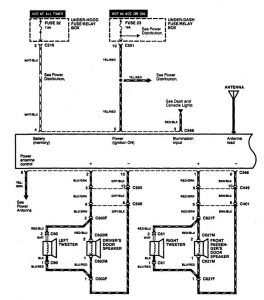

Acura Integra – wiring diagram – audio system (part 1)

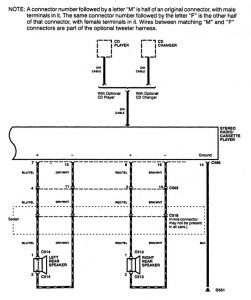

Acura Integra – wiring diagram – audio system (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
