Acura Integra (1993) – wiring diagrams – stop lamp

Acura Integra (1993) – wiring diagrams – stop lamp

Year of productions: 1993

Stop lamp

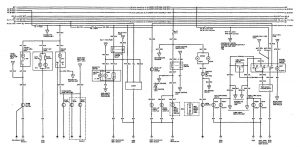

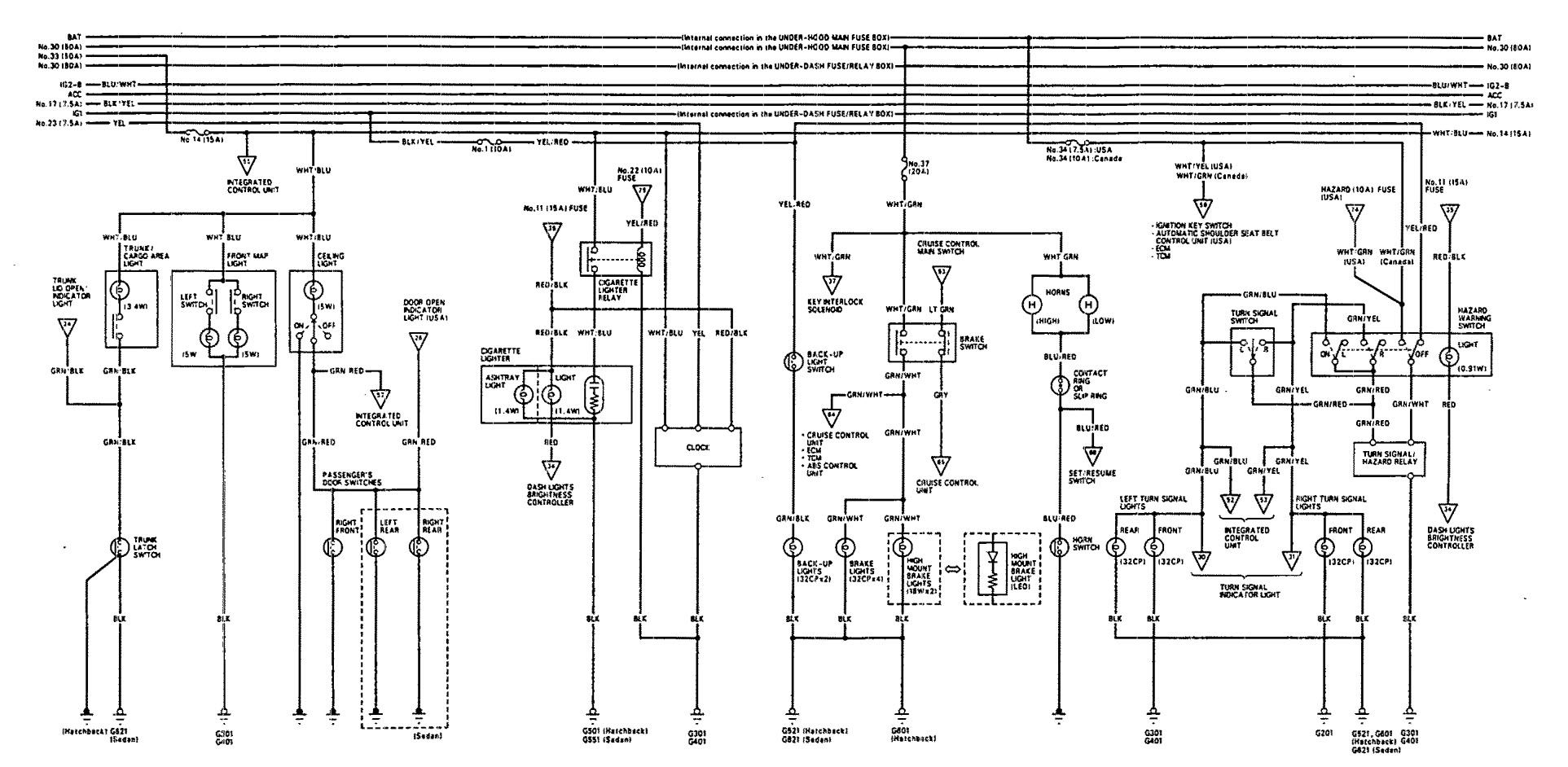

Acura Integra – wiring diagram – stop lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
