Acura Integra (1990) – wiring diagrams – turn signal lamp

Acura Integra (1990) – wiring diagrams – turn signal lamp

Year of productions: 1990

Turn signal lamp

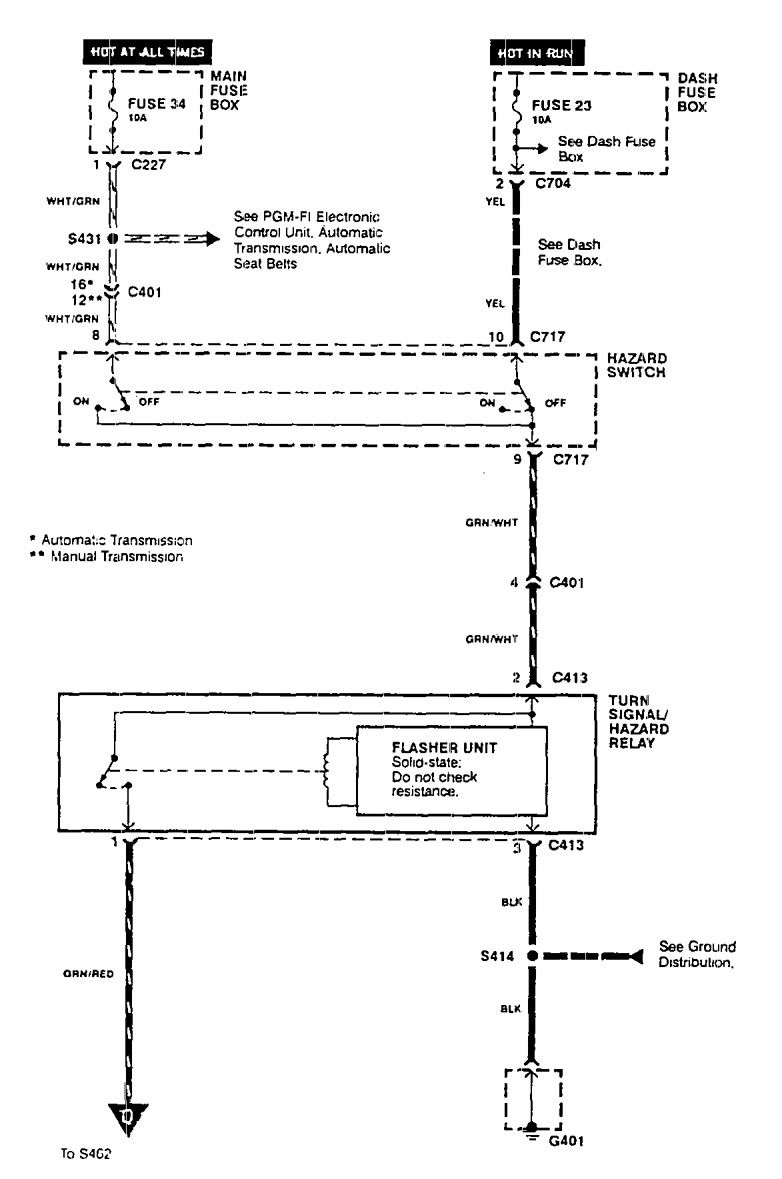

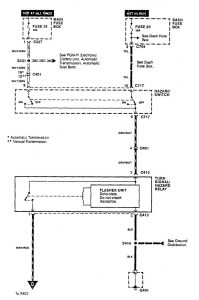

Acura Integra – wiring diagram – turn signal lamp

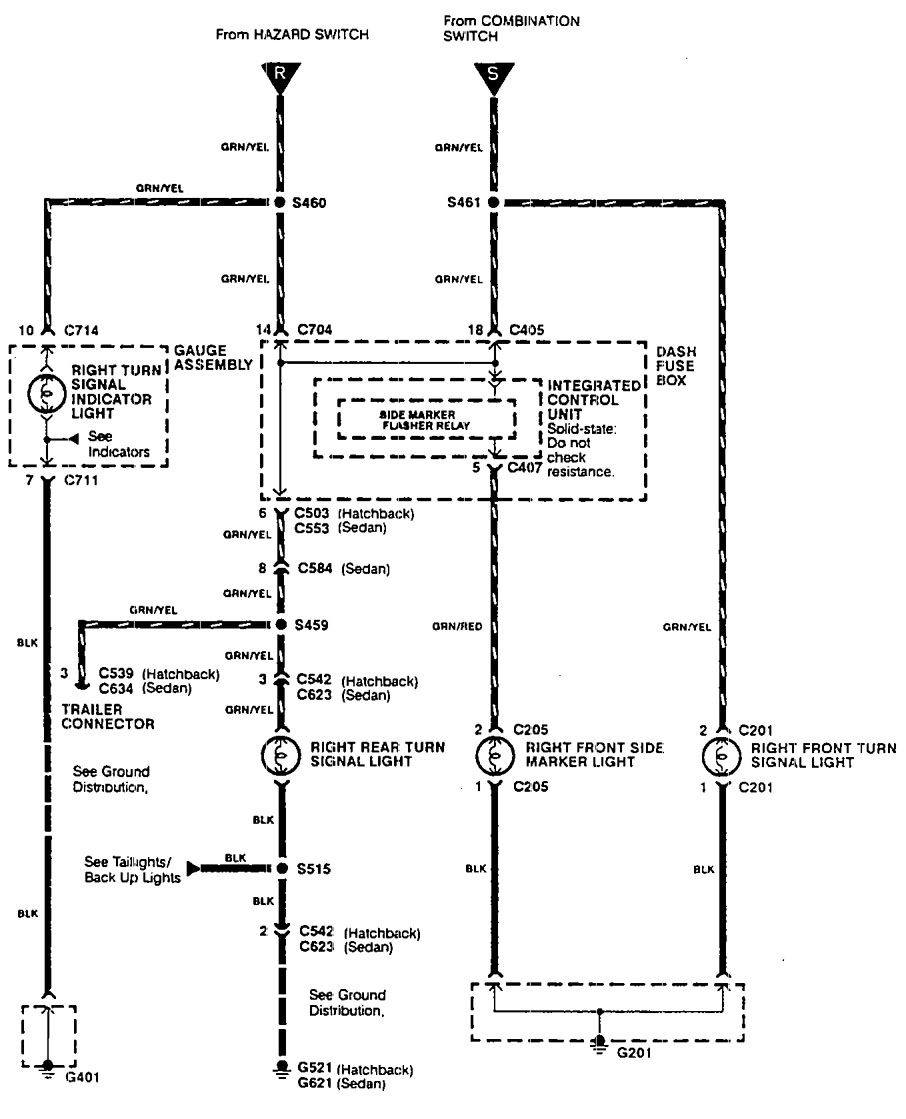

Acura Integra – wiring diagram – turn signal lamp

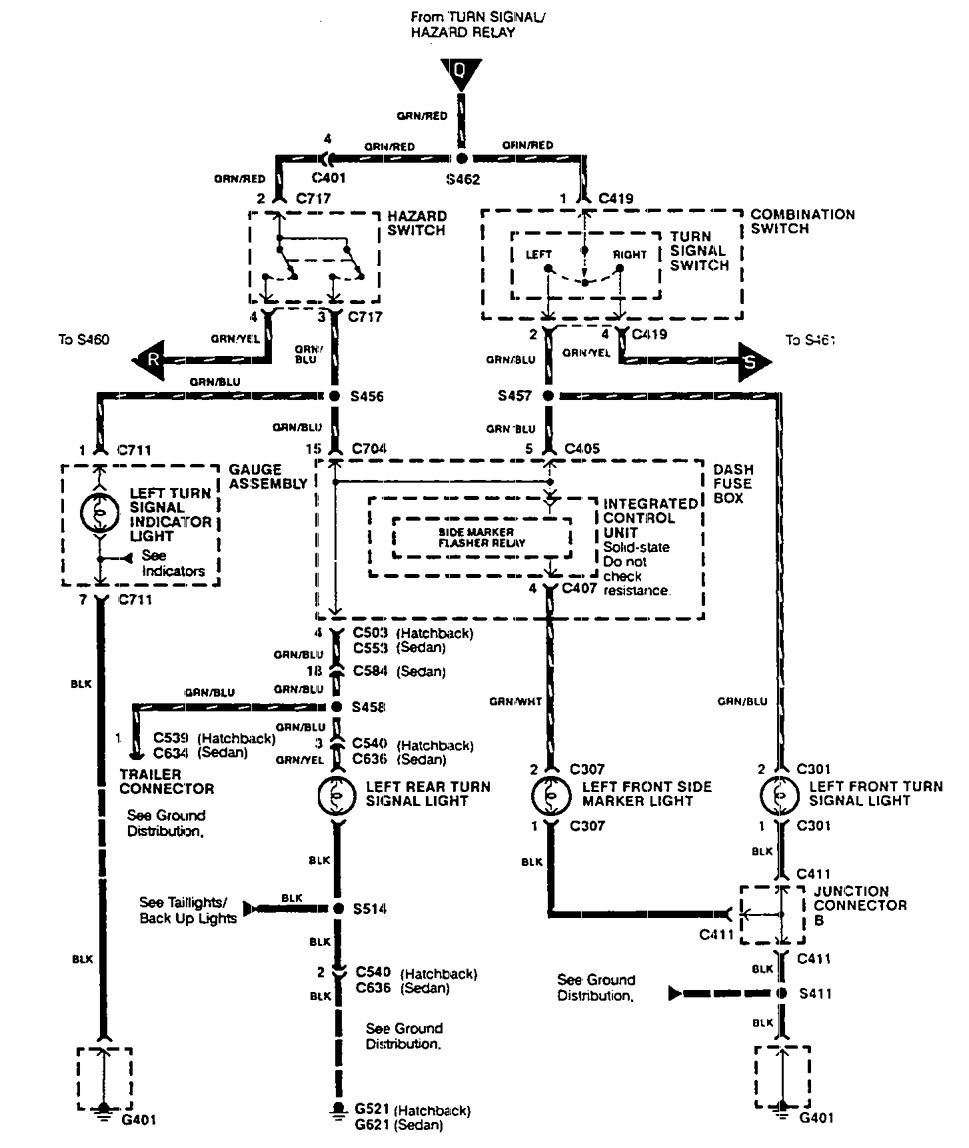

Acura Integra – wiring diagram – turn signal lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
