Acura Integra (1990) – wiring diagrams – side marker lamp

Acura Integra (1990) – wiring diagrams – side marker lamp

Year of productions: 1990

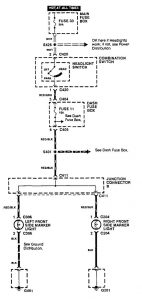

Side marker lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
