Volvo V70 (1998 – 1999) – wiring diagrams – horn

Volvo V70 (1998 – 1999) – wiring diagrams – horn

Year of productions:  1998, 1999

Horn

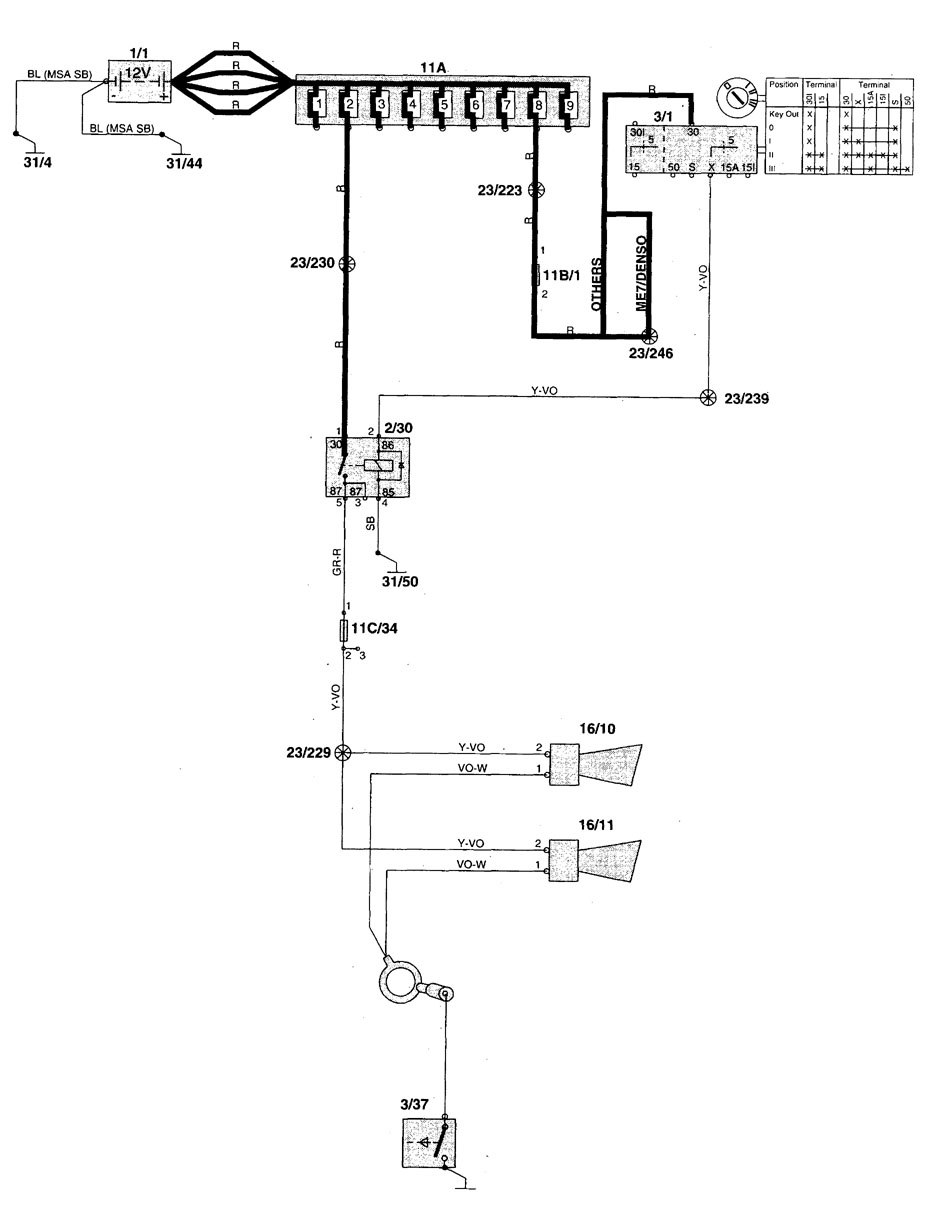

Volvo V70 - wiring diagram - horn
Volvo V70 – wiring diagram – horn
Volvo V70 - wiring diagram - component id (part 1)
Volvo V70 – wiring diagram – component id (part 1)
Volvo V70 - wiring diagram - component id (part 2)
Volvo V70 – wiring diagram – component id (part 2)
Volvo V70 - wiring diagram - component id (part 3)
Volvo V70 – wiring diagram – component id (part 3)
Volvo V70 - wiring diagram - component id (part 4)
Volvo V70 – wiring diagram – component id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
