Volvo 960 (1992 – 1994) – wiring diagrams – wiper/washer

Volvo 960 (1992 – 1994) – wiring diagrams – wiper/washer

Year of productions:  1992, 1993, 1994

Wiper/washer

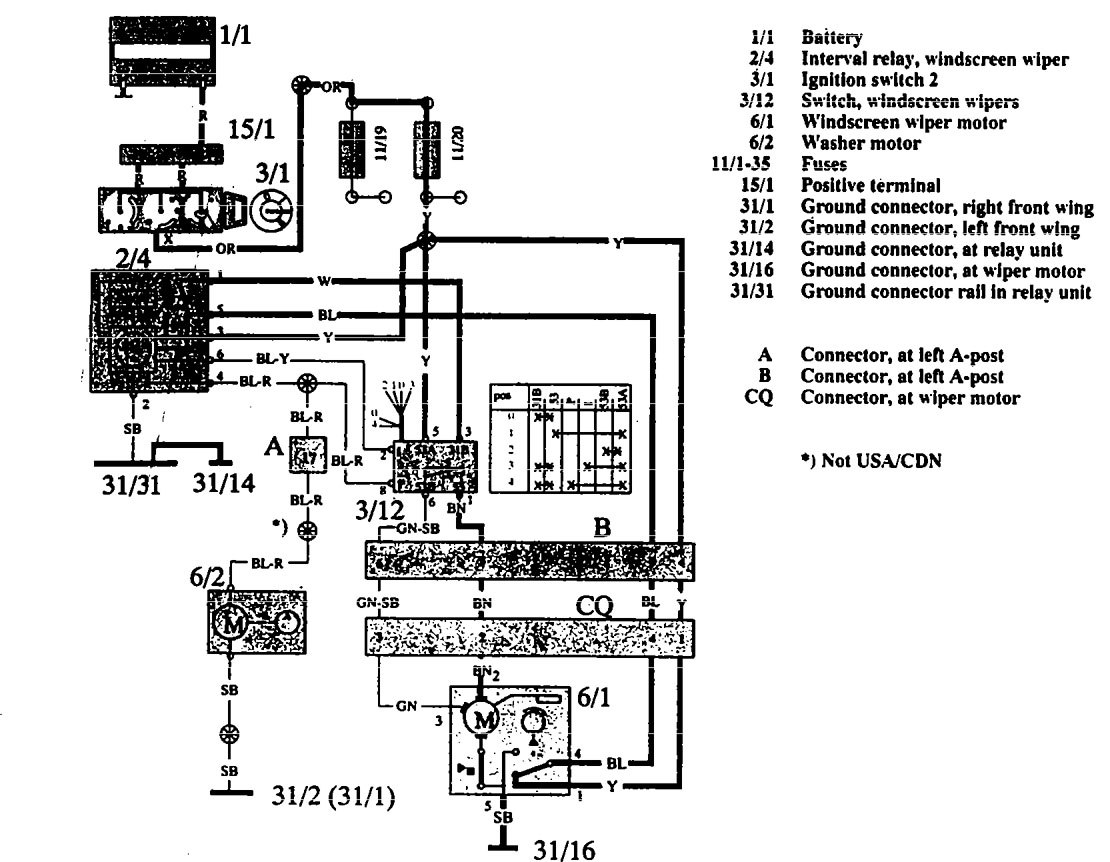

Volvo 960 - wiring diagram - wiper/washer (part 1)
Volvo 960 – wiring diagram – wiper/washer (part 1)

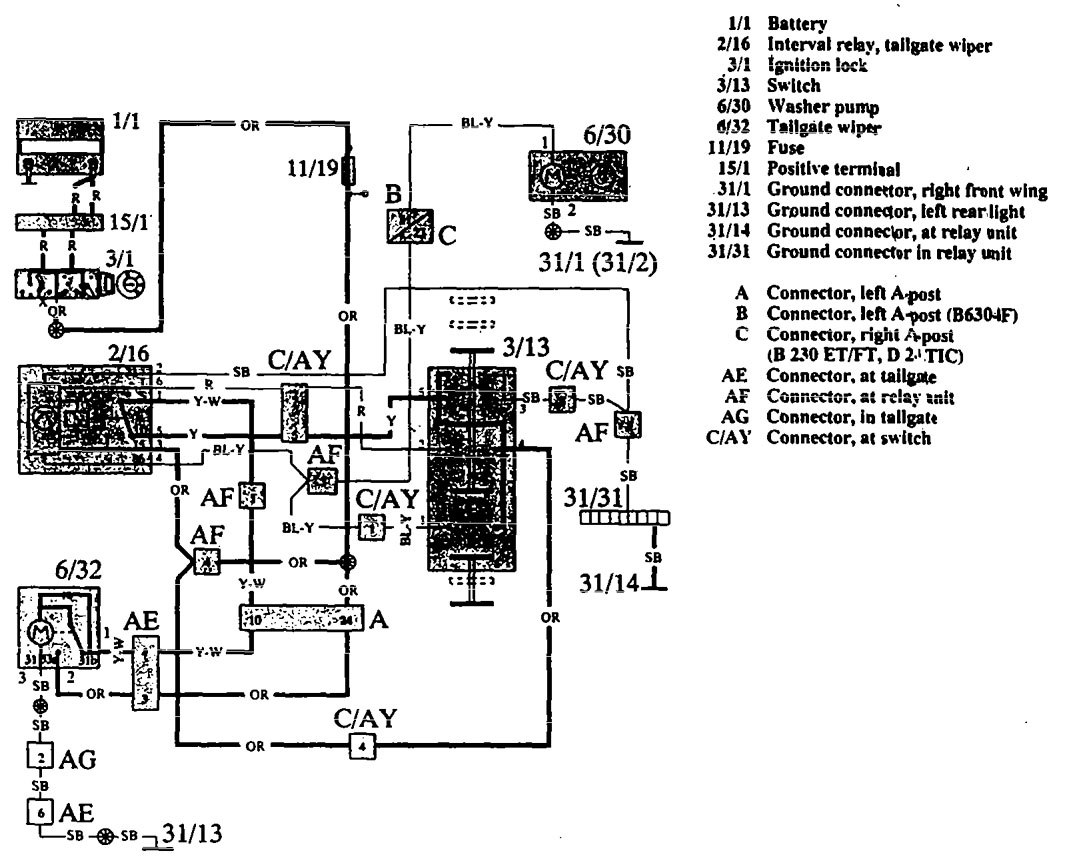

Volvo 960 - wiring diagram - wiper/washer (part 2)
Volvo 960 – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
